User Manual for Tiertime UP mini 2 ES 3D Printer Click to enlarge the picture
Contents of the user manual for the Tiertime UP mini 2 ES 3D
- Product category: 3D Printers Tiertime
- Brand: Tiertime
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiertime 3D Printers
 |
User manual for the Tiertime UP mini 2 ES 3D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiertime product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiertime user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiertime product will considerably shorten its lifespan!
|
Product description With a build volume of 4.7 x 4.7 x 4.7", the Tiertime UP mini 2 ES 3D Printer features a layer resolution of 150 to 350 microns. It also features Melted Extrusion Modelling (MEM) technology as well as a HEPA and activated carbon filter to filter effectively reduce toxic elements. This printer uses 1.75mm filaments, such as ABS, ABS+, PLA, TPU, and more. It is stored in an UP filament external spool holder. The single extruder nozzle features automatic nozzle detection. Control print jobs with the integrated 4.3" color LCD touchscreen. You may print your compatible UP3, UPS, TSK, STL, OBJ, 3MF, PLY, OFF, and 3DS files in an enclosed print chamber with a heated perf or flex board. Print via USB, LAN, Wi-Fi, or USB flash drive. - HEPA and Activated Carbon Filter

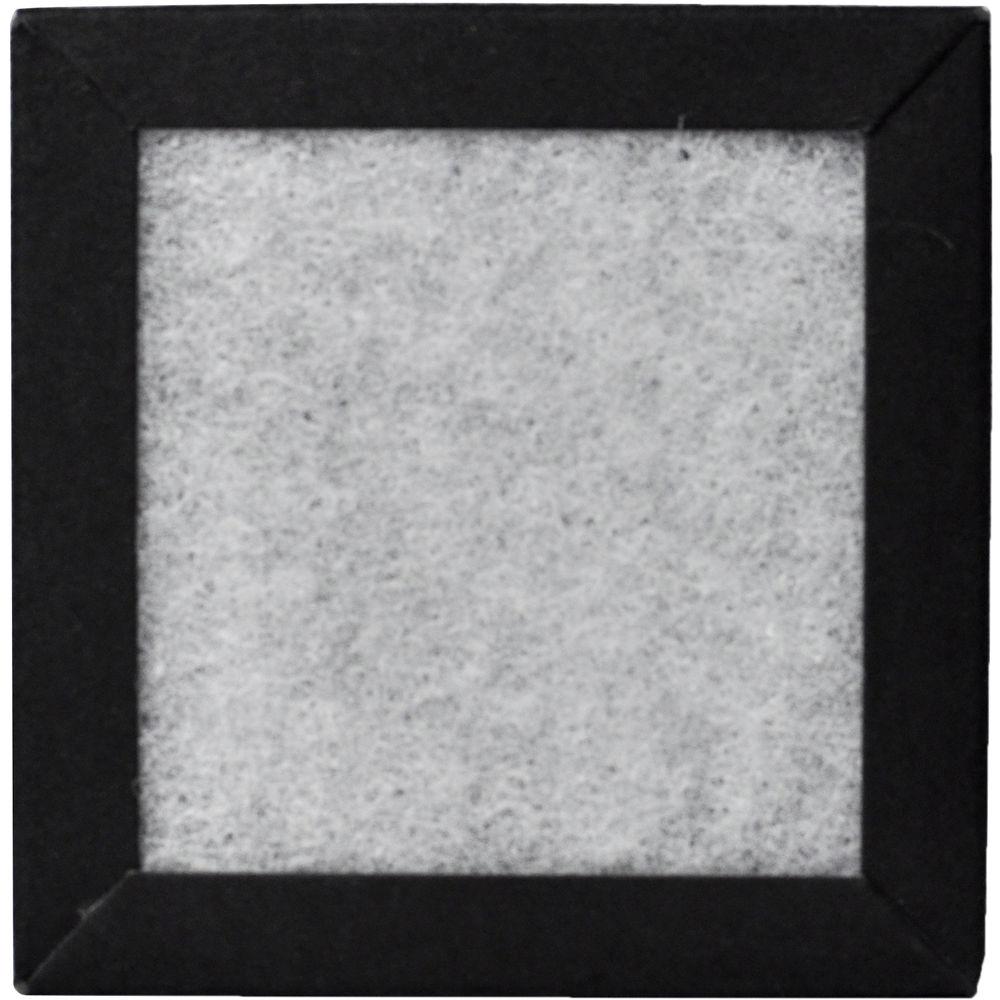

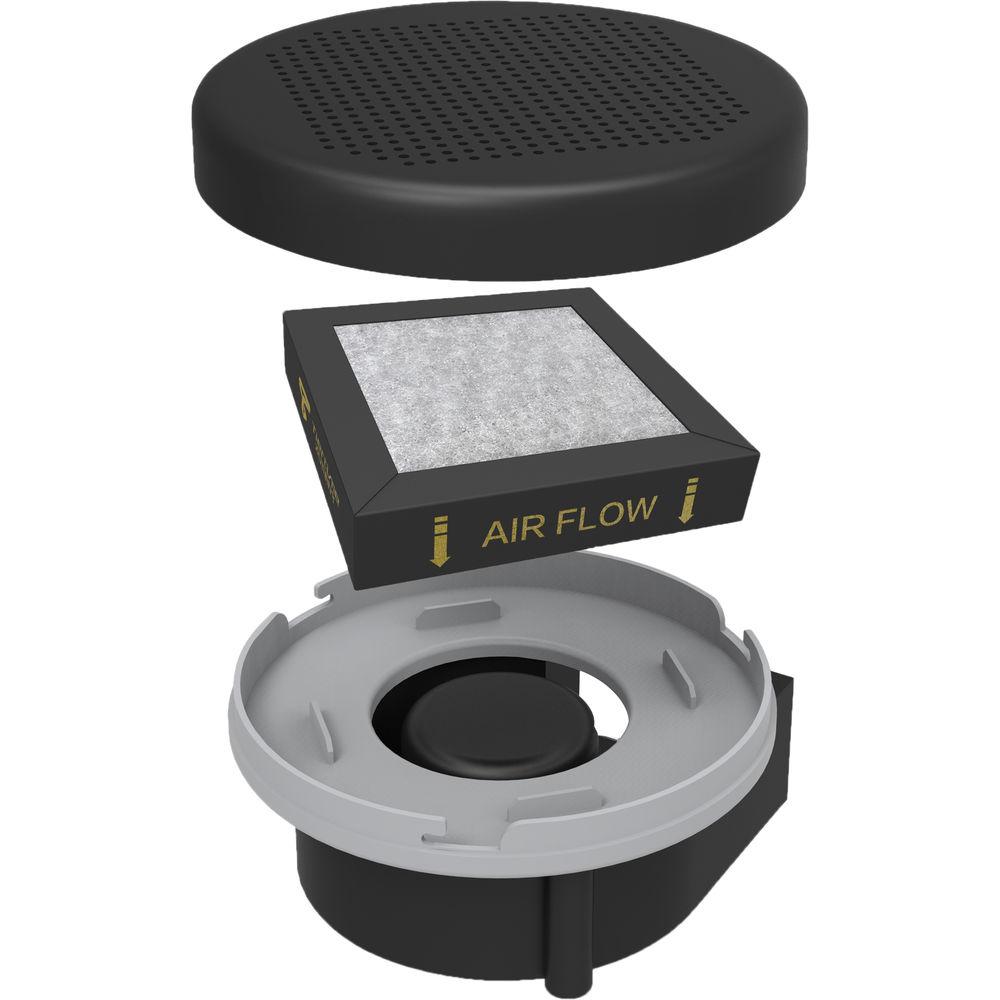

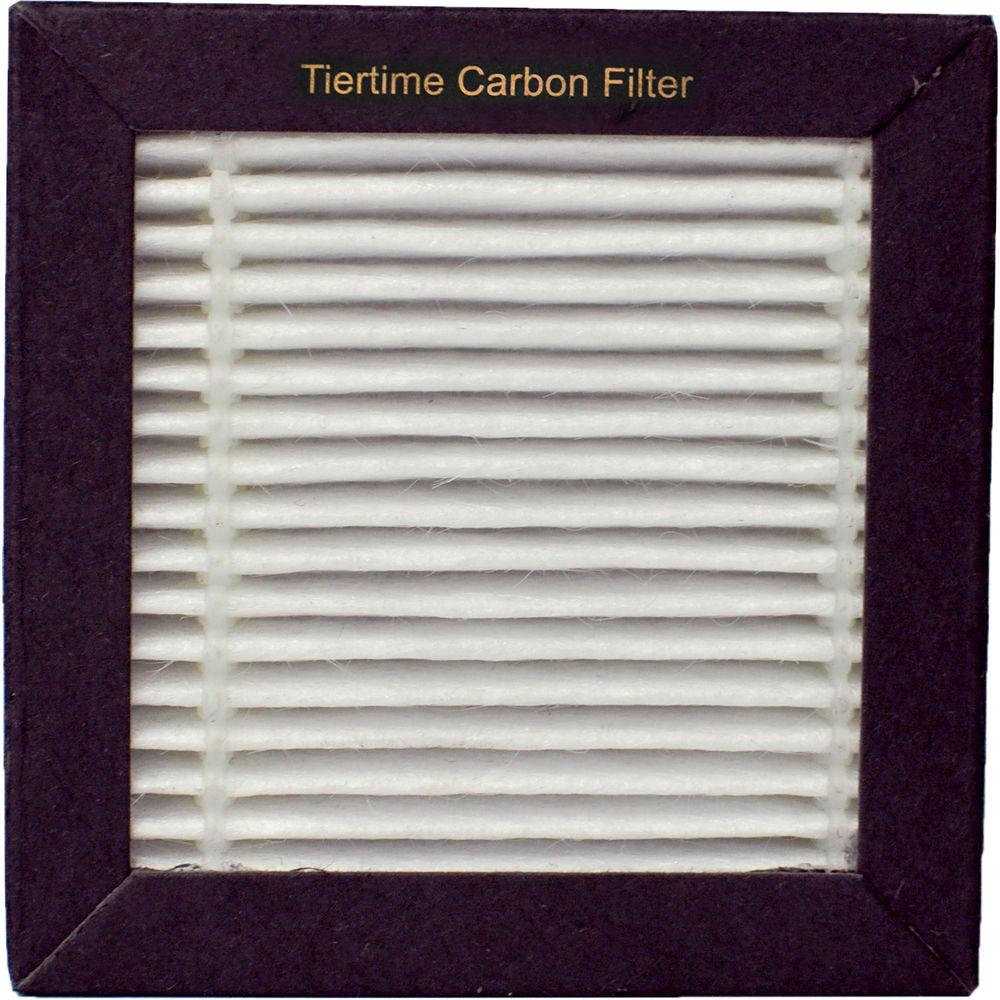

- The HEPA and activated carbon filter helps reduce toxic elements, such as harmful UFP and VOC emissions from ABS filaments.
- Tiertime Print Queue
- This printer can be used with Tiertime print queue, allowing you to use it in office, classroom, and home environments.

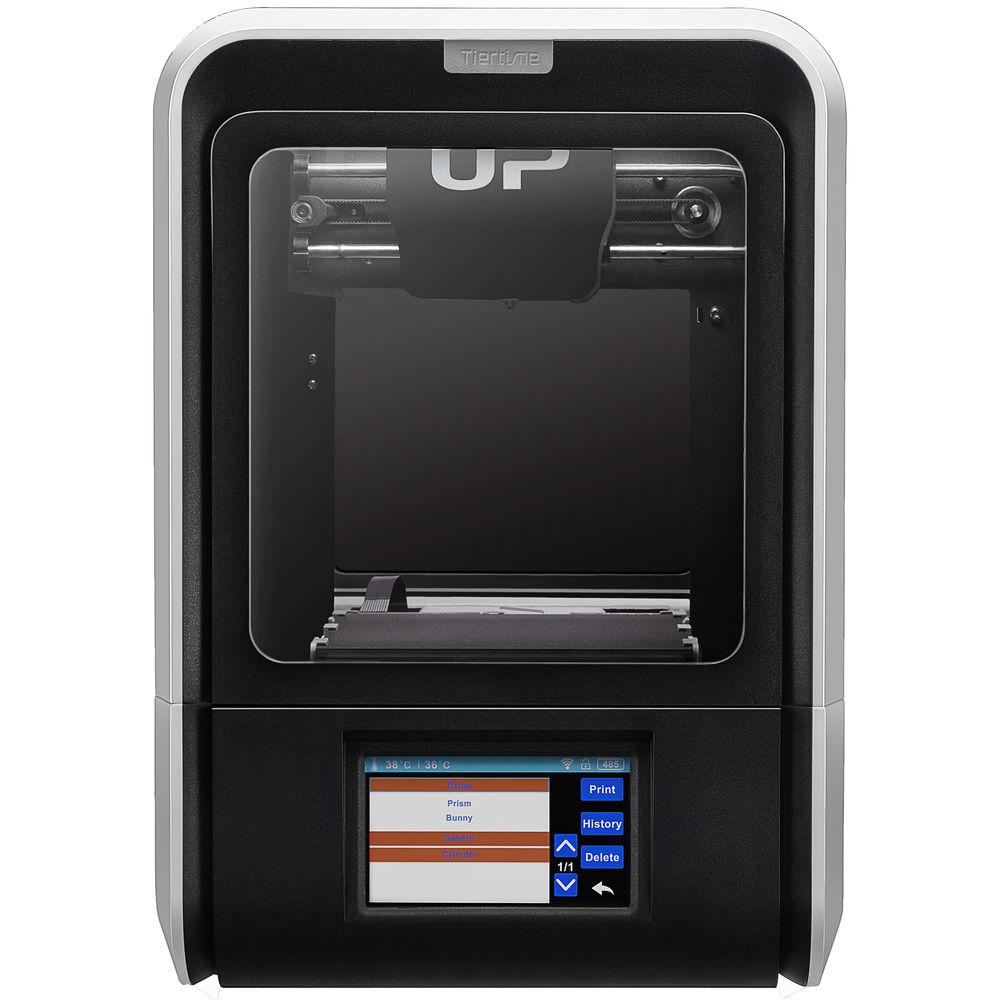

- 4.3" LCD Touchscreen
- Use the 4.3" LCD touchscreen to control your 3D printing job.
- Connectivity
- Print via USB, LAN, Wi-Fi, and USB flash drive.
- Automatically Generated Smart Support
- Use the dedicated UP Studio software to automatically generate Smart Support structures based on mesh surface angle and area. The support and raft generated by the support algorithm can be easily removed by hand or simple tools. For advanced users, UP Studio also provides a support edition function so you can optimize the support structures based on your own preferences in order to save material and reduce post-processing time.
- 9-Point Matrix Leveling
- The UP Studio software sees the build platform as a matrix of nine areas. Each area can be measured independently for its relative platform height. The software is able to remove the height difference between areas by printing a compensating raft under the model, so the final print will be printed on a completely flat surface.
- Dimensional and Squareness Calibration
- This printer has an extra option to correct its prints with software calibration. You can correct the dimensional discrepancy using UP Studio's dimensional calibration feature. The software can also correct the squareness of printer axes, so even when the printer's mechanical structure is compromised, you will still be able to get accurate results easily without tinkering with the hardware.
- Multi-User and Multi-Device
- The Tiertime printing system is designed for multiple users and multiple devices. Many users on the same shared network can send print jobs to the UP mini 2 ES. You can also restrict your printer's access by setting a private password.
UPC: 840942101201 In the Box Tiertime UP mini 2 ES 3D Printer UP ABS Filament (0.5 kg) UP Filament External Spool Holder Bed Scraper Filament Cutter Pair of Heat-Resistant Gloves 2 x UP Perf Boards 2 x UP Flex Boards 0.4mm Nozzle Nozzle Wrench Calibration Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiertime UP mini 2 ES 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiertime UP mini 2 ES Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Melted Extrusion Modelling (MEM) | | Build Volume | 4.7 x 4.7 x 4.7" / 11.9 x 11.94 x 11.9 cm (1 Extruder) | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 150 to 350 micron / 0.15 to 0.35 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 570°F / 299°C | | Positioning Precision | XY Axis: 5 micron / 0.005 mm
Z Axis: 5 micron / 0.005 mm | | Print Speed | 200 mm/s | | Filament Compatibility | 1.75 mm Diameter:

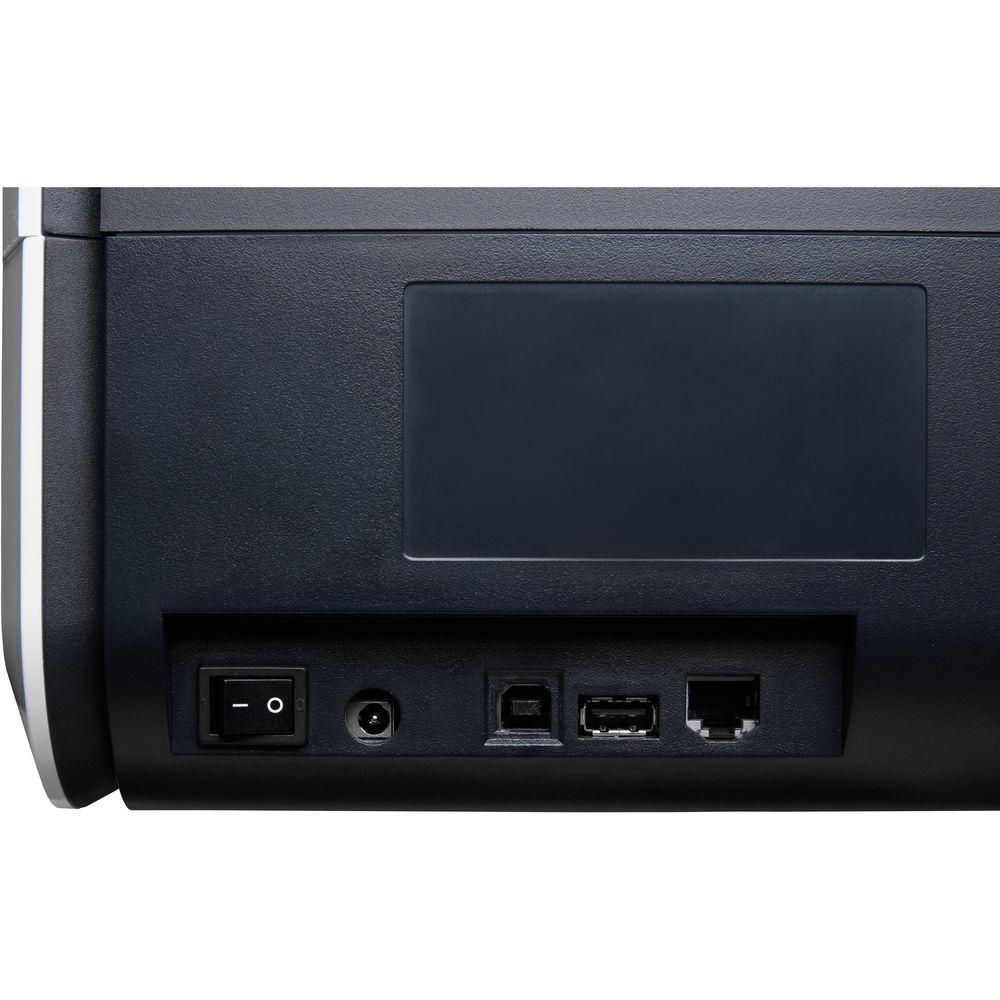

ABS, PLA, TPU | | | | Build Area Type | Enclosed | | Build Plate Features | Heated | | Build Plate Temperature | 158°F / 70°C | | Filament Spool Storage | External | | | | Wired Connections | 1 x RJ45
1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later
macOS X 10.1 | | Supported 3D File Types | .3ds, .3mf, .obj, .off, .ply, .stl, .tsk, .up3, .ups | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 19.3 x 20.5 x 18.1" / 490.22 x 520.7 x 459.74 mm | | Weight | 16.5 lb / 7.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 30.1 lb | | Box Dimensions (LxWxH) | 23.3 x 18.6 x 14.0" |
