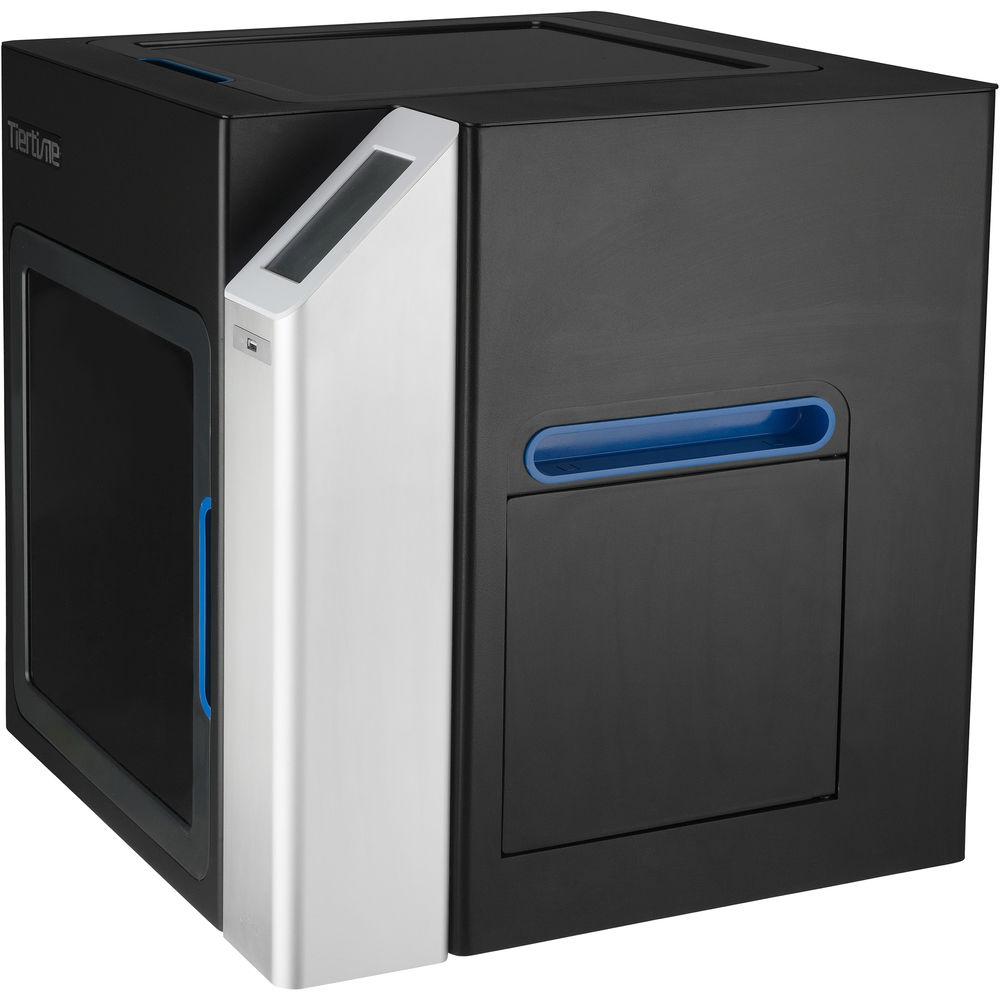

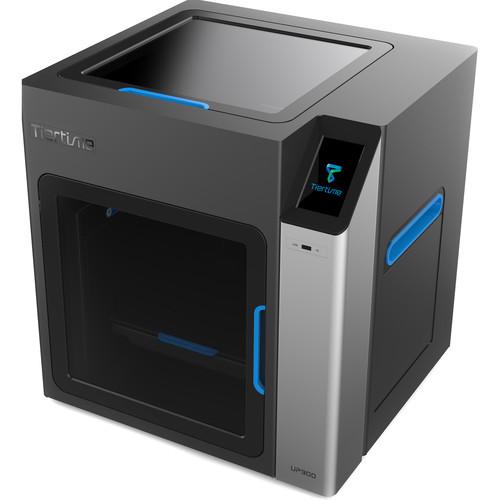

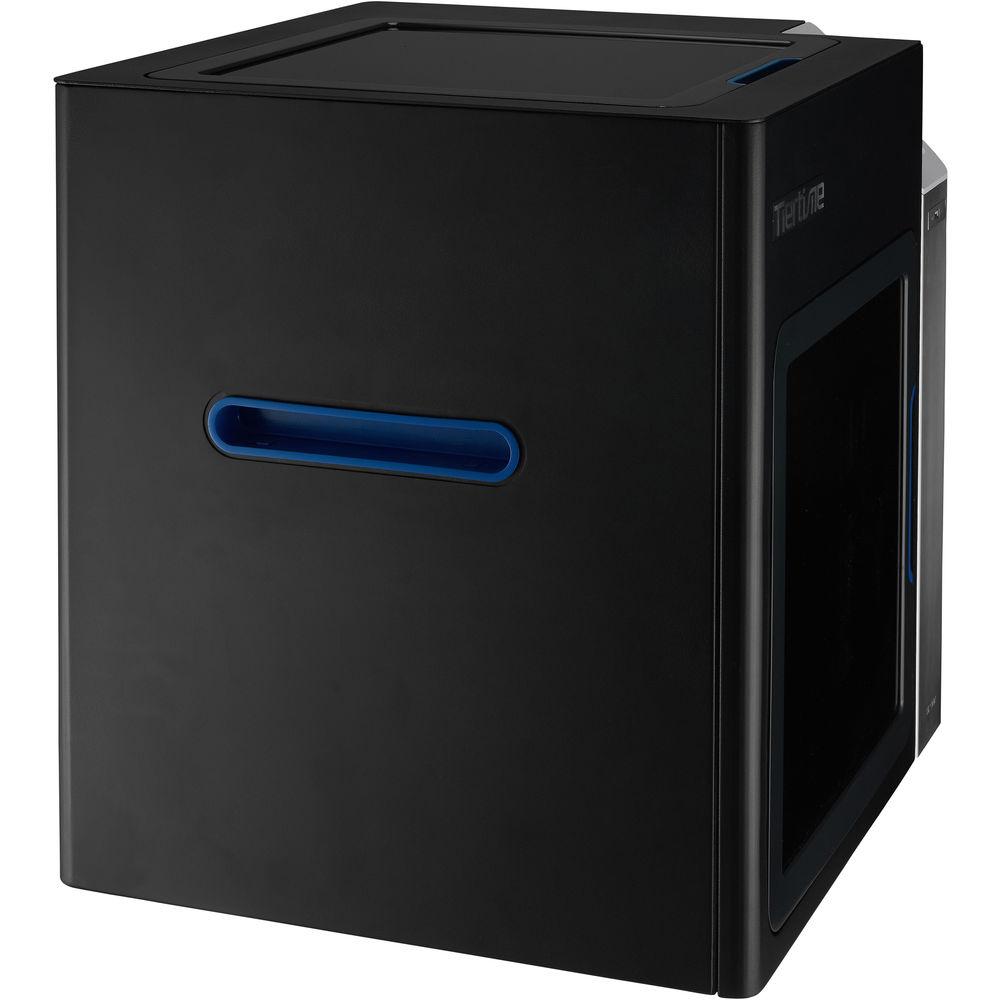

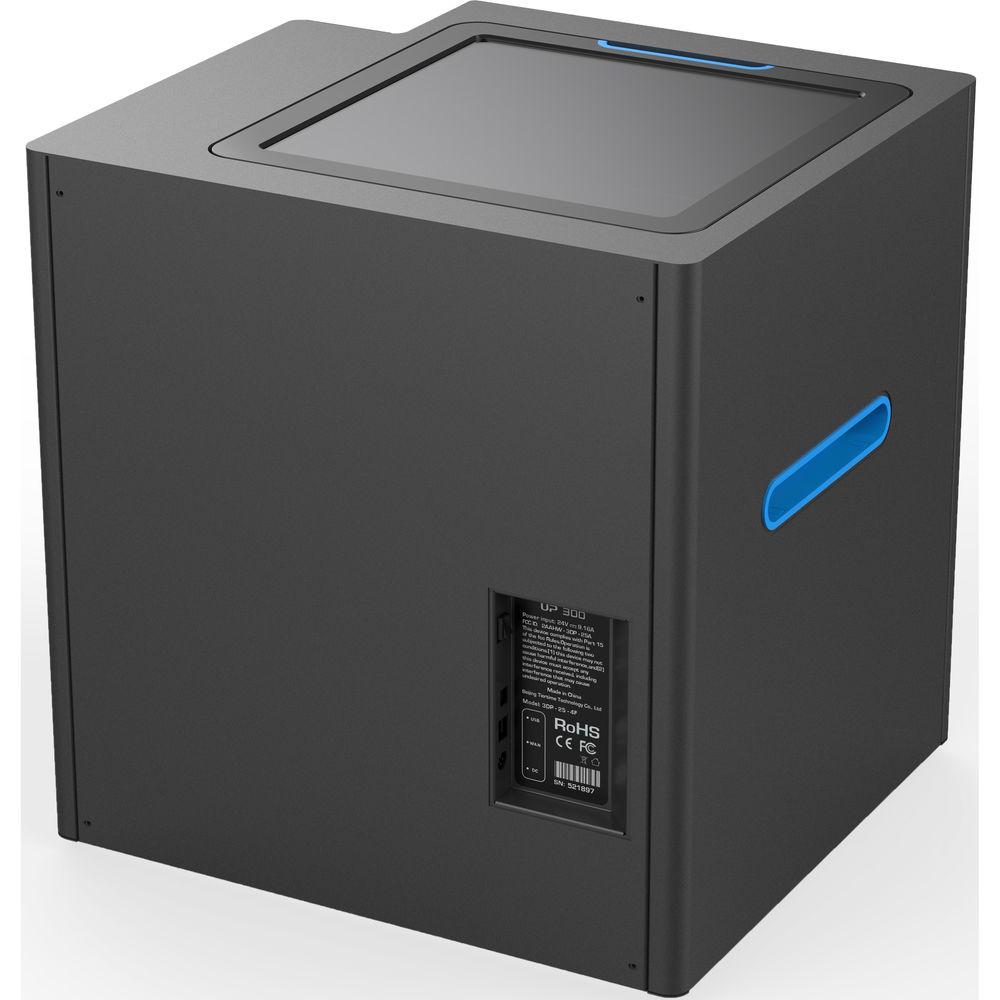

User Manual for Tiertime UP300 3D Printer Click to enlarge the picture
Contents of the user manual for the Tiertime UP300 3D Printer
- Product category: 3D Printers Tiertime
- Brand: Tiertime
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiertime 3D Printers
 |
User manual for the Tiertime UP300 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiertime product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiertime user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiertime product will considerably shorten its lifespan!
|

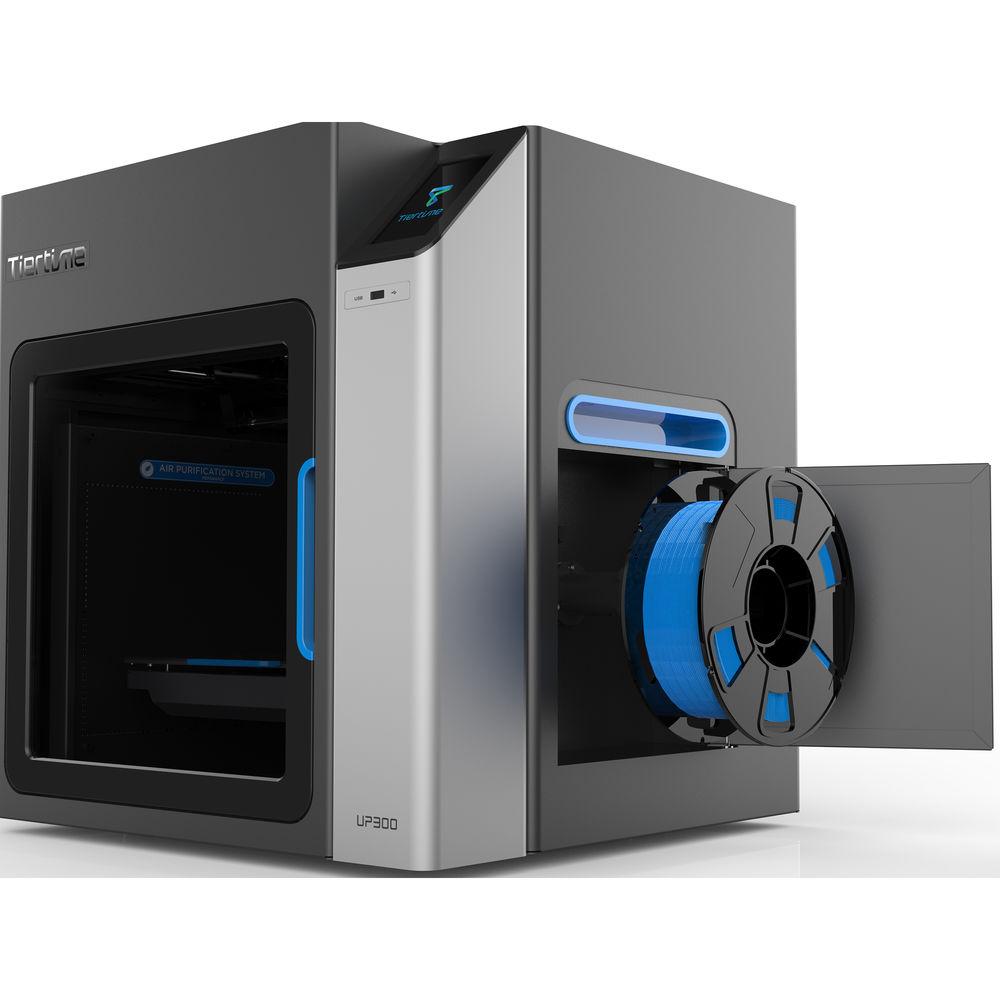

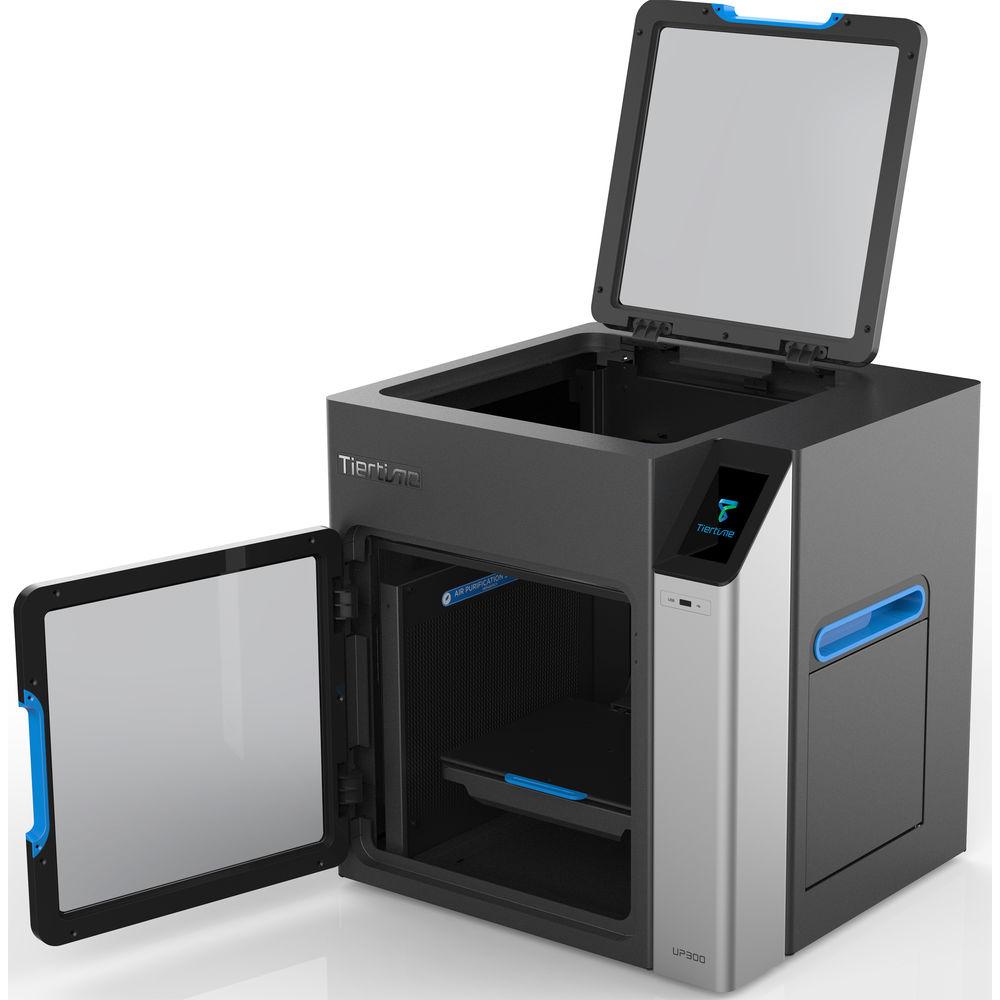

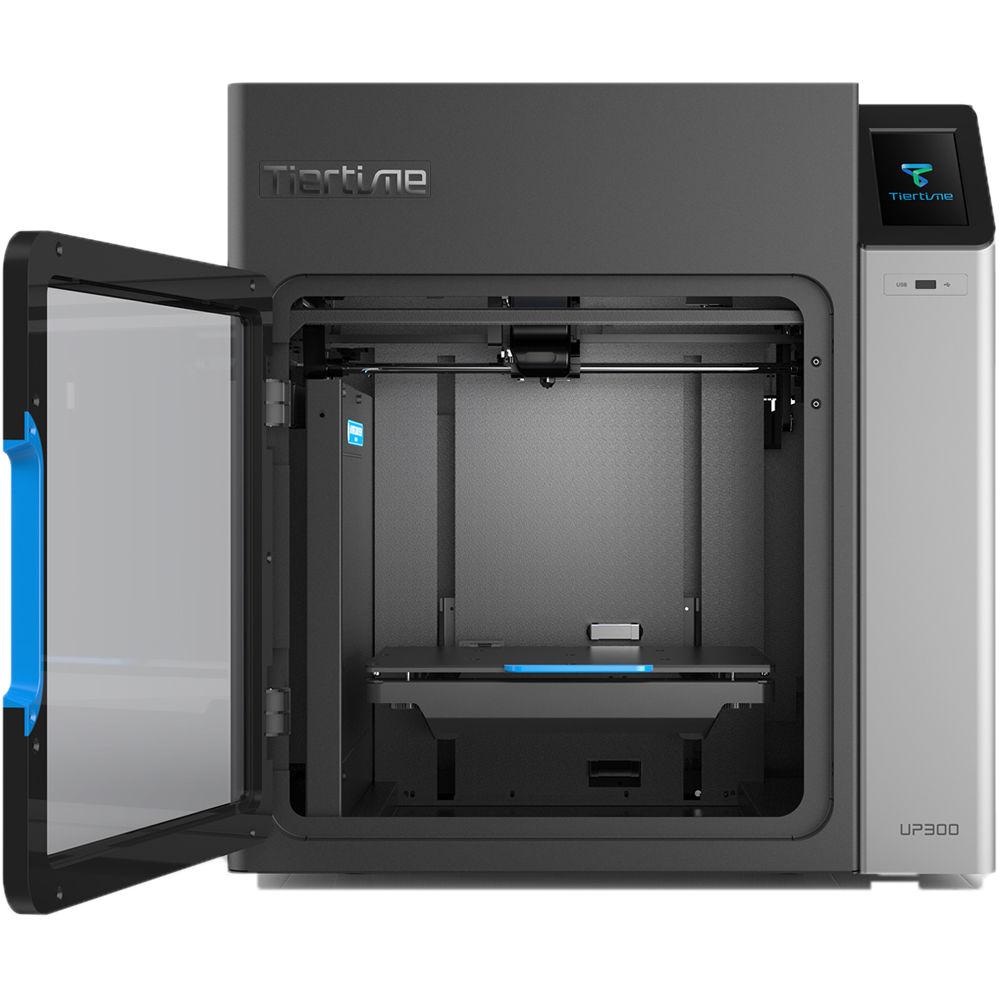

Product description With a build volume of 8 x 10 x 8.8", the Tiertime UP300 3D Printer features a layer resolution of 50 to 400 microns. It also features Melted Extrusion Modelling (MEM) technology as well as HEPA and activated carbon filters to effectively reduce toxic elements.This printer uses 1.75mm filaments, such as ABS, ABS+, PLA, TPU, and more. It is stored internally. Control print jobs with the integrated 4.3" color LCD touchscreen. You may print your compatible UP3, UPS, TSK, STL, OBJ, 3MF, PLY, OFF, and 3DS files in an enclosed print chamber with a heated perf glass or flex glass board. Print via USB, LAN, Wi-Fi, or USB flash drive. - Material-Specific Extruders
- While the printer can only use one extruder at a time, there are specific extruders to choose from. There is one for ABS and other high-temperature filaments, one for PLA and other low-temperature filaments, and one for TPU, a flexible polyurethane.
- Interchangeable Build Plates
- With double-sided build plates, this printer allows for easier print job removal due to its rigidity.
- Waste Collection Tray
- A removable waste-collection tray is positioned below the build platform to make cleaning the bottom of the printer's enclosure easy.
- Tiertime Print Queue
- With Tiertime Print Queue, this printer allows multiple users on the same network to become the queue's administrator, who can control and reorder the print queue.
In the Box Tiertime UP300 3D Printer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiertime UP300 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiertime UP300 Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Melted Extrusion Modelling (MEM) | | Build Volume | 8 x 10 x 8.8" / 20.3 x 25.4 x 22.4 cm (1 Extruder) | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 50 to 400 micron / 0.05 to 0.4 mm (8 Settings) | | Supported Extruder Nozzle Diameter | 200 micron / 0.2 mm
400 micron / 0.4 mm
500 micron / 0.5 mm
600 micron / 0.6 mm | | Extruder Nozzle Temperature | 570°F / 299°C | | Positioning Precision | XY Axis: 7 micron / 0.007 mm
Z Axis: 1.5 micron / 0.0015 mm | | Print Speed | 200 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA, TPU | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 212°F / 100°C | | Build Plate Composition | Glass | | Filament Spool Storage | Internal | | | | Wired Connections | 1 x RJ45
1 x USB Type-A (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later
macOS X 10.1 | | Supported 3D File Types | .3ds, .3mf, .obj, .off, .ply, .stl, .tsk, .up3, .ups | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 19.6 x 20.5 x 18.1" / 497.84 x 520.7 x 459.74 mm | | Weight | 66.1 lb / 30 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 96.75 lb | | Box Dimensions (LxWxH) | 26.0 x 24.0 x 23.0" |
