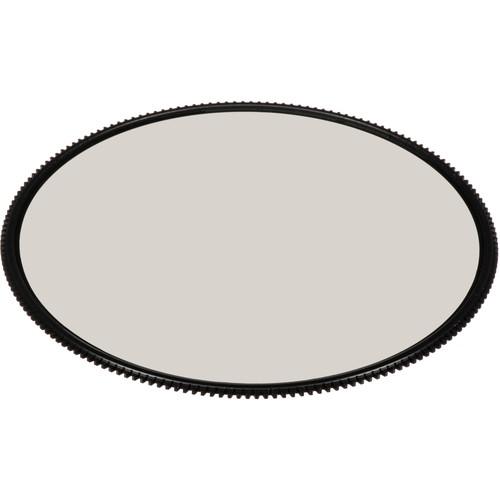

Product description This Tiffen 138mm Circular Polarizer Filter is designed for use within the Tiffen Multi Rota Tray. It helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is non-coated and is constructed from Water White glass for clarity as well as color fidelity, and features an aluminum-alloy filter ring for durability while remaining lightweight. To adjust the intensity of the polarization effect when used with the Tiffen Multi Rota Tray, an external dial on the tray allows for the independent rotation of this circular polarizer. Alternatively, when configured with a separately available 4 x 5.65" Circular Polarizer for Tiffen Multi Rota Tray to obtain a solid variable neutral density filter effect, rotating this circular polarizer serves to control the degree of density, providing an exposure reduction of 2 to 6 stops. - Designed for use within Tiffen Multi Rota Tray
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest effect when used at a 90° angle from the sun
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- 1.5x filter factor reduces exposure by 0.6 stops
- Constructed from Water White glass for clarity as well as color fidelity
- Aluminum-alloy filter ring for durability while remaining lightweight
- Can be configured with a separately available 4 x 5.65" Circular Polarizer for Tiffen Multi Rota Tray to obtain and control a solid variable neutral density filter effect with an exposure reduction of 2 to 6 stops
- Padded pouch included for storage and transport
UPC: 884613028114 In the Box Tiffen 138mm Circular Polarizer Filter for Tiffen Multi Rota Tray Filter Pouch Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen 138mm Circular Polarizer Filter for Tiffen Multi Rota Tray in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen ROTARNDGLASS Specs | Filter Type | Circular Polarizer | | Filter Factor | 1.5 (0.6 Stop) | | Shape | Circle | | Circular Size | 138 mm | | Rotating | No | | Filter Material | Glass | | Coatings | None | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.795 x 6.693 x 2.205" |
