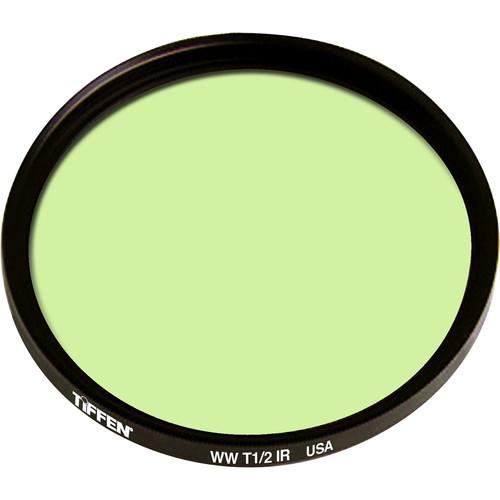

User Manual for Tiffen 4.5" Round T1 2 IR Filter Click to enlarge the picture
Contents of the user manual for the Tiffen 4.5" Round T1 2 IR
- Product category: IR Control Tiffen
- Brand: Tiffen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiffen IR Control
|
User manual for the Tiffen 4.5" Round T1 2 IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiffen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiffen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiffen product will considerably shorten its lifespan!
|
Product description The Tiffen 4.5" Round T1/2 IR Filter is a near-infrared to infrared control filter that is designed for digital cinematography. Many digital motion-picture cameras are designed to maximize their ability to capture red hues, and in that process near-infrared or infrared contamination may occur. If the proportion of near-infrared or infrared light that reaches the sensor of a digital cinematography camera becomes too great, the results can show unwanted color shifts, particularly in dark areas of the frame such as shadows where the appearance of black is dominant.
When the T1/2 IR Filter is used, near-infrared light waves beginning at 680nm are blocked by approximately 45%. Infrared light waves at higher frequencies are further impeded until nearly flat attenuation is achieved at 775 to 800nm. This process helps to ensure that the light that falls on the camera's sensor is limited to the visible spectrum. Potential near-infrared or infrared color shifts are prevented or minimized, which preserves color accuracy throughout the frame. While a Tiffen T1/2 IR Filter is sufficient for many cameras, others may have sensors that require a higher degree of near-infrared and infrared control, such as that provided by a Tiffen T1 IR Filter.
This filter is constructed from Water White glass for increased clarity as well as color fidelity. It is made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 1/10,000th of an inch, and then mounting to precision metal rings. It measures 4.5" in diameter and is suitable for use in select matte boxes and sunshades. -
- Designed for use with CCD or CMOS sensors to filter out near-infrared and infrared light pollution that cause color shifts frequently associated with high-definition recording
- Blocks near-infrared light waves beginning at 680nm by approximately 45% until nearly flat infrared attenuation is achieved at 775 to 800nm
- Constructed from Water White glass for increased optical clarity
- No dichroic coatings to further ensure color accuracy
- 1.41x filter factor reduces exposure by 0.5 stops
- Measures 4.5" in diameter and is suited for use with select matte boxes and sunshades
In the Box Tiffen 4.5" Round T1/2 IR Filter - Filter Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen 4.5" Round T1 2 IR Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen W412IR12 Specs | Filter Type | Infrared control | | Size | 4.5" / 114.3 mm (diameter) | | Filter Factor | 1.41 (0.5 Stop) | | Effect | Prevents or minimizes unwanted color shifts with digital cinematography cameras | | Construction | Water white glass | | Front Filter Thread Size | None | | Front Lens Cap Size | None |
