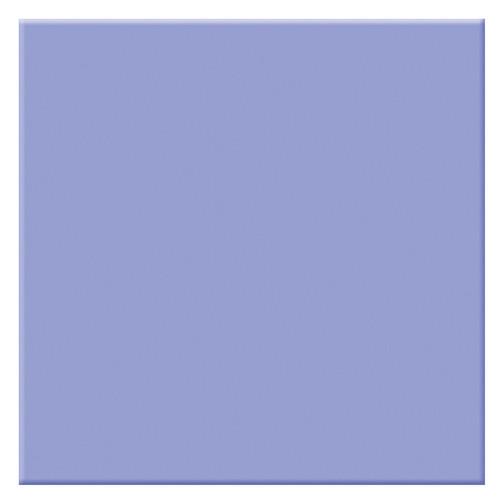

User Manual for Tiffen 4 x 4" 80D Hot Mirror Filter Click to enlarge the picture
Contents of the user manual for the Tiffen 4 x 4" 80D Hot
- Product category: IR Control Tiffen
- Brand: Tiffen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiffen IR Control
|
User manual for the Tiffen 4 x 4" 80D Hot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiffen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiffen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiffen product will considerably shorten its lifespan!
|
Product description The Tiffen 4 x 4" 80D Hot Mirror Filter is a combination of both a hot mirror infrared control filter and an 80D color temperature correction filter. HD camera's without an infrared control filter benefit from greater sensitivity to the red area of the spectrum, however in order to achieve this they are also more susceptible to infrared pollution; a hot mirror counters this by blocking infrared radiation from reaching the image sensor and maintaining truer color fidelity. This increased red sensitivity also results in overexposure of the scene when photographing under warmer, tungsten light. The combination of an 80D filter balances the light to daylight values with less exposure compensation required than if done in-camera.
This filter is constructed from Water White glass and is made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. This filter measures 4 x 4" / 101.2 x 101.2mm. - Infrared control filter helps to block infrared pollution from affecting the color fidelity of imagery; this enables a wider color gamut and truer colors, especially noticeable in the darker regions of the image.
- The hot mirror filtration incorporates a dielectric mirror in order to combat the effects of both near and far infrared regions of the spectrum while allowing visible light to pass.
- 80D color conversion filter corrects from 4200K to 5500K for balancing tungsten-lit situations with the native daylight balance of an HD camera's imaging sensor.
- Ideal for use with HD cameras without an integrated infrared-blocking filter.
In the Box Tiffen 4 x 4" 80D Hot Mirror Filter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen 4 x 4" 80D Hot Mirror Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen W4480DHM Specs | Type | Color conversion/hot mirror | | Size | 4 x 4" / 101.2 x 101.2 mm | | Grade | 80D | | Filter Factor | 0.3 stop | | Color Temperature | 4200K to 5500K | | Effect | Helps to color balance HD camera's native daylight balance when shooting in tungsten-lit conditions, while controlling susceptibility to infrared pollution | | Construction | ColorCore technology and Water White glass |
