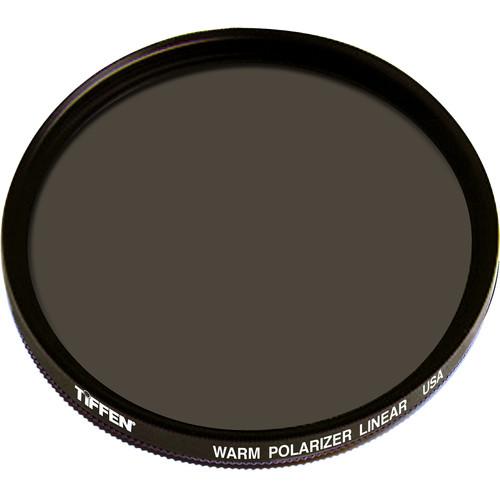

Product description The Tiffen 55mm Warm Linear Polarizer Filter can be applied to create a warm cast over an entire image while helping to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
The warming effect of this filter can be obtained under daylight when this filter is used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected. This filter's overall coloration reflects a mired shift value of +45.
A linear polarizer differs from a circular polarizer in that it does not contain an additional quarter wave plane. The addition of a quarter wave plane is to circularly polarize linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, in-camera auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is recommended when not using in-camera exposure metering or autofocus, is non-coated, and has approximately 40% average light transmission. It is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. - Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Can add a warm cast over an entire image when used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Polarizing effect is strongest when used at a 90° angle from the sun
- Recommended when not using in-camera exposure metering or autofocus
- Approximately 40% average light transmission
- 3x filter factor reduces exposure by 1.6 stops
- Constructed from optical glass for clarity and color fidelity
- Made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch
- Aluminum-alloy filter ring for durability while remaining lightweight
- Filter ring can be rotated to adjust the intensity of the polarization effect
- 55mm front filter threads allow for use with other filters
- Plastic filter case for storage and transport
UPC: 049383127362 In the Box Tiffen 55mm Warm Linear Polarizer Filter Filter Case Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen 55mm Warm Linear Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen 55WPOL Specs | Filter Type | Linear Polarizer | | Filter Factor | 3 (1.6 Stop) | | Shape | Circle | | Circular Size | 55 mm | | Rotating | Yes | | Front Accessory Thread / Bayonet | 55 mm | | Filter Material | Glass | | Coatings | None | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.5 x 2.9 x 0.4" |
