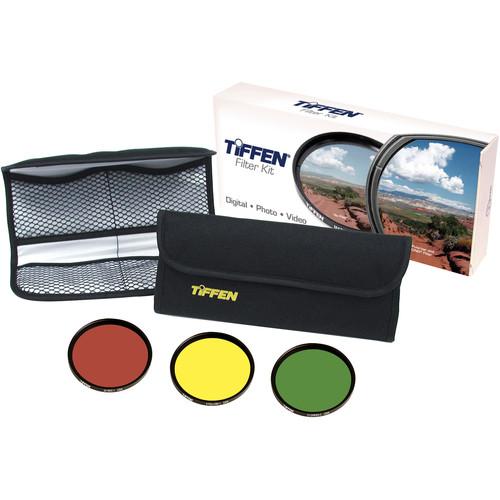

Product description The Tiffen 62mm Black & White Three Filter Kit combines the essential yellow #6, green #13, and red #25 contrast filters together, along with a four-pocket filter pouch, to provide a convenient solution for producing varying degrees of contrast when working with black and white film.
Tiffen filters are made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 10,000th of an inch, and then mounting to precision metal rings. - 62mm Light Yellow 1 #6 Filter A 62mm Light Yellow #6 Filter from Tiffen is used for a slight increase in contrast with black and white films. Although not as strong as a traditional Yellow #8, it can still be used to make a difference in your photography. You'll find it boosts your contrast just enough to make the difference between a black and white print flat appears "flat" and one that displays the proper correction.Tiffen's ColorCore glass is produced through a process that entails permanently laminating the filter material in between two pieces of optical glass that are ground flat to tolerances of a ten-thousandth of an inch, then mounting them in precision aluminum rings.
- Especially useful for added contrast between blue sky with clouds and foreground
- Tiffen's ColorCore glass is sealed between two optical glass sheets. In this way, Tiffen can better control the various densities of their filters and thereby create more exact degrees of filtration. This process makes for greater accuracy of color as opposed to glass that is simply dyed and become subject to deviation during the dye process
- Tiffen, a leader in the filter industry, proudly makes its filters in the USA and backs up its products with a solid 10-year warranty
- 62mm #13 (2) Green Filter The Tiffen 62mm #13 (2) Green Filter is a basic contrast filter, primarily for use with black and white film. This green filter subtly darkens skies and lightens foliage. It is commonly associated for use with portraiture and attaining greater separation from skin tones and outdoor backgrounds. When compared to the #11 yellow-green filter, the #13 helps to lighten foliage and other green-colored subjects more.
There is a 2x filter factor with this filter, requiring an increase of 1 stop for normal exposure. Tiffen filters are made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 10,000th of an inch, and then mounting to precision metal rings. - Green contrast filter for black and white film subtly darkens skies and lightens foliage.
- Suited for portraiture, this filter helps to separate skin tones from outdoor backgrounds.
- Tiffen filters are made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 10,000th of an inch, and then mounting to precision metal rings.
- #25 Red Filter (62mm) The 62mm #25 Red Filter from Tiffen is a filter designed to build contrast in black and white photography and creates separation between the tones. Using this filter it creates dramatic skies or simulate a moonlit scene during the day by slightly underexposing the image and also eliminating fog and haze. Infrared film is enhanced with extreme contrast turning skies even more dramatic and turning foliage white in landscape photos. The filter has a filter factor of 8, so you must increase your exposure by 3 stops to compensate.Tiffen filters are not dyed, but are manufactured by using ColorCore technology. This process laminates the filter material between two pieces of optical glass and grinds down and polishes the glass. The glass is then mounted to the metal ring, which after that can be screwed onto the lens for the desired effect.
- Builds contrast and separation of tones
- Extreme contrast with infrared film
- Creates dark and dramatic skies
- Cuts through haze and fog
UPC: 049383039917 - Cordura Filter Pouch The Tiffen Cordura Four Filter Pouch is a padded Cordura nylon pouch made to hold four round filters up to 77mm in diameter. There are four mesh pockets to hold the filters.
- Folding Cordura nylon filter pouch with four pockets to hold the filters
- Compatible with round filters up to 77mm
UPC: 049383056778 In the Box Bundle Items 62mm Light Yellow 1 #6 Filter vuetatcdsfycxf 62mm #13 (2) Green Filter #25 Red Filter (62mm) Cordura Filter Pouch Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen 62mm Black & White Three Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 62mm Light Yellow 1 #6 Filter
| Type | Yellow | | Size | 62mm
5mm thick | | Grade | 6 | | Filter Factor | Not Specified by Manufacturer | | Multi-Coated | Not Applicable | | Rotating | Not Applicable | | Effect | Contrast control, enhanced skin tones, tonal corrections and more dramatic landscapes; slight increase in contrast with black and white films | | Application | Suitable for landscapes and nature scenes | | Color Temperature | Not Specified by Manufacturer | | Construction | ColorCore Glass | | Front Filter Thread Size | 62mm | | Front Lens Cap Size | 62mm | - 62mm #13 (2) Green Filter
| Type | Green | | Size | 62 mm | | Grade | 13 (2) | | Filter Factor | 2 (1 stop) | | Effect | Lightens greens and foliage, subtly darkens skies | | Application | Foliage and outdoor portraiture | | Construction | ColorCore technology | | Front Filter Thread Size | 62 mm | | Front Lens Cap Size | 62 mm | - #25 Red Filter (62mm)
| Filter Factor/Density | 0.9 (3 Stops) 8x | | Circular Size | 62 mm | | Front Accessory Thread / Bayonet | 62 mm | | Filter Material | Glass | | Ring Material | Aluminum | | Coatings | Single-Coating | | Grade | #25 | | | | Box Dimensions (LxWxH) | 4.3 x 3.6 x 0.6" | - Cordura Filter Pouch
| Filter Capacity | 4 x 82mm | | Type of Closure | Touch Fastener | | Exterior Material | Cordura | | | | Box Dimensions (LxWxH) | 7.953 x 3.543 x 0.551" |
