Tiffen Pro100 Long Exposure Filter Kit

User Manual for Tiffen Pro100 Long Exposure Filter Kit with 4 x 4" Solid Neutral Density 1.2 and IRND 3.0 Filters

• Product category: Filter Kits Tiffen
• Brand: Tiffen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tiffen Filter Kits

Product description

• Pro100 Series Camera Filter Holder with 77mm Adapter Ring
  • PRO100 - Quick Start Video
  • Tiffen PRO100 Project

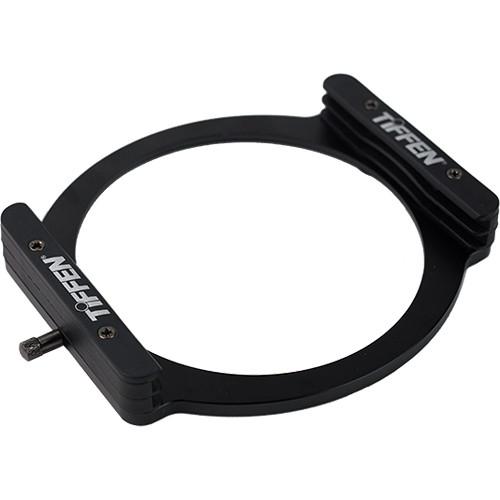

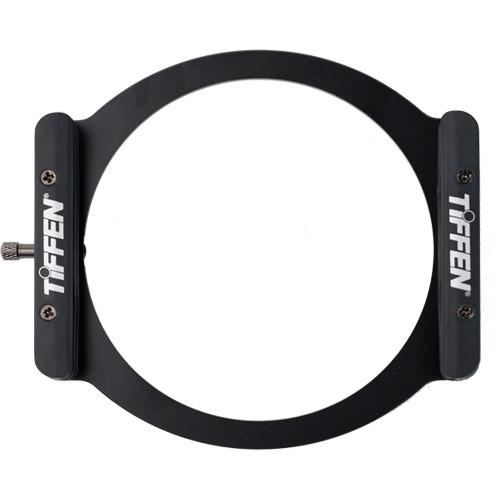

  The Pro100 Series Camera Filter Holder with 77mm Adapter Ring from Tiffen is designed to allow for the convenient use of 100mm-wide, 4mm-thick filters on lenses with 77mm front filter threads.

  Use of the filter holder can be easily accomplished by first screwing the included 77mm Adapter Ring for Pro100 Series Camera Filter Holder onto a lens with 77mm front filter threads. Adapter rings are separately available for lenses with 49mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 82mm front filter threads. After being fitted onto an adapter ring, the filter holder's pull-and-release locking pin helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning.

  The Pro100 Series Camera Filter Holder is preinstalled with two pairs of plastic filter slots, a configuration that accommodates two rectangular filters. These slots are attached to the filter holder by a total of four screws, which also serve to apply pressure on any filters placed between the slots. Those screws can be loosened or tightened to vary the level of grip upon the inserted filters, which can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

  To prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens, two of four included adhesive gaskets can be placed along the front of the Pro100 Series Camera Filter Holder. These gaskets are designed to be positioned so that two of them each form a seal between the plastic filter slots. The remaining two adhesive gaskets are provided in case either of the initially-installed gaskets needs to be replaced.
  • • Durable aluminum-alloy filter holder and adapter ring
    • Allows up to two 100mm-wide, 4mm-thick filters to be conveniently used on lenses with 77mm front filter threads
    • Pull-and-release locking pin allows for adjustment of filter holder's grip for 360° rotation on adapter ring
    • Ability to vary grip on installed rectangular filters to complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot
    • Adhesive gaskets help to prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens
    • Separately-available aluminum-alloy adapter rings for lenses with 49mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 82mm front filter threads
  UPC: 884613032838
• 82mm Adapter Ring for Pro100 Series Camera Filter Holder This Tiffen 82mm Adapter Ring is designed to enable the use of a Tiffen Pro100 Series Camera Filter Holder on a lens with 82mm front filter threads. This adapter ring features a lightweight aluminum alloy construction that has a corrosion-resistant, black anodized finish for durability. UPC: 884613032821
• 4 x 4" ND 1.2 Filter (4-Stop) The Tiffen 4 x 4" ND 1.2 Filter is a solid neutral density filter providing a 4-stop exposure reduction. This 1.2 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.This filter is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. This filter measures 4 x 4" / 101.6 x 101.6mm.
  • 1.2 solid ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 4-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  UPC: 049383018622

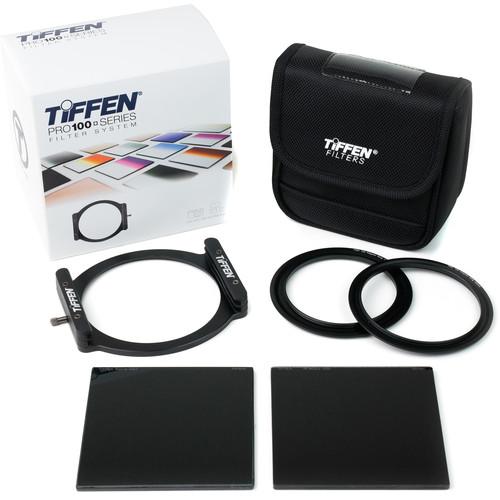

• Tiffen Pro100 Series Camera Filter Holder

• 4 x Filter Slot

• 4 x Light-Blocking Gasket

• 4 x Screw

• 77mm Adapter Ring for Pro100 Series Camera Filter Holder

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Soft Pouch

• Limited 10-Year Warranty

Also Includes

• 4 x 4" IRND 3.0 Filter
• Limited 1-Year Warranty for 4 x 4" IRND 3.0 Filter
• Filter Pouch

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pro100 Series Camera Filter Holder with 77mm Adapter Ring

  Filter Capacity	2 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Sensei Pro 100 mm (4 mm Thick)
  Compatible Lens	77 mm
  Material	Aluminum, Plastic
  Dimensions	5 x 4.3 x 0.4" / 12.7 x 10.8 x 1 cm
  Weight	2 oz / 57 g

  Box Dimensions (LxWxH)	6.3 x 5.5 x 0.8"

• 82mm Adapter Ring for Pro100 Series Camera Filter Holder

  Compatible Lens Filter Thread	82 mm
  Filter Holder System	Tiffen Pro100
  Knurling	None
  Material	Aluminum

  Box Dimensions (LxWxH)	5.5 x 4.1 x 0.2"

• 4 x 4" ND 1.2 Filter (4-Stop)

  Filter Type	Solid ND
  Density	1.2 (4 Stops)
  Rectangular Size	4 x 4" / 101.6 x 101.6 mm

  Box Dimensions (LxWxH)	6.063 x 5.512 x 1.102"
