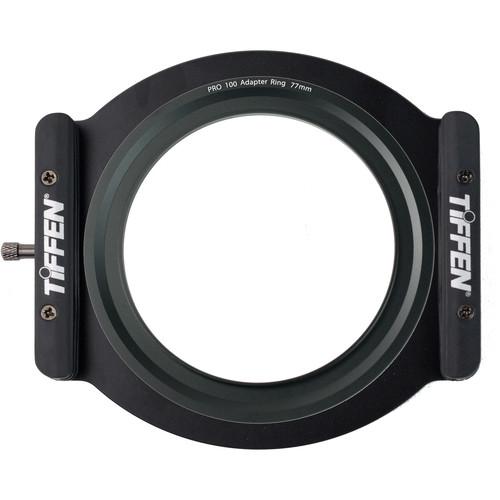

User Manual for Tiffen Pro100 Series Camera Filter Holder with 77mm Adapter Ring Click to enlarge the picture
Contents of the user manual for the Tiffen Pro100 Series Camera Filter Holder
- Product category: Filter Holders & Frames Tiffen
- Brand: Tiffen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiffen Filter Holders & Frames
|
User manual for the Tiffen Pro100 Series Camera Filter Holder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiffen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiffen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiffen product will considerably shorten its lifespan!
|
Product description New Gear from Tiffen: More than Just Filters Read More - PRO100 - Quick Start Video
- Tiffen PRO100 Project
The Pro100 Series Camera Filter Holder with 77mm Adapter Ring from Tiffen is designed to allow for the convenient use of 100mm-wide, 4mm-thick filters on lenses with 77mm front filter threads.
Use of the filter holder can be easily accomplished by first screwing the included 77mm Adapter Ring for Pro100 Series Camera Filter Holder onto a lens with 77mm front filter threads. Adapter rings are separately available for lenses with 49mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 82mm front filter threads. After being fitted onto an adapter ring, the filter holder's pull-and-release locking pin helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning.
The Pro100 Series Camera Filter Holder is preinstalled with two pairs of plastic filter slots, a configuration that accommodates two rectangular filters. These slots are attached to the filter holder by a total of four screws, which also serve to apply pressure on any filters placed between the slots. Those screws can be loosened or tightened to vary the level of grip upon the inserted filters, which can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.
To prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens, two of four included adhesive gaskets can be placed along the front of the Pro100 Series Camera Filter Holder. These gaskets are designed to be positioned so that two of them each form a seal between the plastic filter slots. The remaining two adhesive gaskets are provided in case either of the initially-installed gaskets needs to be replaced. -
- Durable aluminum-alloy filter holder and adapter ring
- Allows up to two 100mm-wide, 4mm-thick filters to be conveniently used on lenses with 77mm front filter threads
- Pull-and-release locking pin allows for adjustment of filter holder's grip for 360° rotation on adapter ring
- Ability to vary grip on installed rectangular filters to complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot
- Adhesive gaskets help to prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens
- Separately-available aluminum-alloy adapter rings for lenses with 49mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 82mm front filter threads
UPC: 884613032838 In the Box Tiffen Pro100 Series Camera Filter Holder with 77mm Adapter Ring Tiffen Pro100 Series Camera Filter Holder 4 x Filter Slot 4 x Light-Blocking Gasket 4 x Screw 77mm Adapter Ring for Pro100 Series Camera Filter Holder detyefsrbzsyvzzwzaeyat Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen Pro100 Series Camera Filter Holder with 77mm Adapter Ring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen PRO100HDR77 Specs | Filter Capacity | 2 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Sensei Pro 100 mm (4 mm Thick) | | Compatible Lens | 77 mm | | Material | Aluminum, Plastic | | Dimensions | 5 x 4.3 x 0.4" / 12.7 x 10.8 x 1 cm | | Weight | 2 oz / 57 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.3 x 5.5 x 0.8" |
