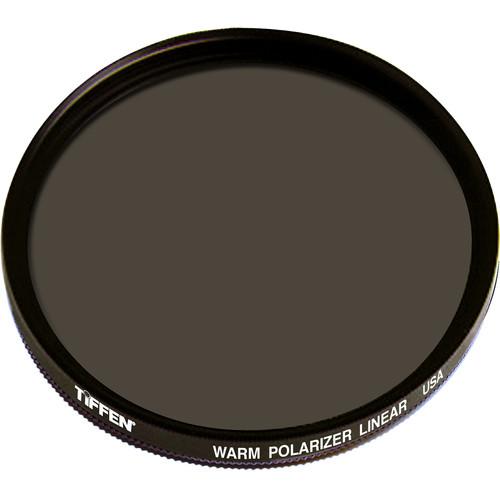

User Manual for Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter Click to enlarge the picture
Contents of the user manual for the Tiffen Series 9 Self-Rotating Warm Linear
- Product category: Polarizing Tiffen
- Brand: Tiffen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tiffen Polarizing
|
User manual for the Tiffen Series 9 Self-Rotating Warm Linear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tiffen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tiffen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tiffen product will considerably shorten its lifespan!
|
Product description The Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter is a mounted filter that includes rear and front threads that allow filter stacking when using third-party or custom filter holders. This filter's rear threads are intended to retain a Series 9 non-self rotating mounted filter that is already placed within a compatible filter holder. A supplemental effect is then provided in addition to that of the retained filter. The Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter's front threads can then accommodate an additional non-self rotating mounted filter, which can then be held in place with a Series 9 retaining ring. Alternatively, another Tiffen Series 9 self-rotating filter may be screwed on top of the Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter.
Once installed, this filter can create a warm cast over an entire image while helping to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
The warming effect of the Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter can be obtained under daylight when this filter is used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected. This filter's overall coloration reflects a mired shift value of +45.
A linear polarizer differs from a circular polarizer in that it does not contain an additional quarter wave plane. The addition of a quarter wave plane is to circularly polarize linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, in-camera auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is recommended when not using in-camera exposure metering or autofocus, is non-coated, and has approximately 40% average light transmission. It is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. - Mounted with front or rear threads that allow filter stacking when using third-party or custom filter holders for film and television cameras
- Rear threads retain a Series 9 non-self rotating mounted filter that is already placed within a filter holder
- Front threads can accommodate an additional non-self rotating mounted filter witch can then be held in place with a Series 9 retaining ring
- Front threads allow stacking with another Tiffen Series 9 self-rotating filter
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Can add a warm cast over an entire image when used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Polarizing effect is strongest when used at a 90° angle from the sun
- Recommended when not using in-camera exposure metering or autofocus
- Approximately 40% average light transmission
- 3x filter factor reduces exposure by 1.6 stops
- Constructed from optical glass for clarity and color fidelity
- Made using ColorCore technology, a process that involves laminating the filter substrate between 2 pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch
- Aluminum-alloy filter ring for durability while remaining lightweight
- Filter ring can be rotated to adjust the intensity of the polarization effect
- Padded pouch for storage and transport
UPC: 049383127454 In the Box Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter Filter Pouch Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tiffen Series 9 Self-Rotating Warm Linear Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTiffen S9SRWPOL Specs | Filter Type | Linear Polarizer | | Filter Factor | 3 (1.6 Stop) | | Shape | Circle | | Circular Size | 82.6 mm | | Rotating | No | | Front Accessory Thread / Bayonet | 82.6 mm | | Filter Material | Glass | | Coatings | None |
