User Manual for Tilta 15mm Baseplate Dovetail Plate for Sony F5 F55 Click to enlarge the picture
Contents of the user manual for the Tilta 15mm Baseplate Dovetail Plate for
- Product category: Camcorder Supports & Rigs Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Camcorder Supports & Rigs
 |
User manual for the Tilta 15mm Baseplate Dovetail Plate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

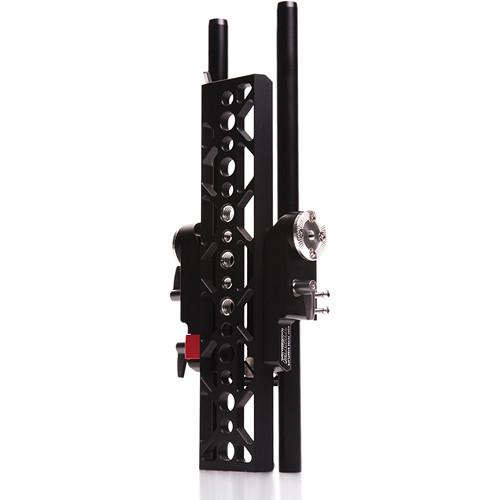

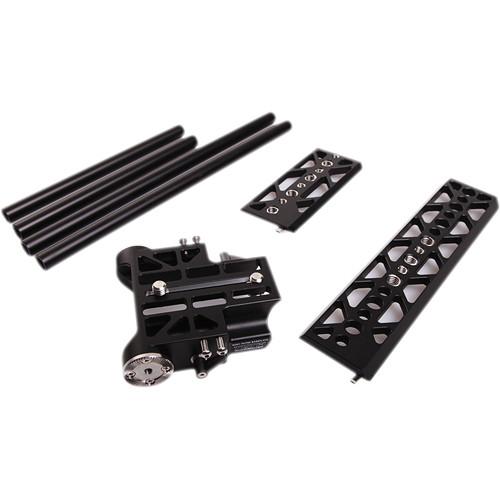

Product description The Tilta 15mm Baseplate / Dovetail Plate for Sony F5/F55 from ikan is a 15mm rod support system designed for the Sony CineAlta PMW-F5 and PMW-F55 digital cinema cameras. The combo design features a baseplate with adjustable 15mm rod ports, 5" and 10" dovetail plates for better balancing of rigs on tripods, and solid machined aluminum construction. Two sets of 15mm rod pairs come included, in lengths of 7.87" and 11.8".
Your Sony F5 or F55 camera mounts to the baseplate via a 1/4"-20 or 3/8"-16 screw. Ports are available for using 15mm rod pairs. Levers on the side of the baseplate allow for adjusting the position of the rods. The baseplate also has two Arri compatible rosettes on each side for connecting dog bones, handles, or other accessories.

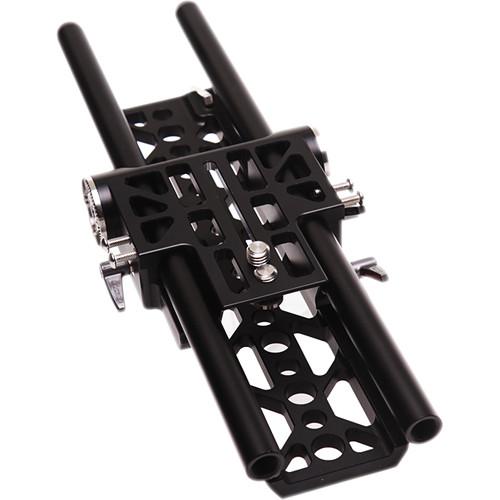

For mounting the baseplate onto tripods, two dovetail plates are provided. The dovetail plate is attached to the tripod using the provided 1/4"-20 and 3/8"-16 threads. The baseplate slides onto the dovetail plate, letting you quickly attach and release your entire rig from the tripod.
The 5" dovetail plate is suitable for smaller rigs, while the 10" plate allows larger rigs to be centered and balanced. The 10" dovetail plate locks in via a lever on the side of the baseplate, and the 5" dovetail plate locks in with a thumb screw. Both dovetail plates have safety stops on both ends. UPC: 847983007615 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 15mm Baseplate Dovetail Plate for Sony F5 F55 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta BS-T09 Specs | Material of Construction | Machined aluminum | | Mounting Threads | 5" Dovetail Plate:
4 x 1/4"-20 threads
4 x 3/8" threads
10" Dovetail Plate:
2 x 1/4"-20 threads
3 x 3/8" threads | | Dimensions | 15mm Rods Pair 1: 7.9" / 20 cm
15mm Rods Pair 2: 11.8" / 30 cm
Baseplate: 3.54 x 3.85" / 8.99 x 9.78 cm
5" Dovetail Plate: 2.26 x 4.92" / 5.74 x 12.50 cm
10" Dovetail Plate: 2.26 x 9.92" / 5.74 x 25.20 cm | | Weight | Baseplate: 8 oz / 226.8 g
5" Dovetail Plate: 3 oz / 85 g
10" Dovetail Plate: 6 oz / 170.1 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 13.0 x 6.1 x 4.0" |
