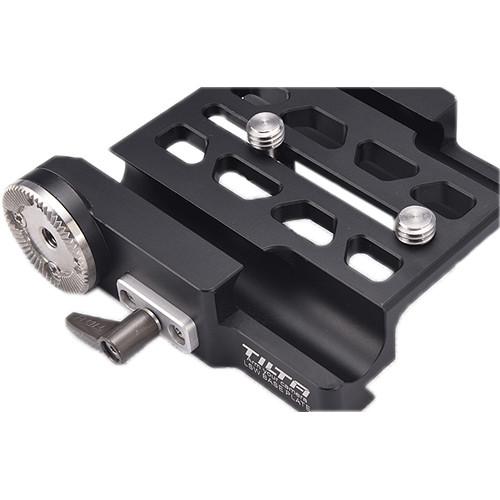

User Manual for Tilta 15mm LWS Baseplate and Lightweight Dovetail Kit Click to enlarge the picture
Contents of the user manual for the Tilta 15mm LWS Baseplate and Lightweight
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
|
User manual for the Tilta 15mm LWS Baseplate and Lightweight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description Use the 15mm LWS Baseplate and Lightweight Dovetail Kit from Tilta to balance your camera rig and to support 15mm rod-based accessories. The kit is comprised of a 15mm LWS universal baseplate, a 10" bottom dovetail plate, and an 11.8" pair of 15mm support rods. This 15mm LWS kit is compatible with most cine-style cameras. The sliding plate enables you to easily adjust your camera's balance after increasing or decreasing the rig's weight.The LWS Universal Baseplate features standard ARRI rosettes for attaching separately available handgrips or handles. The hollow pair of threaded 15mm rods provides lightweight support for matte boxes, follow focus units, lens supports, or other camera accessories. - Features
-
- Balances your camera rig and supports 15mm rod-based accessories
- Compatible with most cine-style cameras
- Sliding plate design adjusts your camera's balance after increasing or decreasing the rig's weight
- ARRI standard rosettes for attaching separately available handgrips or handles
In the Box Tilta 15mm LWS Baseplate and Lightweight Dovetail Kit 15mm LWS Universal Baseplate 10" Lightweight Standard Dovetail Plate bwcsyywftqwz 2 x Thumb-Lever Threaded 15mm Rods (Black, 12", Pair) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 15mm LWS Baseplate and Lightweight Dovetail Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta BS-T05-01 Specs | | | Rod Standard | 15mm LWS | | Material of Construction | Aluminum alloy, stainless steel | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | Baseplate: 10.2 oz / 290.3 g
Dovetail Plate: 6.7 oz / 190.5 g | | | | Package Weight | 2.055 lb | | Box Dimensions (LxWxH) | 13.0 x 6.2 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
