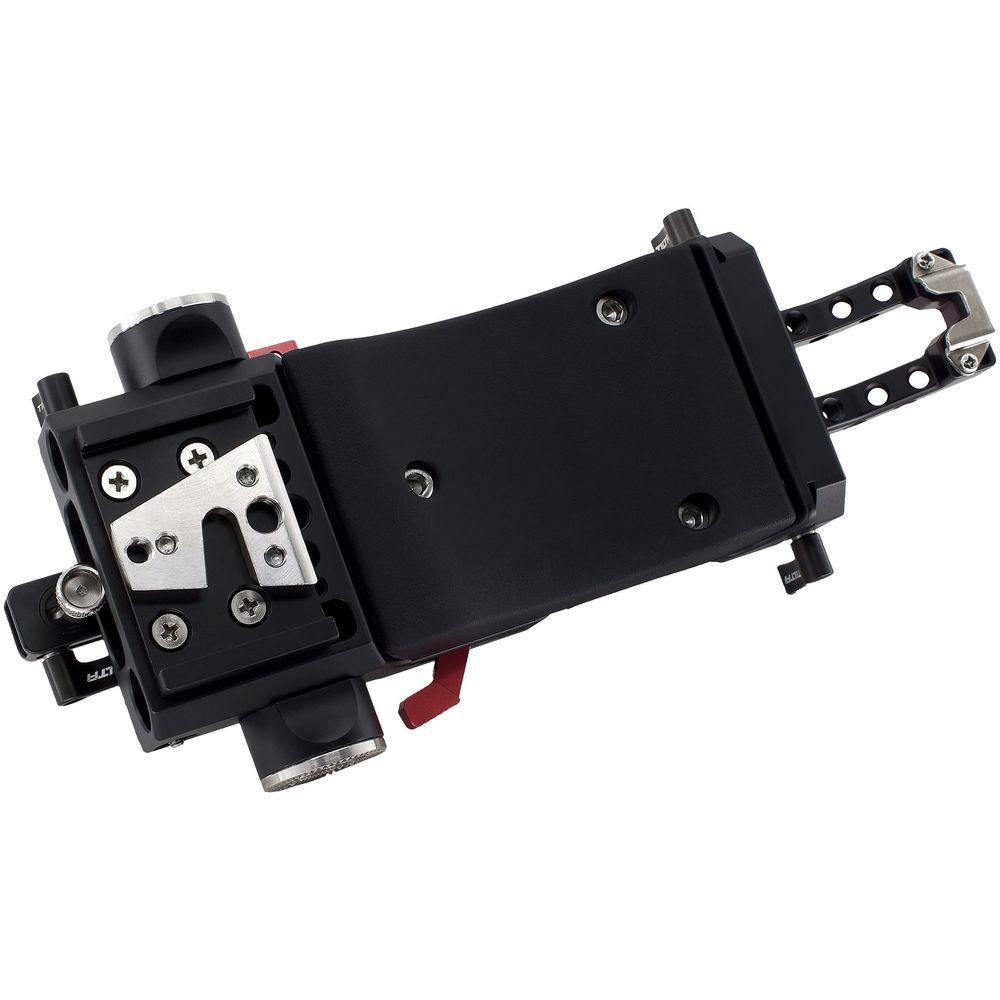

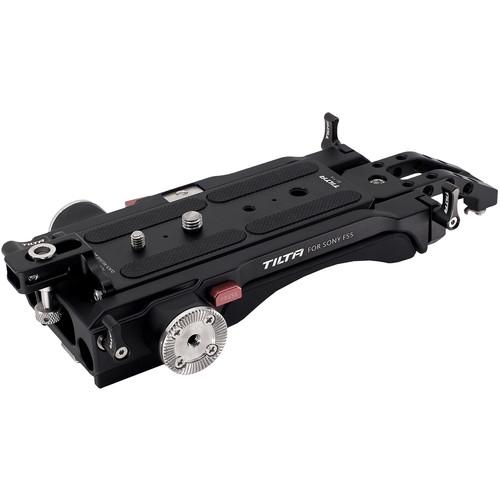

Product description Designed to fit your Sony FS5 camera, the Tilta 15mm LWS Quick Release Baseplate for Sony FS5 enables you to quickly switch between VCT-14 tripod-based shots and handheld capture. The baseplate features front and rear 15mm LWS rod brackets, an integrated shoulder pad for comfort, and ARRI standard rosettes for attaching separately available handgrips.A dedicated support at the front of the baseplate enables you to use the baseplate with an optional lens-mount adapter. The Tilta 15mm LWS Quick Release Baseplate for Sony FS5 includes a 7.9" pair of 15mm rods and a quick release plate with 3/8"-16 and 1/4"-20 mounting screws. - Features
-
- Enables you to quickly switch between VCT-14 tripod-based shots and handheld capture
- Front and rear 15mm LWS rod brackets for mounting accessories
- Integrated shoulder pad for comfortable handheld operating
- ARRI standard rosettes for attaching optional handgrips
- Front support enables you to use the baseplate with an optional lens-mount adapter
- Quick release plate with 3/8"-16 and 1/4"-20 mounting screws

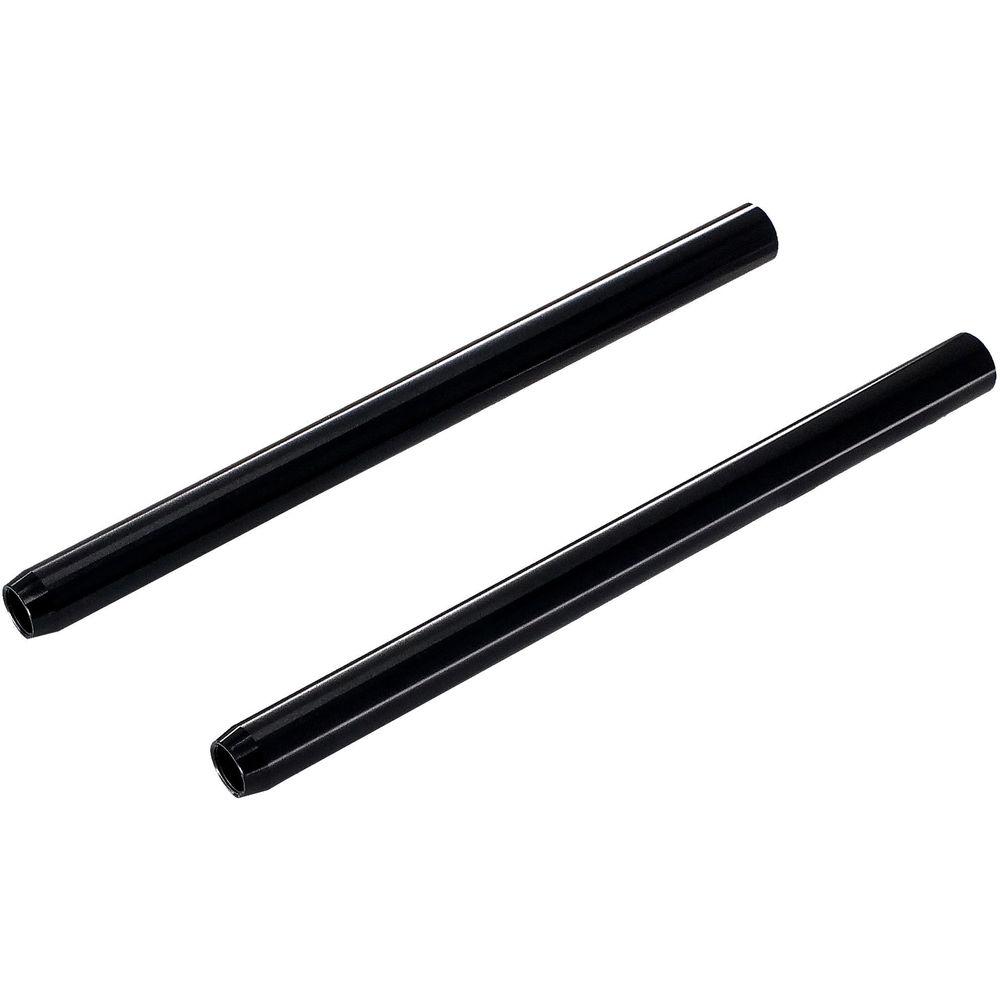

UPC: 602016518021 In the Box Tilta 15mm LWS Quick Release Baseplate for Sony FS5 VCT-14 Baseplate Contoured Shoulder Pad Quick Release Plate 3/8"-16 Screw 1/4"-20 Screw 3 x Thumb-Levers Lens Adapter Support 2 x 15mm LWS Rods (7.9") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 15mm LWS Quick Release Baseplate for Sony FS5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta BS-T14 Specs | Tripod Mount Type | VCT-14 | | Camera Mounting Screws | 3/8"-16, 1/4"-20 | | Rod Standard | 15 mm LWS | | Rod Length | 7.9" / 200 mm | | Weight | Not specified by manufacturer | | Material of Construction | Aluminum alloy, stainless steel | | | | Package Weight | 2.715 lb | | Box Dimensions (LxWxH) | 13.0 x 6.1 x 3.5" |
