User Manual for Tilta 15mm LWS Rod Lens Support Click to enlarge the picture
Contents of the user manual for the Tilta 15mm LWS Rod Lens Support
- Product category: Rod Brackets & Clamps Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Rod Brackets & Clamps
 |
User manual for the Tilta 15mm LWS Rod Lens Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

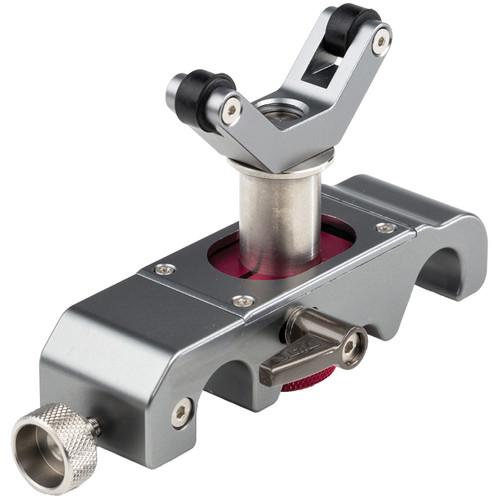

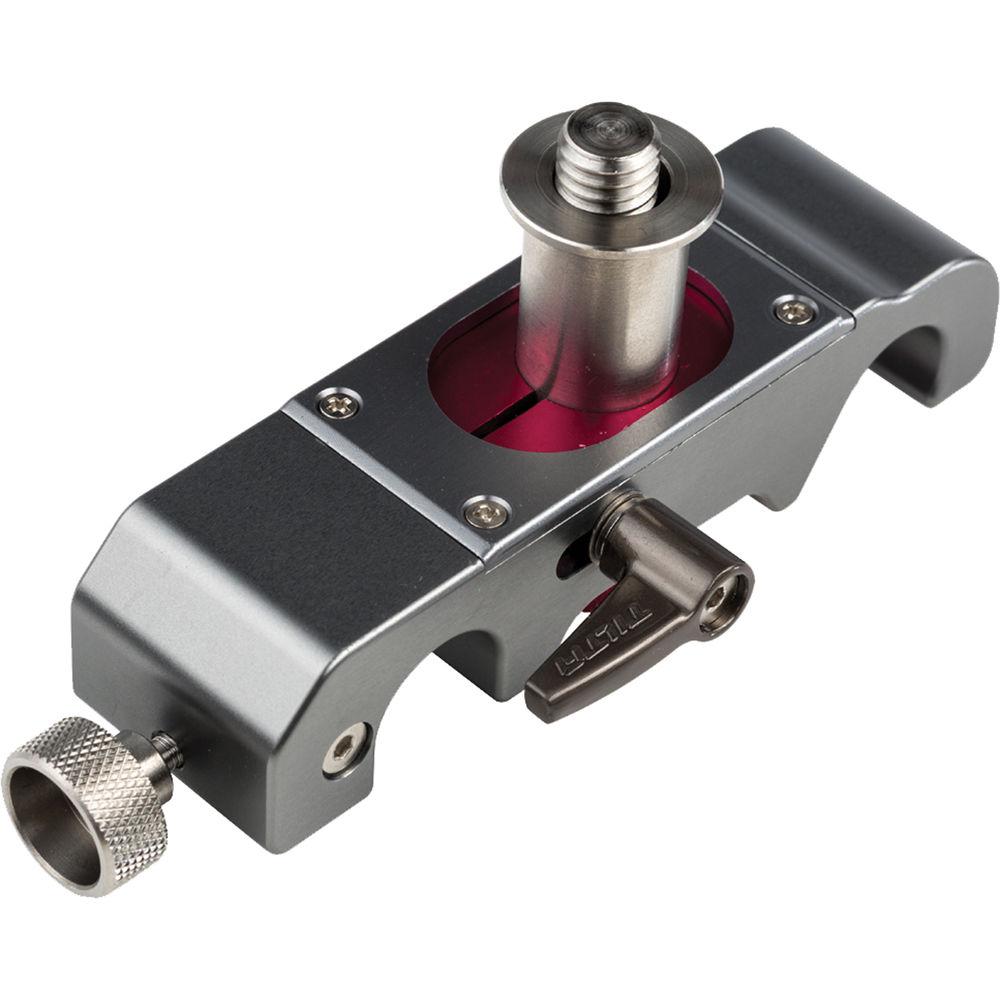

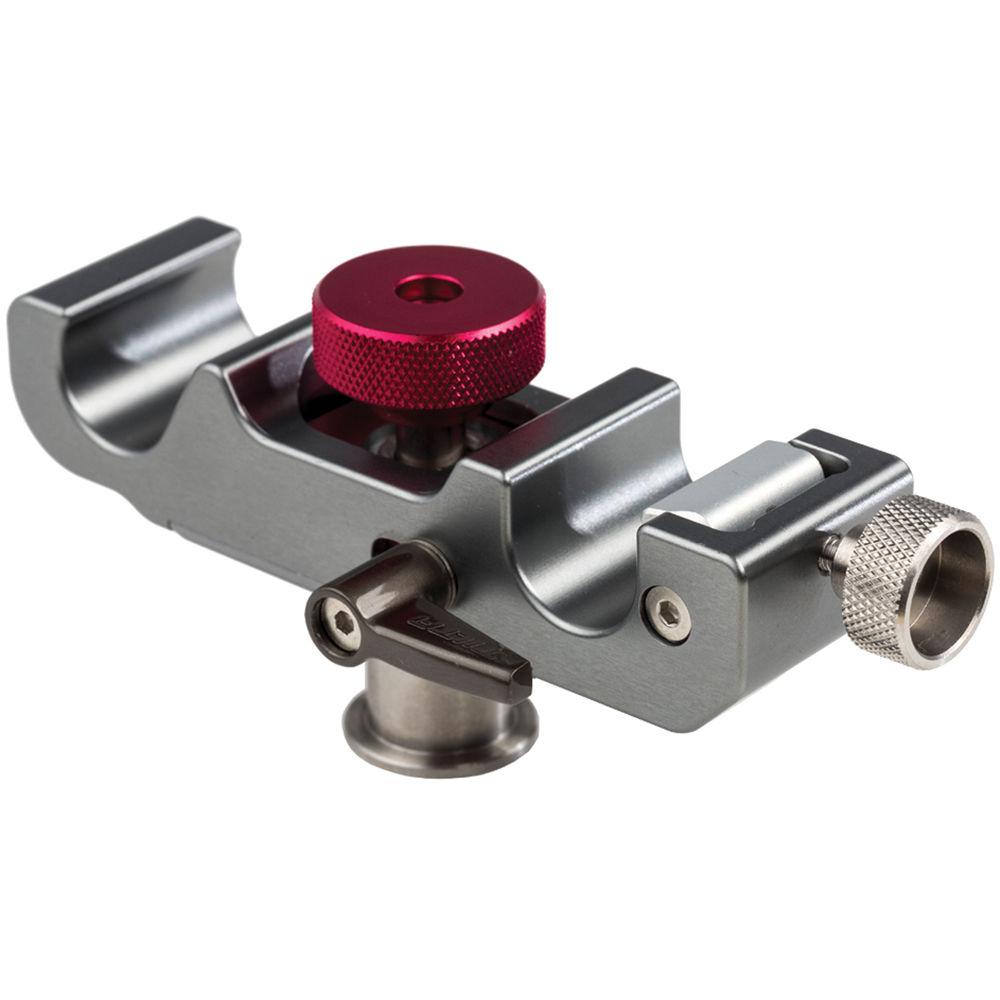

Product description This Tilta 15mm LWS Rod Lens Support features a snap-on design allowing you to mount/unmount the support on your rods without having to remove other rod-mounted accessories. The lightweight anodized aluminum support features a knurled thumbwheel to provide extra grip when tightening or loosening the lens support shaft.

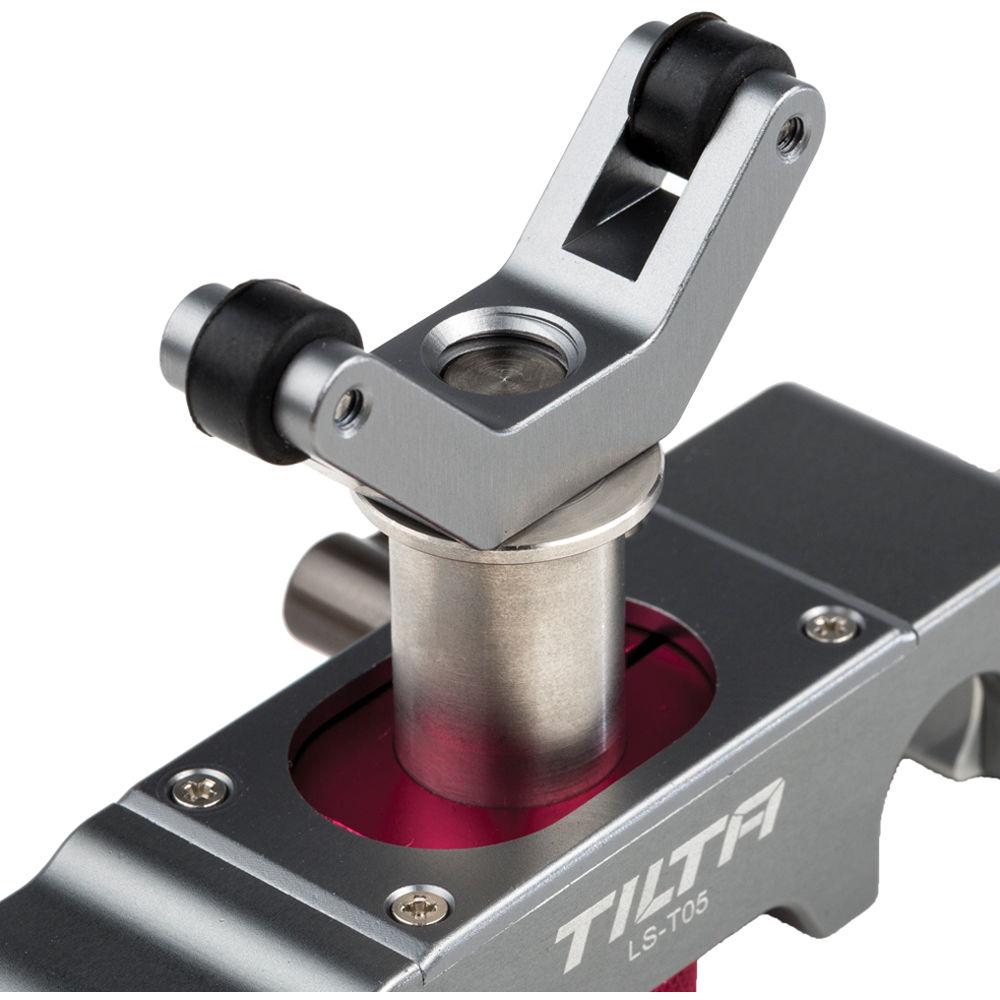

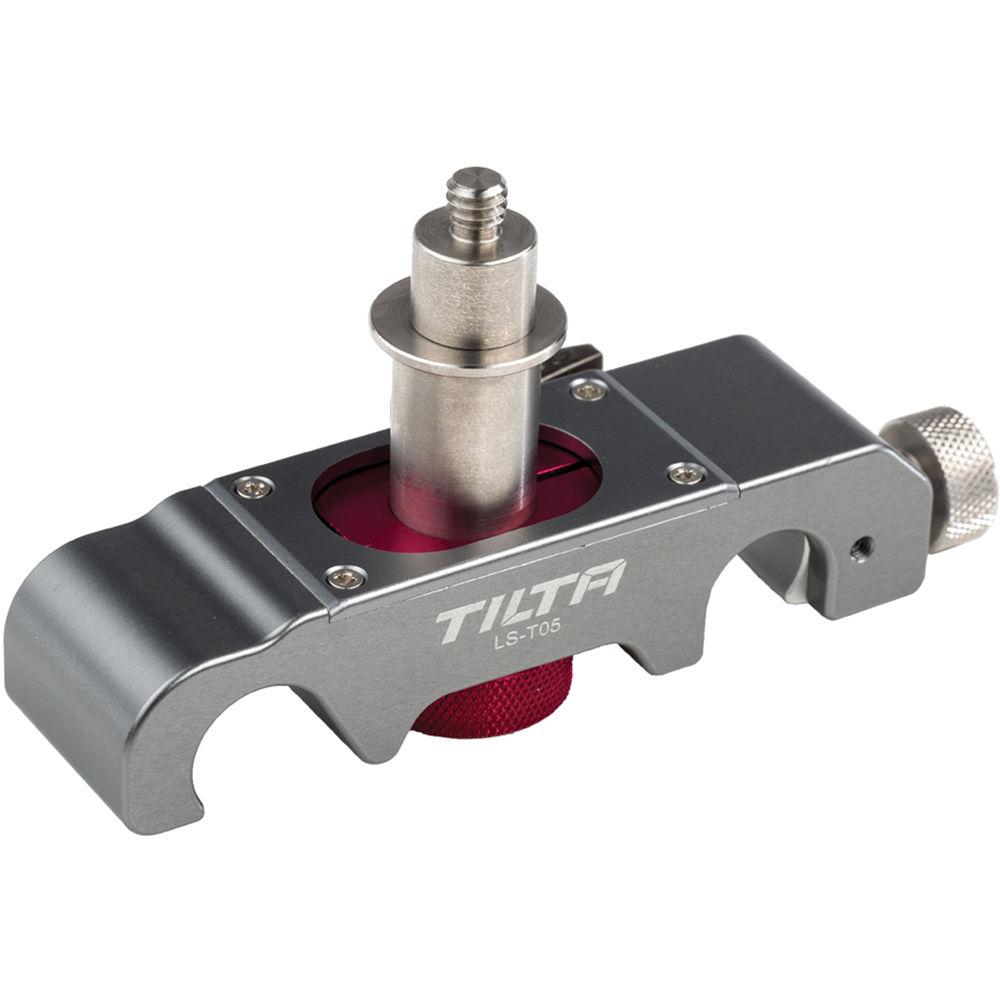

The lens support features 0.25" of side-to-side adjustment and it incorporates a spring loaded locking lever that allows you to tighten or loosen the lens support shaft even if the lever is blocked from turning a full 360°. The support shaft is adjustable from flush with the top of the support to 0.875" high and incorporates a 3/8"-16 threaded mounting stud. The lens support includes a 1/4"-20 lens support adapter and a Y-lens support adapter. - The lens support features a height adjustable post with a 3/8"-16 threaded mounting stud. An included 1/4"-20 adapter allows you to support lenses that feature a 1/4"-20 threaded mounting hole. The included Y-adapter supports lenses that do not feature a threaded mounting hole by allowing the lens to rest on the supports rollers.
UPC: 847983013968 In the Box Tilta 15mm LWS Rod Lens Support Y-Support Bracket 1/4"-20 Screw Attachment Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 15mm LWS Rod Lens Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta LS-T05 Specs | Rod Clamp Type | Snap-on LWS 15mm | | Horizontal Adjustment | 0.25" / 6.4 cm | | Height Adjustment | 0.4" / 10.2 mm | | Dimensions | 7.3 x 2.0 x 1.6" / 185.4 x 50.8 x 40.6 mm | | Weight | 0.34 lb / 0.15 kg | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 2.3" |
