User Manual for Tilta 19mm Universal Dovetail Shoulder Mount System Click to enlarge the picture
Contents of the user manual for the Tilta 19mm Universal Dovetail Shoulder Mount
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta 19mm Universal Dovetail Shoulder Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

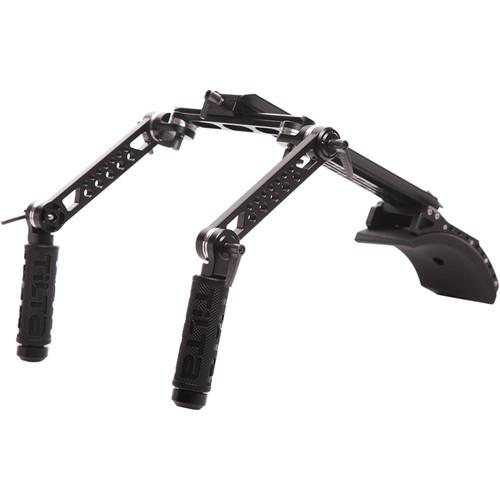

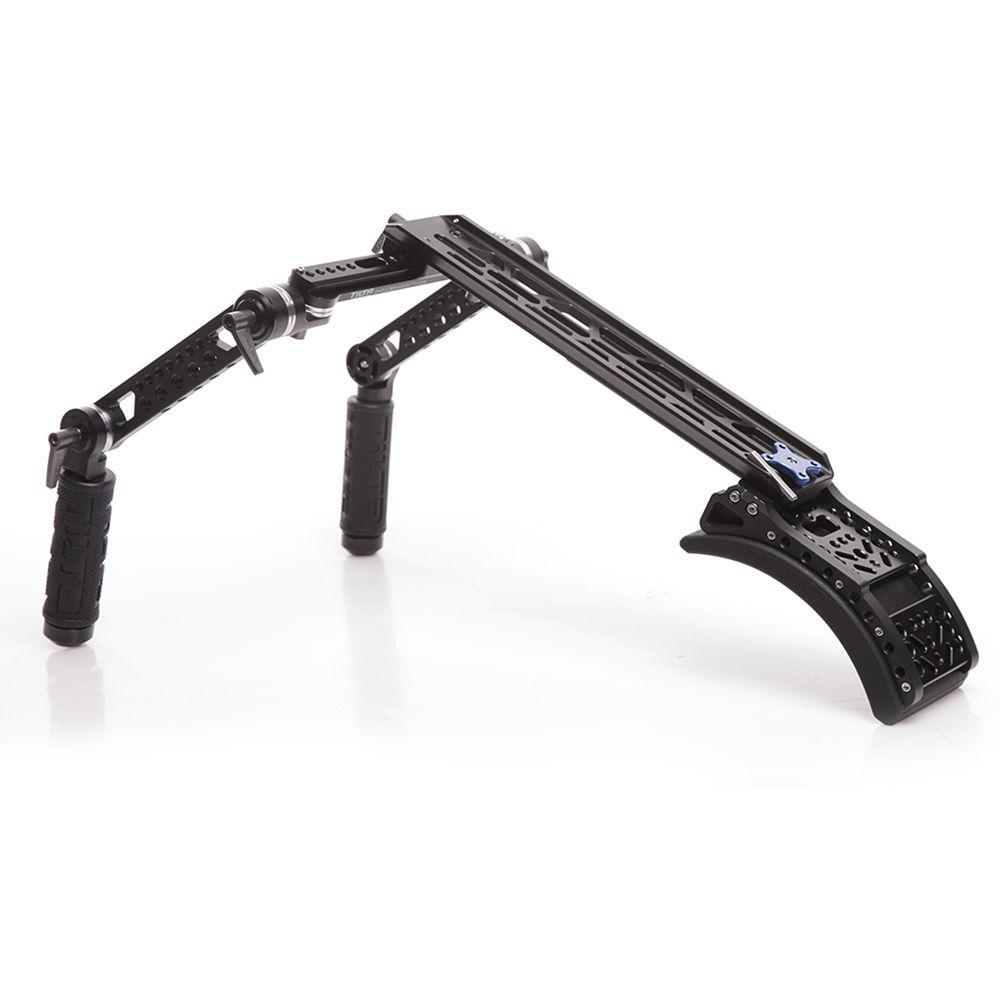

Product description Convert your Tilta rig into a portable shoulder mounted camera support system with the 19mm Universal Dovetail Shoulder Mount System from Tilta. It comes with an adjustable Arri standard dovetail plate, a conformable shoulder pad, and adjustable rosette handgrips. This versatile system is compatible with the ikan Red One/MX and Red Epic/Scarlet camera rigs.

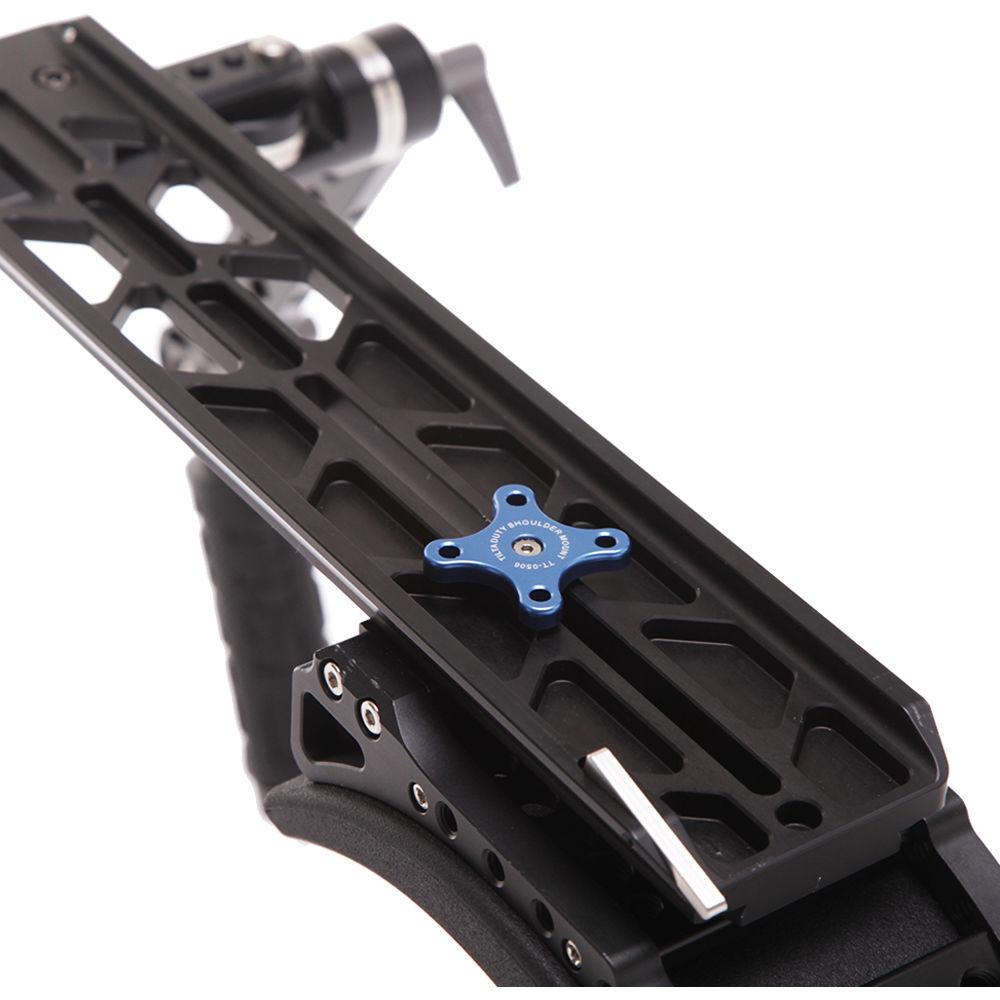

The Arri standard dovetail plate accepts the baseplate/brigeplate of your Tilta rig. The dovetail design allows you to quickly attach or detach your rig by just sliding its baseplate along the dovetail plate. You can adjust the position of your rig along the plate to achieve precise weight adjustment and balance for the camera.

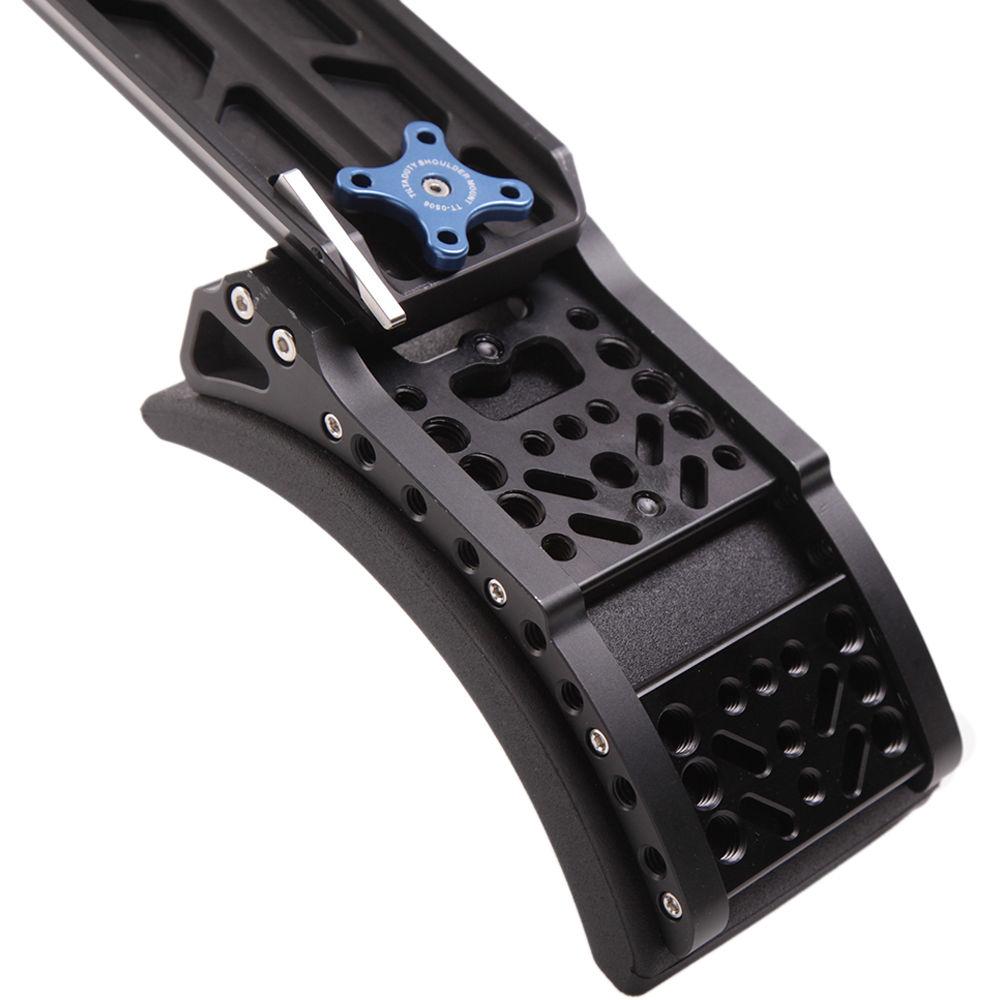

The shoulder pad is designed to give you maximum comfort during those long shoots. The position of the dovetail plate can be adjusted along the shoulder pad, so you can achieve the most comfortable configuration.

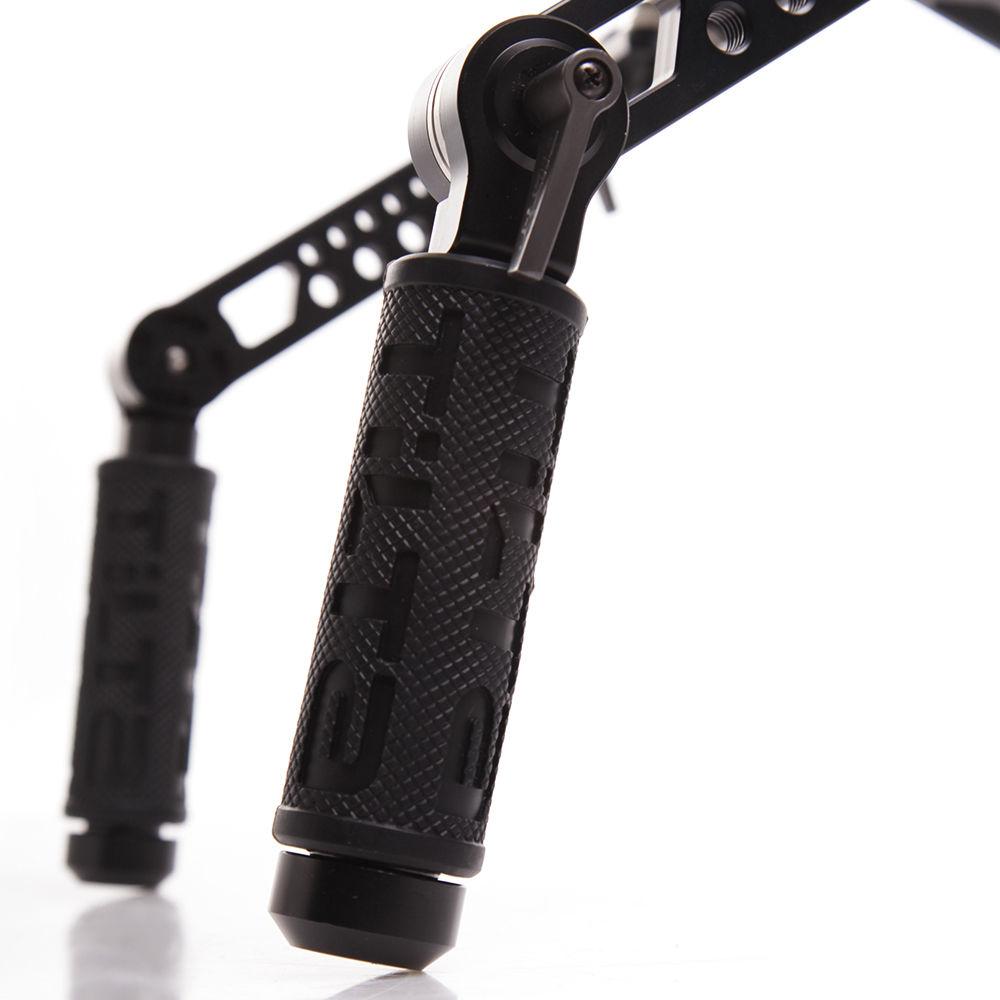

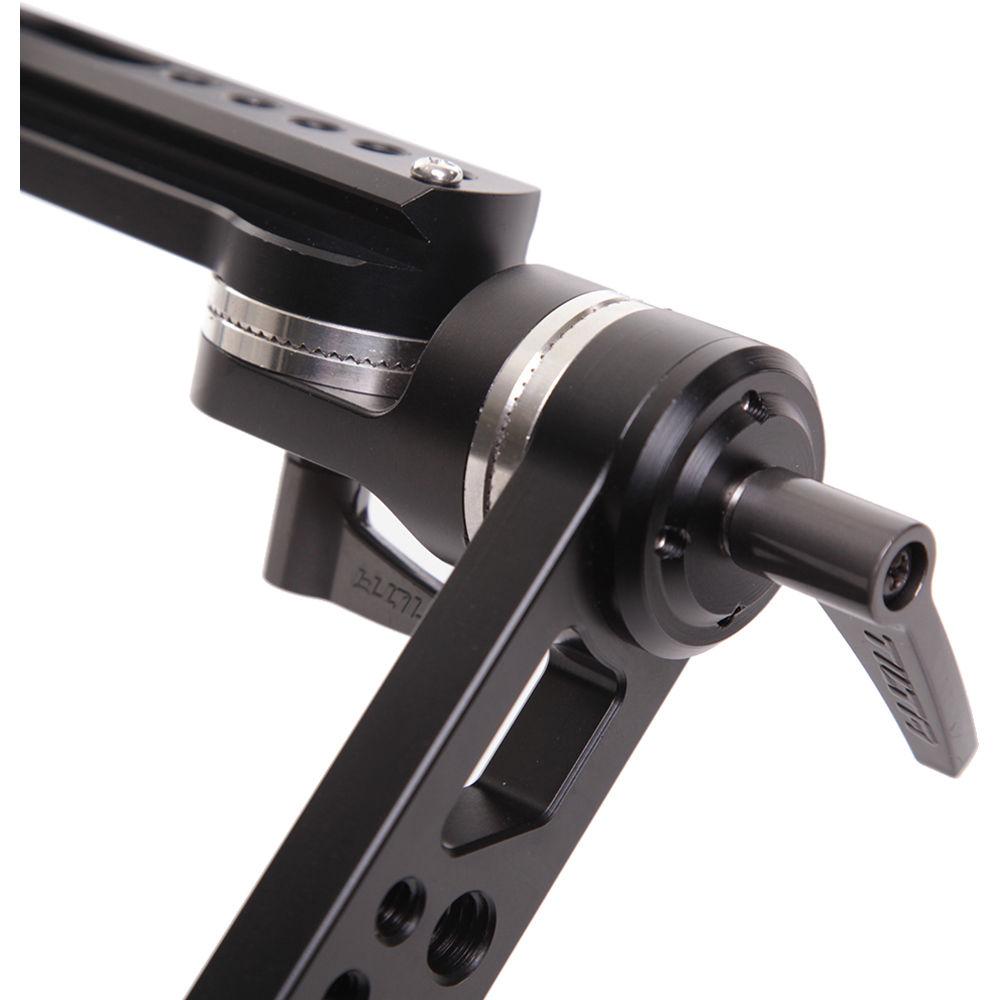

Each adjustable rosette handgrip features adjustable thumbscrews at two contact points. Standard rosettes on the handgrips allow you to easily adjust and achieve the desired position. The rubberized handgrips ensure you have a firm grip on your system. In addition, multiple 1/4"-20 and 3/8”-16 mounting points allow you to mount accessories almost anywhere on your system. - Compatible with ikan Tilta Red One/MX and Tilta ES-T01 Red Epic/Scarlet Camera Rig
- Adjustable dovetail plate for quick attachment and detachment of your rig
- Dovetail plate position can be adjusted along the shoulder pad
- Adjustable rosette handgrips with thumbscrews for adjustment
- Multiple 1/4"-20 and 3/8"-16 mounting points for attaching accessories
UPC: 847983008179 In the Box Tilta 19mm Universal Dovetail Shoulder Mount System 2 x Adjustable Rosette Handgrip Arri Standard Dovetail Plate Shoulder Pad Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 19mm Universal Dovetail Shoulder Mount System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta TT-0506-19 Specs | Compatibility | Tilta Red One/MX Camera Rig
Tilta ES-T01 Red Epic/Scarlet Camera Rig | | Accessory Mounting | 1/4"-20 and 3/8"-16 holes | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 16.4 x 10.3 x 4.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
