Product description

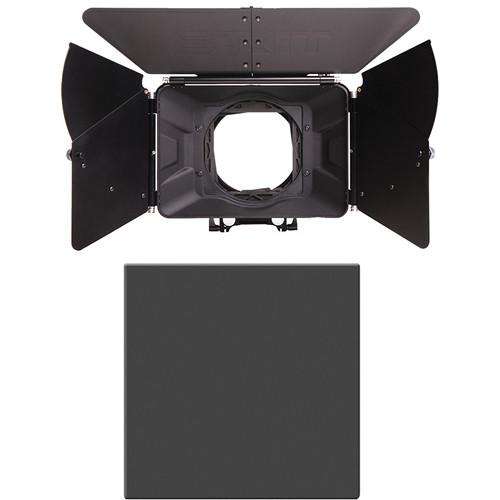

• Tilta 4 x 4" Carbon Fiber Matte Box The Tilta 4 x 4" Carbon Fiber Matte Box features carbon fiber and aluminum construction, making it both lightweight and durable. The matte box will work with lenses up to 100mm in diameter. It features one fixed and one rotating 4 x 4" filter stage and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes.

  The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off filters in the matte box and flaring your image.
  Lightweight Construction
  • The matte box is made of carbon fiber, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.
  Swing-Away Design
  • The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don't have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.
  Top & Side Flags
  • The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don't move during the shot.
  Anti-Reflection Inserts
  • The three included anti-reflection inserts work with lenses with an outer diameter of 72, 80, and 90mm. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image. When you are using lenses with outer diameters other than 72, 80, and 90mm or with lenses that have excessive focus travel it is recommended to use the cloth "nun's knickers" to prevent light leaks.
  UPC: 847983007547
• Tiffen 4 x 4" ND 0.6 Filter (2-Stop) The Tiffen 4 x 4" ND 0.6 Filter is a solid neutral density filter providing a 2-stop exposure reduction. This 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.This filter is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. This filter measures 4 x 4" / 101.6 x 101.6mm.
  • 0.6 solid ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 2-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  UPC: 049383018684

• 4 x 4" Carbon Fiber Matte Box vwsqsqbwfu
• 2 x Filter Tray (4 x 4")
• Nuns Knickers
• 3 x Anti Reflection Insert
• Limited 1-Year Warranty

• Tiffen - 4 x 4" ND 0.6 Filter (2-Stop)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tilta 4 x 4" Carbon Fiber Matte Box

  Filter Type	4 x 4"
  Total Filter Stages	2
  Rotating Stages	1
  Degree of Rotation	360°
  Materials	Carbon Fiber Aluminum
  Dimension L x W x H	9.9 x 6.6 x 3" / 25.1 x 16.8 x 7.36 cm
  Weight	2 lb / 0.91 kg

  Top Flag	Dimensions 15.13 x 4.88" / 384.3 x 123.9 mm Thickness 0.06" / 1.5 mm Weight 5 oz / 141.8 g
  Side Flag	Number 2 Dimensions 9.13 x 5.13" / 231.9 x 130.3 mm Thickness 0.06" / 1.5 mm Weight 3 oz / 85 g

  Box Dimensions (LxWxH)	12.95 x 10.4 x 5.3"

• Tiffen 4 x 4" ND 0.6 Filter (2-Stop)

  Filter Type	Solid ND
  Density	0.6 (2 Stops)
  Rectangular Size	4 x 4" / 101.6 x 101.6 mm

  Box Dimensions (LxWxH)	6.0 x 5.5 x 1.1"
