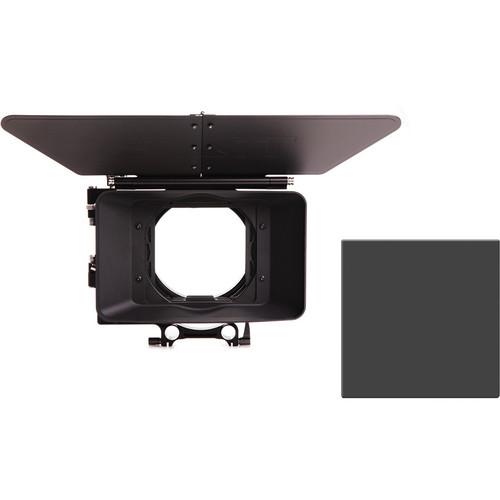

Product description This B&H Kit includes the Tilta 4 x 4" Lightweight Matte Box from ikan and one Tiffen 0.6 ND filter. This kit provides you with a lightweight mattebox with a feature set beyond that of a basic mattebox and a neutral density filter for exposure control. The mattebox easily mounts onto 15mm rods via its rod adapter. It features two 4x4" filter holders. The lightweight construction adds very little weight to your system, and the swing away design moves the mattebox out of the way during lens changes, without having to remove the mattebox from the rods. The included top flange attaches to a hinge on the top of the mattebox and is adjustable so it can block flares while staying out of frame. The mattebox also includes a fabric lens donut or "Nun's Knickers" and a set of lens adapters that allow you to work with lenses of various diameters up to 100mm.
The included 0.6 ND filter provides an even reduction of light by two stops. This means that if you were shooting at an f5.6 without a filter; with the included ND filter, you would set your aperture to f2.8 to maintain the same exposure. A wider aperture setting results in less depth of field, which helps you achieve a more cinematic look. The filter can also be used on very bright days to bring down your exposure without adjusting your shutter speed or closing your aperture down so far that it degrades the image. The filter is designed so that the ND material is sandwiched between two layers of glass. This provides excellent consistency and unlike filters that mix the filter effect in the glass itself, you can have this filter polished to remove light scratches without affecting the density of the filter. This can save you the cost of replacing the filter if it gets lightly scratched. - Tilta 4x4" Lightweight Matte Box The Tilta 4x4" Lightweight Matte Box easily mounts onto 15mm rods via its rod adapter. It features two 4x4" filter holders. The lightweight construction adds very little weight to your system, and the swing-away design moves the matte box out of the way during lens changes, without having to remove the matte box from the rods.
The back of the matte box features a 114mm opening for lenses, and it comes with 80 and 95mm diameter lens adapters, and a fabric donut (Nun's Knickers), for use with smaller diameter lenses. The lens adapters and fabric donut are used to prevent light from leaking from behind the lens and reflecting off filters and flaring your image. The matte box features a removable top flag (eyebrow) that attaches to a hinge so you can precisely set the flag at the edge of your frame to block light sources from flaring. - 15mm rod adapter easily mounts onto industry-standard 15mm camera support systems
- Swing-away design allows you to move the matte box to allow for easy lens replacement
- Two 4x4" filter holders for adding filters to your system
- Removable top flag protects your lens from flare
- Fabric lens donut (Nun's Knickers) block stray light reflections from behind camera
- 80 and 95mm diameter lens adapters block stray light reflections from behind camera
UPC: 847983007431 - Tiffen 4 x 4" ND 0.6 Filter (2-Stop) The Tiffen 4 x 4" ND 0.6 Filter is a solid neutral density filter providing a 2-stop exposure reduction. This 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.This filter is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. This filter measures 4 x 4" / 101.6 x 101.6mm.
- 0.6 solid ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
- Providing a 2-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
- Filter does not affect coloration of the image and is ideal for use with other filters.
UPC: 049383018684 In the Box - 4x4" Lightweight Matte Box xrbctfzatdafqtwrcbbscrbzffazrzurwyw
- 2 x 4x4" Filter Holder
- Removable Top Flag
- 80mm Lens Adapter
- 95mm Lens Adapter
- Fabric Lens Donut
- 15mm LWS Rod Adapter
- Limited 2-Year Warranty
- Tiffen - 4 x 4" ND 0.6 Filter (2-Stop) xrbctfzatdafqtwrcbbscrbzffazrzurwyw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 4x4" Tilta Lightweight Mattebox with 0.6 ND Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tilta 4x4" Lightweight Matte Box
| Compatible with | 15 mm camera support systems | | Material of Construction | Aluminum-alloy, stainless steel | | Size | Filter Holder: 4 x 4" / 10.2 x 10.2 cm | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 13.0 x 10.15 x 4.4" | - Tiffen 4 x 4" ND 0.6 Filter (2-Stop)
| Filter Type | Solid ND | | Density | 0.6 (2 Stops) | | Rectangular Size | 4 x 4" / 101.6 x 101.6 mm | | | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 1.1" |
