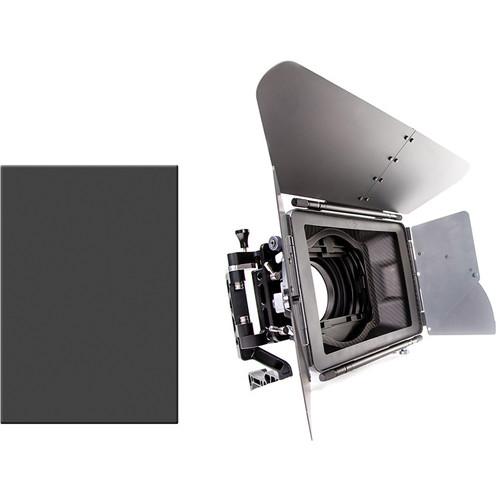

User Manual for Tilta 4x5.65" Carbon Fiber Matte Box with ND Filter Kit Click to enlarge the picture
Contents of the user manual for the Tilta 4x5.65" Carbon Fiber Matte Box
- Product category: Matte Boxes & Sunshades Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Matte Boxes & Sunshades
|
User manual for the Tilta 4x5.65" Carbon Fiber Matte Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description This B&H Kit includes the Tilta 4 x 5.65" Lightweight Matte Box from ikan and one Tiffen 0.6 ND filter. This kit provides you with a lightweight matte box with a rich feature set and a neutral density filter for exposure control. The matte box mounts to 19mm studio support rods, and features a swing away design that moves the matte box out of the way during lens changes, without having to remove the matte box from the support rods. The lightweight carbon fiber construction keeps the weight down, while still being strong enough to support a top flag (eyebrow) and side flags for lens flare control. The matte box also comes with 80, 90, 114, and 134mm lens adapters to prevent light leak from behind the lens.
The included 0.6 ND filter provides an even reduction of light by two stops. This means that if you were shooting at an f5.6 without a filter; with the included ND filter, you would set your aperture to f2.8 to maintain the same exposure. A wider aperture setting results in less depth of field, which helps you achieve a more cinematic look. The filter can also be used during very bright days to bring down your exposure without adjusting your shutter speed or closing your aperture down so far that it degrades the image. The filter is designed with the ND material sandwiched between two layers of glass. This provides excellent consistency and unlike filters that mix the filter effect in the glass itself, you can have this filter polished to remove light scratches without affecting the density of the filter. This can save you the cost of replacing the filter. - Tilta 4 x 5.65" Carbon Fiber Matte Box The Tilta 4 x 5.65" Carbon Fiber Matte Box easily mounts onto 19mm rails via its 19mm rod adapter. It features two 360° rotating aluminum filter holders of 4 x 5.65". The lightweight carbon fiber construction adds very little weight to your system, and the swing-away design allows you to make quick lens changes and simply move the matte box away from your lens when you’re not using it without having to detach it from your system. For use with 15mm rod systems, a 15mm rod adapter is included.
The matte box also comes with 80, 90, 114, and 134mm lens adapters to fit most telephoto lenses, and three flags to reduce side flare. - 19mm rod adapter to easily mount to industry-standard 19mm camera support systems
- Swing-away design allows you to move the matte box away when not in use and allows for easy lens replacement
- Two 360° rotating aluminum filter holders to add 4 x 5.65" polarizing or graduated aluminum filters to your system
- French flag and side wings protect your lens from flare
- 80, 90, 114, and 134mm lens adapters for use with a wide range of lenses
UPC: 847983007424 - Tiffen 4 x 5.65" ND 0.6 Filter (2-Stop) The Tiffen 4 x 5.65" ND 0.6 Filter is a solid neutral density filter providing a 2-stop exposure reduction. This 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.This filter is made using ColorCore technology, a process that involves laminating the filter substrate between two pieces of optical glass and grinding flat to a tolerance of 1/10,000th of an inch. This filter measures 4 x 5.65" / 101.6 x 143.5mm.
- 0.6 solid ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
- Providing a 2-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
- Filter does not affect coloration of the image and is ideal for use with other filters.
UPC: 049383020403 In the Box - 4 x 5.65" Carbon Fiber Matte Box xfcqucbyceftwbeuv
- 2 x 4 x 5.65" 360° Rotating Filter Holder
- French Flag
- 2 x Side Wing
- 15mm Rod Adapter
- 80, 90, 114, and 134mm Lens Adapters
- Limited 2-Year Warranty
- Tiffen - 4 x 5.65" ND 0.6 Filter (2-Stop)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 4x5.65" Carbon Fiber Matte Box with ND Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tilta 4 x 5.65" Carbon Fiber Matte Box
| Compatibility | 19 mm Rod Support Systems
15 mm Rod Support Systems (via 15 mm Rod Adapter) | | Material | Carbon Fiber | | Size | Filter Holder: 4.00 x 5.65" / 10.20 x 14.35 cm | | | | Box Dimensions (LxWxH) | 15.8 x 13.9 x 12.1" | - Tiffen 4 x 5.65" ND 0.6 Filter (2-Stop)
| Filter Type | Solid ND | | Density | 0.6 (2 Stops) | | Rectangular Size | 4 x 5.65" / 101.6 x 143.5 mm | | | | Box Dimensions (LxWxH) | 6.4 x 5.2 x 1.1" |
