User Manual for Tilta 6.6 x 6.6" Carbon Fiber Matte Box Click to enlarge the picture
Contents of the user manual for the Tilta 6.6 x 6.6" Carbon Fiber
- Product category: Matte Boxes & Sunshades Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Matte Boxes & Sunshades
 |
User manual for the Tilta 6.6 x 6.6" Carbon Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description - Tilta MB-T06 6x6 Carbon Fiber Matte Box

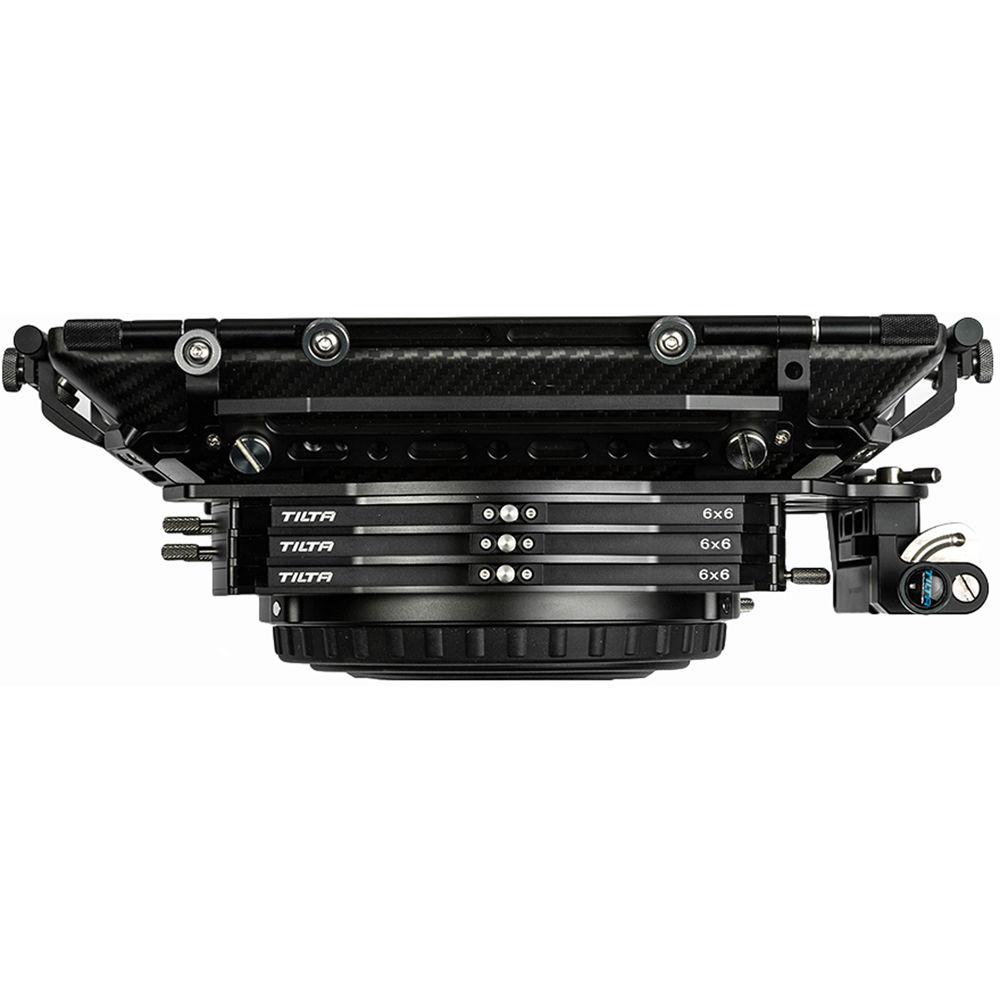

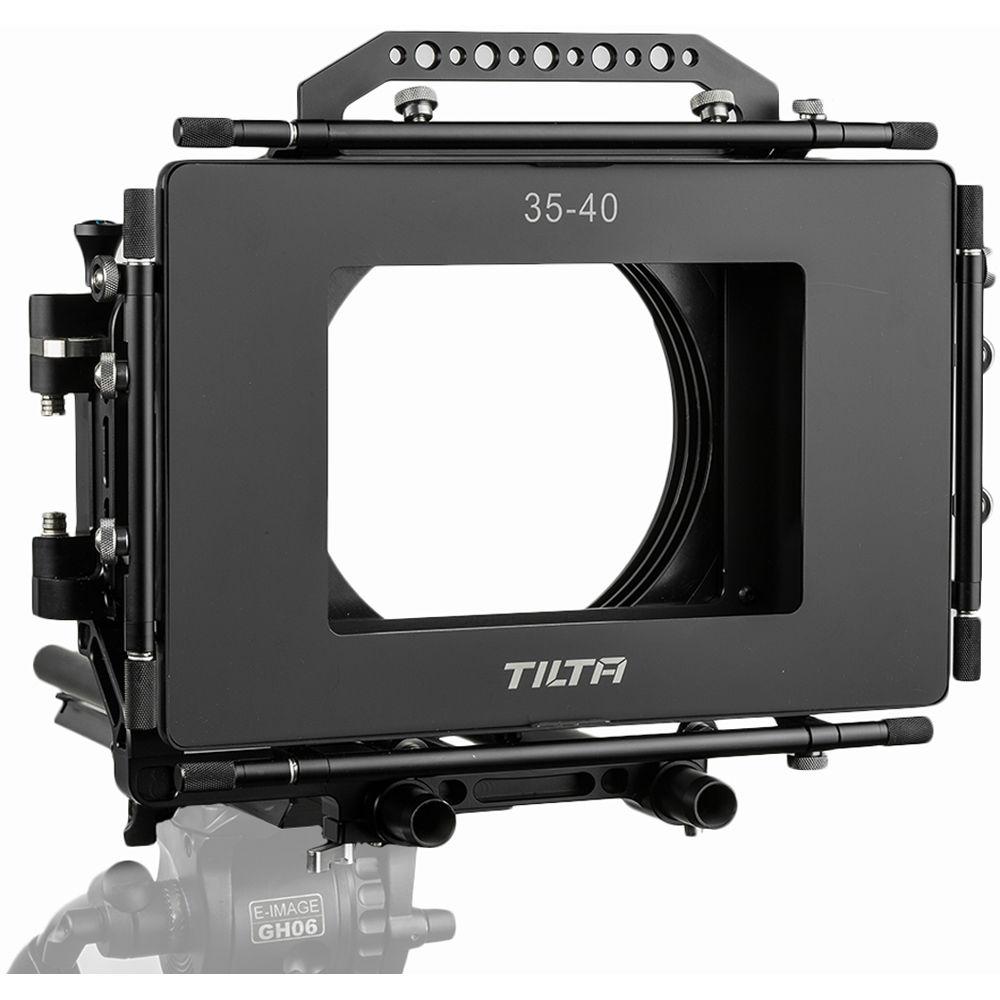

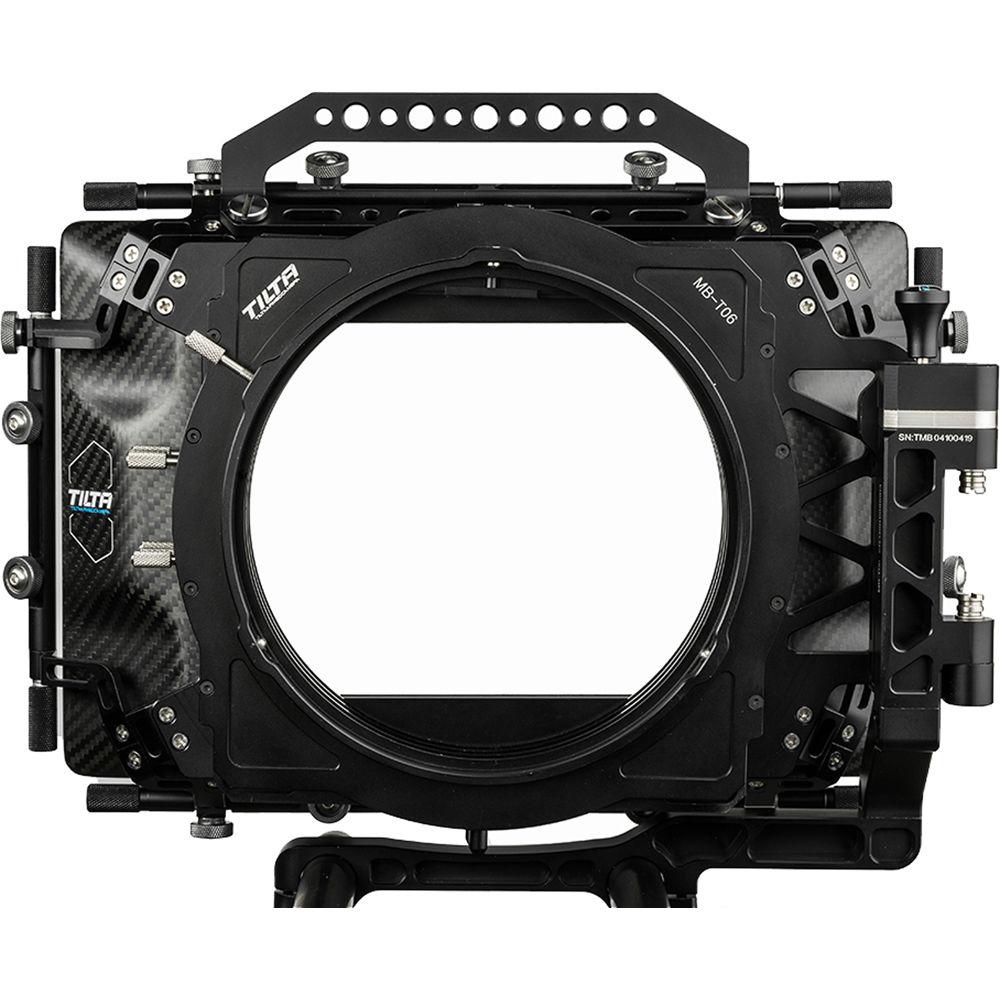

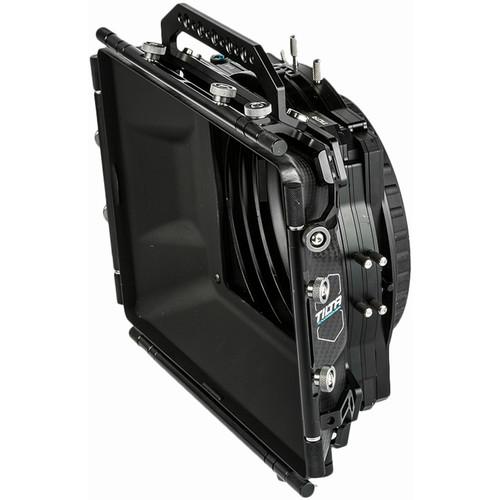

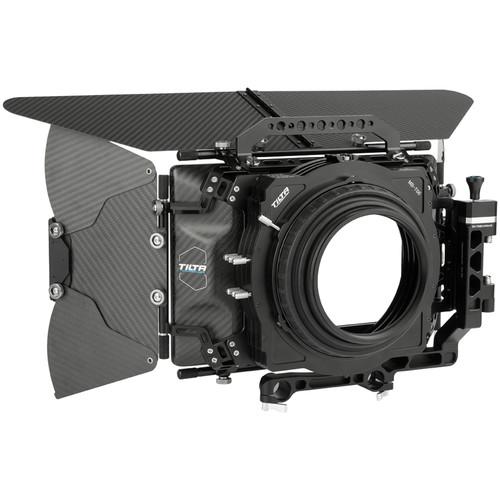

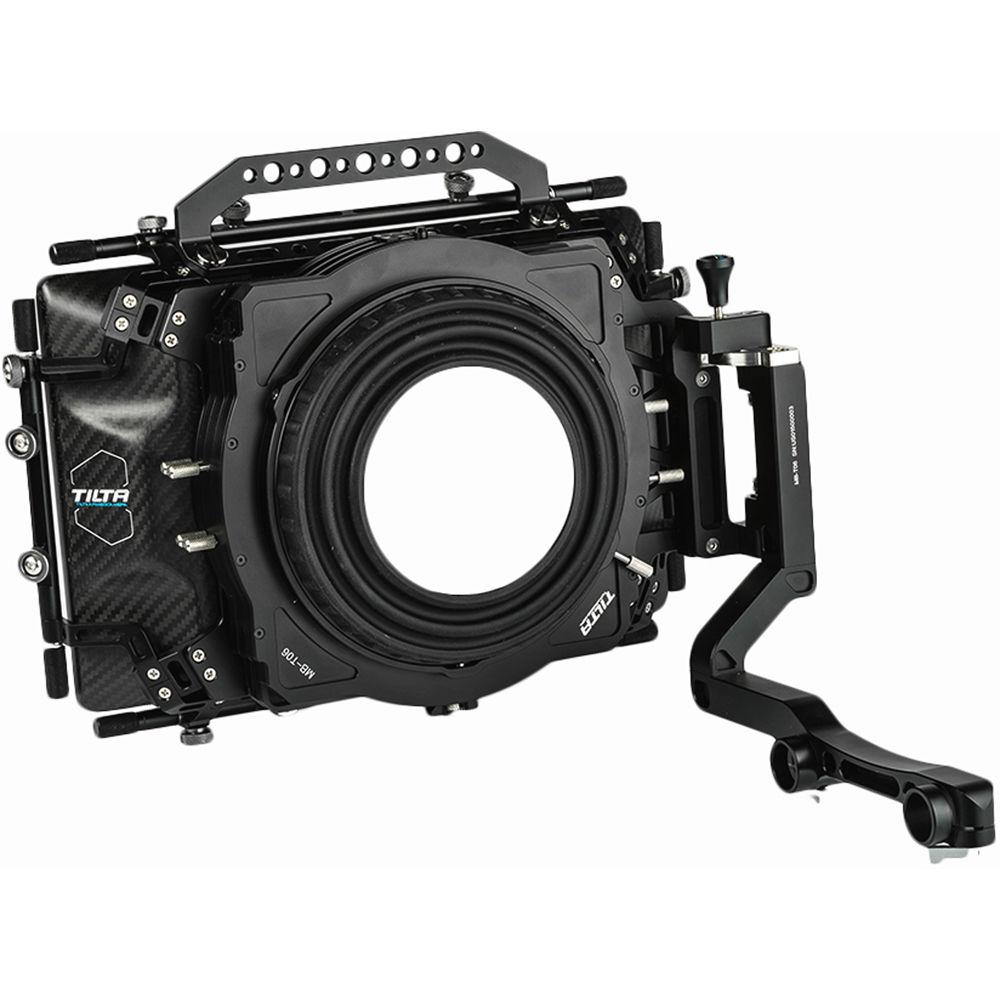

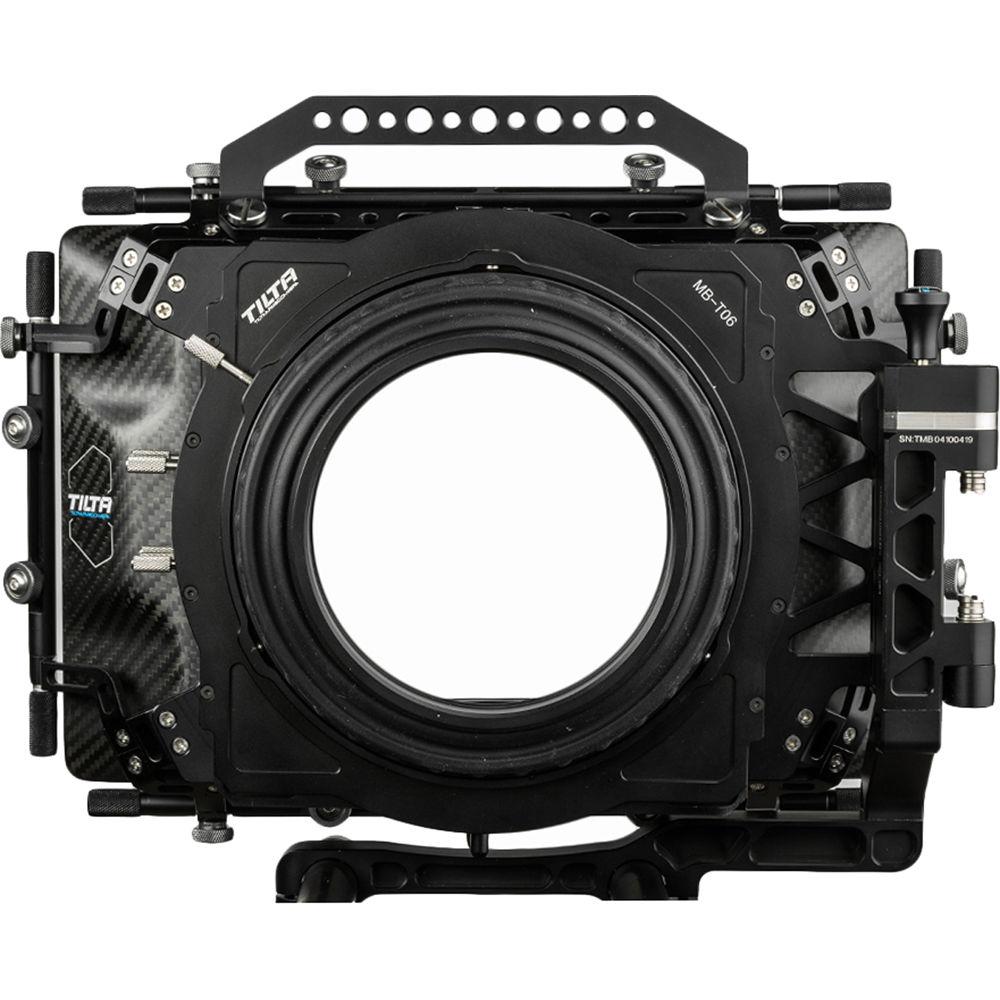

The Tilta 6.6 x 6.6" Carbon Fiber Matte Box is a 15-piece matte box kit designed for studio camera setups. Constructed from carbon fiber and aluminum, the matte box is designed to be strong and lightweight and features a 19mm swing-away rod mount for quick lens changes between shots. It provides three rotating filter stages that accommodate 6.6 x 6.6" filters, with the trays height adjustable for optical center alignment. It also provides a removable top handle with 1/4"-20 and 3/8"-16 threads for attaching various accessories. Included with the matte box are carbon fiber top and side flags to help prevent unwanted light from hitting your lens. The rear opening diameter of the mate box supports lens up to 165mm, with a set of adapter rings to reduce the rear opening as low as 80mm. A set of five matte inserts is also included. - Key Features
-
- 19mm rod adapter to easily mount to industry-standard 19mm camera support systems

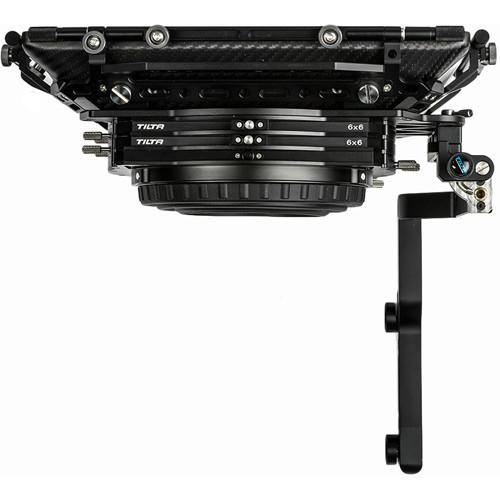

- Swing away design allows you to move the matte box away when not in use and allows for easy lens replacement
- Three rotating aluminum filter holders accept 6.6 x 6.6" filter

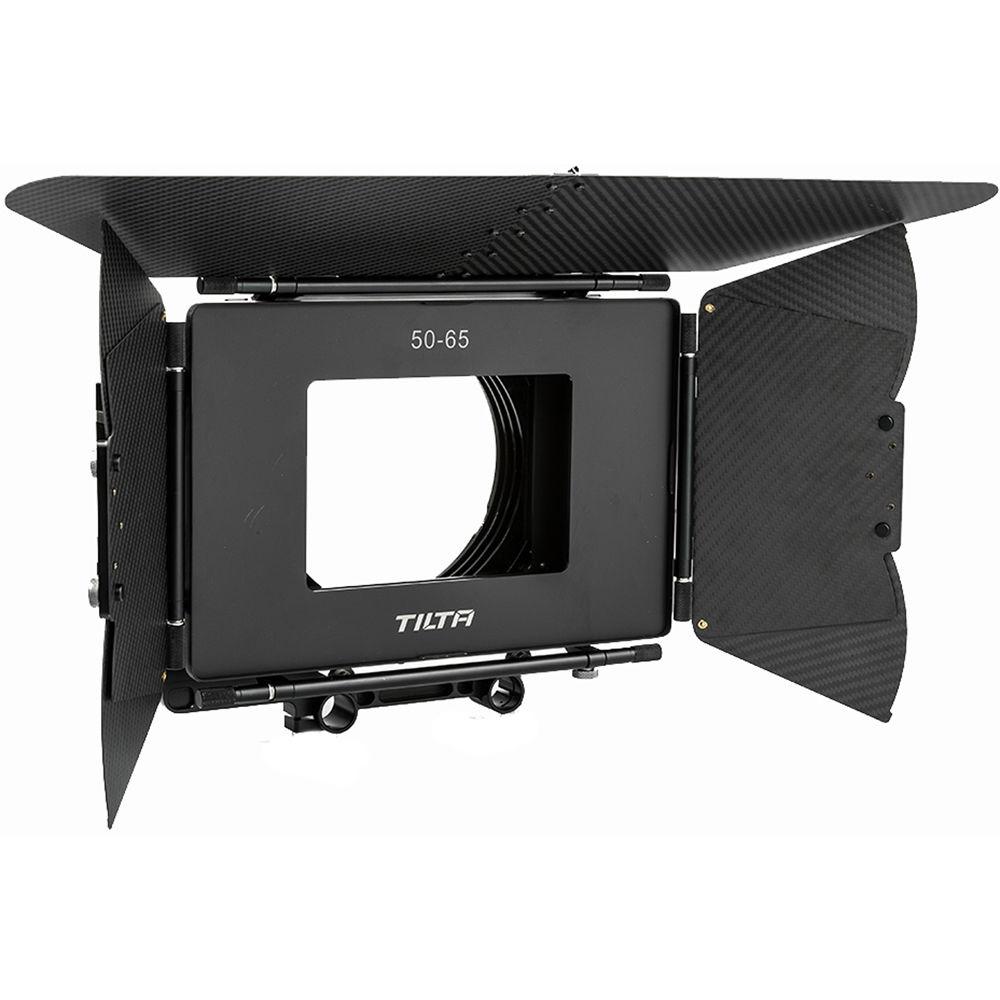

- Carbon fiber top and side flags
- Removable top handle with 1/4"-20 and 3/8"-16 accessory threads
- 80, 95, 114, 134mm, and 147mm lens adapters for use with a wide range of lenses
- 100mm rubber insert
- Five matte inserts to accommodate various focal lengths from wide angle to telephoto

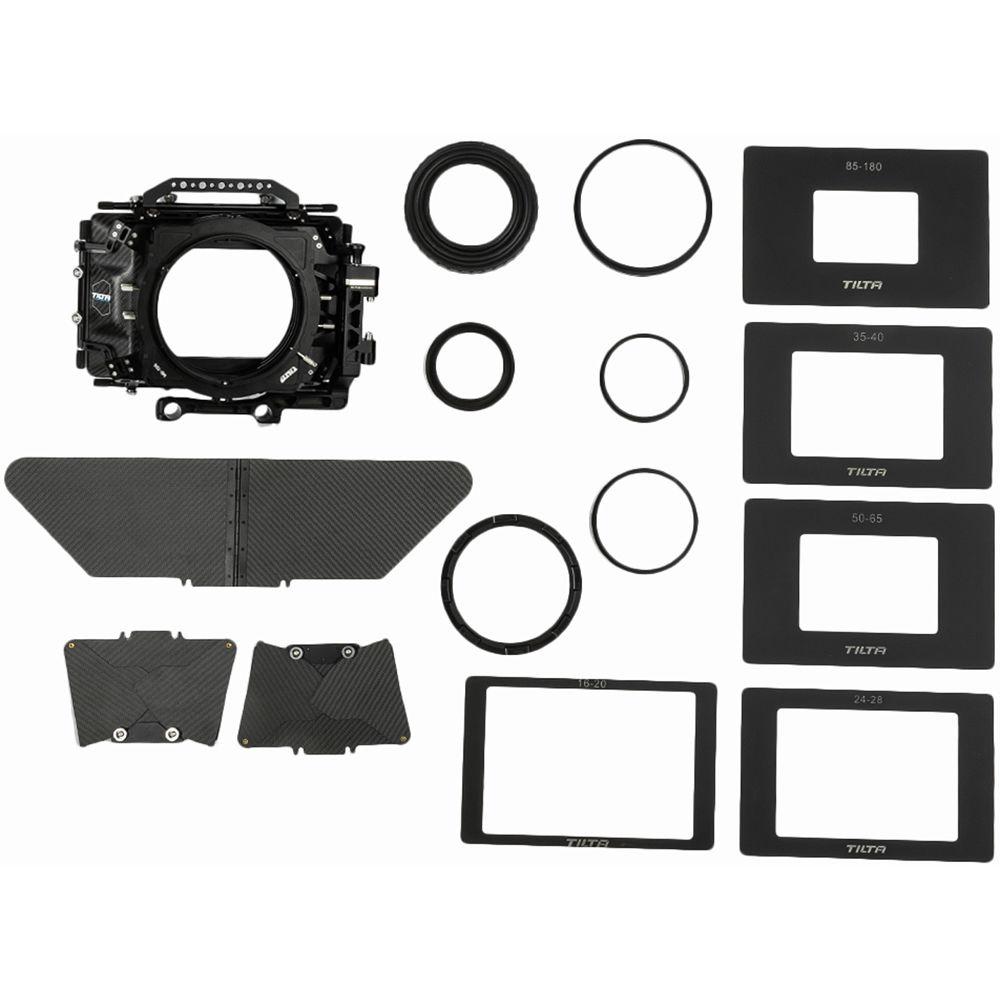

UPC: 847983008117 In the Box Tilta 6.6 x 6.6" Carbon Fiber Matte Box 3 x 6.6 x 6.6" Filter Trays Top Flag 2 x Side Flags 16-20 Matte 24-28 Matte 35-40 Matte 50-65 Matte 85-180 Matte 80mm Adapter Ring 95mm Adapter Ring 100mm Adapter Ring 114mm Adapter Ring 134mm Adapter Ring 147mm Adapter Ring Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta 6.6 x 6.6" Carbon Fiber Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta MB-T06 Specs | Materials | Matte Box: Carbon fiber, aluminum
Top Flag: Carbon fiber
Side Flag: Carbon fiber | | Rod Compatibility | 19 mm | | Rod Spacing | 104 mm | | Filter Size | 6.6 x 6.6" | | Rotating Filter Stages | 3 | | Rear Opening Diameter | 165 mm | | Height Adjustment Range | 4.6 x 5.1" (118 to 130 mm), between optical center and rods | | Dimensions | Matte Box: Not specified by manufacturer
Top Flag: 21.6 x 5.9 x 0.06" (54.86 x 14.98 x 0.15 cm)
Side Flag (Collapsed): 7.9 x 5 x 0.5" (20.06 x 127 x 1.27 cm) | | Weight | Matte Box: 4.3 lb (1.94 kg)
Top Flag: 4.5 oz (128 g)
Side Flag: 10 oz (284 g) | | | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 15.3 x 13.4 x 12.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
