Product description - Ikan Corp: Tech Corner - Armor-Man 2 Gimbal Exoskeleton Support

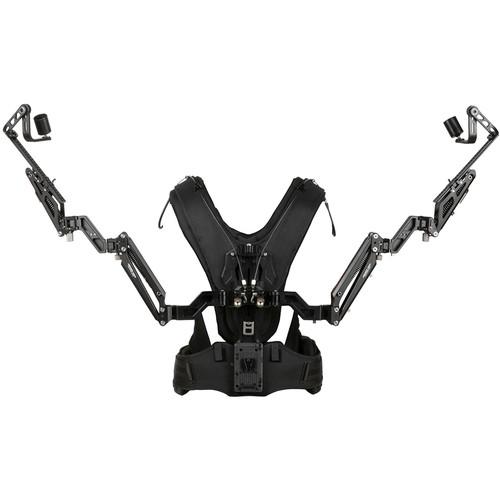

As great as a gimbal stabilizer is, you still have to hold it with your arms the whole time. The Tilta Armor Man 2 is designed to take the weight off your arms, allowing for an entirely different experience. This version of the Armor Man 2 comes with a V-mount plate attached to the vest.

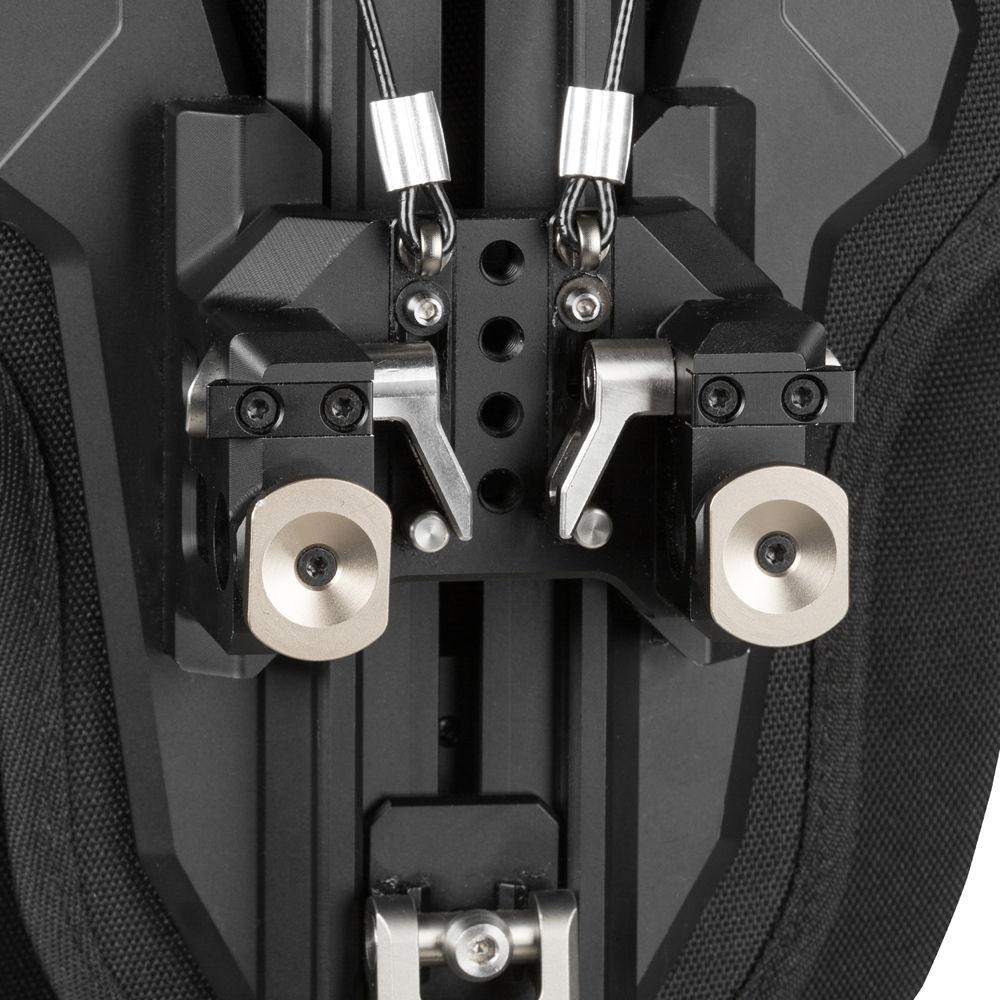

The Armor-Man supports most full size gimbals, including the Tilta Gravity, Freefly MoVI, and DJI Ronin. Its core components are the main body vest and two spring-loaded arms that securely snap into the vest. Simply mount your gimbal on the arms, and operate it free of weight stress and with significantly improved stability. It will be more like steering the gimbal than actually holding it. Now you can boom the gimbal down as far as possible to the ground, with your focus more on the shot than on the weight of the gimbal and load.

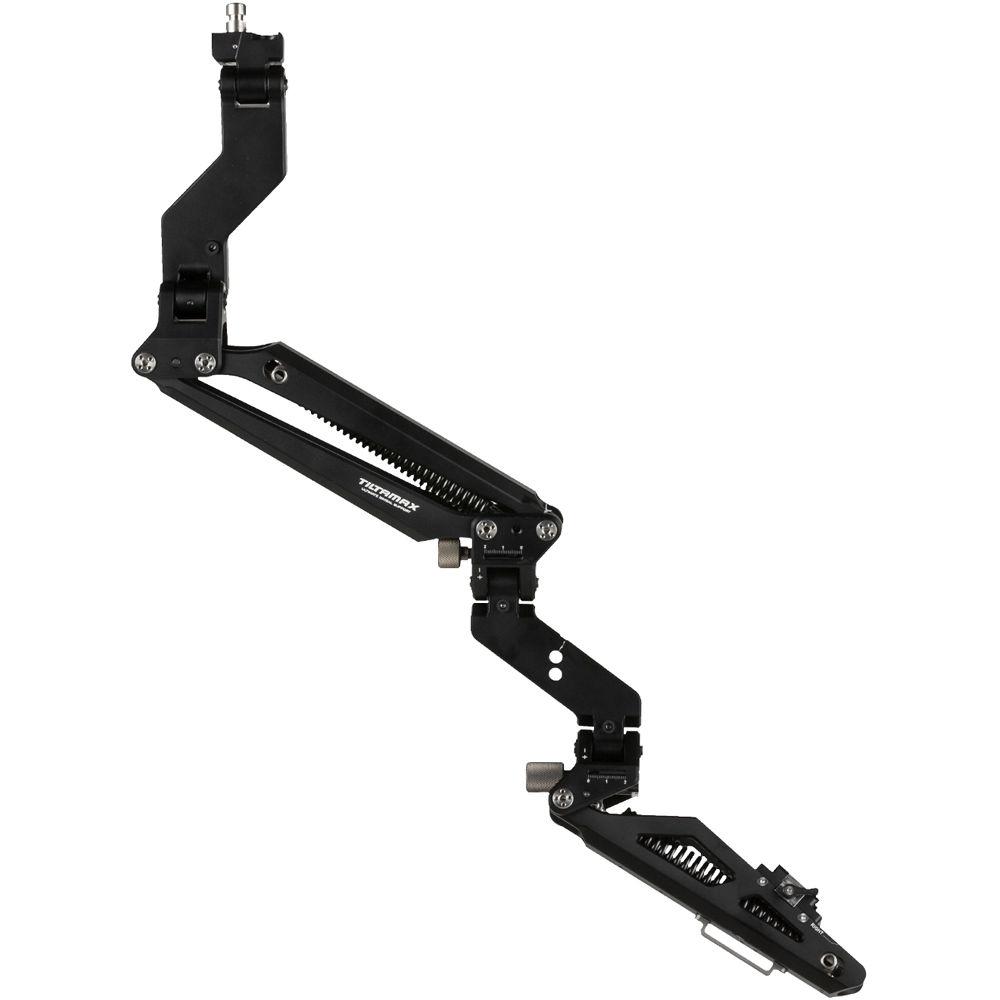

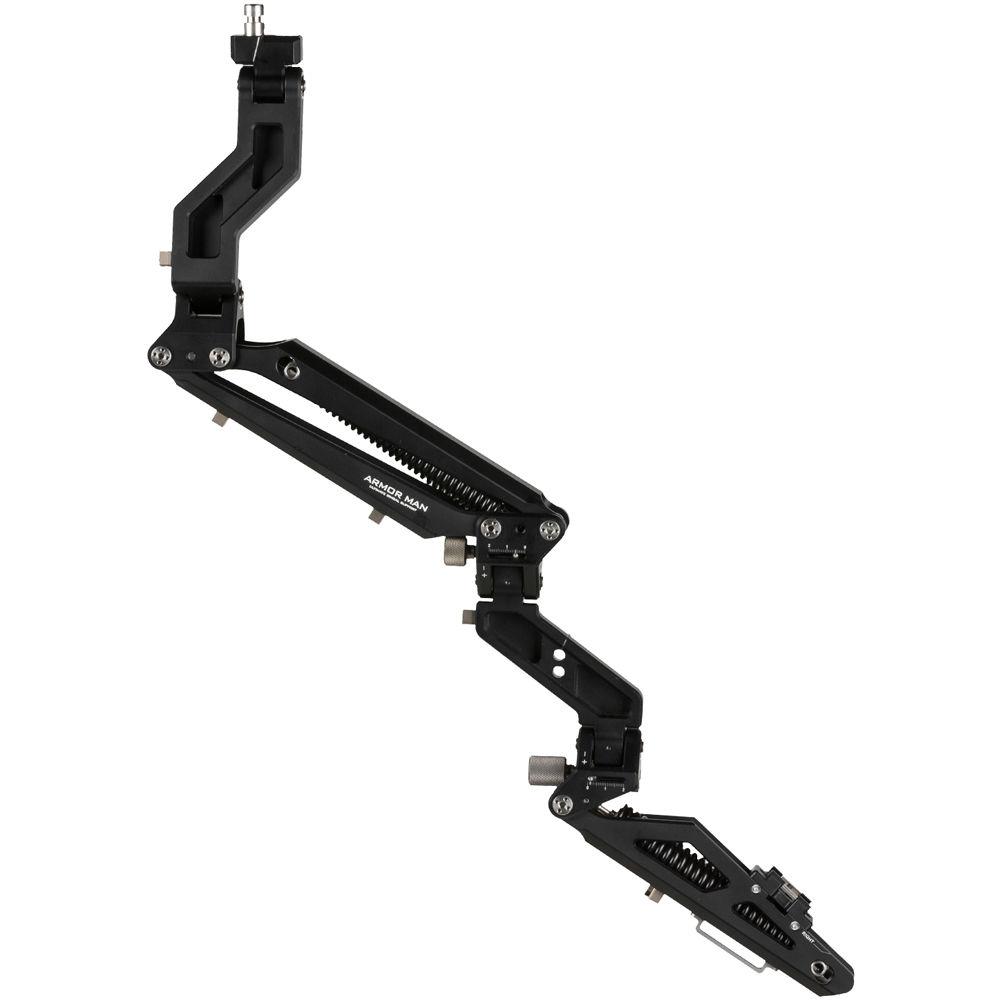

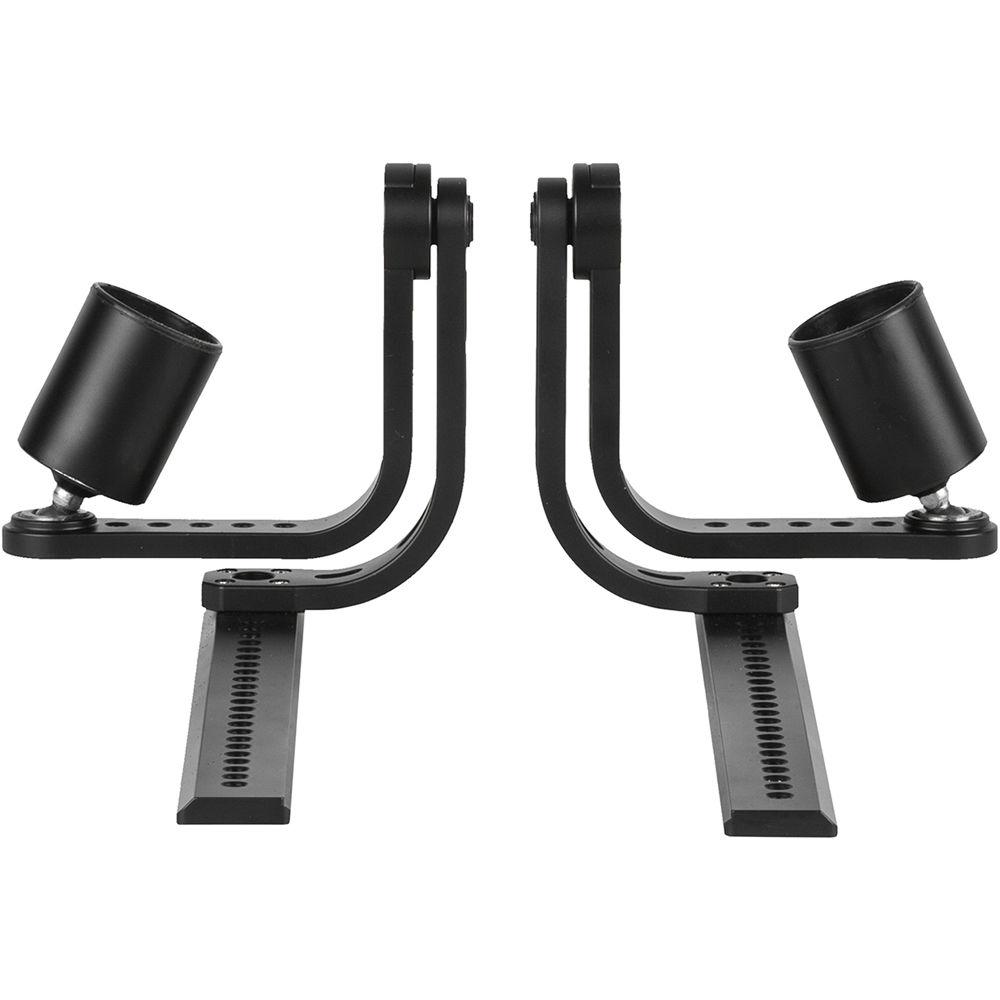

Each arm features two spring-loaded sections, and the tension of each section is adjustable independently via a dedicated knob. On the end of each arm is a swivel-adjustable handgrip support for attaching your gimbal handgrips. When not in use, such as between takes, the arms can be swiveled down into a resting position. When you're ready to pack up for the day, the arms quick-release off the vest as easily as they attach, and the entire Armor Man fits into an included custom hard case.

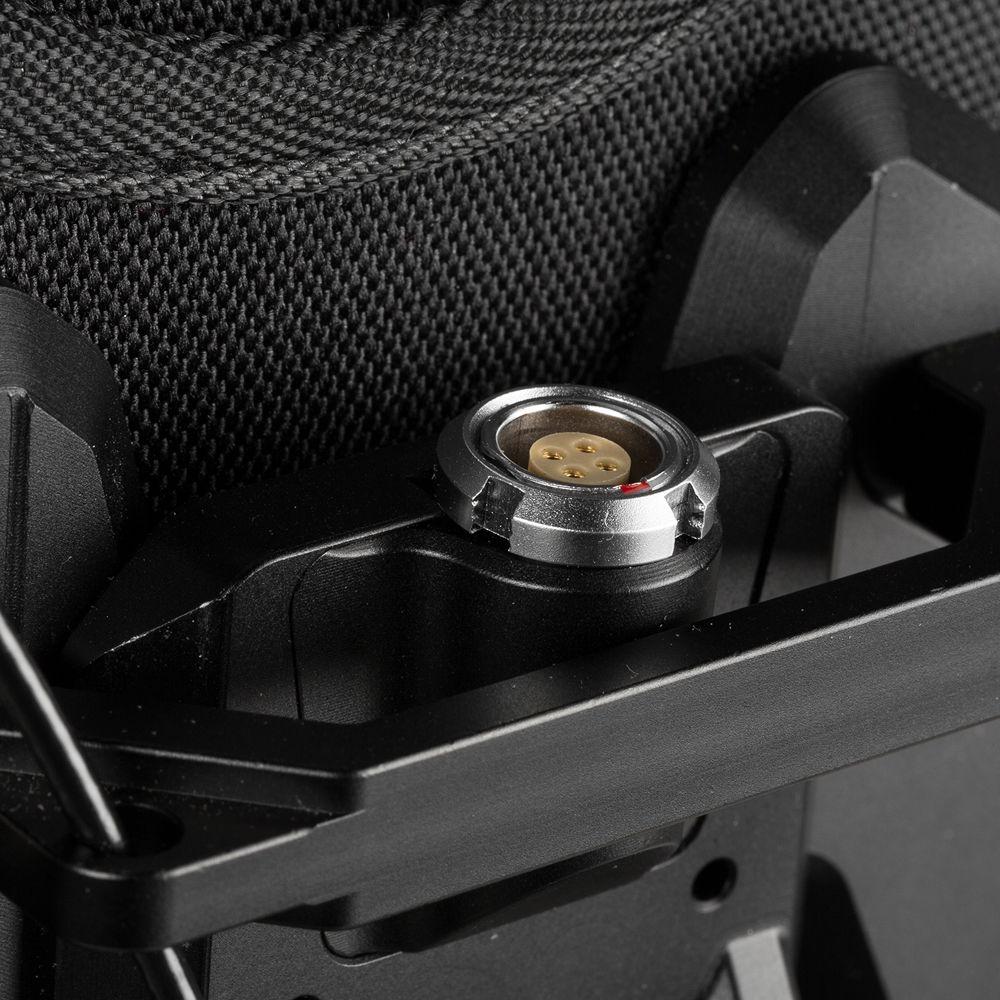

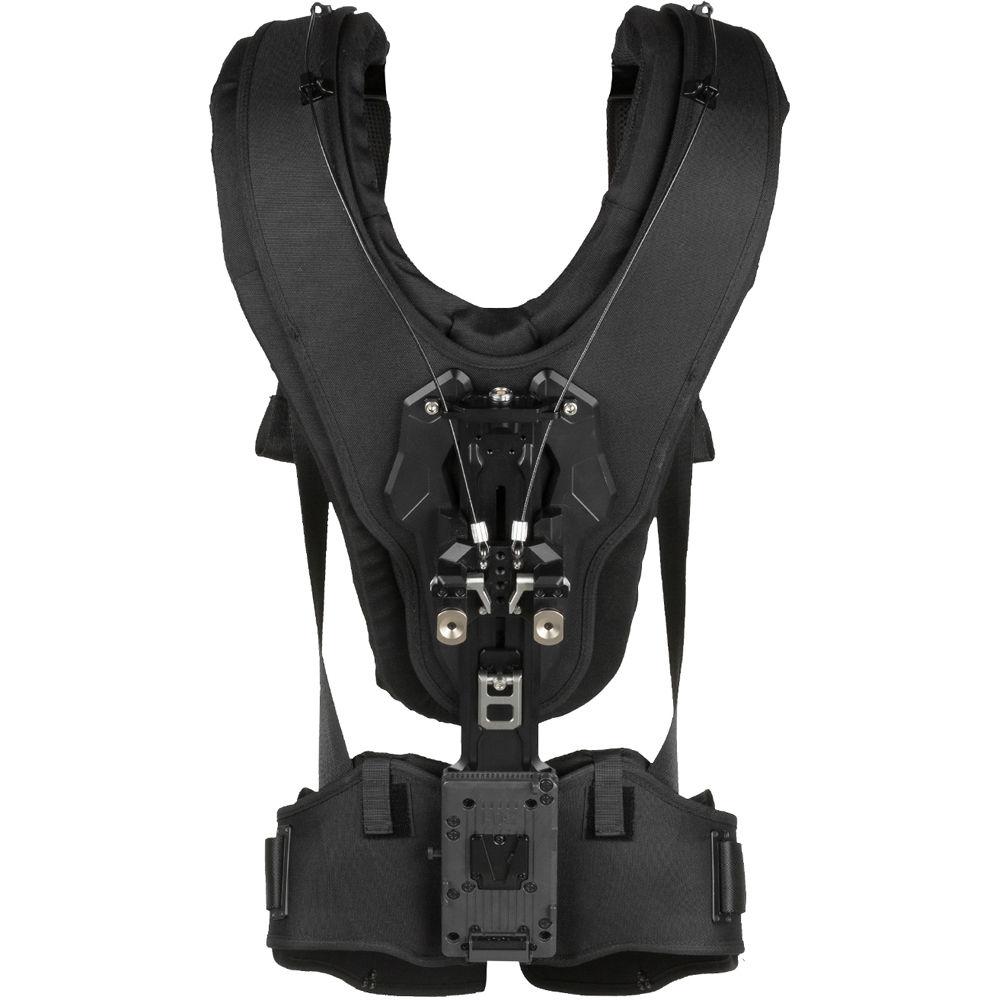

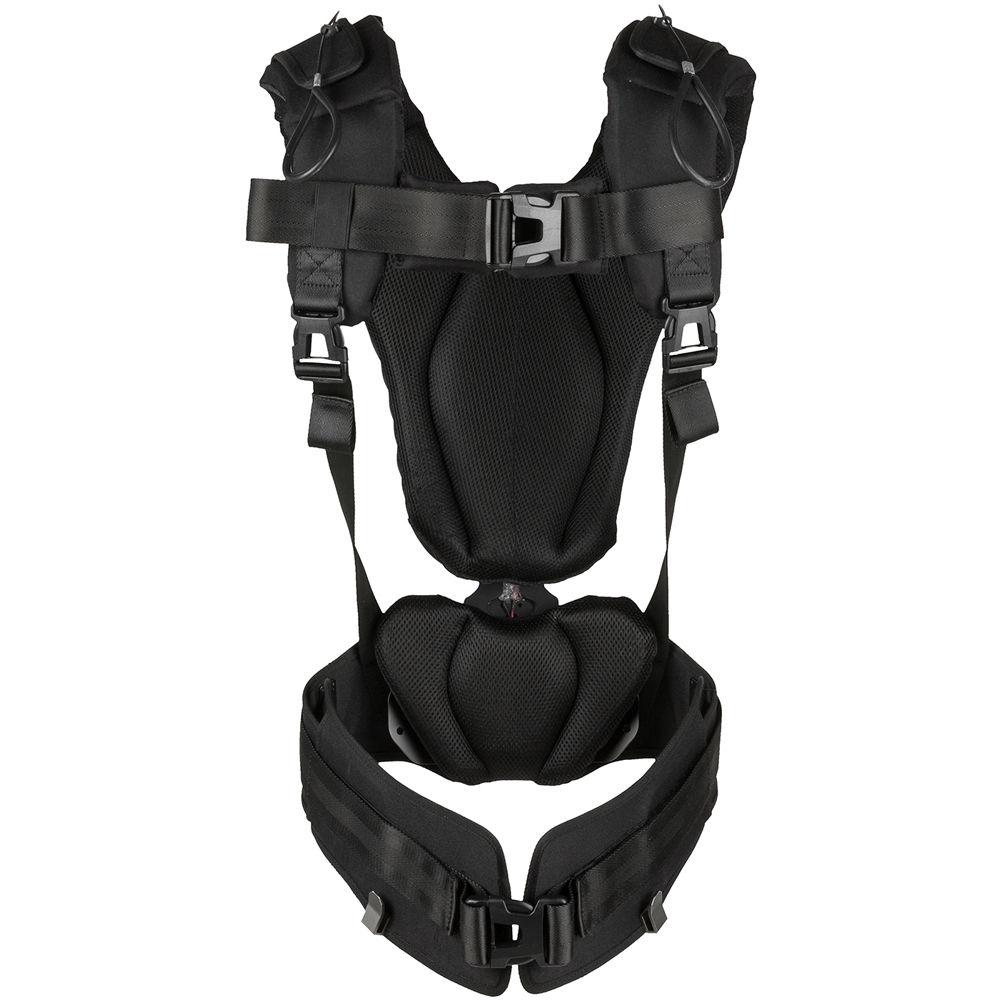

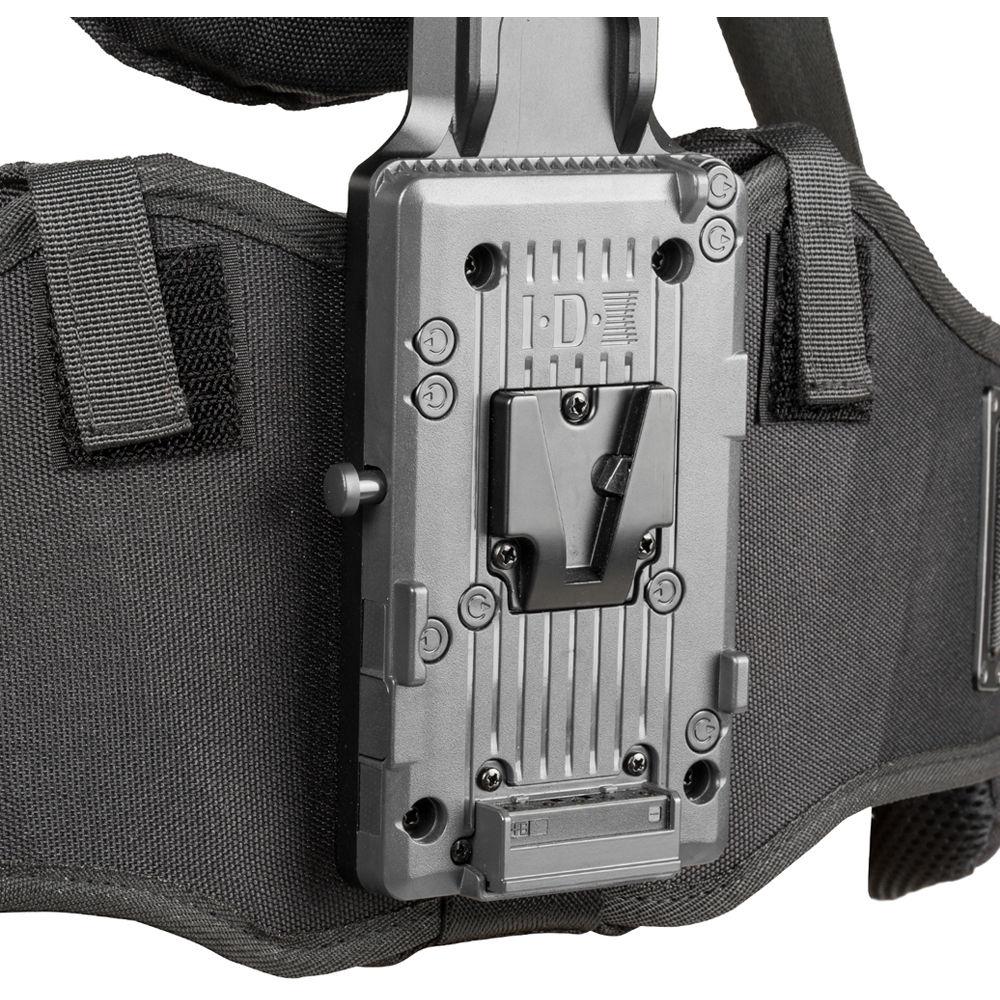

The vest is adjustable to fit most body types. It has 4-pin LEMO connector on it for running power directly to the gimbal from your battery, which attaches to the battery plate on the vest. Multiple cable clamps along the right arm allow you to neatly organize an optional power cable if needed. The included hard case is weatherproof and has a retractable handle, two wheels, and four quick release latches.
The Armor Man also allows you to easily adjust camera settings, as it pretty much holds up the gimbal all on its own, leaving your hands virtually free. - Key Features
-
- Supports most full-size gimbals, such as the Tilta Gravity, Freefly MoVI, and DJI Ronin
- Adjustable vest that fits most body types
- Two spring-loaded quick release arms with tension adjustment
- Arms can be set to a resting position when not in use
- 4-pin LEMO power connector integrated on the vest for powering the gimbal (of an optional battery that attaches to the V-mount battery plate on the vest
- Cable clamps along the right arm for organizing an optional power cable
- Includes custom, weatherproof hard case
UPC: 847983015566 In the Box Tilta Armor Man 2 with V-Mount Plate Support Vest with V-Mount Battery Plate 2 x Spring Arm 2 x Balance Support Cups 2 x Universal Gimbal Ring Adapters 3 x Allen Wrenches Multi-Head Screwdriver Hard Shell Waterproof Safety Case Limited 2-Year Warranty (Mechanical) Limited 1-Year Warranty (Electronic) Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Armor Man 2 with V-Mount Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta Armor-Man 2 Specs | Material of Construction | Aluminum-alloy, stainless steel, nylon | | Weight | Armor Man 2, Fully Assembled:
Approx. 19 lb (8.5 kg) | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 27.2 x 20.5 x 13.4" |
