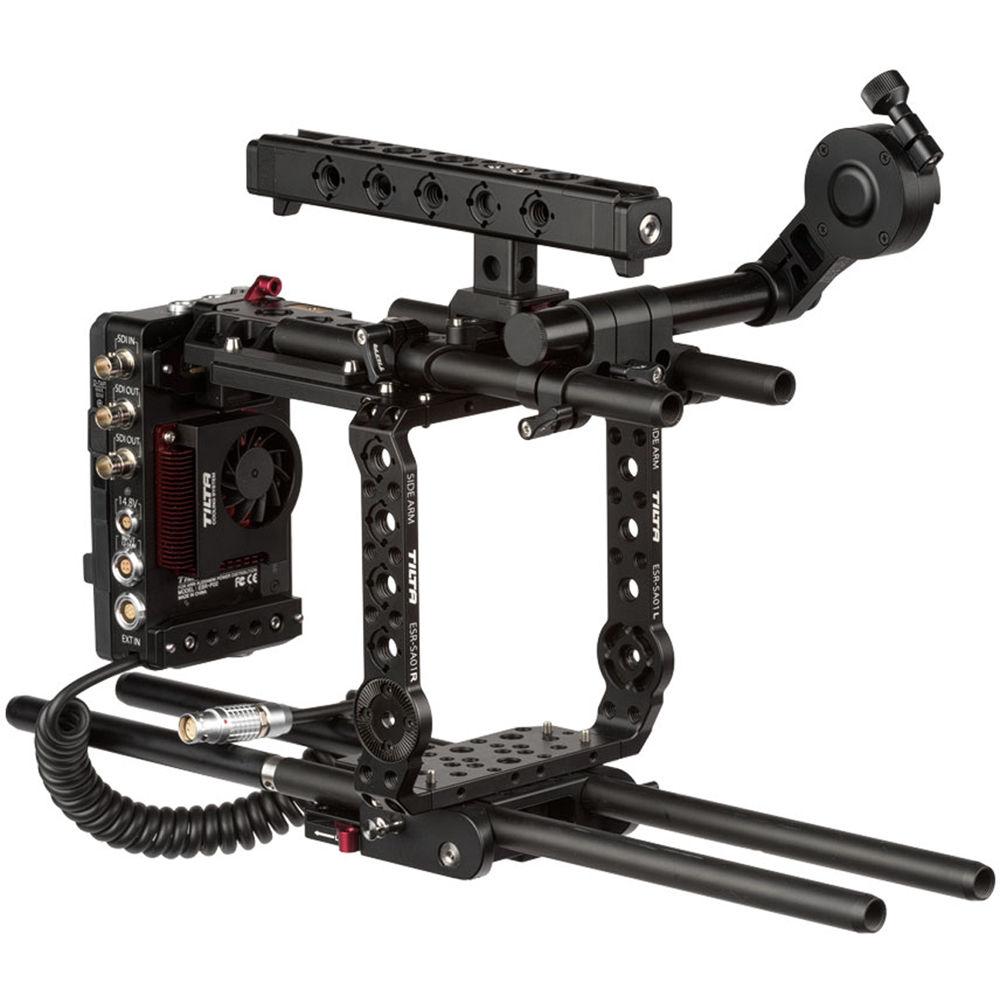

User Manual for Tilta ARRI ALEXA Mini Camera Rig with Power Distributor Click to enlarge the picture
Contents of the user manual for the Tilta ARRI ALEXA Mini Camera Rig
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta ARRI ALEXA Mini Camera Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

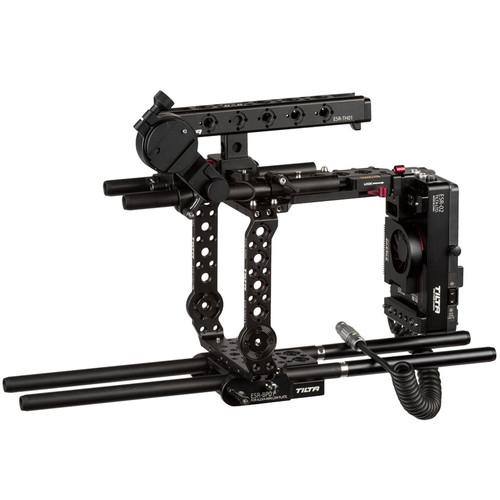

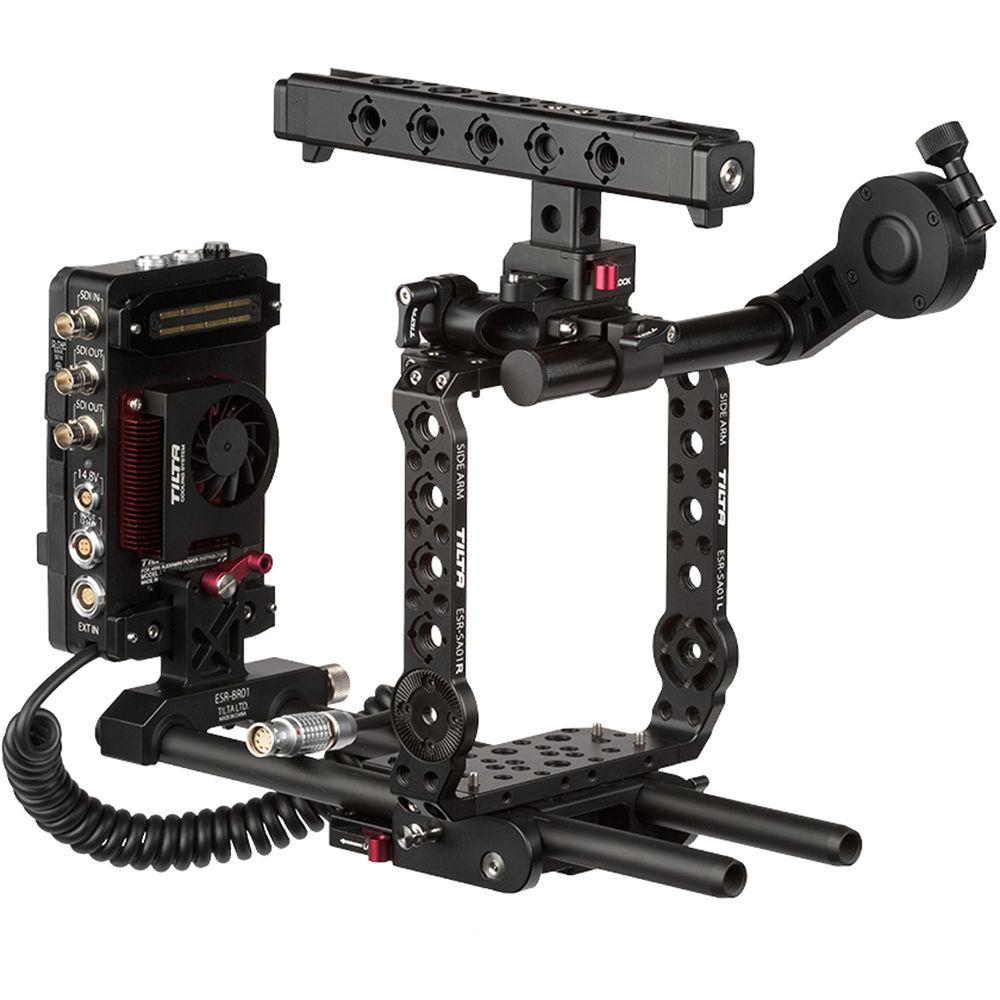

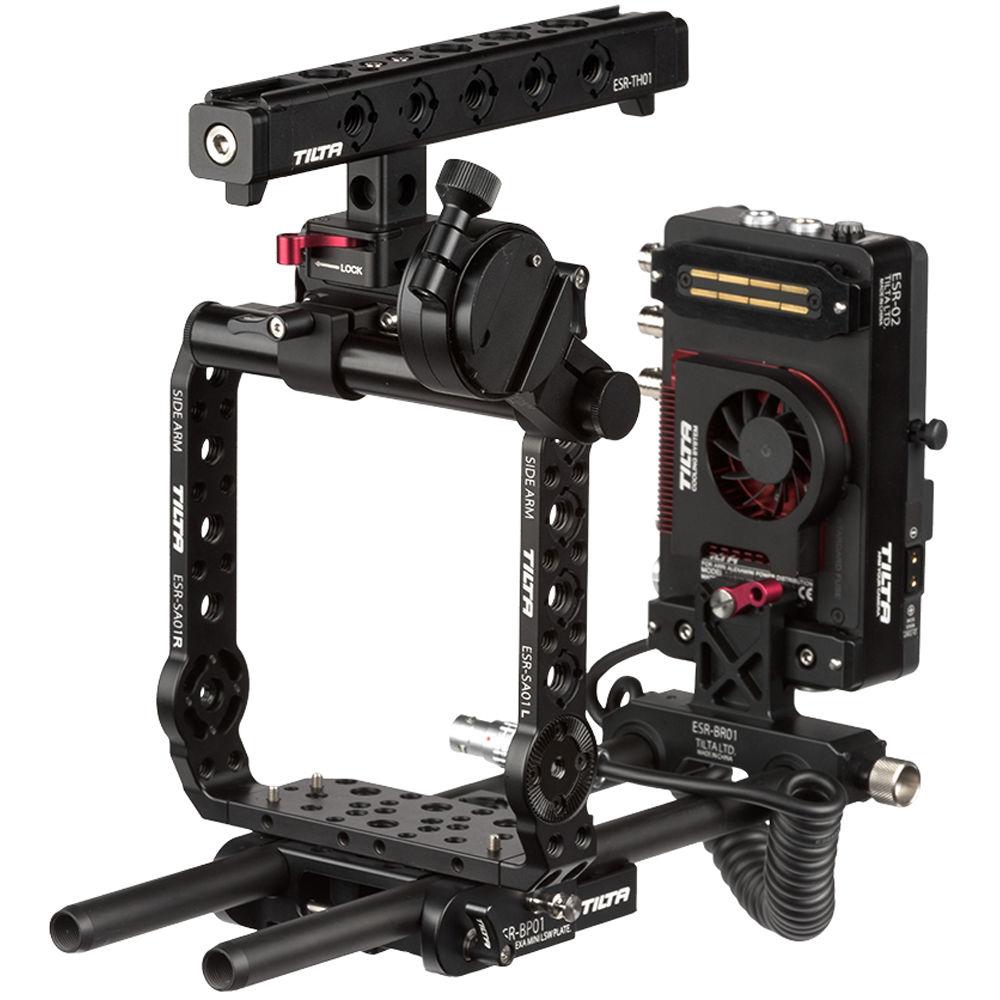

Product description - Ikan Corp: Tech Corner - Tilta ARRI Alexa Mini Camera Rig
The ARRI ALEXA Mini Camera Rig with Power Distribution from Tilta is a support system designed specifically for the ARRI ALEXA Mini that adds a dovetail baseplate, side arms with ARRI rosettes, top and bottom 15mm LWS rod support, and a power distributor with a Gold Mount battery plate. Also included is a quick-release top handle, rod-mounted EVF holder compatible with the ARRI MVF-1, and top plate with integrated power distribution to pass power from the Power Distributor to optional Top Power Connection Modules. The kit is rounded out with three sets of 15mm threaded rods in 6, 8, and 12" lengths and a 15mm rod adapter for mounting the Power Distributor. - 15mm LWS Baseplate
-
- 15mm LWS rod support
- Mounts to ARRI-standard dovetail plate
- 1/4"-20 and 3/8"-16 tripod mounting threads
- Camera Cage and Top Handle
-
- Made up of side arms, top plate, and bottom plate
- ARRI-standard rosettes on side arms for mounting handles and other accessories
- 1/4"-20 and 3/8"-16 accessory mounting threads
- Quick-release top handle with two shoe mounts
- Top 15mm rod adapter
- Top plate with integrated power distribution to pass power from the included Power Distributor to the optional ESP-01 or ESP-02 Top Power Connector Modules
- Power Distributor
-
- Gold Mount battery plate
- 12 to 14.8V power input
- Integrated 14.8V power output cable (8-pin LEMO)
- 12 to 14.8V power input (4-pin LEMO)
- 14.8V power output (2-pin)
- Relocates camera's SDI video outputs and EXT accessory interface
- Two 12V/RS (3-pin LEMO) outputs
- D-Tap output on battery plate
- 15mm rod adapter for mounting Power Distributor
- EVF Mount
-
- Supports an optional ARRI MVF-1 viewfinder
- Consists of EVF Holder Clamp for mounting on 15mm rods, single 19mm rod EVF holder, and an EVF attachment clamp
- 15mm Rods
-
- 6" threaded pair
- 8" threaded pair
- 12" threaded pair
- Two rod connectors for attaching pairs of rod together to extend length
UPC: 847983015344 In the Box Tilta ARRI ALEXA Mini Camera Rig with Power Distributor (Gold Mount) ESR-BP01 LSW Baseplate 2 x ESR-TP01 LSW Plate ESR-TP02 Long Top Plate ESR-SA01L Side Arm (Left) ESR-SA01R Side Arm (Right) ESR-TR01 Top Rod Adapter ESR-TH01 Top Handle ESR-BR02 Long Top Plate Battery Connector ESR-P02 ALEXA Mini Power Distributor ESR-BR01 Battery Plate Rod Adapter ESR-EH01 EVF Holder ESR-EH03 Single-Rod EVF Holder Clamp ESR-EH02 Dual-Rod EVF Holder Clamp 3mm Hex Key 3/16 Hex Key 6mm CR-V Mini Slotted Screwdriver 2 x Single Rod Connector for Tilta 15mm Rods Threaded 15mm Rods (Black, 12", Pair) 2 x R15-200 Threaded 15mm Rod (8") 2 x R15-150 Threaded 15mm Rod (6") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ARRI ALEXA Mini Camera Rig with Power Distributor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-T06-A-AB Specs | Baseplate | Rod Support: 15 mm LWS (60 mm spacing) Dovetail Plate Compatibility: ARRI standard | | Tripod Mounting Threads | 2 x 1/4"-20
3 x 3/8"-16 | | Threaded Holes | LWS Plate:
14 x 1/4"-20
4 x 3/8"-16
Long Top Plate:
15 x 1/4"-20
12 x 3/8"-16
Each Side Arm:
8 x 1/4"-20
4 x 3/8"-16
Top Handle:
8 x 1/4"-20
13 x 3/8"-16 | | Shoe & Accessory Mounts | 2 x ARRI rosettes (one on each side arm)
2 x Shoe mount (on top handle) | | Power Distribution | Battery Plate Type: Gold Mount
Inputs:
1 x SDI in
1 x 12 to 14.8 VDC (4-pin LEMO)
1 x EXT in
Outputs:
2 x SDI out
1 x Integrated ARRI Alexa Mini power output cable (8-pin LEMO)
1 x 14.8 VDC (4-pin LEMO)
2 x 12 VDC / RS (3-pin LEMO)
1 x D-Tap (on battery plate)
1 x EXT out | | 15mm Rods | 2 x 6" (150 mm)
2 x 8" (200 mm)
2 x 12" (300 mm) | | Material | All components are made of aluminum | | Weight | ESR-BP01 Baseplate: 11 oz (312 g)
ESR-TP01 Plate: 2.8 oz (80 g) each
ESR-TP02 Top Plate: 8.7 oz (246 g)
ESR-TR01 Rod Adapter: 3.7 oz (106 g)
ESR-BR02 Top Plate Battery Connector: 4 oz (114 g)
ESR-SA01L and ESR-SA01R Side Arms: 2.8 oz (80 g) each
ESR-TH01 Top Handle: 10 oz (286 g)
ESR-EH01 EVF Holder: 6.1 oz (174 g)
ESR-EH02 Dual Rod EVF Holder Clamp: 2.75 oz (78 g)
ESR-EH03 Single Rod EVF Holder Clamp: 2.75 oz (78 g)
ESR-BR01 Battery Plate Rod Adapter: 4 oz (114 g)
ESR-P02 ALEXA Mini Power Distributor: 1.51 lb (0.684 kg)
R15-150 15 mm Rod (6"): 1.5 oz (42 g) each
R15-200 15 mm Rod (8"): 1.9 oz (54 g) each
R15-200 15 mm Rod (12"): 3 oz (84 g) each | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 22.4 x 14.2 x 6.3" |
