User Manual for Tilta BS-T10 Quick Release Baseplate for Sony FS7 Click to enlarge the picture
Contents of the user manual for the Tilta BS-T10 Quick Release Baseplate for
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta BS-T10 Quick Release Baseplate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

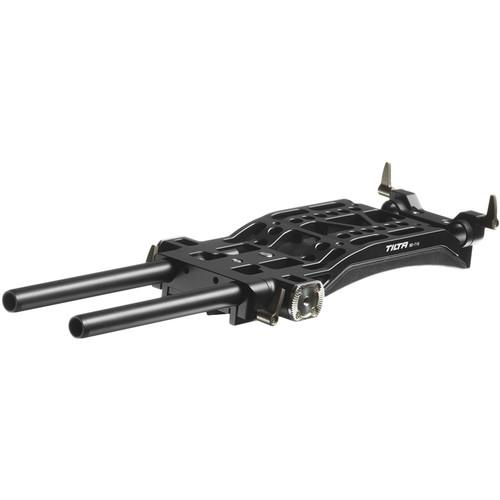

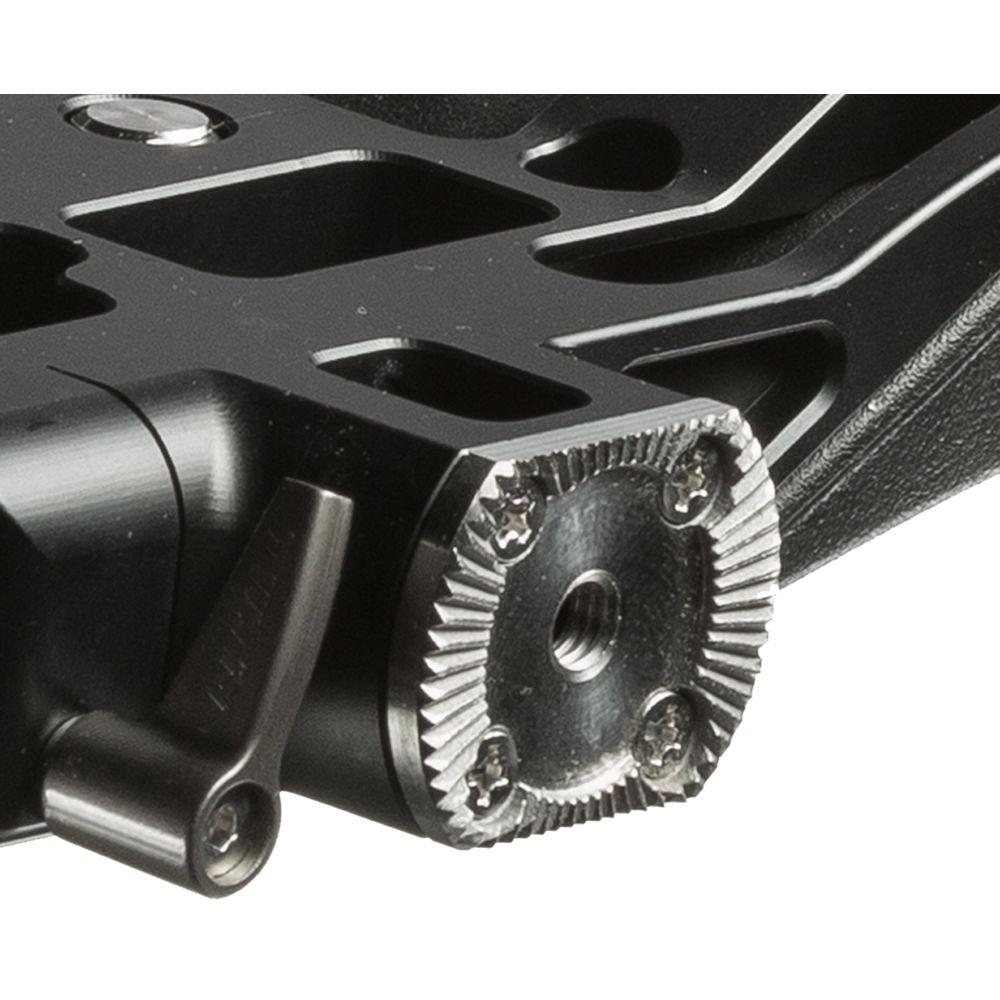

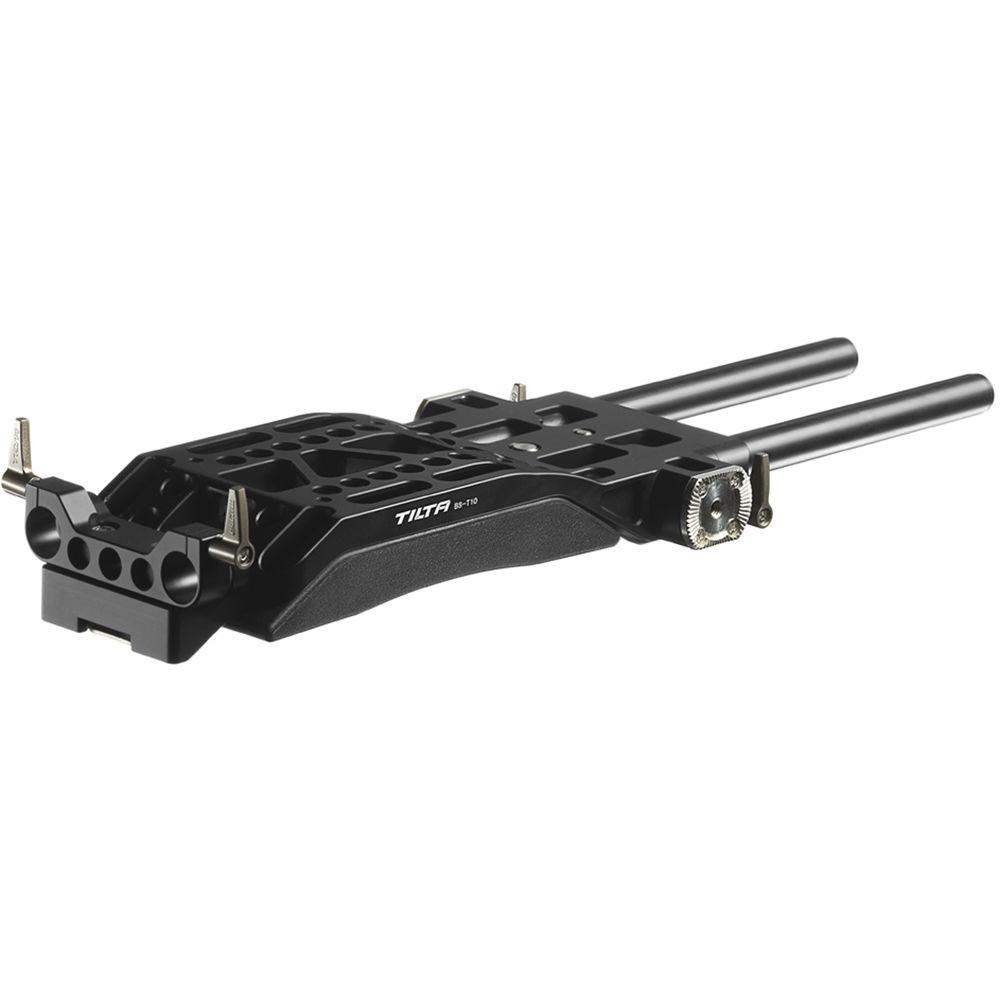

Product description Specifically designed to work with your FS7 camera, the Tilta BS-T10 Quick Release Baseplate for Sony FS7 allows you to mount your camera on a VCT-type quick-release-style tripod adapter. The baseplate allows you to go from tripod mounted to handheld with just the flick of the release lever on an optional VCT adapter plate. The baseplate features a built-in shoulder pad so the camera maintains its hand holdable function and adds LWS rod support for accessories. ARRI compatible rosettes are built-into each side of the baseplate, allowing you to use optional ARRI compatible handgrips.

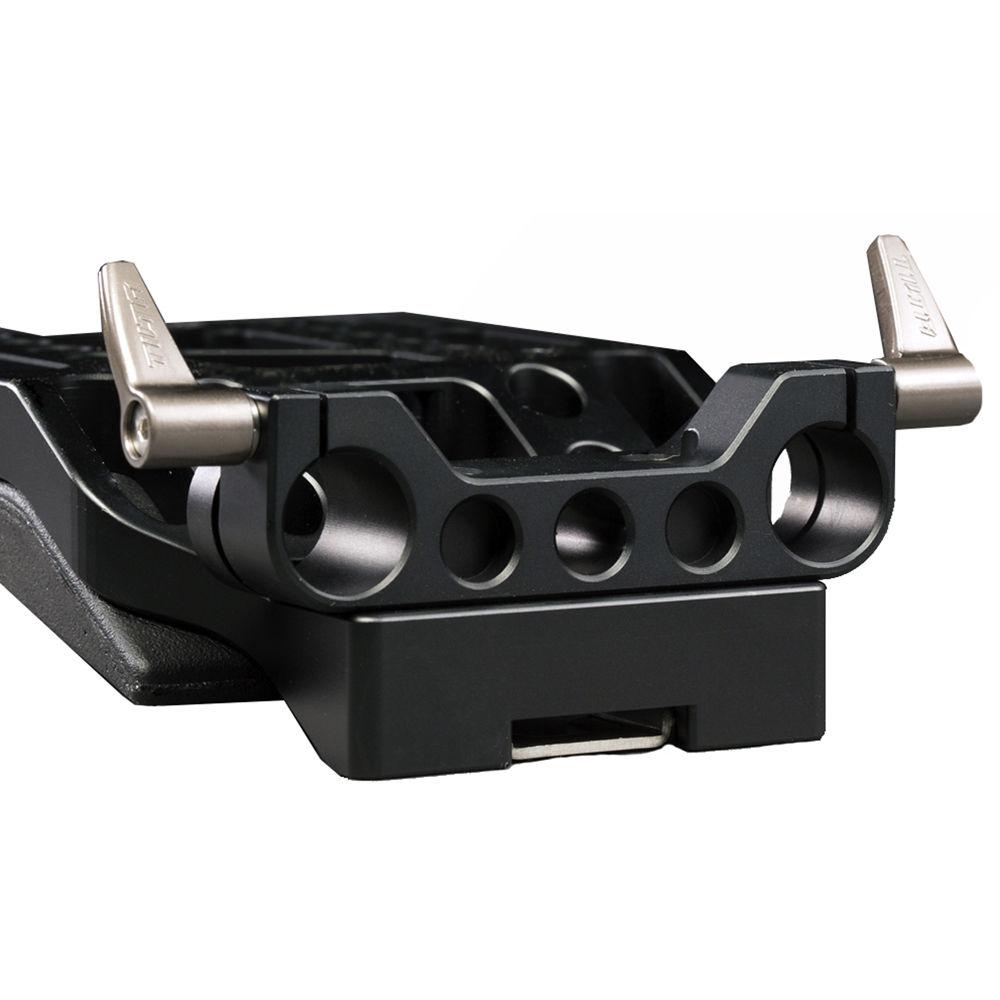

Front and rear mounted LWS rod clamps allow you to use the included support rods for optional rod-mounted accessories such as a matte box or a follow focus. You can mount the rods in the rear clamps to support optional batteries, off-board recorders, or counterweights. Note only one pair of rods are included, so to use front and rear mounted accessories you will need to source optional rods. - You can build this baseplate up as a handheld rig, and then quickly go from handheld to tripod mounted, on a tripod with a VCT type adapter, without altering your rig configuration.
- The 15mm rods are female threaded at both ends, allowing you to use optional rod extenders and rods to create longer support rods.
- One end of each rod is chamfered, which makes it easier to slide rod-mounted accessories onto the support rods from the chamfered end.
UPC: 847983013784 In the Box Tilta BS-T10 Quick Release Baseplate for Sony FS7 2 x 7.8" 15mm Rods Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta BS-T10 Quick Release Baseplate for Sony FS7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta BS-T10 Specs | | | Type | V-Lock | | Rod Compatibility | Rod Size: 15 mm Rod Spacing: 60 mm (LWS) | | Rosettes | 2 | | Tripod Mounting Threads | 1/4"-20 & 3/8"-16 | | Camera mounting | 1/4"-20 & 3/8"-16 | | Material of Construction | Aluminum | | | | Threading | Female threading, both ends | | Diameter | 15 mm | | Length | 7.8" / 200 mm | | Weight | 1.92 oz / 54.4 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 12.9 x 6.4 x 3.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
