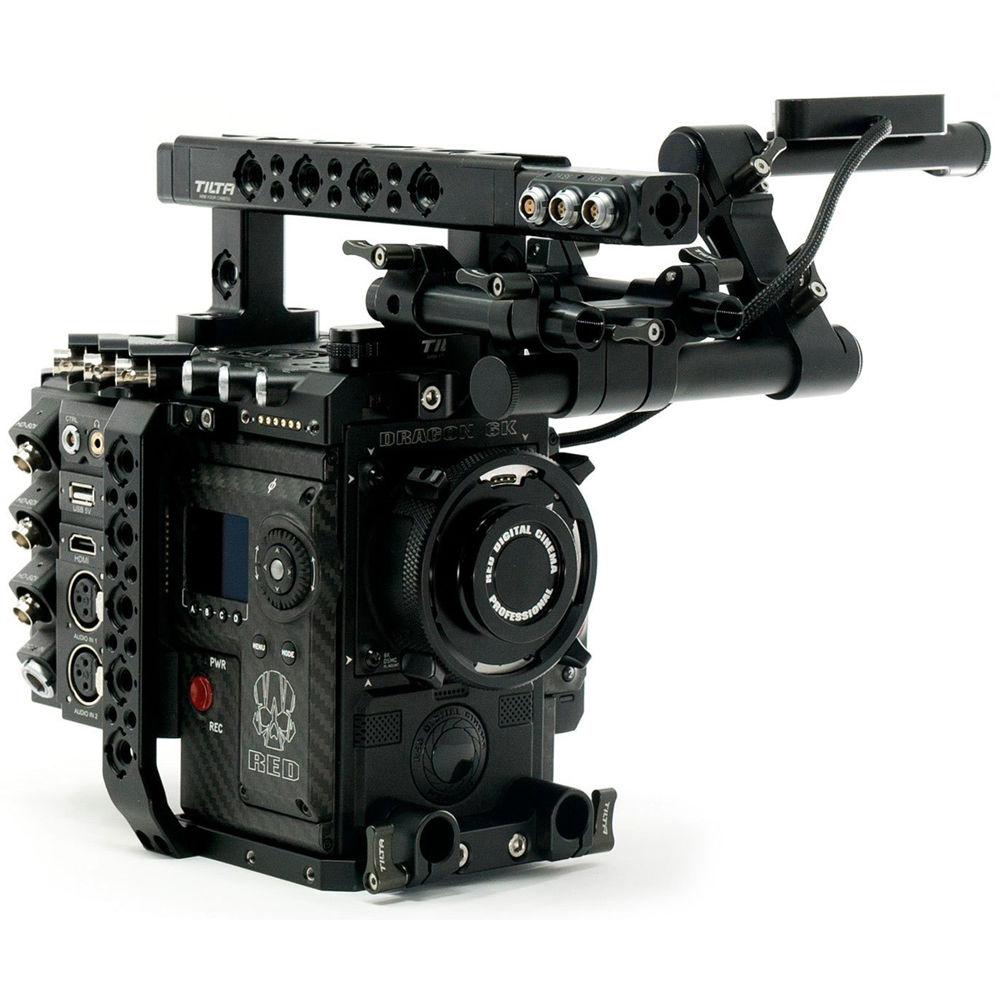

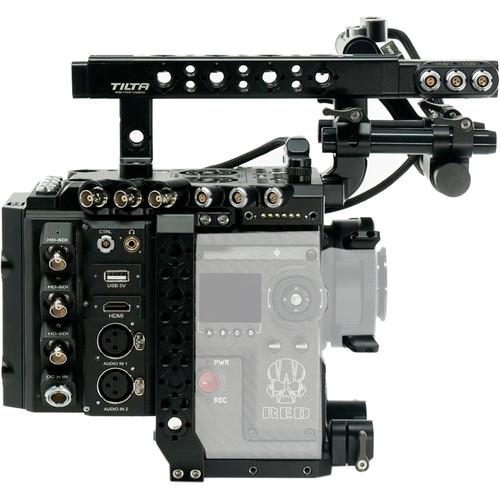

Product description Get ready to trick out your RED DSMC2. The Tilta Camera Cage B1 for RED DSMC2 directly integrates with your DSMC2 body, providing a slew of power and signal options for your RED DSMC2 camera and its accessories. Constructed from aluminum and titanium, this cage includes a top handle with a REC button, a pogo-to-pogo extension cable, and a 15mm LWS baseplate for mounting the camera. The included battery plate enables you to extend your recording time using a longer-lasting V-mount battery.

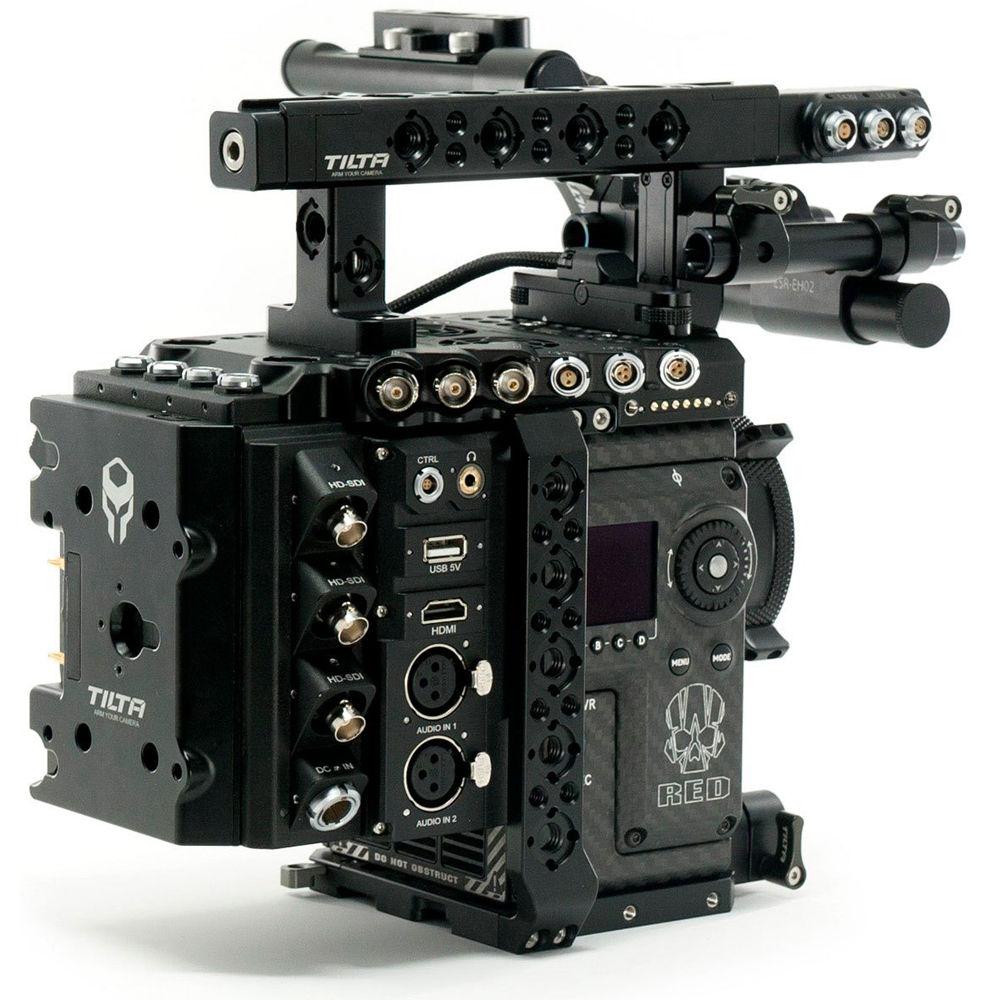

The included Tilta Advanced I/O Module features one HDMI and three HD-SDI outputs for video signals, a 3.5mm stereo headphone output, two XLR inputs, a USB power output, a CTRL port, and a D-Tap output port. The I/O module ports provide a maximum of 3A each (7A total), while the top plate/handle ports deliver up to a total of 8A via 3A outputs. Note: The XLR audio ports do not provide phantom power. Features - Distributes power from camera and battery through top handle, top plate, and I/O module
- Top handle power module included
- Advanced Tilta I/O Module with three HD-SDI outputs, one HDMI output, and two 3-pin XLR inputs
- Multiple 3-pin Fischer and 2-pin LEMO-type power outputs
- Pogo-to-pogo extension cable, EVF mount, and LCD bracket included
- Constructed from lightweight and durable aluminum alloy and titanium
UPC: 636946280376 In the Box Tilta Camera Cage B1 for RED DSMC2 Camera (V-Mount) Top Handle with Power Pass-Through and Run/Stop Button 2 x 15mm Top Rod Adapter 15mm LWS to 19mm Rod Adapter for LCD Bracket 19mm Rod Adapter for LCD Bracket EVF Holder Top Handle Power Connection Module Top Plate Pogo to 16-Pin LEMO-Type Adapter for DSMC1 LCD/EVF Switchable DSMC2 LCD Bracket Pogo-to-Pogo Extension Cable Side Arm for RED DSMC2 A1/B1/C1 Camera Cages sfbezcywbx Advanced I/O Module (V-Mount) 15mm LWS Baseplate for RED DSMC2 Cameras 2 x 15mm Rod (3.1") Limited 1-Year Electrical Warranty Limited 2-Year Mechanical Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Camera Cage B1 for RED DSMC2 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-T01-B1-V Specs | Rod Standard | 15 mm LWS | | Connectors | Top Handle:
2 x 3-Pin Fischer (14.8 V), Power Out
1 x 2-Pin LEMO-Type (14.8 V), Power Out
Top Plate:
2 x 3-Pin Fischer (14.8 V), Power Out
1 x 2-Pin LEMO-Type (14.8 V), Power Out
1 x Genlock Port
1 x Timecode Port
1 x Trigger Port
1 x Trigger Port Off Switch
I/O Module:
3 x BNC Out, HD-SDI
1 x HDMI Type A Out
2 x 3-Pin Fischer (14.8 V, 3 A), Power Out
2 x 2-Pin LEMO-Type (14.8 V, 3 A), Power Out
1 x D-Tap, Power Out
1 x 4+2-Pin LEMO-Type, DC Power In
1 x USB Power Out
1 x CTRL Port
2 x 3-Pin XLR, Audio In
1 x 3.5 mm Stereo Audio Out | | Included Rods | 2 x 15 mm
Length: 3.14" / 80 mm | | Materials | Aluminum Alloy, Titanium | | Dimensions and Weight | Not Specified by Manufacturer | | | | Package Weight | 7.98 lb | | Box Dimensions (LxWxH) | 16.1 x 13.8 x 5.8" |
