User Manual for Tilta Camera Cage for Panasonic EVA1 Click to enlarge the picture
Contents of the user manual for the Tilta Camera Cage for Panasonic EVA1
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta Camera Cage for Panasonic EVA1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

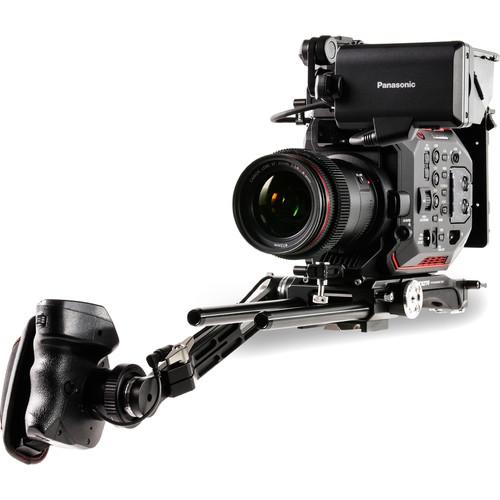

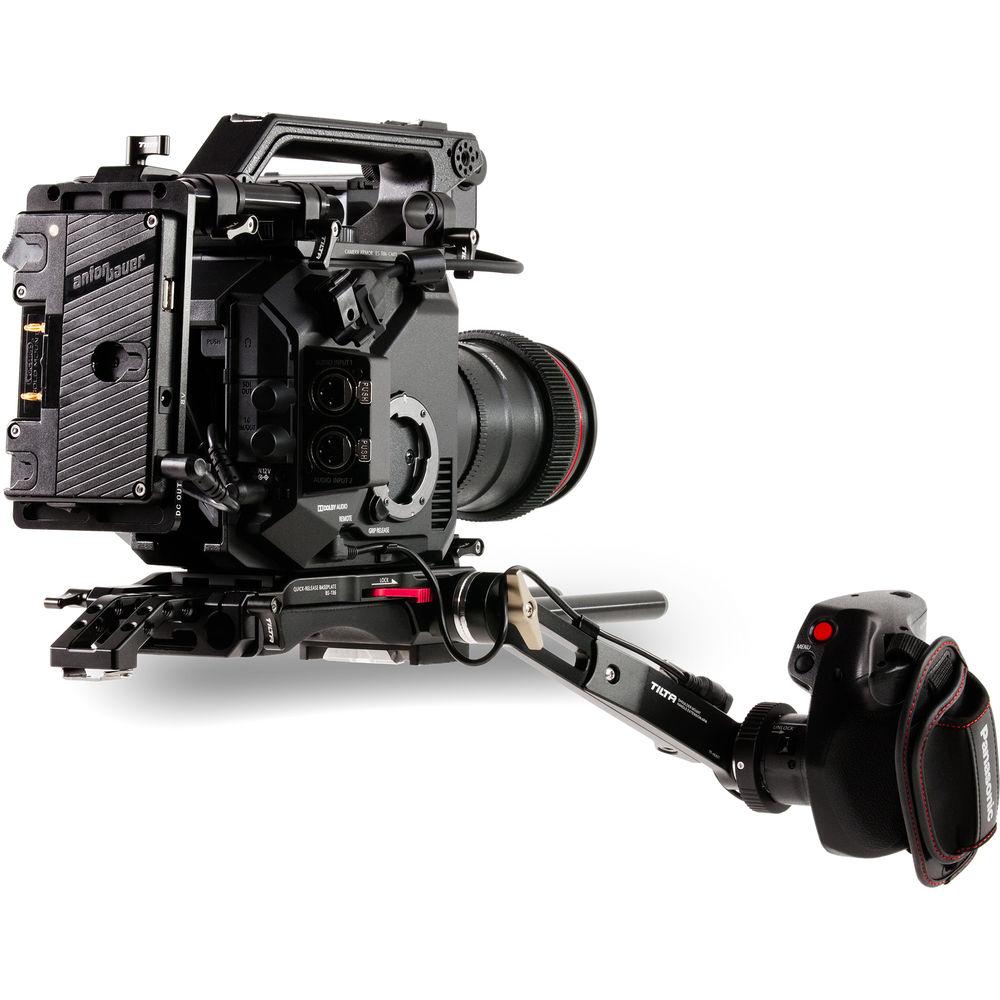

Product description The Tilta Camera Cage for Panasonic EVA1 provides dedicated support and accessory mounting for your EVA1 camera. Cage components include a top plate with front and back 15mm rod clamps, a VCT-type tripod adapter with a removable shoulder pad, a Gold mount battery plate, and an 8" pair of 15mm rods. Designed to provide more ergonomic operating with your EVA1, the cage also includes an extension handle and cable for positioning the original handgrip at a more comfortable distance. The Gold mount battery plate includes several DC outputs and one D-Tap output for powering accessories, and it can be mounted to 15mm rods from the top or bottom of the cage. The cage's removable lens adapter support can be used with an optional lens mount adapter to deflect stress away from the camera's EF mount. Use the included Sony VCT-style baseplate and an optional VCT adapter plate to quickly switch from tripod-mounted to handheld shooting. The Tilta EVA1 Camera Cage also includes an extension arm for positioning the camera's LCD display for optimal viewing comfort. - Features
-
- VCT-type tripod plate with removable, contoured shoulder pad
- Gold mount battery plate mounts to 15mm rods at top or bottom of rig
- Battery plate incorporates D-Tap and DC outputs for powering accessories
- Extension arm with cable for positioning the original EVA1 handgrip more comfortably
- One 8" pair of 15mm LWS rods
- Front and back 15mm rod support
- Extension arm for optimally positioning the camera's LCD
- 2 x ARRI-standard handgrip rosettes
In the Box Tilta Camera Cage for Panasonic EVA1 (Gold Mount) Top Handle Plate LCD Extension Arm EVA1 Bottom Plate 15mm LWS Quick Release Baseplate for AU-EVA1 Lens Adapter Support EVA1 Battery Gold Mount Plate Rosette Extension Arm for EVA1 Handle EVA1 Handle Mount Adapter EVA1 Handle Connection Cable 2 x 15mm Rod (8") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Camera Cage for Panasonic EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T86-AB Specs | Tripod Mount Type | VCT-U14 | | Rod Compatibility | 15 mm LWS | | Accessory Mount Threads | 1/4"-20 and 3/8"-16 | | Rosettes | 2 x ARRI-Standard | | Battery Plate | Gold mount | | Power Outputs | 2 x 12 VDC
1 x 8 VDC
1 x D-Tap, 14.8 V | | Material of Construction | Aluminum Alloy | | Dimensions and Weight | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 4.71 lb | | Box Dimensions (LxWxH) | 12.3 x 8.5 x 5.3" |
