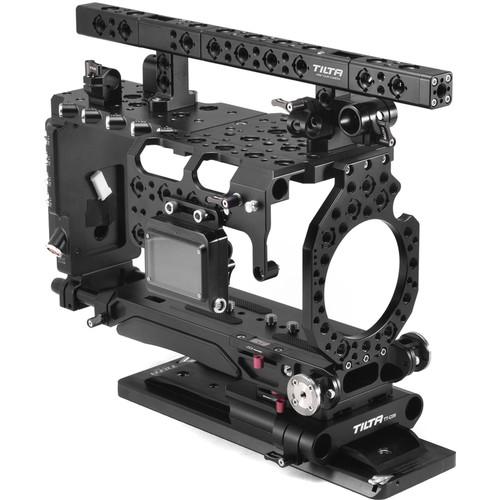

User Manual for Tilta Camera Rig for Panasonic VariCam 35 with 19mm Baseplate & Dovetail Plate Click to enlarge the picture
Contents of the user manual for the Tilta Camera Rig for Panasonic VariCam
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
|
User manual for the Tilta Camera Rig for Panasonic VariCam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description Designed specifically for the Panasonic VariCam 35, this Camera Rig from Tilta protects your camera while simultaneously routing power to it and its accessories through nine 14.8V power outputs. The cage's accessory-mounting interface includes a 15mm rod and dovetail system, a VCT-14 mount for the bottom plate, and two front rosettes. The 15mm system sits on top of a 19mm baseplate that mounts to the included 12", 19mm dovetail plate. The top handle consists of two separate pieces secured to two top plates.
The battery plate and power distribution unit attach to the rear top plate and are further supported by two short rear rods. On the battery plate there are two 3-pin Fischer and two 2-pin LEMO-style power outputs, a V-mount battery plate, and a 6-pin LEMO-style power input. The rear top plate offers three 3-pin Fischer outputs and two 2-pin LEMO-style power outputs. All outputs give 14.8V of power at a maximum of 3A. The rig is made of anodized, CNC-machined aluminum. - Components
-
- 12" 19mm dovetail plate
- 15mm dovetail baseplate adapter
- 19mm baseplate
- Battery plate and power distribution unit
- Bottom plate with shoulder pad
- Camera mounting plate
- EVF bracket
- Front plate
- Front top handle with 15mm rod and EVF mounts
- Front top plate
- Panasonic EVF mount adapter
- Power display module
- Rear top handle with 15mm rod mounts
- Rear top plate with power outputs
- Side plate
- VCT-14 wedge baseplate adapter
In the Box Tilta Camera Rig for Panasonic VariCam 35 with 19mm Baseplate & Dovetail Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Camera Rig for Panasonic VariCam 35 with 19mm Baseplate & Dovetail Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T75-A Specs | Compatibility | Panasonic VariCam 35 Camera | | Material | Anodized CNC aluminum | | Inputs and Outputs | Rear Top Plate:
3 x 14.8 V 3-pin Fischer outputs
2 x 14.8 V 2-pin LEMO-style outputs
Battery Plate and Power Distribution Unit:
2 x 14.8 V 3-pin Fischer outputs
2 x 14.8 V 2-pin LEMO-style outputs
1 x 12-14.8 V 6-pin LEMO-style input | | Power Output | 3 A max. (each output) | | Rod System | 19 & 15 mm |
