Product description

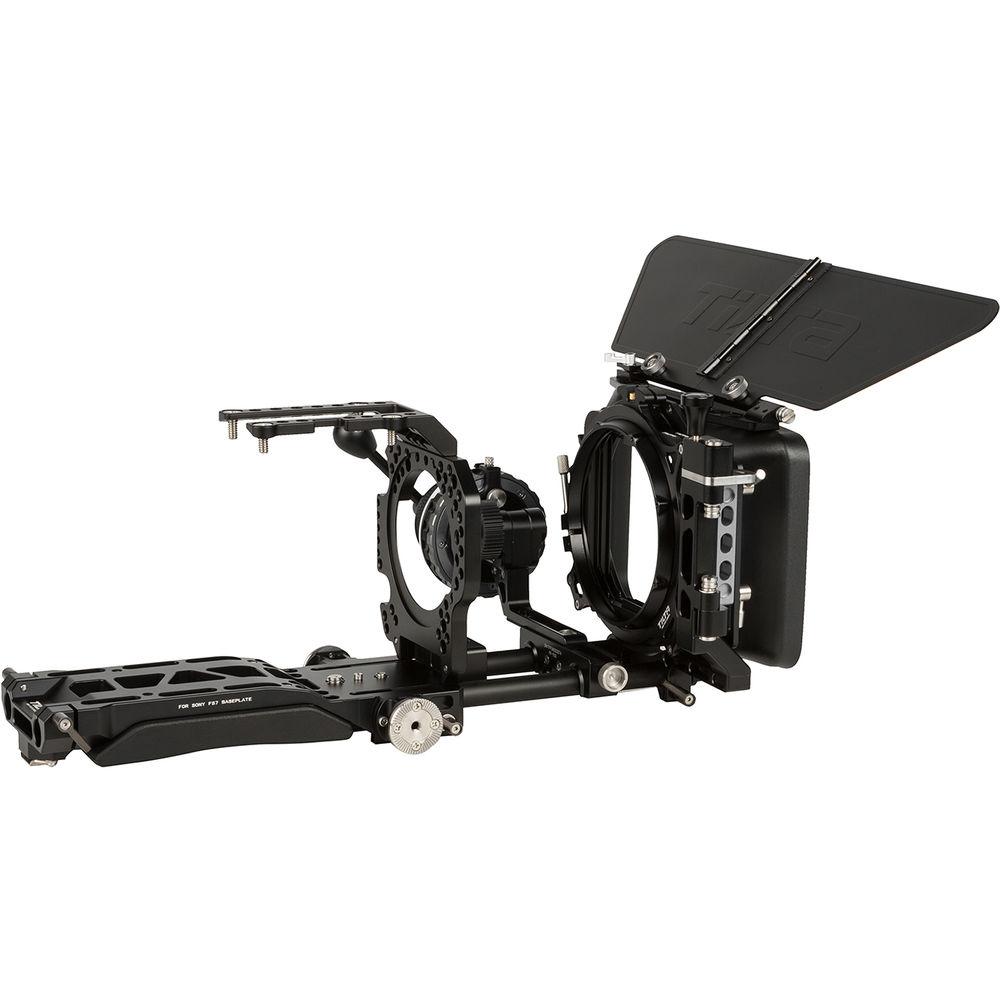

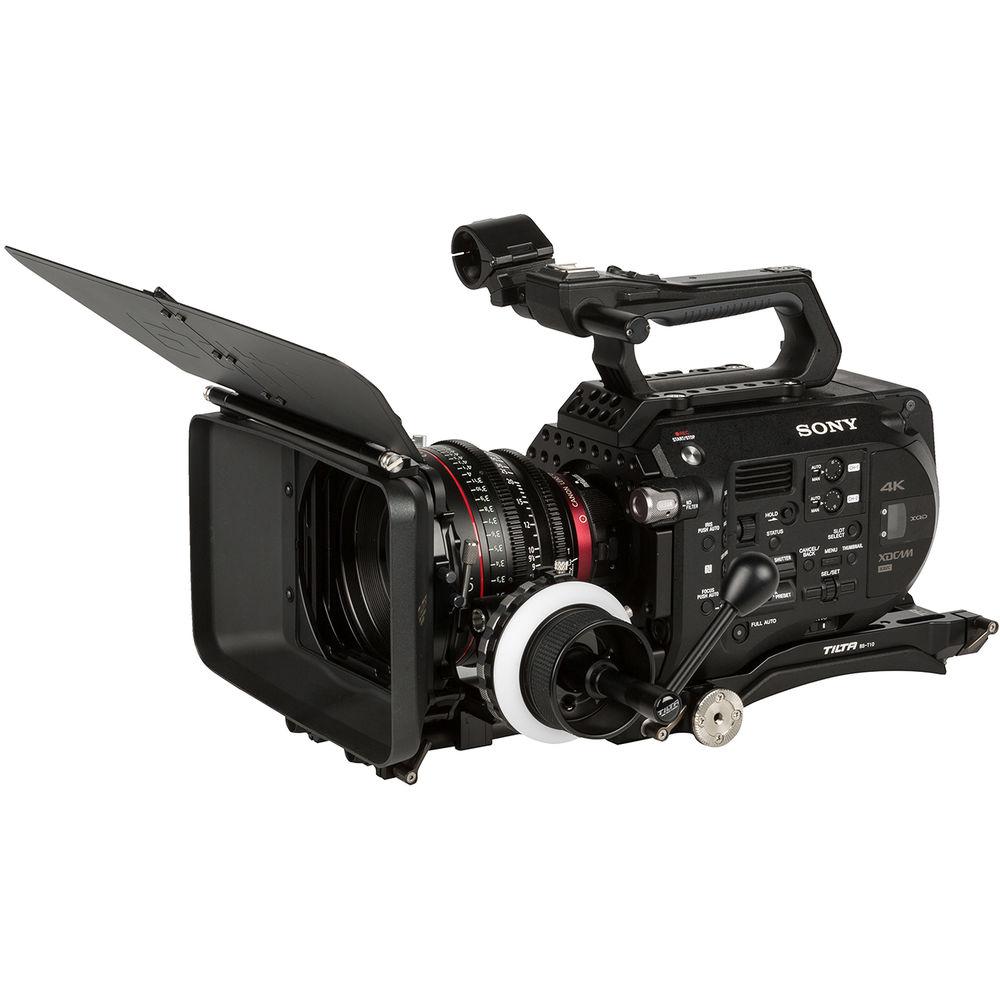

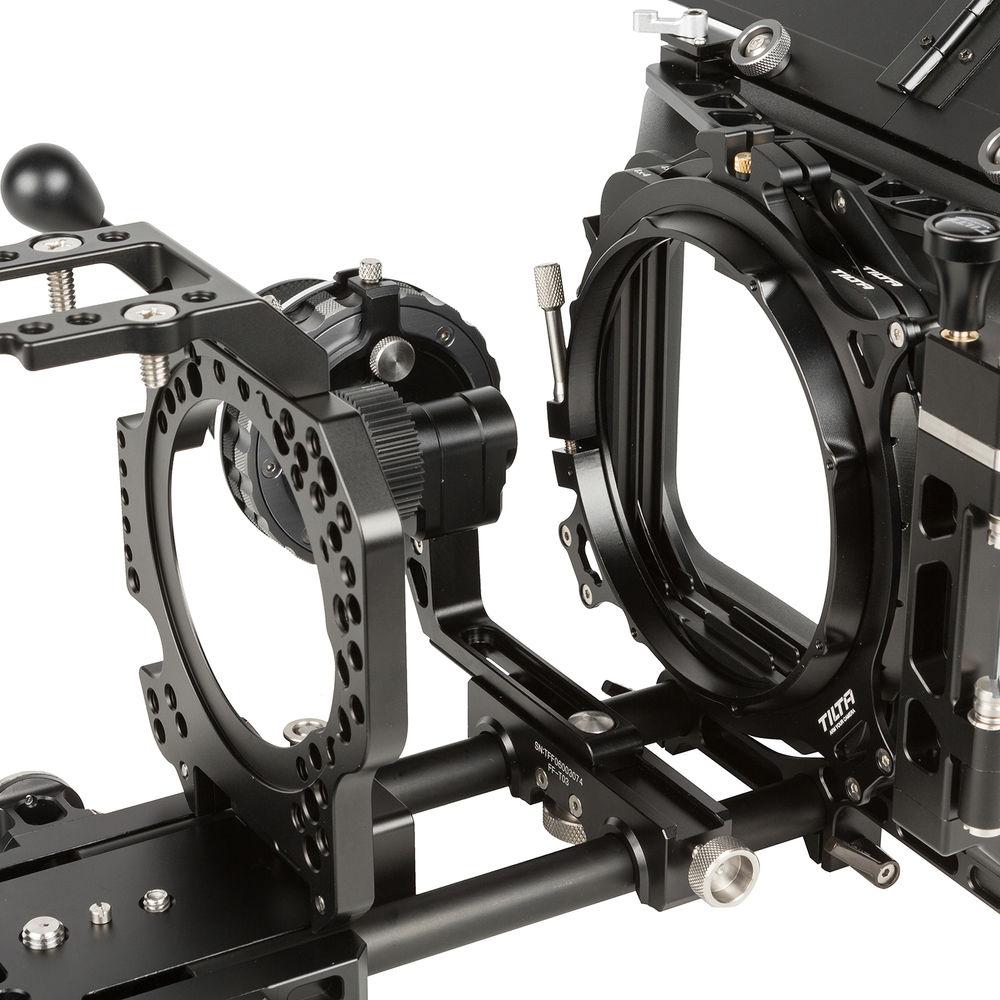

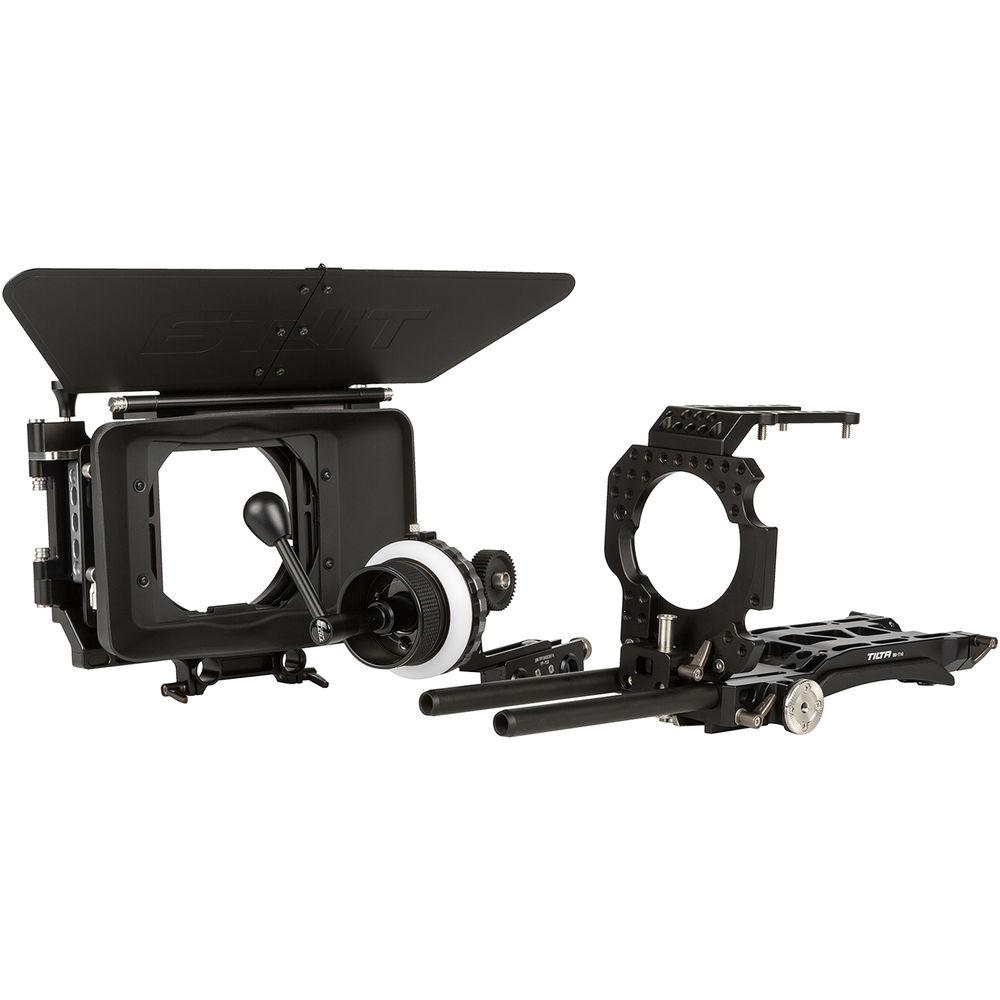

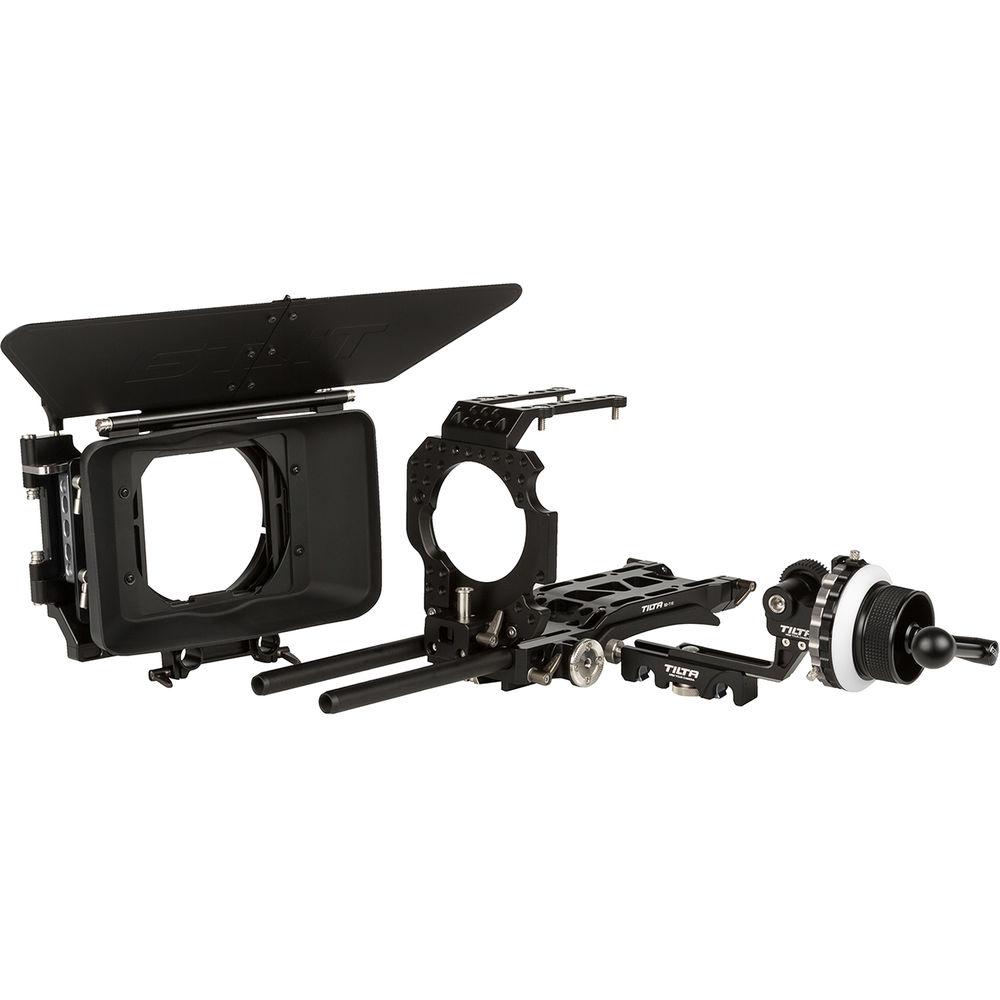

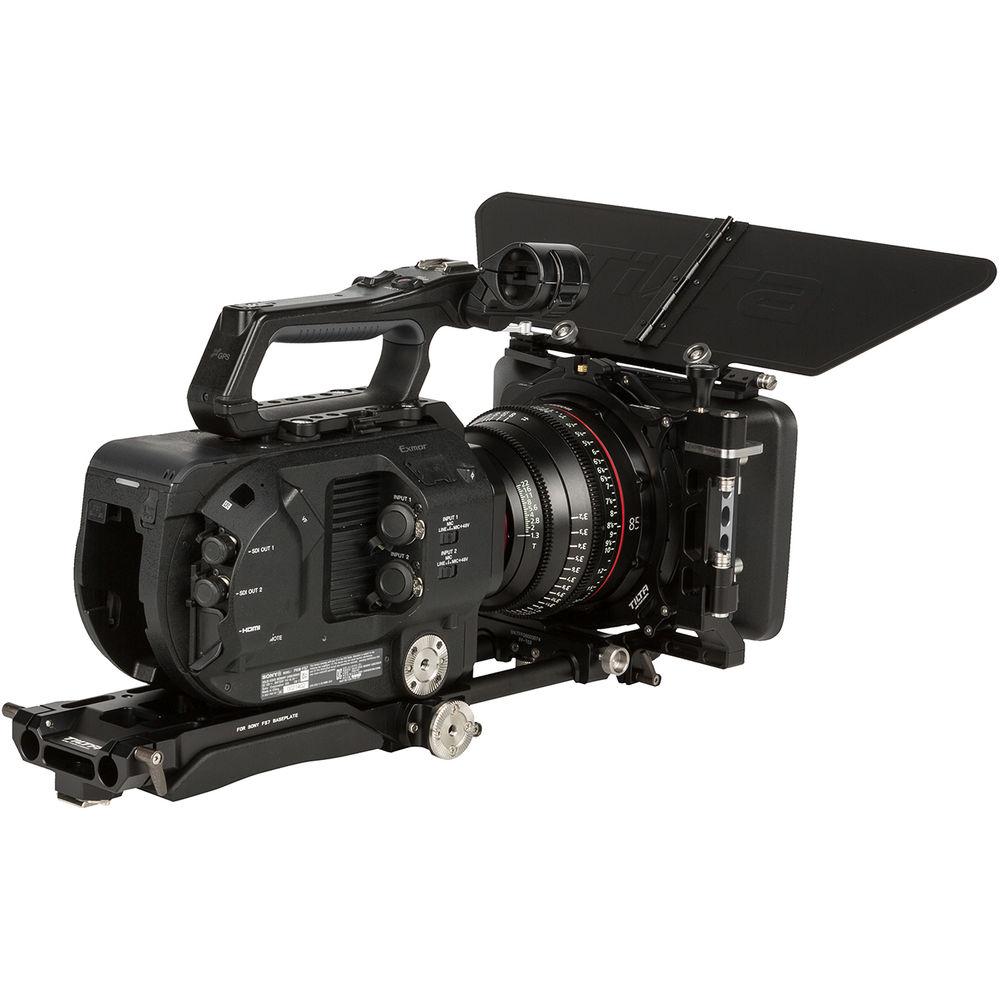

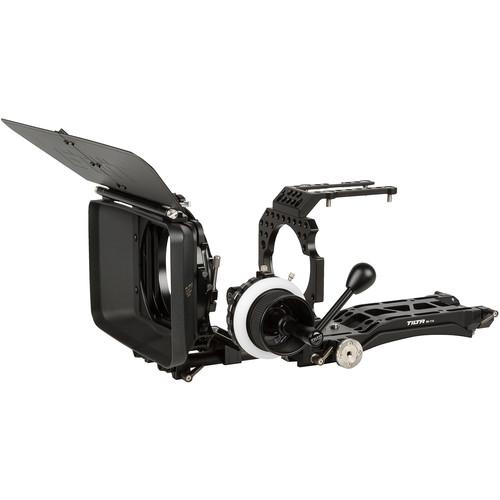

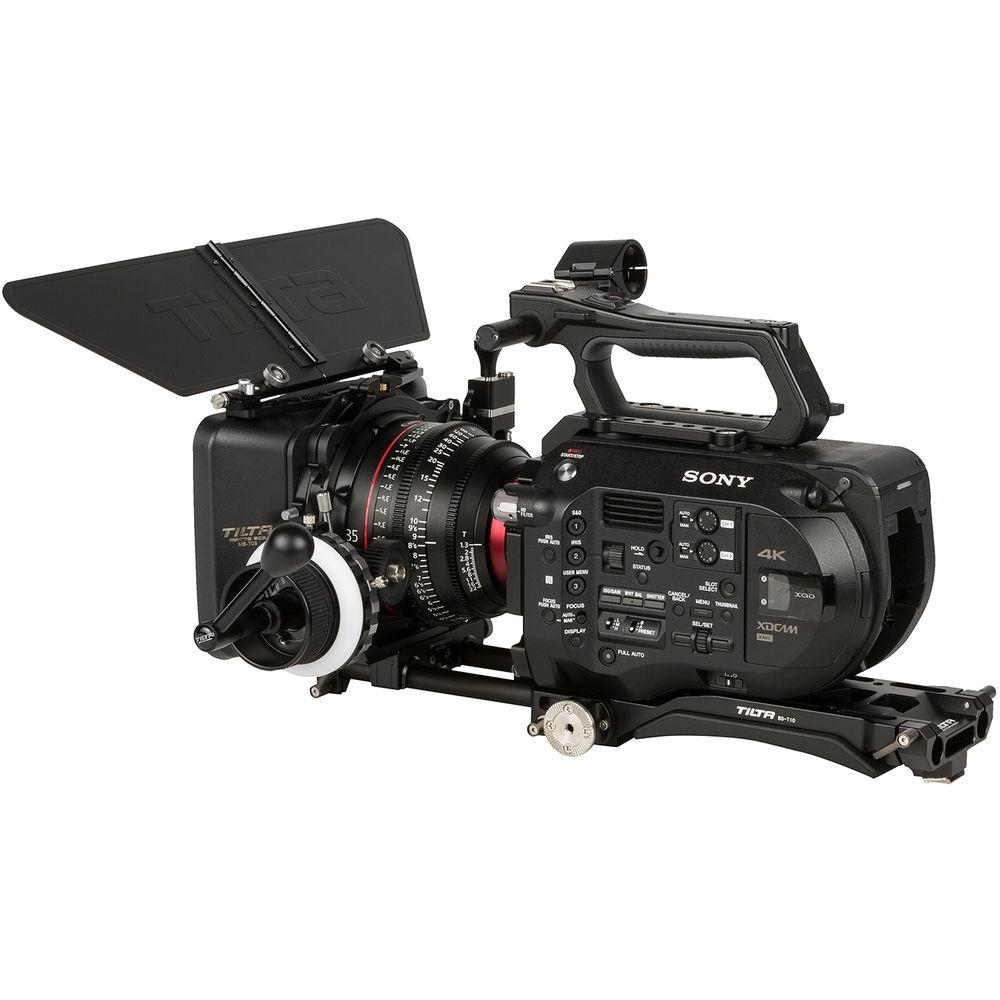

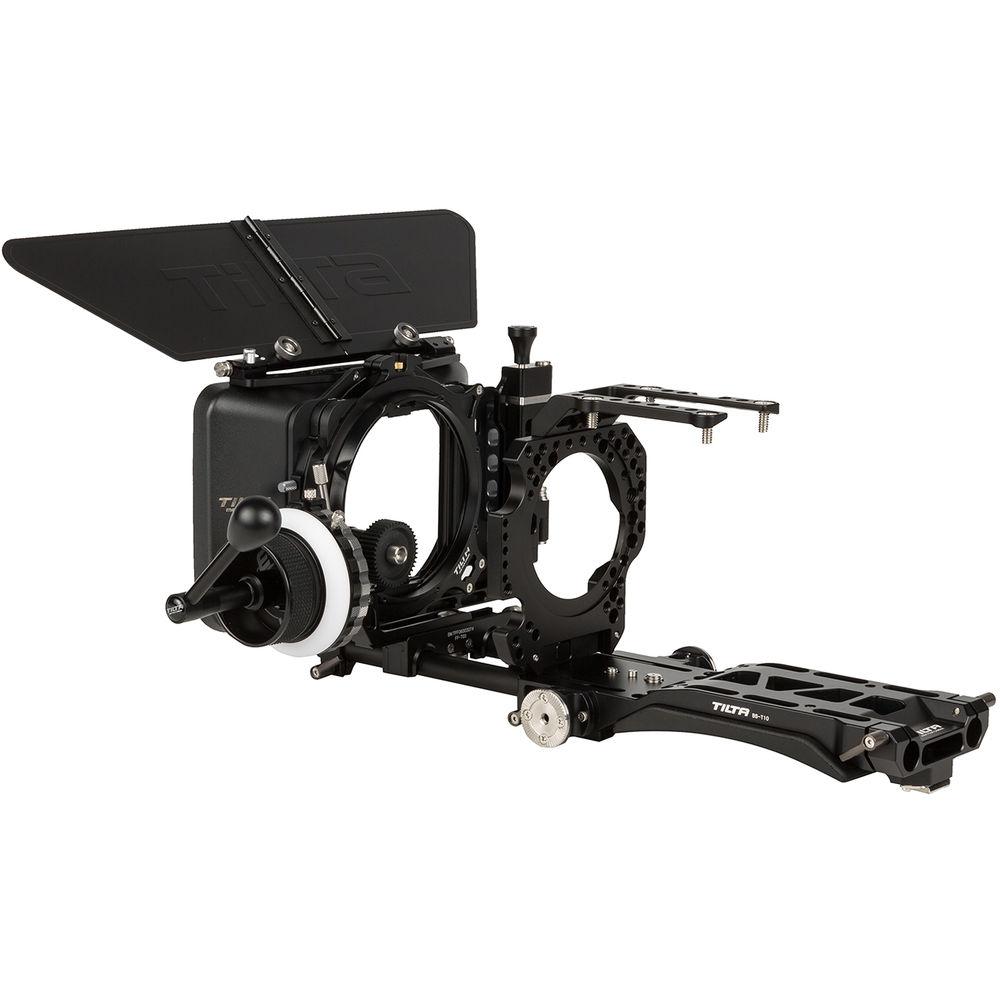

• ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II Specifically designed to work with your FS7 or FS7 II camera, the Tilta ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II provides you a protective cage-like front and top enclosure with a VCT type quick release tripod adapter. The front plate and top plate provide 24 additional 1/4"-20 accessory mounting points, so you can mount accessories without stressing your camera's body. It integrates a lens adapter support that can help prevent optional lens mount adapters from stressing your camera's E-mount. The top plate is designed to fit around your camera's top handle.

  The baseplate allows you to go from tripod-mounted to handheld with just the flick of the release lever on an optional VCT adapter plate. The baseplate features a built-in shoulder pad, so the camera retains its handheld functionality and adds LWS rod support for accessories. ARRI-compatible rosettes are built into each side of the baseplate, allowing you to use optional ARRI-compatible handgrips.

  Front and rear-mounted LWS rod clamps allow you to use the included support rods for optional rod mounted accessories such as a matte box or a follow focus. You can mount the rods in the rear clamps to support optional batteries, off-board recorders, or counterweights. Note only one pair of rods are included, so to use front and rear-mounted accessories you will need to source optional rods.
  • The rig provides a cage-like protection, and once mounted allows you to add accessories with minimal stress to your camera's body. The added functionality minimally impacts the characteristics of the camera and allows you access to all camera functions.
  • You can build this rig and your camera into a handheld rig, and then quickly go from handheld to tripod mounted, on a tripod with a VCT type adapter, without altering your rig configuration.
  • The 15mm rods are female threaded at both ends, allowing you to use optional rod extenders and rods to create longer support rods.
  • One end of each rod is chamfered, which makes it easier to slide rod mounted accessories onto the support rods from the chamfered end.
  UPC: 847983013777
• 4x4" Lightweight Matte Box The Tilta 4x4" Lightweight Matte Box easily mounts onto 15mm rods via its rod adapter. It features two 4x4" filter holders. The lightweight construction adds very little weight to your system, and the swing-away design moves the matte box out of the way during lens changes, without having to remove the matte box from the rods.

  The back of the matte box features a 114mm opening for lenses, and it comes with 80 and 95mm diameter lens adapters, and a fabric donut (Nun's Knickers), for use with smaller diameter lenses. The lens adapters and fabric donut are used to prevent light from leaking from behind the lens and reflecting off filters and flaring your image. The matte box features a removable top flag (eyebrow) that attaches to a hinge so you can precisely set the flag at the edge of your frame to block light sources from flaring.
  • 15mm rod adapter easily mounts onto industry-standard 15mm camera support systems
  • Swing-away design allows you to move the matte box to allow for easy lens replacement
  • Two 4x4" filter holders for adding filters to your system
  • Removable top flag protects your lens from flare
  • Fabric lens donut (Nun's Knickers) block stray light reflections from behind camera
  • 80 and 95mm diameter lens adapters block stray light reflections from behind camera
  UPC: 636946281113

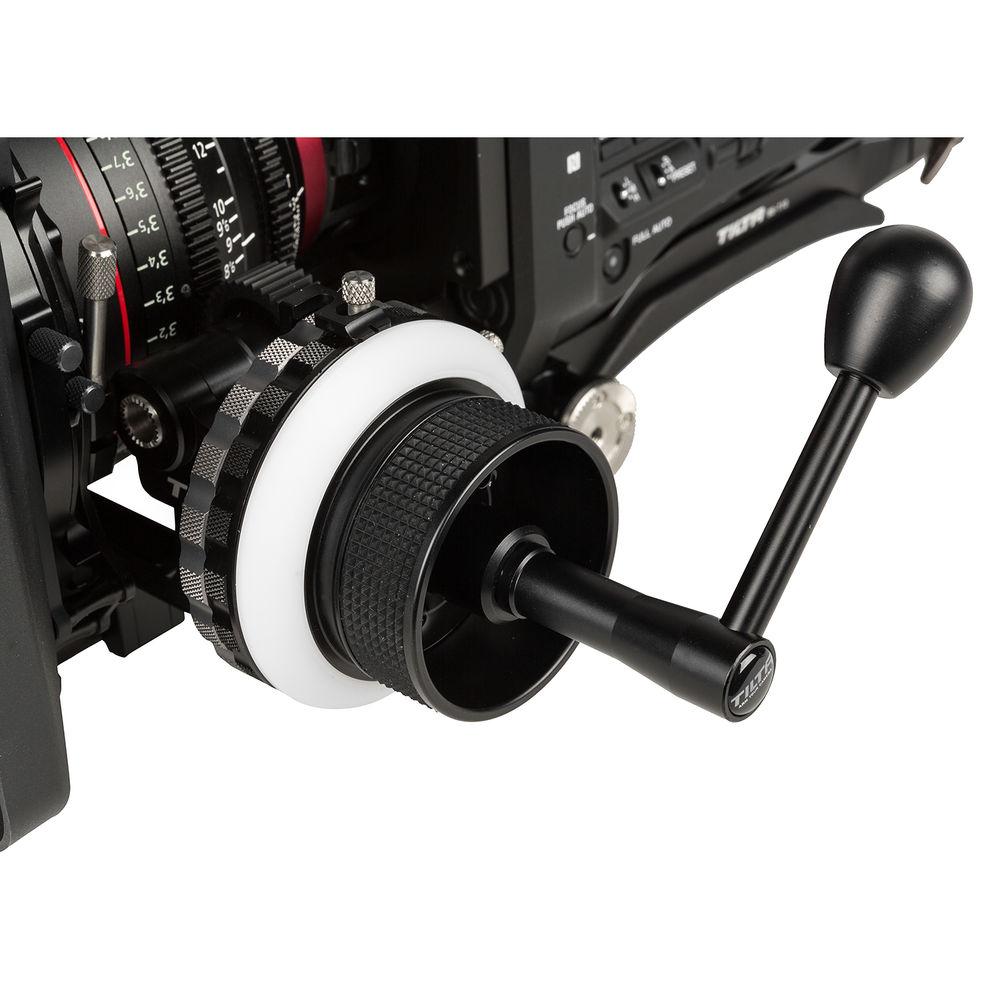

• FF-T03 15mm Follow Focus with Hard Stops The Tilta FF-T03 15mm Follow Focus can be mounted on any 15mm rod system and allows you to make smooth focus adjustments. Fluid movement ensures smooth control, and two hard stops ensure precision adjustment.

  Included with the follow focus are five flexible gears for your lens and 0.5, 0.6, and 08 MOD drive gears. And if you like to operate your system from a distance, a crank handle and 12” whip are both included.
  • Can be mounted onto any 15mm rods
  • Smooth fluid movements for easy focus adjustments
  • Hard stops for precision focusing
  • Rugged anodized aluminum alloy construction for durability
  UPC: 847983007417

• 2 x 7.8" 15mm Rods

• 3/16" Hex Key

• 3mm Hex Key

• 2 x Short 3mm Cap Head Screws

• 2 x Long 3mm Cap Head Screws

• 3 x Lens Adapter Support Screws

• Limited 1-Year Warranty

• 2 x 4x4" Filter Holder

• Removable Top Flag

• 80mm Lens Adapter

• 95mm Lens Adapter

• Fabric Lens Donut

• 15mm LWS Rod Adapter

• Limited 2-Year Warranty

• 5 x Gear Ring

• 0.5 MOD Drive Gear

• 0.6 MOD Drive Gear

• 0.8 MOD Drive Gear

• 12" Whip

• Crank Handle

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II

  Type	V-Lock
  Rod Compatibility	Rod Size: 15 mm Rod Spacing: 60 mm (LWS)
  Rosettes	2
  Tripod Mounting Threads	1/4"-20 & 3/8"-16
  Camera Mounting	1/4"-20 & 3/8"-16
  Material of Construction	Aluminum

  Accessory Mounting	1/4"-20: 24 x threaded mounting holes
  Weight	2.2 lb / 1.0 kg

  Threading	Female threading, both ends
  Diameter	15 mm
  Length	7.8" / 200 mm
  Weight	1.92 oz / 54.4 g

  Box Dimensions (LxWxH)	12.25 x 8.45 x 5.15"

• 4x4" Lightweight Matte Box

  Compatible with	15 mm camera support systems
  Material of Construction	Aluminum-alloy, stainless steel
  Size	Filter Holder: 4 x 4" / 10.2 x 10.2 cm
  Weight	2.3 lb / 1.0 kg

  Box Dimensions (LxWxH)	13.0 x 10.15 x 4.4"

• FF-T03 15mm Follow Focus with Hard Stops

  Included Drive Gear	0.5 / 0.6 / 0.8 MOD
  Rod Compatibility	15 mm LWS
  Number of Sides	Single-Sided
  Built-In Hardstops	2, Fixed
  Witness/Index Mark	Yes
  Marking Disk	Yes
  Switchable Handwheel Speed	No
  Included Whip Length	12" / 30.5 cm
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	17.3 x 8.65 x 5.15"
