User Manual for Tilta Cinema Cage for 5D Mark IV, FS5, GH5, DSLR & Blackmagic Design Cinema Camera Click to enlarge the picture
Contents of the user manual for the Tilta Cinema Cage for 5D Mark
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta Cinema Cage for 5D Mark contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

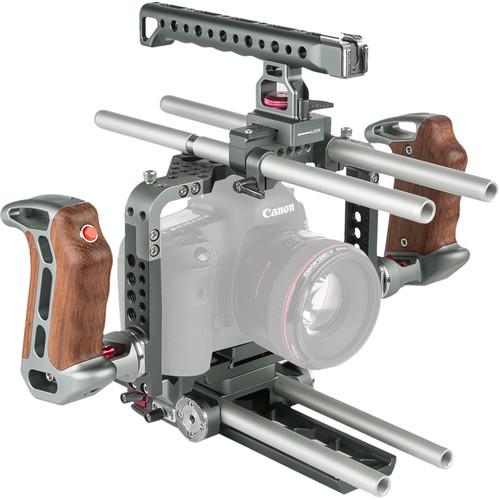

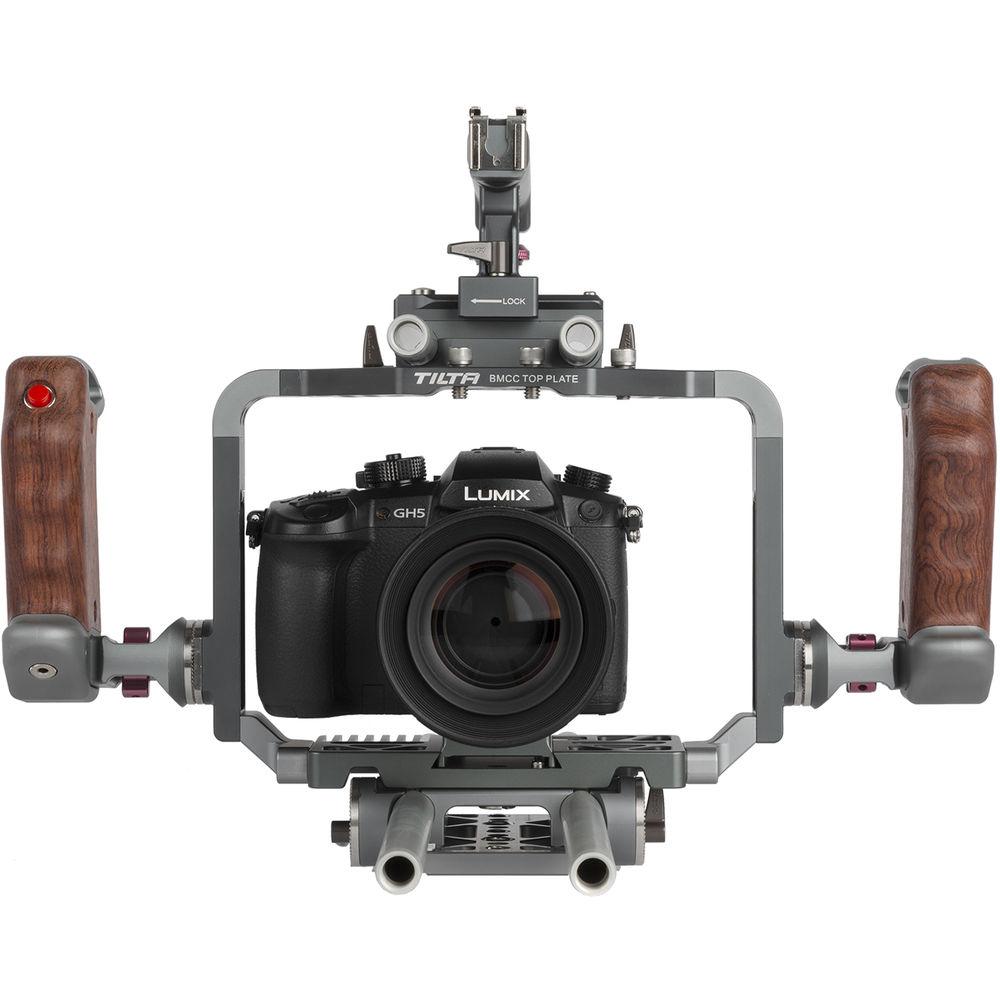

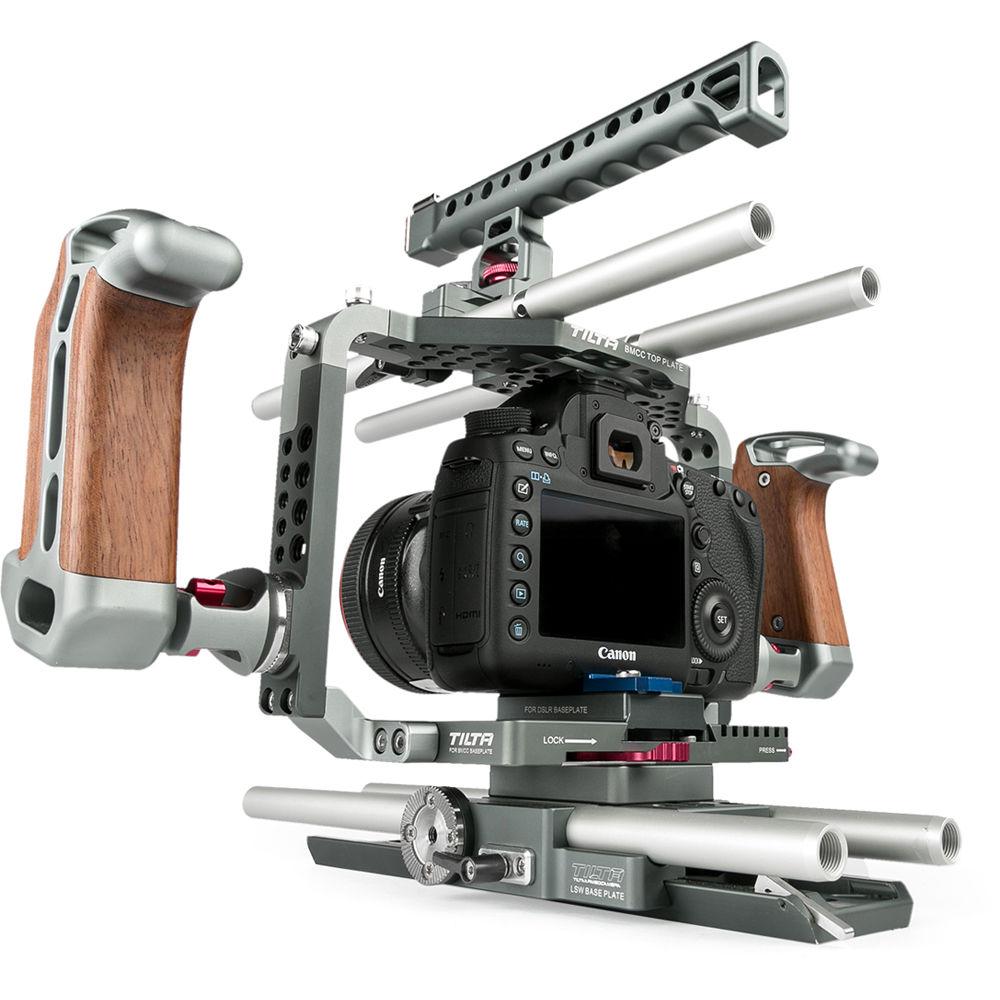

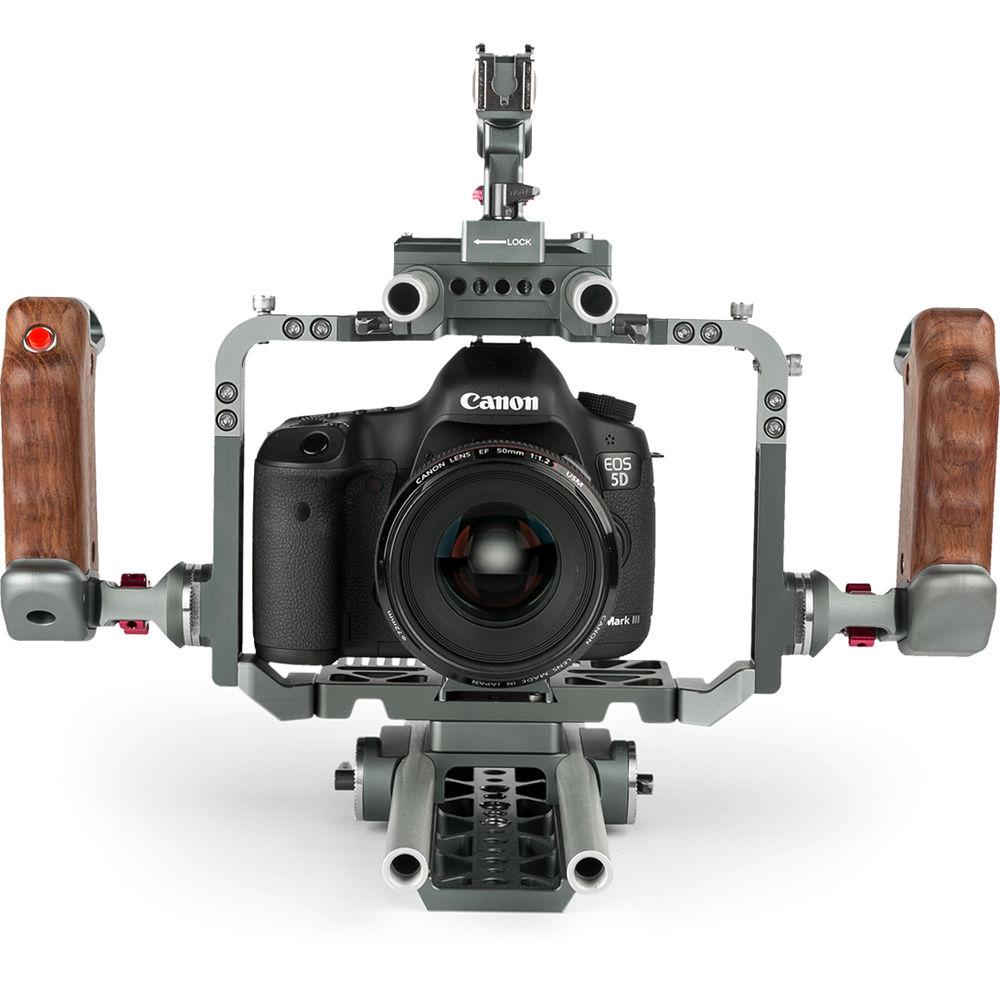

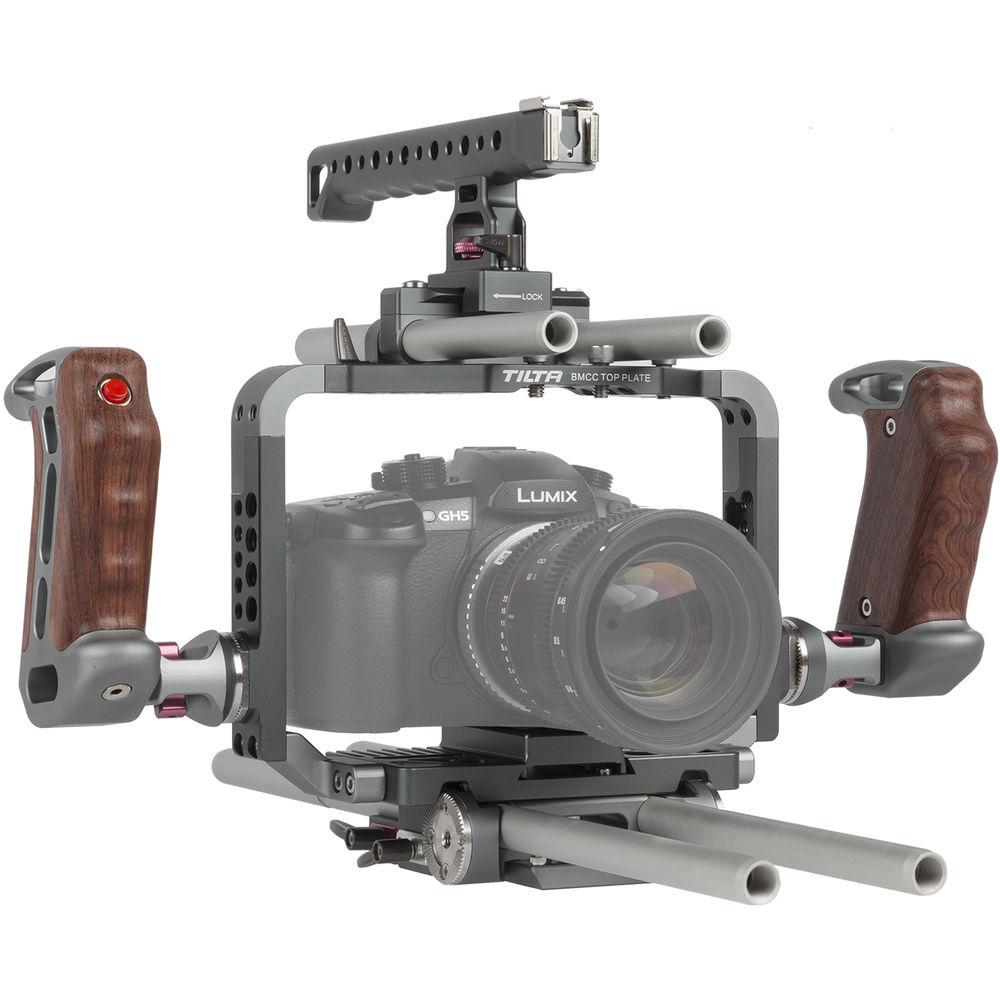

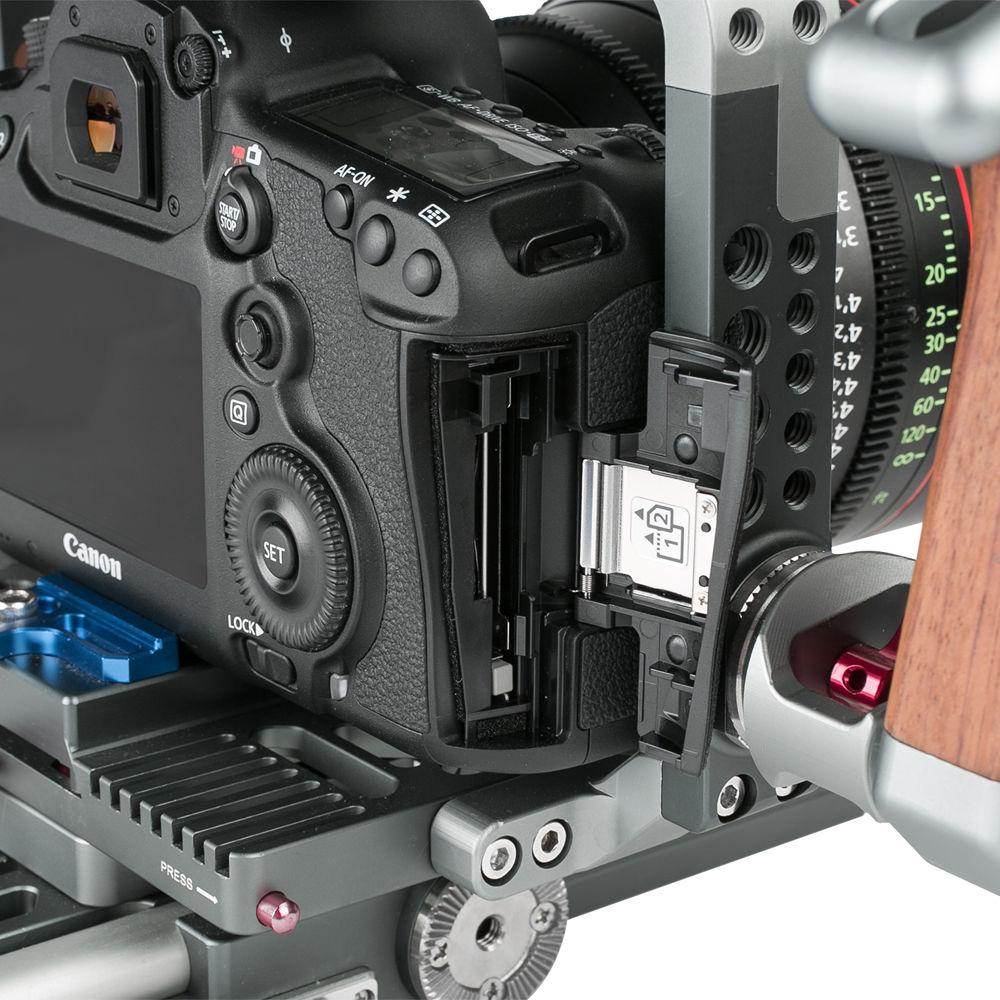

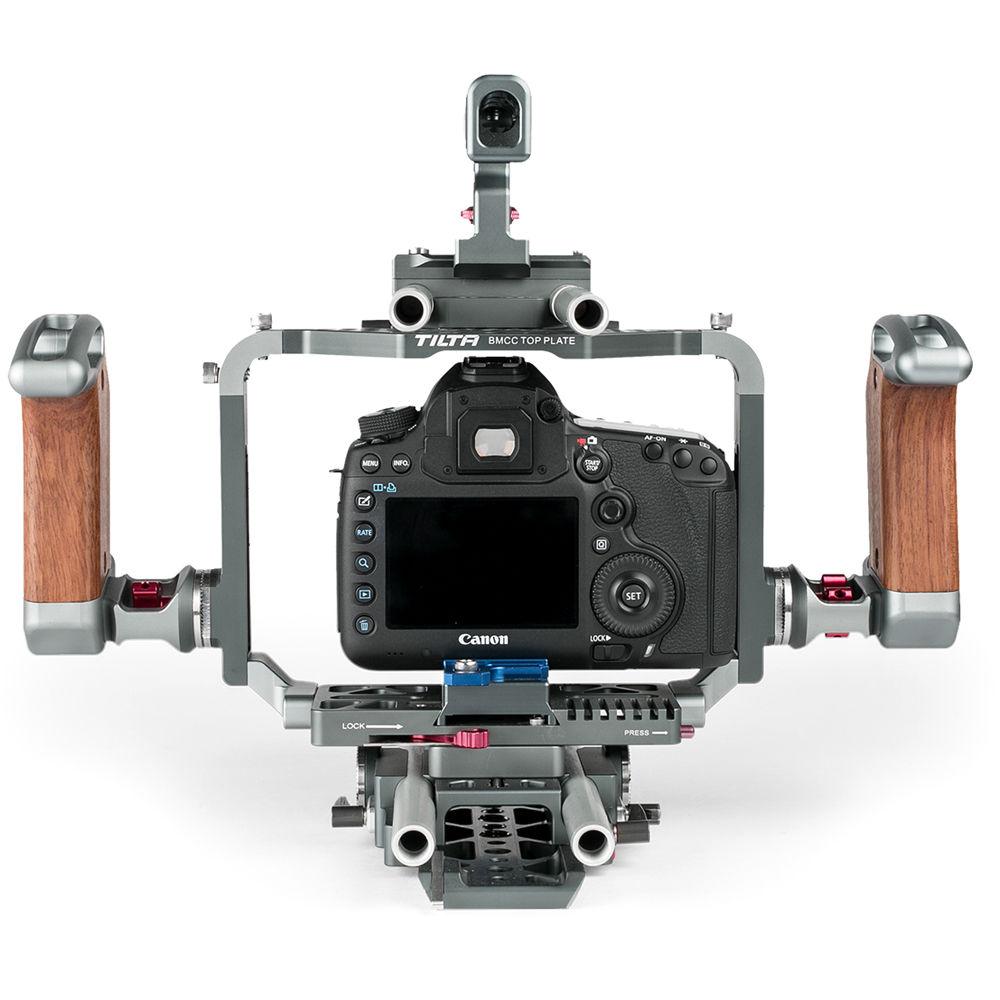

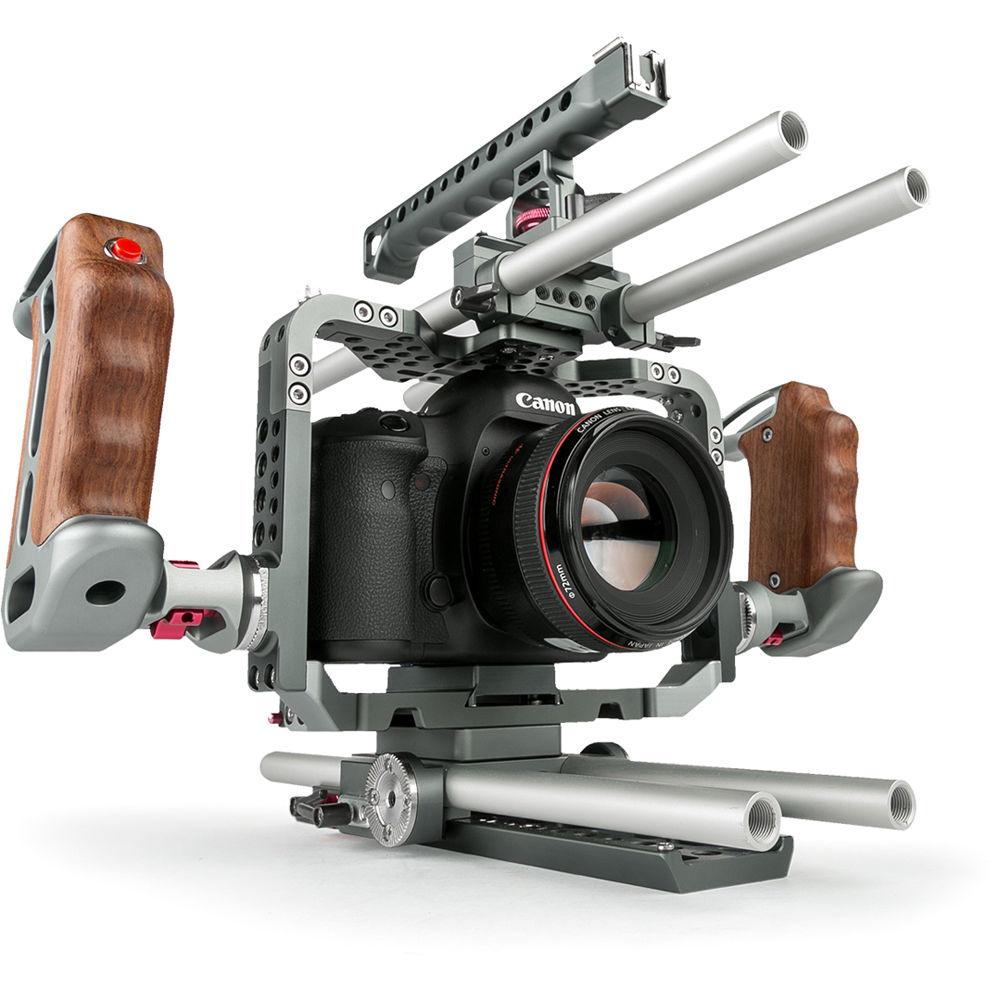

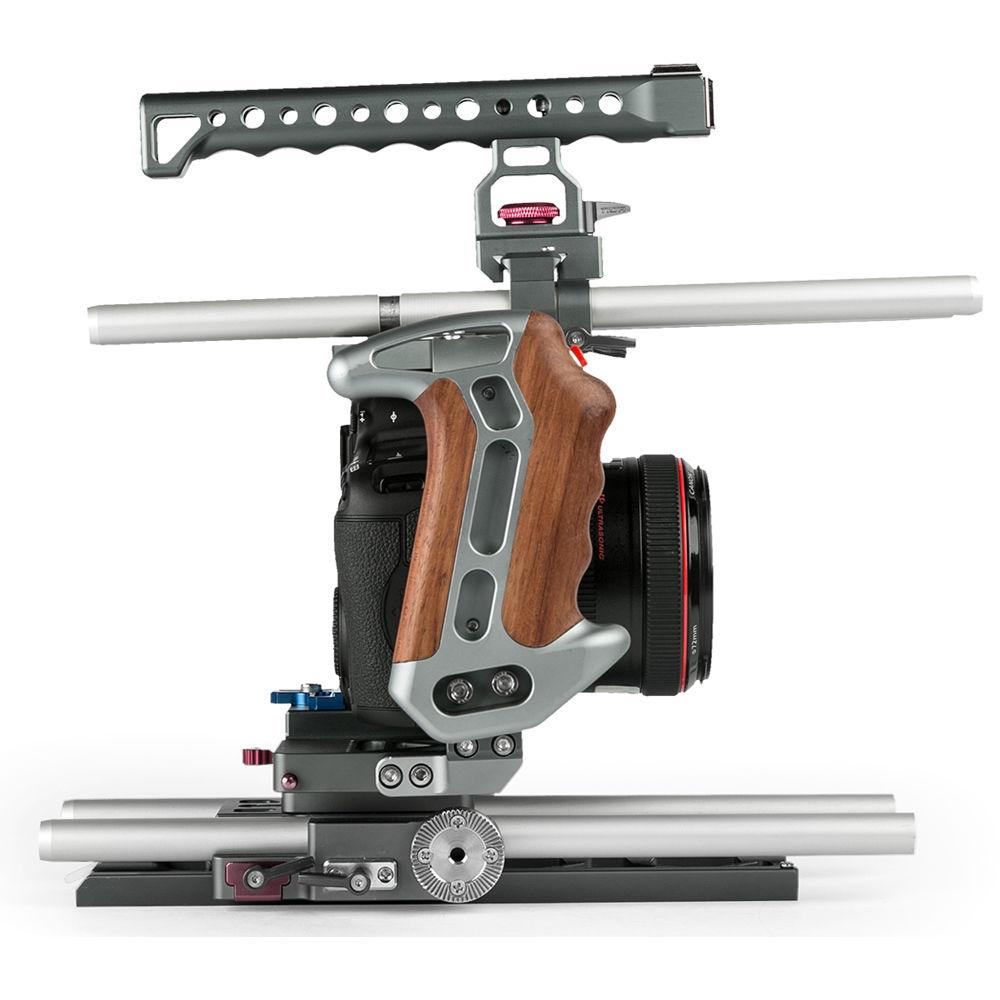

Product description The Tilta Universal Cinema Cage for 5D Mark IV, FS5, GH5, DSLR, and Blackmagic Design Cinema Camera is a precision-machined, anodized camera cage and hand-holding system. Highly configurable and adaptable to the daily demands of production, this rig is suitable for use with a wide variety of cameras and DSLRs. It features rugged construction, accessory options, expandability, and user functionality.The cage protects the camera body, and significantly improves handheld shooting possibilities. The cage also adds multiple accessory attachment points, while isolating the camera body from stress caused by the weight of accessories. The quick release baseplate allows you to remove the camera from the cage without hassle.The bottom mounting plate is relieved, and this not only lightens the weight of the cage, but more importantly, it provides ventilation for the camera so it doesn’t overheat. The top of the cage features an integrated 15mm LWS support rod system. This allows you to add accessories such as follow focus units or zoom motors above the lens (sold separately), which are useful when you need to get the camera as low as possible.The included top handle provides a secure grip for carrying the camera, as well as a simple way to get low angle handheld shots. It features two unpowered accessory shoe mounts, multiple 1/4"-20 and 3/8”-16 threaded mounting holes for accessories, and has a quick release mechanism that attaches to the mounting bar on the top plate. The mounting bar provides several inches of side-to-side balance adjustment, and features a built-in a safety catch that prevents the top handle from accidentally disengaging from the rig, avoiding potentially disastrous results.The side risers provide 1/4"-20 and 3/8”-16 threaded mounting holes, and each side riser also features an ARRI-compatible rosette for mounting accessories. The two included handgrips attach to the rosettes and feature a polished wood gripping surface. One handgrip incorporates an on/off button that uses LANC control to start and stop recording on the BMCC, or any camera that uses the LANC protocol.The rig includes a sliding baseplate with a 15mm LWS rod system, spring-loaded locking levers, and two ARRI rosettes. One 5” and one 10” dovetail plate, each with 1/4”-20 and 3/8”-16 threaded mounting sockets and safety catches, are included for attaching the camera to and balancing it on a tripod. The rig also includes three pairs of hard anodized 15mm aluminum rods and a pair of extensions for joining the rods together. The rig easily converts to a shoulder support rig with the addition of separately sold accessories, such as an offset shoulder pad and counterweights. -
- Compatible with the 5D Mark IV, FS5, GH5, as well as the Blackmagic Cinema and Production cameras
- Quick release baseplate
- Precision-machined anodized aluminum construction
- Top handle with 15mm rod adapter
- 15mm lightweight support baseplate
- 5” and 10” dovetail plates included
- The included wooden handgrips are one for each hand (L/R). The right handgrip incorporates an on/off trigger switch compatible with the Blackmagic Design Cinema Camera.
UPC: 847983014866 In the Box Tilta Cinema Cage for 5D Mark IV, FS5, GH5, DSLR & Blackmagic Design Cinema Camera Quick Release Baseplate 15mm Lightweight Support Bridgeplate BMCC Quick Release Plate DSLR Quick Release Plate DSLR Riser Plate Top Handle Top Plate with 15mm Rod Mount 5" Dovetail Plate 10" Dovetail Plate Left Side Cage Arm Right Side Cage Arm 2 x Wooden Handgrips (One with Remote Trigger) 2 x 15mm Aluminum Rods (4") 2 x 15mm Aluminum Rods (8") 2 x 15mm Aluminum Rods (12") 2 x Rod Extensions Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Cinema Cage for 5D Mark IV, FS5, GH5, DSLR & Blackmagic Design Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T07-2 Specs | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 18.4 x 11.6 x 5.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
