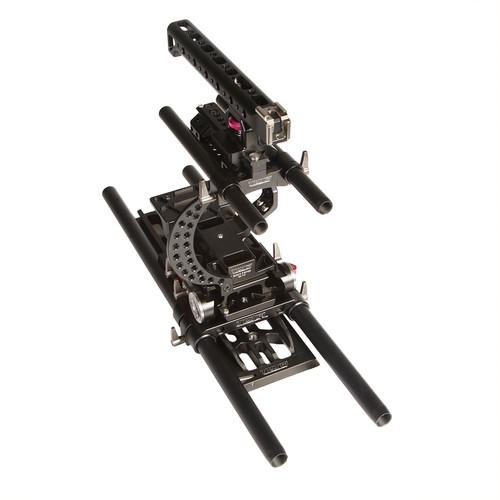

User Manual for Tilta ES-T05-19 Sony FS700 Camera Cage with 19mm Rods Click to enlarge the picture
Contents of the user manual for the Tilta ES-T05-19 Sony FS700 Camera Cage
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
|
User manual for the Tilta ES-T05-19 Sony FS700 Camera Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description Protecting your camera from the rigors of production and supporting large lenses and studio-sized accessories is the job of the Tilta ES-T05-19 Sony FS700 Camera Cage with 19mm Rods, a job it does with versatility while remaining a lightweight camera cage/support option. Not only does the rig support 19mm studio rods, it also includes an over the lens 15mm LWS rod support, allowing you to use both your 19mm studio accessories and your 15mm LWS rod mounted accessories on the same rig. This is useful for quickly switching from tripod to handheld shooting mode, no need to swap the cage, just add your accessories.
The cage consists of a baseplate designed for the Sony FS700, with two riser arms that form to your camera and feature a plethora of 1/4" accessory mounting points to protect your camera's body from the strain of attaching accessories. The top of the rig features a 15mm LWS rod clamp and a short rail that the top handle attaches to. The rail allows approximately 1" of forward to back adjustment so you can fine-tune your balance. The top handle itself incorporates five 1/4"-20 threaded mounting points and two cold shoes. The rig includes both a five-inch and ten-inch dovetail plate, two pairs of 19mm rods, a set of 19mm rod extensions, and a pair of 15mm rods. - The rig is built from precision-machined aluminum for a balance between strength and weight. It is anodized to increase its durability and corrosion resistance.
- The five and ten inch dovetail plates feature 3/8"-16 and 1/4"-20 helicoil inserts for mounting to tripods. The plates are relieved to reduce weight and increase rigidity. The back of the dovetail rails gently slop up, making it easier to slide the baseplate on and off. A safety lug, and spring-loaded safety catch help prevent the baseplate and camera from accidentally sliding off the dovetail.
- The removable top handle features finger grooves for comfort and has approximately an inch of sliding balance adjustment.
- The rod clamps feature spring-loaded locking levers that allow you to tighten or loosen the clamp, even if the lever cannot rotate 360 degrees.
- The cage and baseplate feature three ARRI compatible rosettes: one rosette on each riser and one rosette on the sliding baseplate itself.
UPC: 847983010929 In the Box Tilta ES-T05-19 Sony FS700 Camera Cage with 19mm Rods Pair 19mm Rods (7.9") Pair 19mm Rods (11.8") Pair 19mm Rod Extenders Pair 15mm Rods (3.9") Top Handle Armor Cage 5" Dovetail Plate 10" Dovetail Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ES-T05-19 Sony FS700 Camera Cage with 19mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T05-19 Specs | Material of Construction | Precision machined anodized aluminum | | Base Plate | 5.0 and 10.0" / 12.7 and 25.4 cm Dovetail | | Dimensions | 3.1 x 7.4 x 5.3" / 7.9 x 18.8 x 13.5 cm | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 5.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
