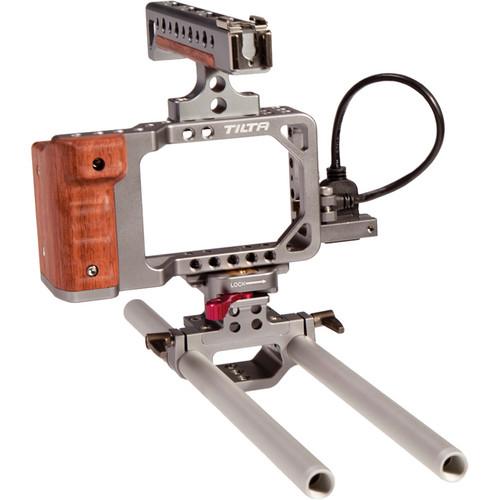

User Manual for Tilta ES-T13 Blackmagic Pocket Cinema Camera Rig Click to enlarge the picture
Contents of the user manual for the Tilta ES-T13 Blackmagic Pocket Cinema Camera
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta ES-T13 Blackmagic Pocket Cinema Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description - Tilta Blackmagic Pocket Cinema Camera Rig

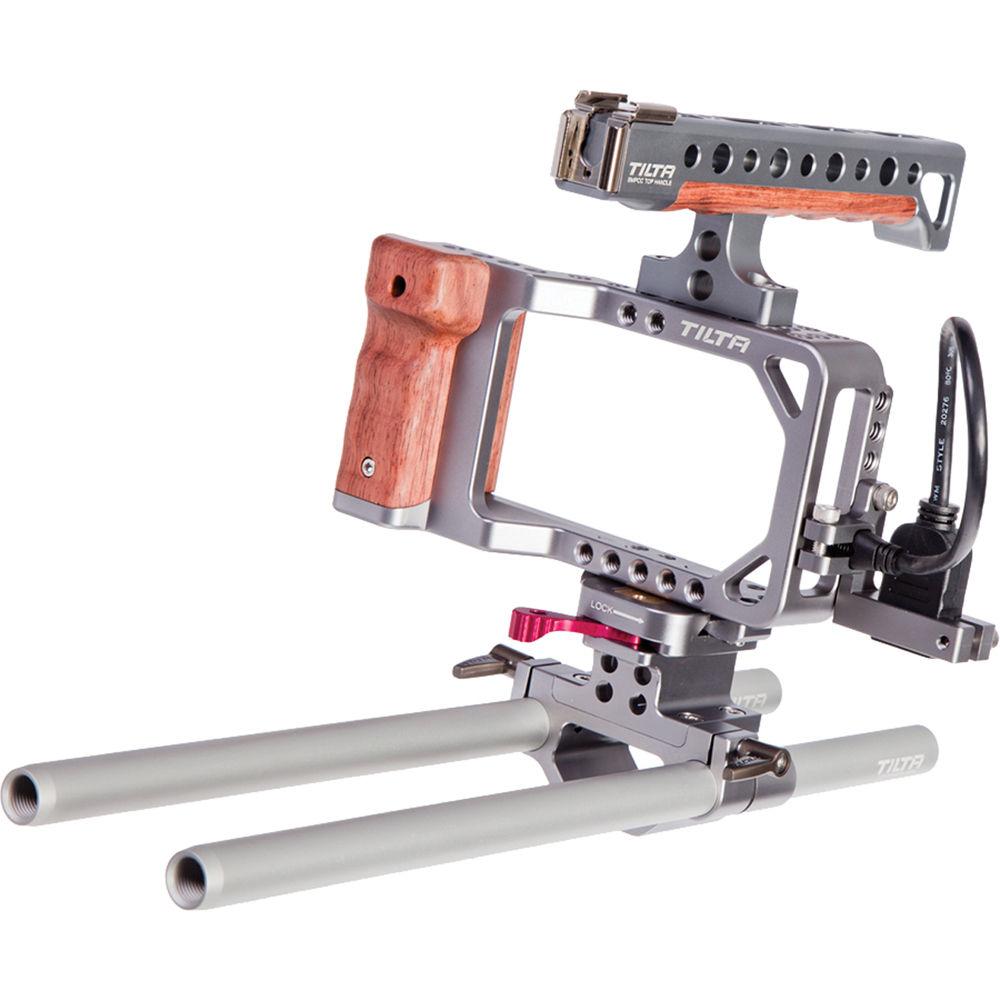

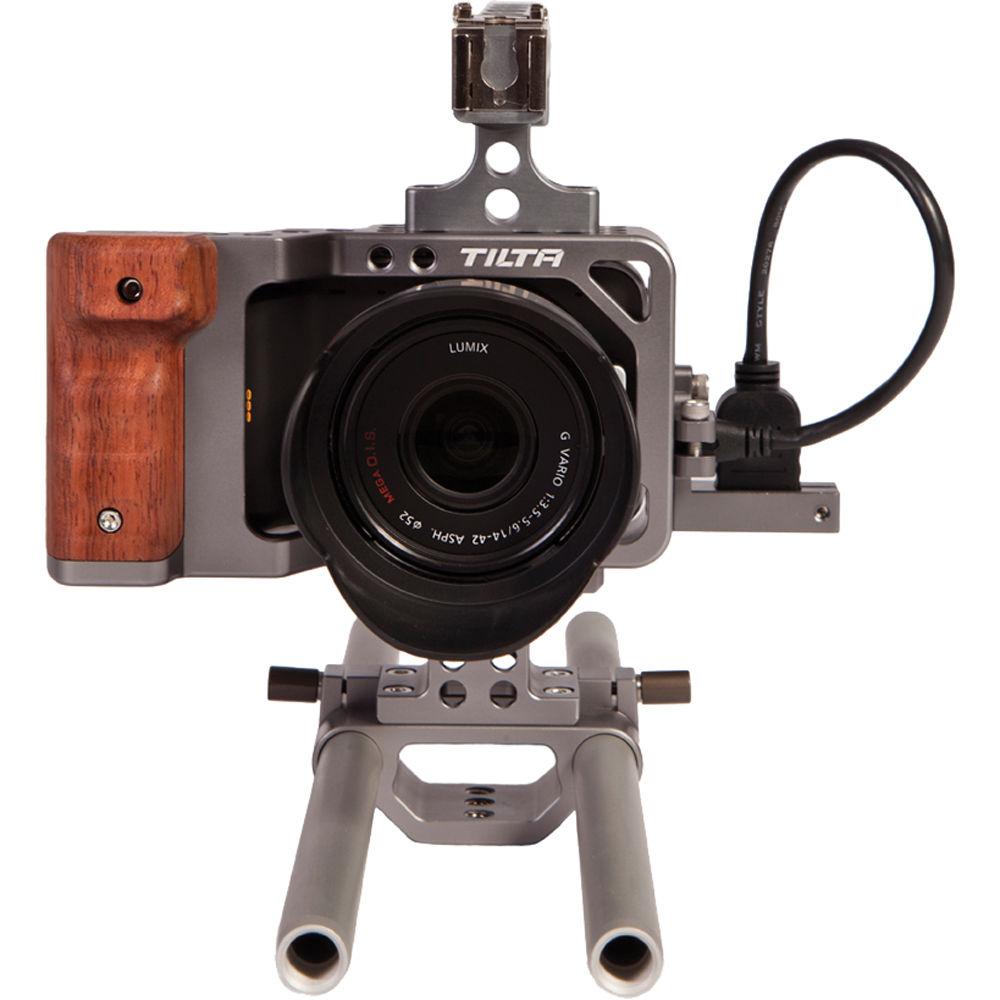

The Tilta ES-T13 Blackmagic Pocket Cinema Camera Rig is an aluminum cage and rod system built specifically for the Blackmagic Pocket Camera (camera not included). It consists of the camera cage, which is form fitting and allows unobstructed access to the camera's features, connectors, battery, and SD card slot. The cage provides 1/4"-20 accessory mounting points so you can mount available accessories without stressing the camera body.

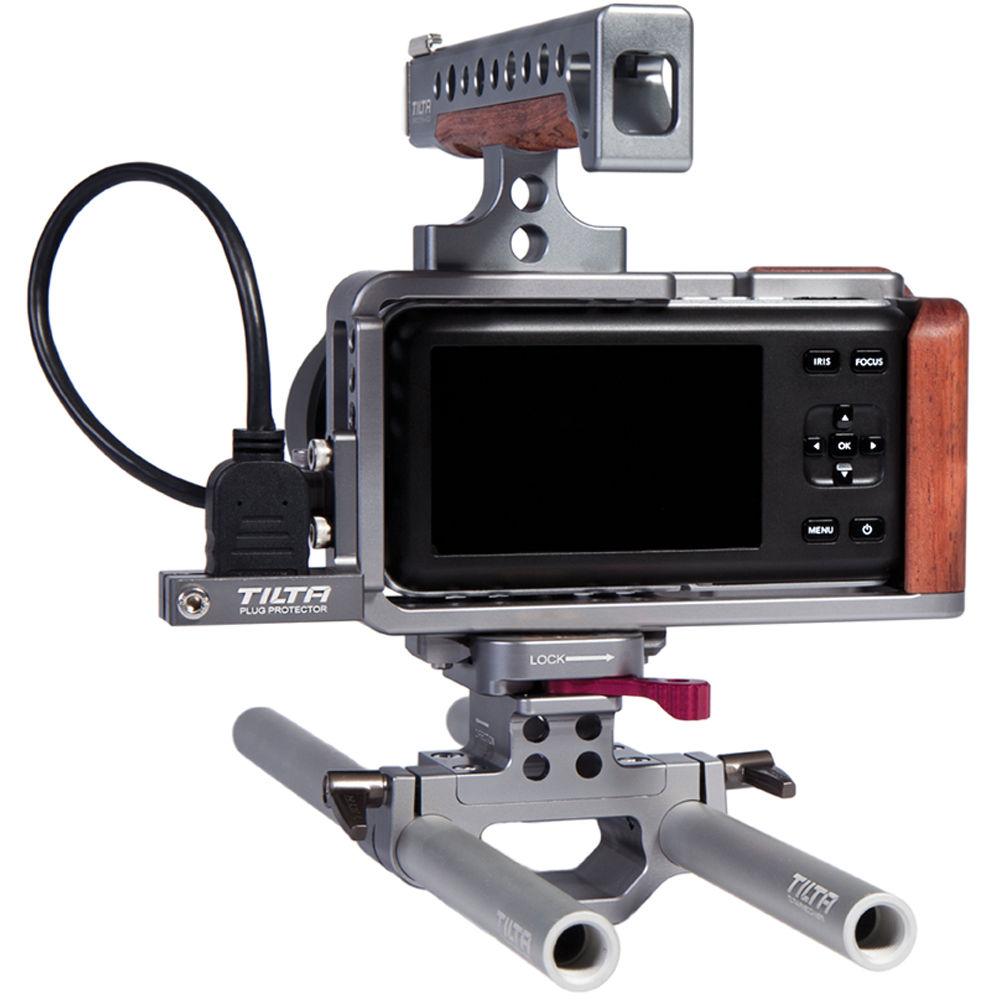

Once the camera is mounted in the cage, the included HDMI plug protector connects the included Micro HDMI to HDMI cable to the camera's Micro HDMI port and is clamped in place providing a full sized HDMI connector. This makes it easier to connect HDMI cables, and you don't have to worry about wearing out or damaging the micro HDMI port by repeatedly plugging and replugging a Micro HDMI cable into your camera body. The HDMI plug protector clamps the Micro HDMI adapter cable in place and also attaches to the cage itself, acting as a strain relief and providing a platform for the full-sized HDMI connector to attach, so it doesn't just dangle freely.

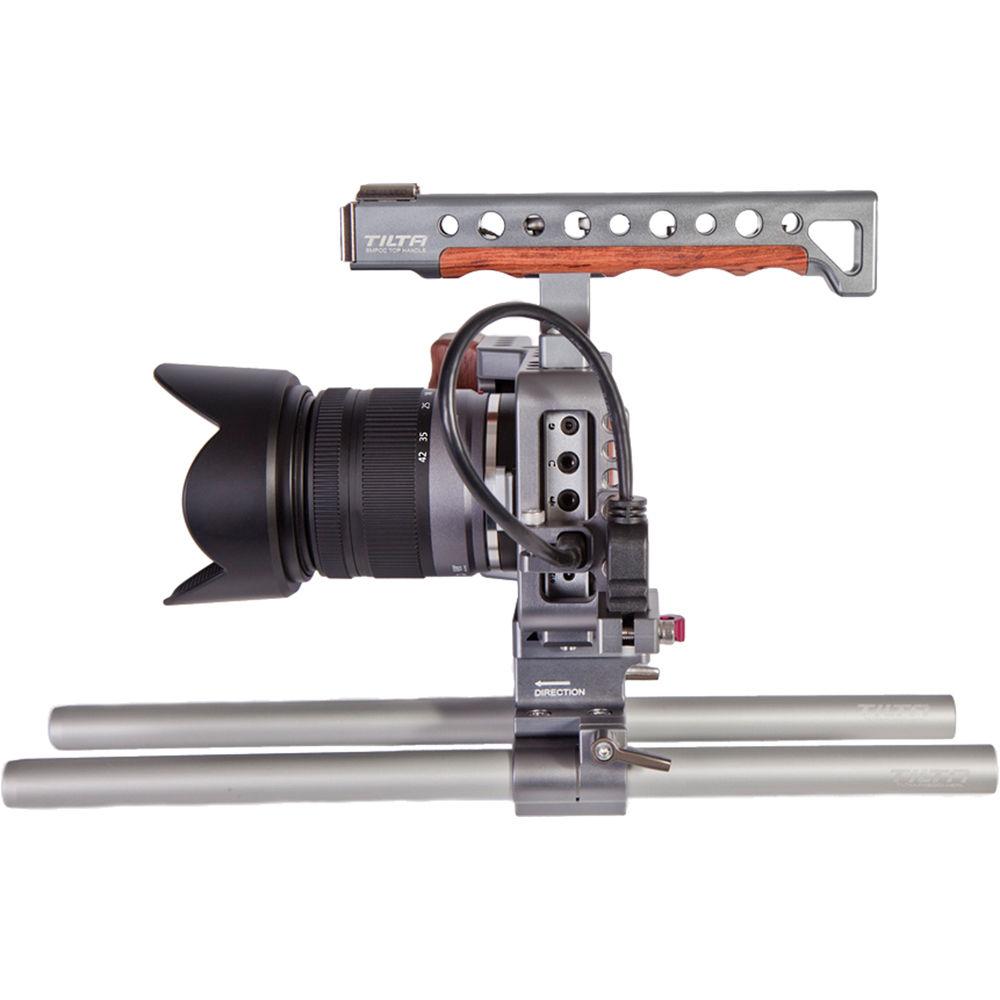

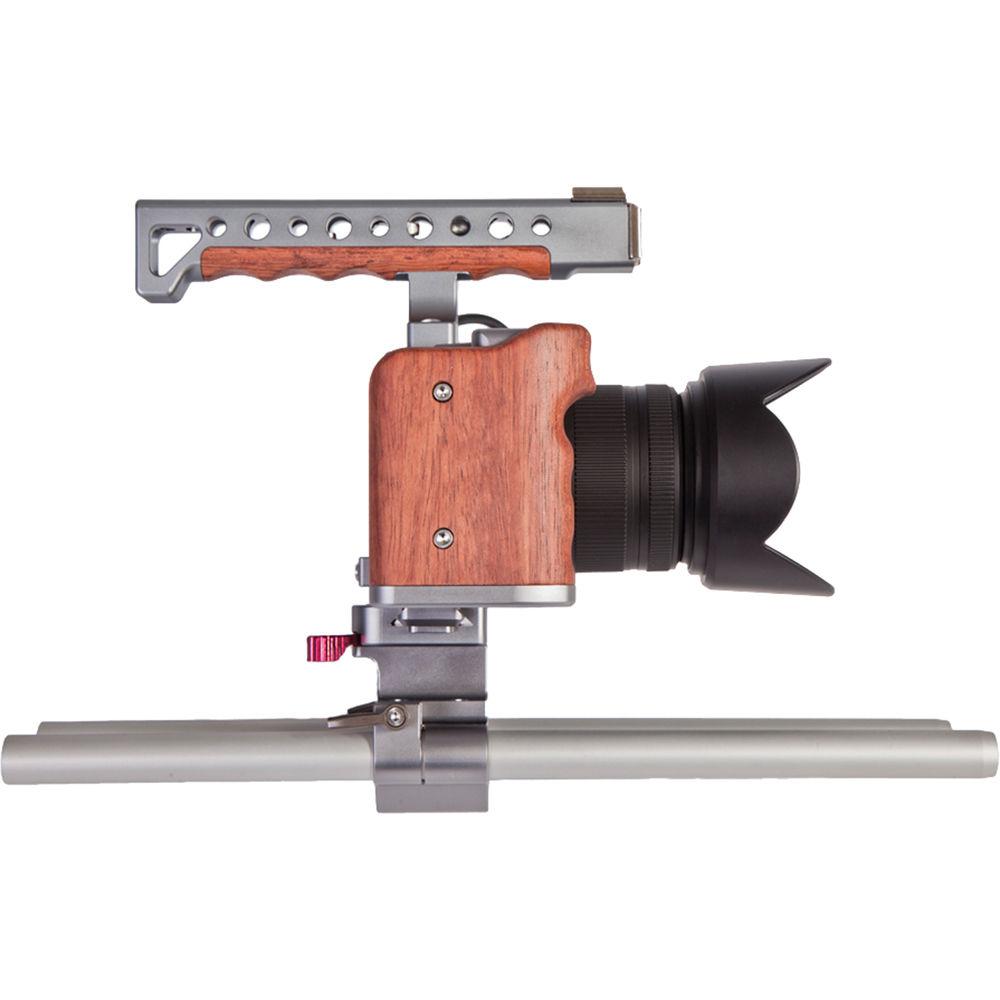

The cage features an integrated wood grip for user comfort, as well as a removable top handle that features 1/4"-20 accessory mounting points, 2 x cold shoes, and a wood lined grip for comfort. The cage also includes a 15mm LWS support rod system, featuring rod clamps, a pair of 300mm threaded rods, and 3 x 1/4"-20 threaded helical coil inserts for attaching the rod support system to an available QR/Sliding base Plate, tripod, or other 1/4"-20 mounting equipment.

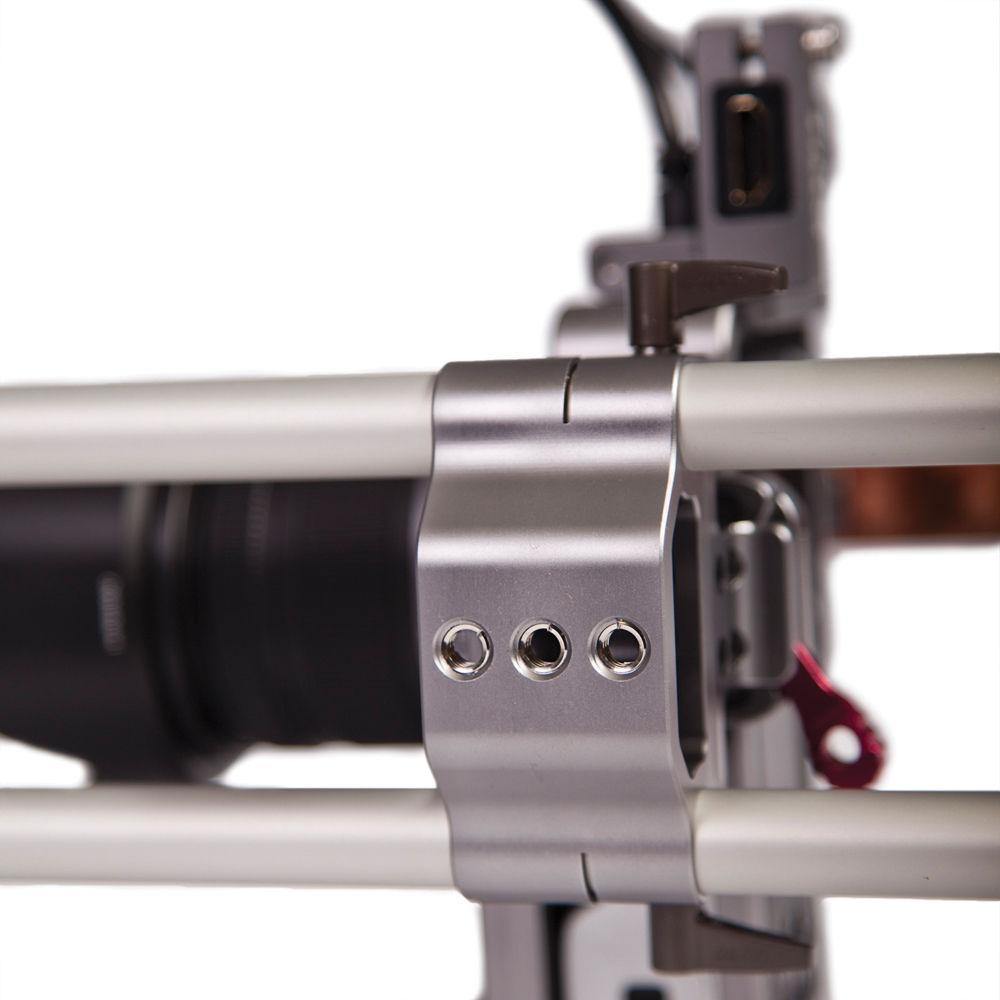

The cage attaches to the included 15mm LWS support rods via a quick release system, that allows you to easily remove the camera from the rods for a minimum sized shooting package or quicklly remount the camera to the rods when working with rod mounted accessories. The design of the system ensures that the lens' center height to the rods conforms to industry standards for using rod mounted accessories. - Functions and features of the camera remain available for use.

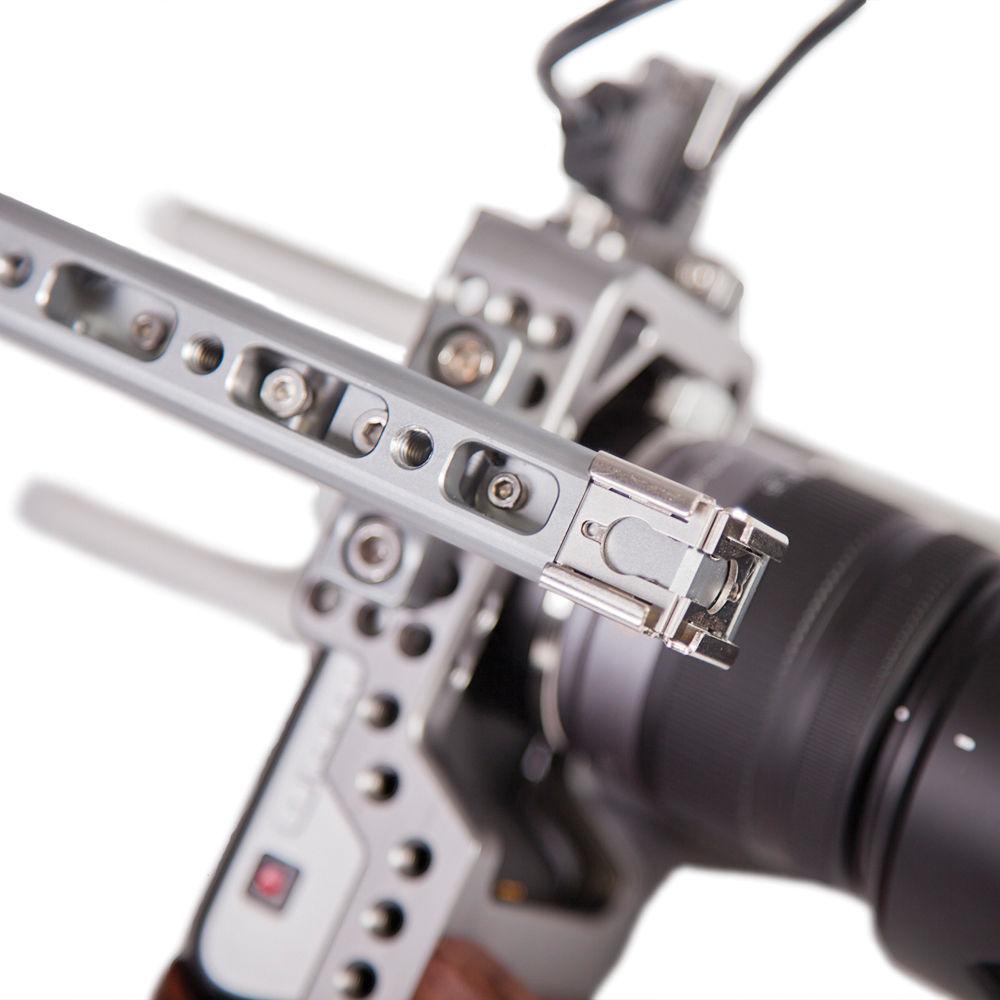

- Top handle features 2 x un-powered accessory shoe mounts.
- Numerous 1/4"-20 threaded accessory mounting points.
- 15mm LWS support rod system.
- Aluminum construction with 1/4"-20 helical coil inserts.

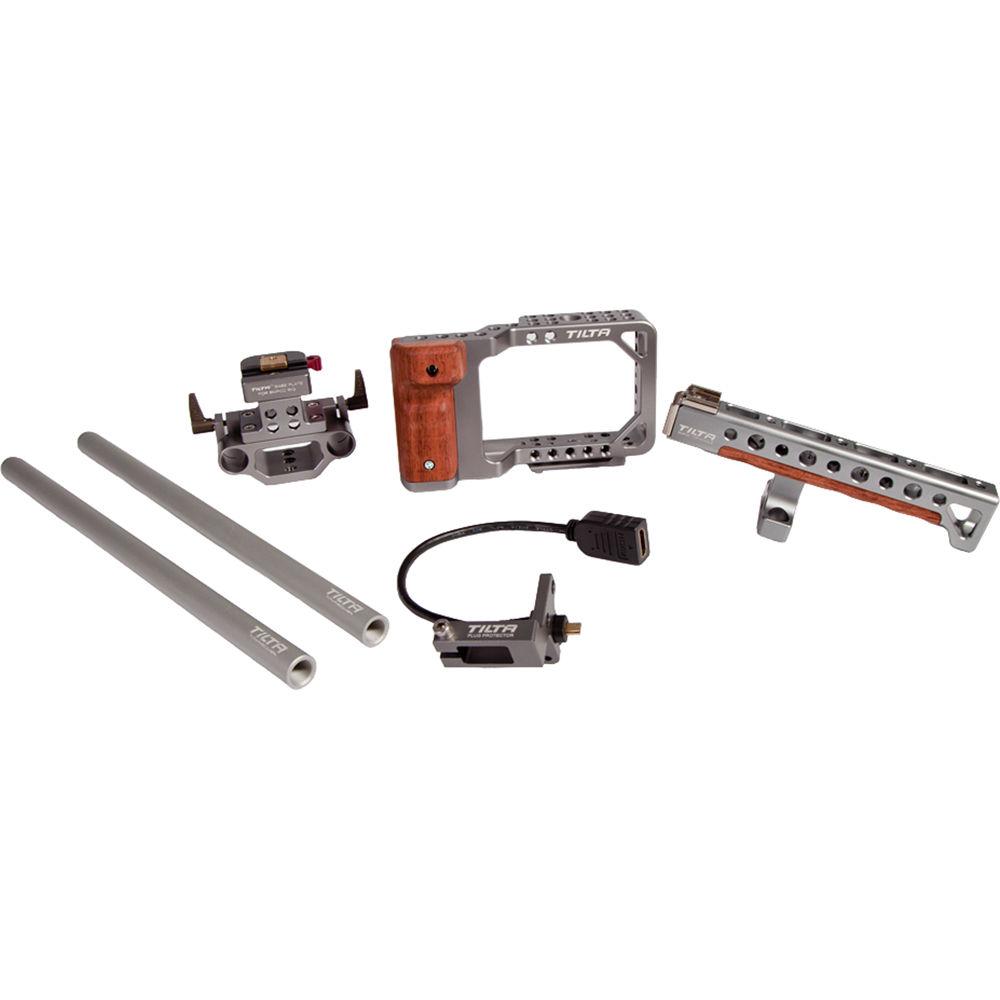

UPC: 847983009510 In the Box Tilta ES-T13 Blackmagic Pocket Cinema Camera Rig BMPCC Armor Cage Baseplate with Quick Release HDMI Plug Protector Micro HDMI to HDMI Cable 2 x 15mm x 300mm Rods 2 x Allen Wrenches Screwdriver 2 x Counter Sunk Phillips Screws to Mount Camera to Cage 2 x Allen Head Screws to Attach Top Handle 2 x Allen Head Screws to Attach HDMI Plug Protector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ES-T13 Blackmagic Pocket Cinema Camera Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T13 Specs | Material of Construction | Anodized aluminum
Wood | | Tripod Mount Thread | 3 x 1/4"-20 helical coil inserts | | Dimensions (H x W x D) | Cage: 3.16 x 5.72 x 2.52" (8.02 x 14.52 x 6.40 cm)
Top handle: 2 x 1.8 x 6.3" (5.1 x 4.6 x 16.0 cm)
Base plate: 2.5 x 4.1 x 1.7" (6.4 x 10.4 x 4.3 cm)
15mm LWS Rods: 12" (300 mm) long | | Weight | 2 lb (.91 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 14.2 x 6.8 x 4.6" |
