Product description

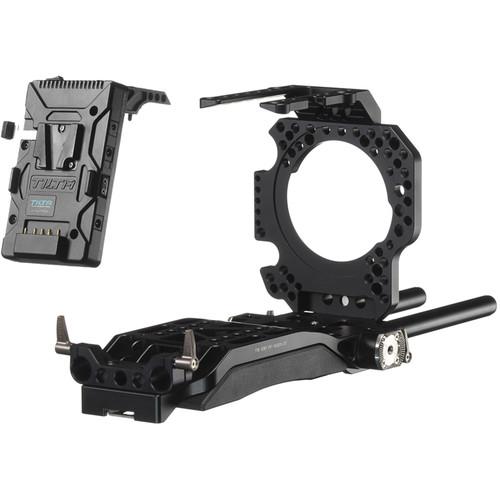

• ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II
  • Sony FS7 Camera Rig

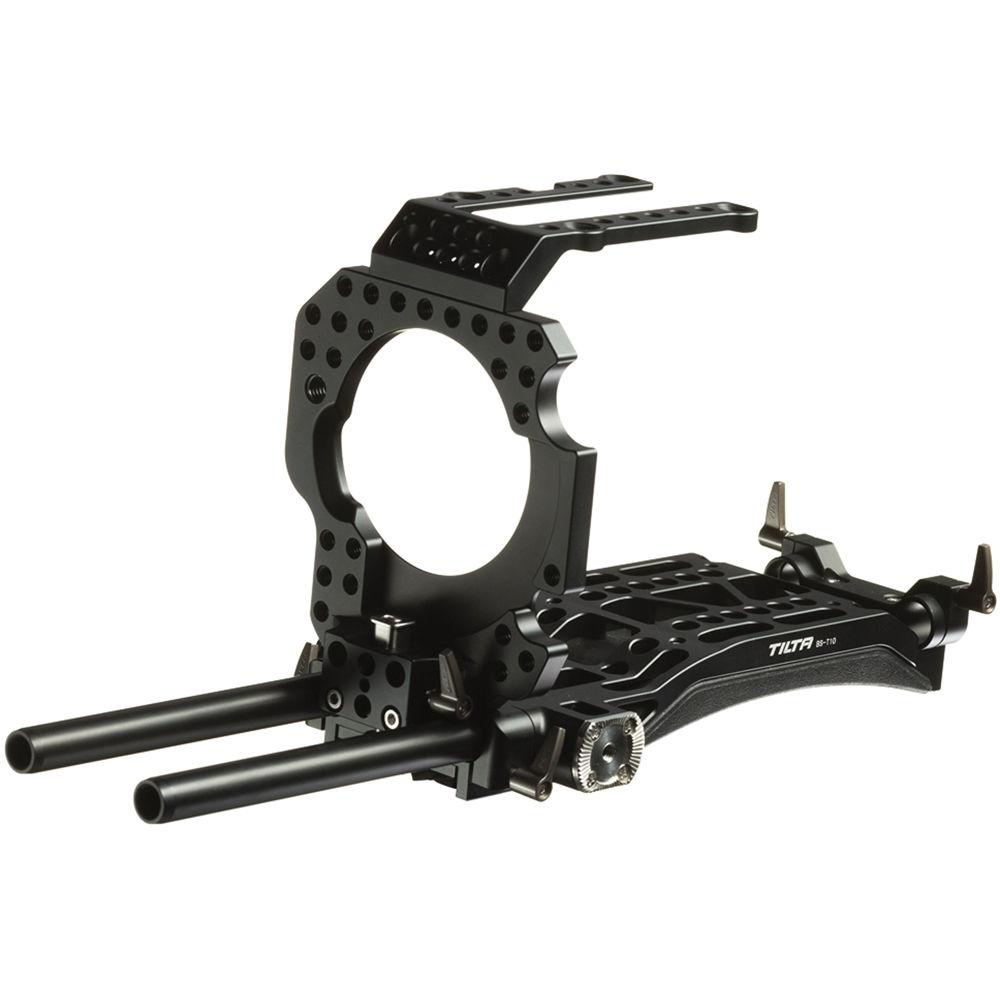

  Specifically designed to work with your FS7 or FS7 II camera, the Tilta ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II provides you a protective cage-like front and top enclosure with a VCT type quick release tripod adapter. The front plate and top plate provide 24 additional 1/4"-20 accessory mounting points, so you can mount accessories without stressing your camera's body. It integrates a lens adapter support that can help prevent optional lens mount adapters from stressing your camera's E-mount. The top plate is designed to fit around your camera's top handle.

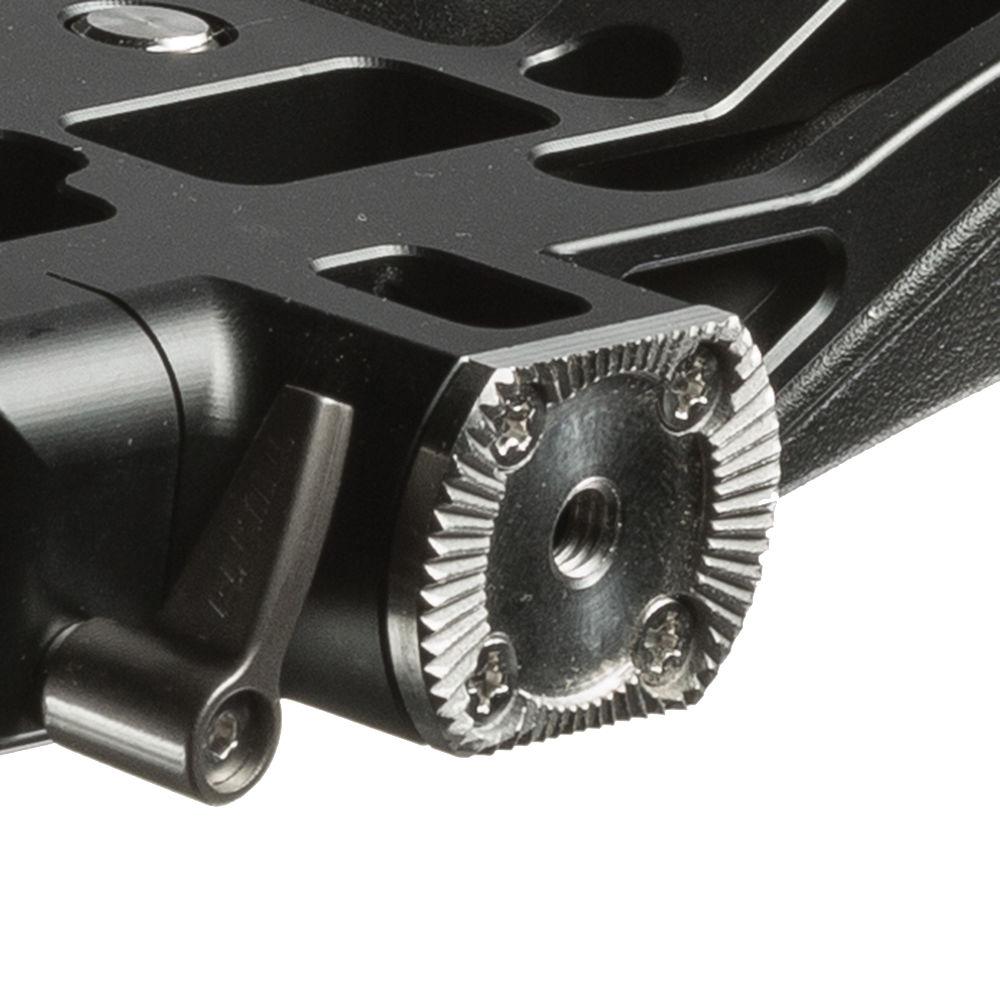

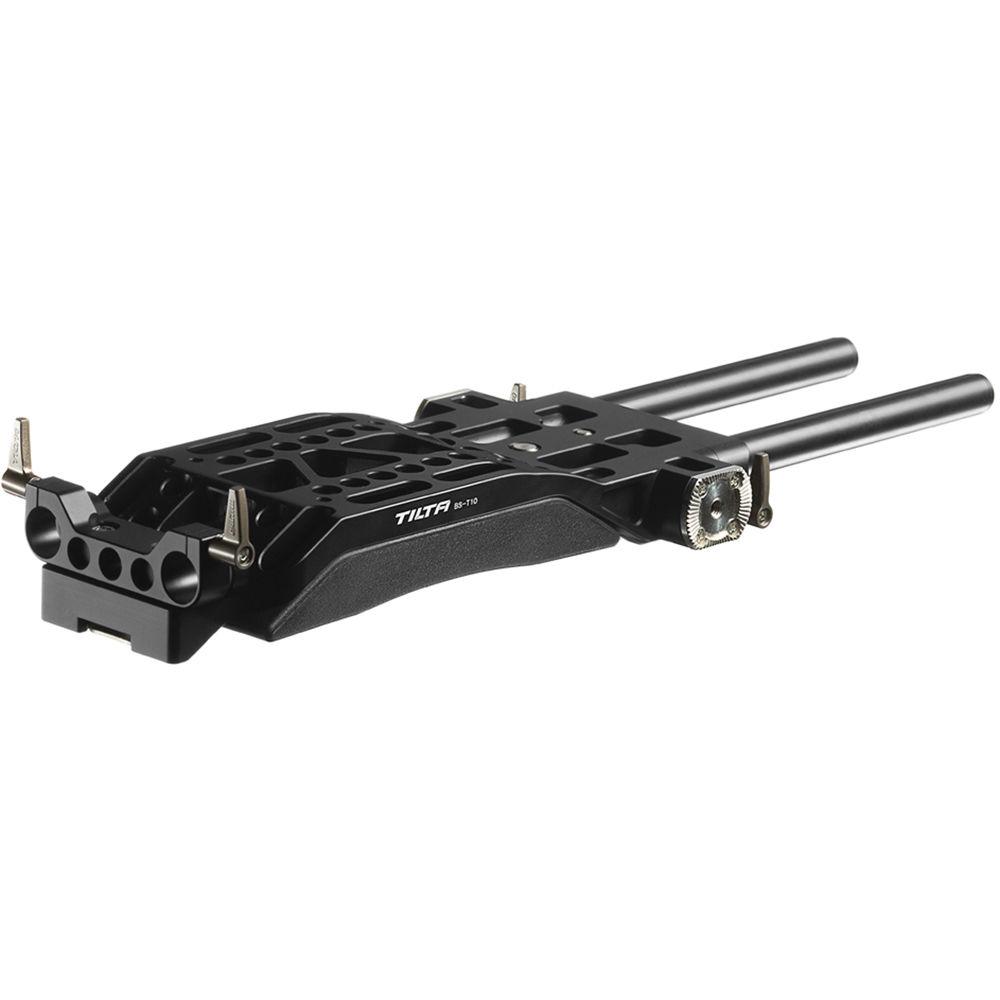

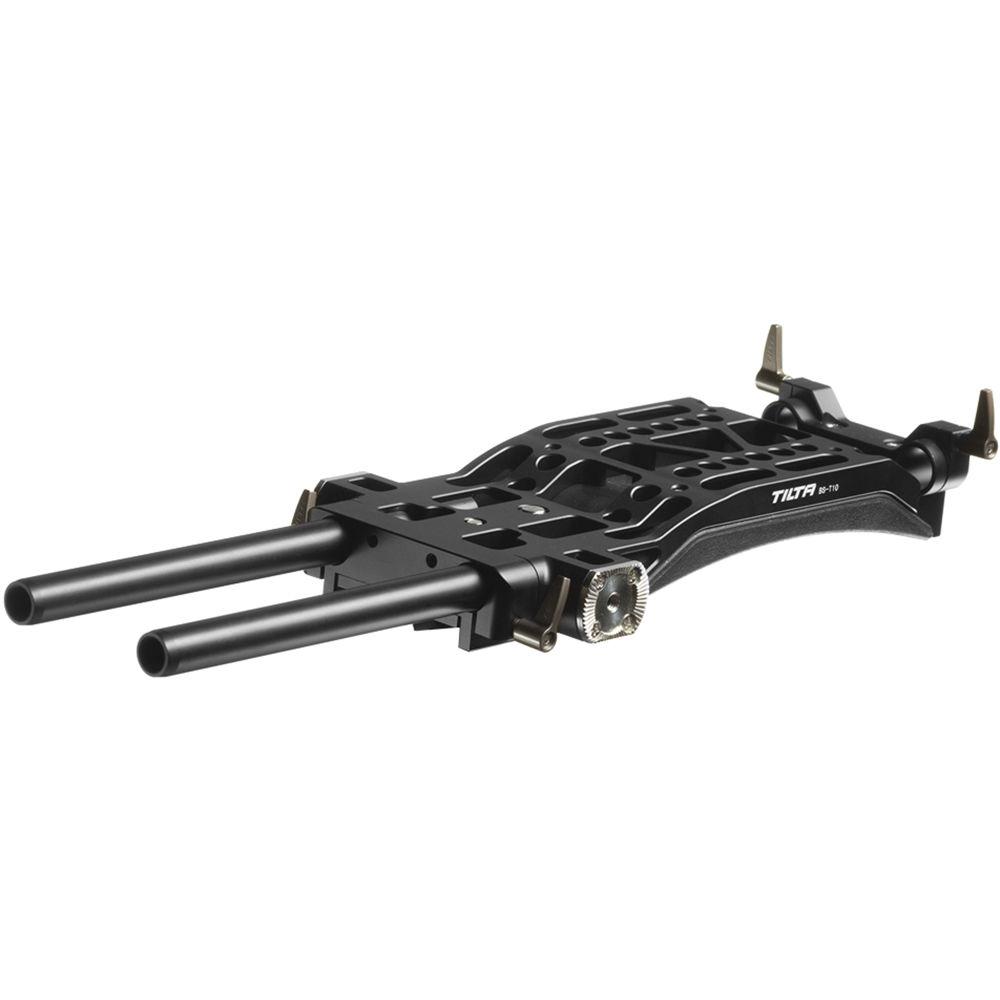

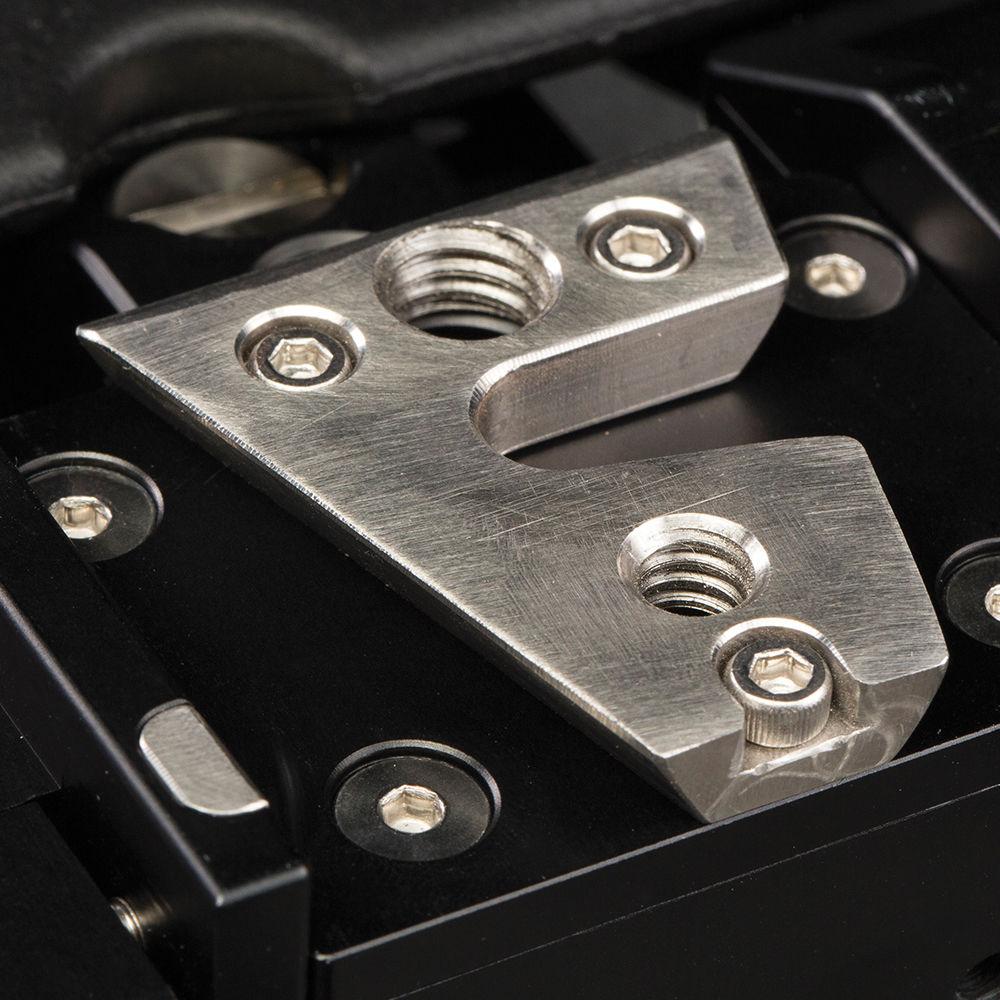

  The baseplate allows you to go from tripod-mounted to handheld with just the flick of the release lever on an optional VCT adapter plate. The baseplate features a built-in shoulder pad, so the camera retains its handheld functionality and adds LWS rod support for accessories. ARRI-compatible rosettes are built into each side of the baseplate, allowing you to use optional ARRI-compatible handgrips.

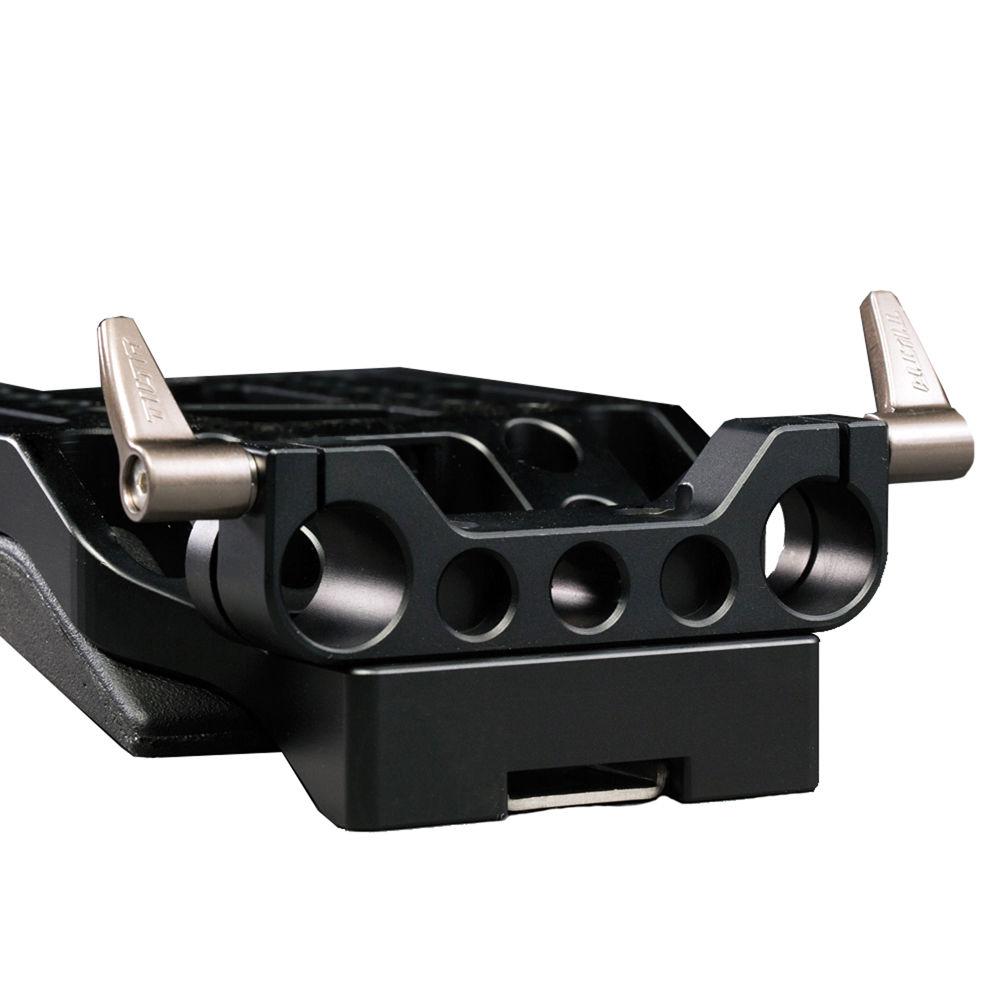

  Front and rear-mounted LWS rod clamps allow you to use the included support rods for optional rod mounted accessories such as a matte box or a follow focus. You can mount the rods in the rear clamps to support optional batteries, off-board recorders, or counterweights. Note only one pair of rods are included, so to use front and rear-mounted accessories you will need to source optional rods.
  • The rig provides a cage-like protection, and once mounted allows you to add accessories with minimal stress to your camera's body. The added functionality minimally impacts the characteristics of the camera and allows you access to all camera functions.
  • You can build this rig and your camera into a handheld rig, and then quickly go from handheld to tripod mounted, on a tripod with a VCT type adapter, without altering your rig configuration.
  • The 15mm rods are female threaded at both ends, allowing you to use optional rod extenders and rods to create longer support rods.
  • One end of each rod is chamfered, which makes it easier to slide rod mounted accessories onto the support rods from the chamfered end.
  UPC: 847983013777

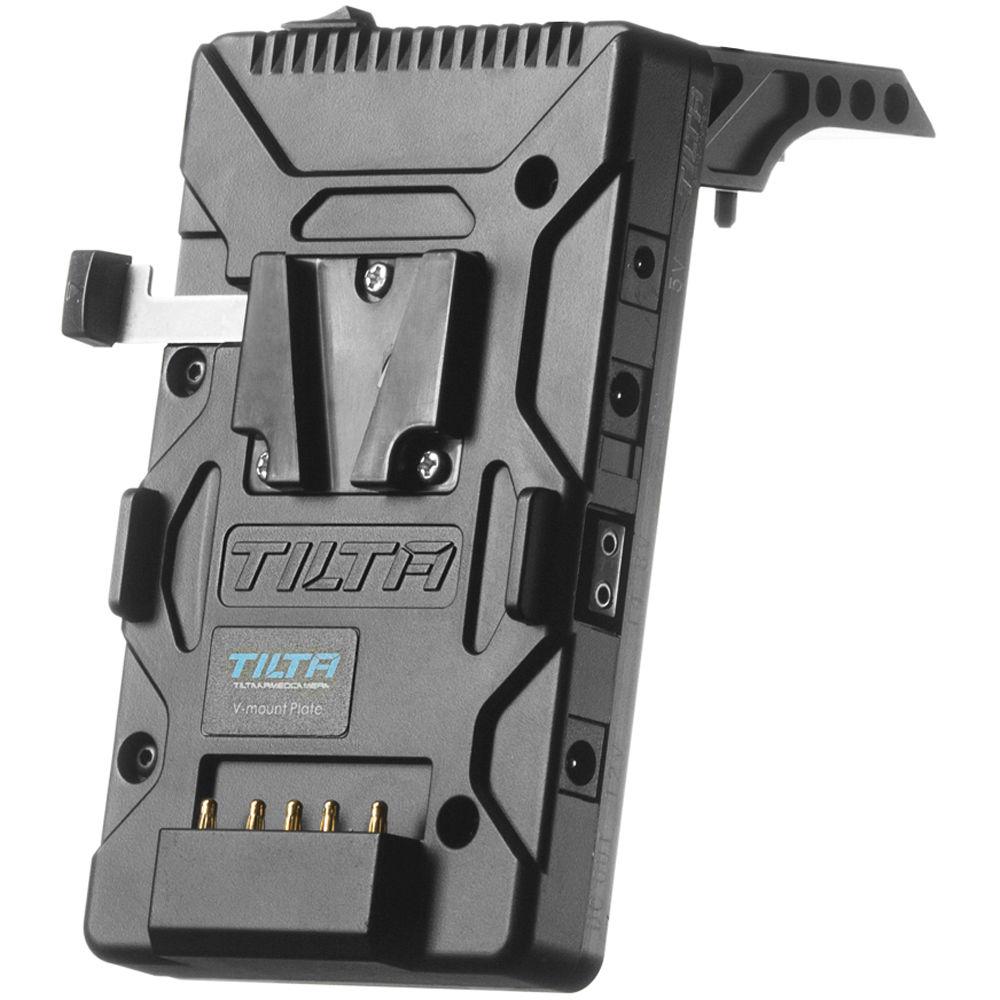

• V-Mount Battery Plate for Sony FS7 Designed specifically to integrate into your FS7 camera, the Tilta V-Mount Battery Plate for Sony FS7 provides you a way to power your camera and on-board accessories from a single V-mount battery. The battery plate solidly attaches to your FS7 allowing you to mount optional large capacity V-mount batteries on the back of the camera without significantly altering the balance. Built-in power ports support P-Tap as well as common DC voltage outputs.

  Using this battery plate with optional V-mount batteries allows you to power on-board accessories using only one battery, instead of using many smaller DV style batteries to power the camera and additional accessories. This single battery powering solution preserves the handheld capabilities of your camera, as opposed to the effect of weight and balance shifts caused by multiple batteries when you operate your camera with accessories. The plate passes through your batteries power through the D-Tap, and provides separate regulated 8 VDC and two 12 VDC outputs. Four cables are included, so you can connect a device to each power output.
  • Provides secure battery attachment for optional V-mount batteries without significantly altering the camera's footprint.
  • Integrated on / off switch allows you to power down to conserve battery without removing the battery.
  • Battery plate provides pass through battery power to a D-Tap output, regulated 8 VDC, and two 12 VDC power outputs for powering an optional camera and accessories.
  UPC: 847983013791

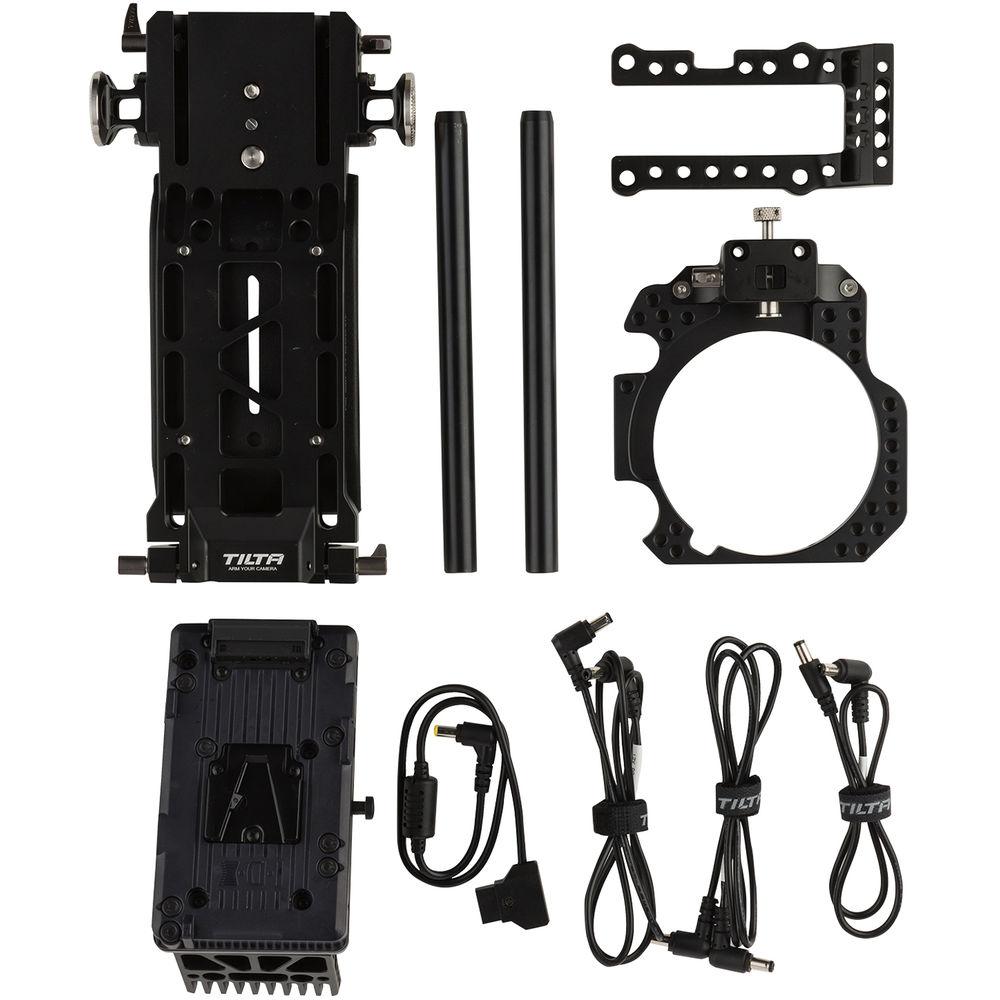

• 2 x 7.8" 15mm Rods

• 3/16" Hex Key

• 3mm Hex Key

• 2 x Short 3mm Cap Head Screws

• 2 x Long 3mm Cap Head Screws

• 3 x Lens Adapter Support Screws

• Limited 1-Year Warranty

• 2 x 12 VDC Cable

• 7.2 VDC Cable

• P-Tap to FS7 Power Cable

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ES-T15 Camera Rig with Front Plate and Quick Release Baseplate for Sony FS7/FS7 II

  Type	V-Lock
  Rod Compatibility	Rod Size: 15 mm Rod Spacing: 60 mm (LWS)
  Rosettes	2
  Tripod Mounting Threads	1/4"-20 & 3/8"-16
  Camera Mounting	1/4"-20 & 3/8"-16
  Material of Construction	Aluminum

  Accessory Mounting	1/4"-20: 24 x threaded mounting holes
  Weight	2.2 lb / 1.0 kg

  Threading	Female threading, both ends
  Diameter	15 mm
  Length	7.8" / 200 mm
  Weight	1.92 oz / 54.4 g

  Box Dimensions (LxWxH)	12.25 x 8.45 x 5.15"

• V-Mount Battery Plate for Sony FS7

  Battery Plate Type	Integrated V-Mount plate
  Power Outputs	1 x 5 VDC 1 x 8 VDC 1 x 12 VDC 1 x P-Tap
  Dimensions	5.6 x 3.9 x 3.5" / 142.2 x 99 x 88.9 mm
  Weight	11.7 oz / 332 g

  Box Dimensions (LxWxH)	10.25 x 6.65 x 5.25"
