Product description - ikan Tilta ES-T17-A & ES-T17 Sony a7 Camera Series Cage
- Tilta Handheld Camera Cage Rigs | Ikan Tech Corner

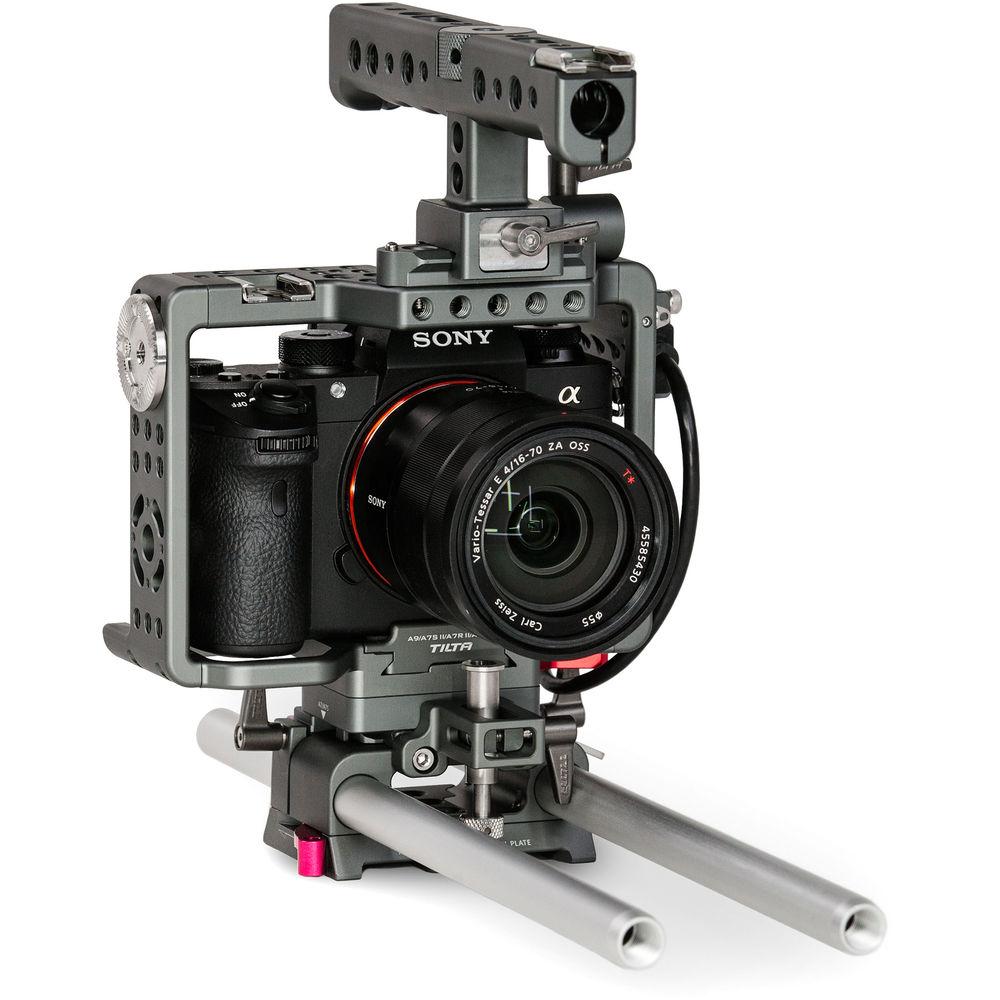

Protecting your Sony a7-series camera and improving its hand held ergonomics for shooting are just two of the many features of the Tilta ES-T17 Handheld Camera Cage Rig. The precision-machined, form-fitting cage is made from aluminum alloy, providing a balance between durability and strength, and has with numerous threaded 1/4"-20 accessory mounting points.

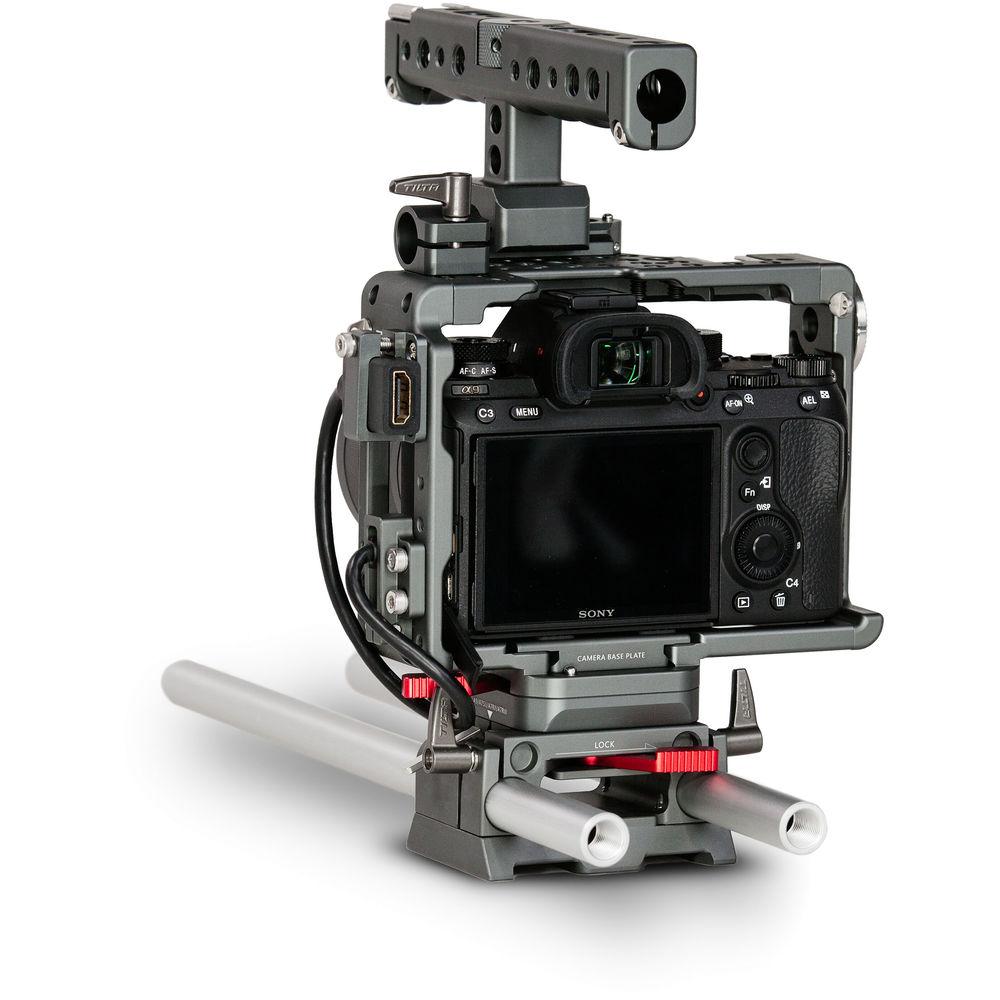

Once the camera is mounted in the cage, the included HDMI plug protector connects the included micro-HDMI to HDMI cable to the camera's micro-HDMI port and is clamped in place, providing a full-sized HDMI connector. This makes it easier to connect HDMI cables and means you don't have to worry about wearing out or damaging the micro-HDMI port by repeatedly plugging and unplugging a micro-HDMI cable into your camera body. The HDMI plug protector clamps the micro-HDMI adapter cable in place and also attaches to the cage itself, acting as a strain relief and providing a platform for the full-sized HDMI connector to attach, so it doesn't just dangle freely.
The cage features an Arri rosette for an optional handgrip as well as a removable top handle that features 1/4"-20 accessory mounting points and a cold shoe. The cage also includes a 15mm LWS support rod system, featuring rod clamps, a pair of 12" threaded rods, and three 1/4"-20 threaded helical coil inserts for attaching the rod support system to a separately available QR/Sliding baseplate, tripod, or other 1/4"-20 mounting equipment.
The cage attaches to the included 15mm LWS support rods via a quick release system that allows you to easily remove the cage from the rods, for a minimum-sized shooting package, or quickly remount the camera to the rods when working with rod-mounted accessories. The design of the system ensures that the lens' center height to the rods conforms to industry standards for using rod-mounted accessories. The included EF and PL supports work with available Metabones EF and PL mount adapters (must be purchased separately). - The cage includes two removable mounting rails, one for the a7, a7S, and a7R, and the second for the a7 II, a7S II, and a7R II.
- This form-fitting cage features 89 1/4"-20 threaded mounting holes, useful for attaching accessories like the included single 15mm rod clamp.
- The top handle features an accessory cold shoe mount, and it can be oriented either facing forward, rear, or to either side. It mounts via a top rail and can be slid on and off from either side. Integrated into the top handle are nine 3/8"-16 and twelve 1/4"-20 threaded accessory mounting holes.
- The 15mm LWS support rod system features three 1/4"-20 helical coil inserts for tripod mounting and an integrated Tilta-compatible dovetail (dovetail plate not included).
- Included lens mount adapter supports are compatible with Metabones EF and PL-to-E-mount adapters.
- Locking levers are of the standard Tilta spring-loaded design.
UPC: 847983015078 In the Box Tilta ES-T17 Handheld Camera Cage Rig for Sony a7 & a7 II Series Camera Top Handle a7/a7S/a7R Quick Release Rail a7 II/a7S II/a7R II Quick Release Rail Accessory Rail Micro-HDMI Male to Full-Size HDMI Female Cable Micro-HDMI Plug Protector Full-Sized HDMI Plug Protector Multi-Terminal USB Control Cable Single 15mm Rod Clamp Support Bar for EF Lens Mount Support Bar for PL Lens Mount Thumbscrew Lens Support Baseplate 2 x 12" 15mm Threaded Support Rods 3mm Allen Wrench 4mm Allen Wrench 3/16" Allen Wrench 3/16" Socket Cap Head Screw 3 x 3mm Socket Cap Screws 4 x 4mm Philips Head Screws (Flat Head) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ES-T17 Handheld Camera Cage Rig for Sony a7 & a7 II Series Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T17 Specs | | | Material of Construction | Aluminum | | Threaded Holes | 1/4"-20: 89
3/8"-16: 4 | | Weight | 9.3 oz / 264 g | | | | Mounting | NATO-type Mounting Rail
Accessory Mounting
Shoe Mounts: 1
1/4"-20 Threaded Holes: 2
3/8"-16 Threaded Holes: 1 | | Weight | 6.7 oz / 190 g | | | | Rail Type | 1 x a7/a7S/a7R
1 x a7 II/a7S II/a7R II | | | | Type | 1 x 15 mm LWS rod clamps
1 x 15 mm single rod clamp | | | | Type | Diameter: 15 mm
Length: 12" / 304.8 mm
Weight: 3 oz / 84 g | | | | Package Weight | 4.07 lb | | Box Dimensions (LxWxH) | 14.3 x 8.4 x 5.95" |
