User Manual for Tilta ES-T37 GH5 Handheld Camera Cage Rig Click to enlarge the picture
Contents of the user manual for the Tilta ES-T37 GH5 Handheld Camera Cage
- Product category: DSLR Video Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta DSLR Video Supports & Rigs
 |
User manual for the Tilta ES-T37 GH5 Handheld Camera Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description - Tilta Handheld Camera Cage Rigs | Ikan Tech Corner

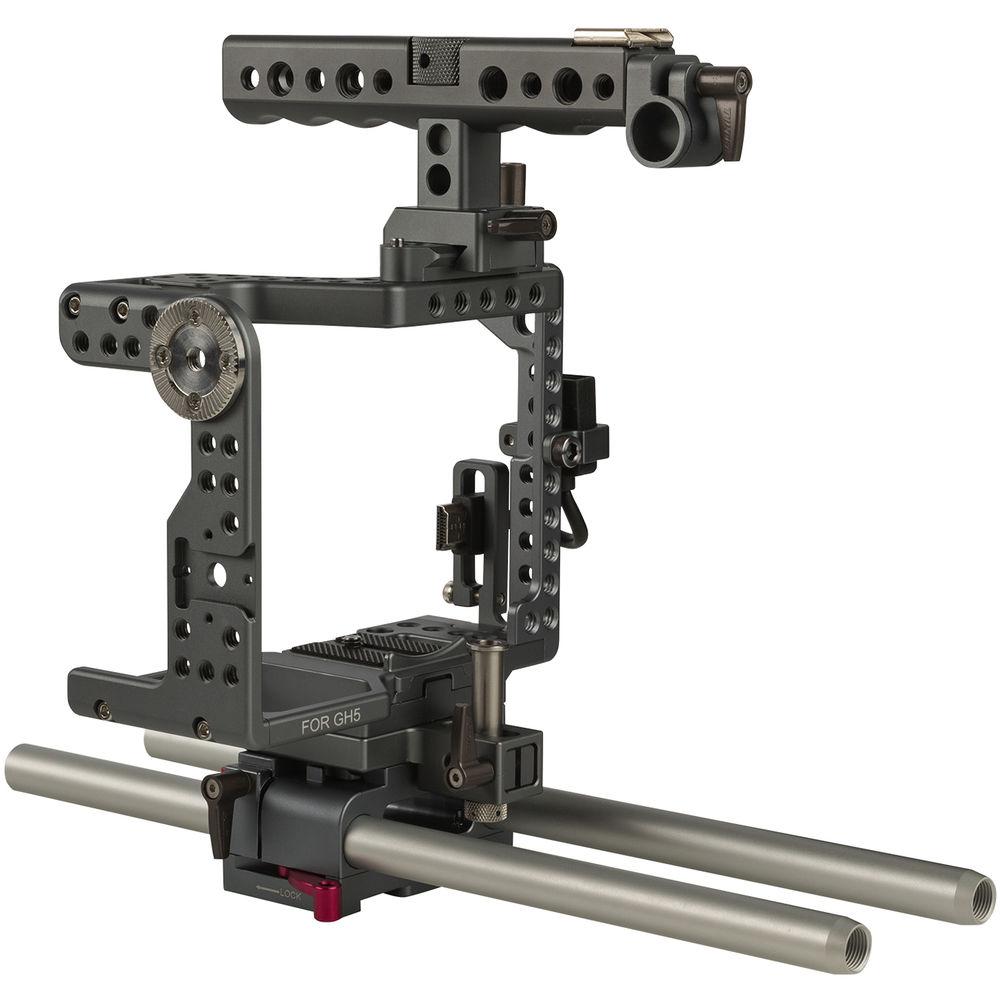

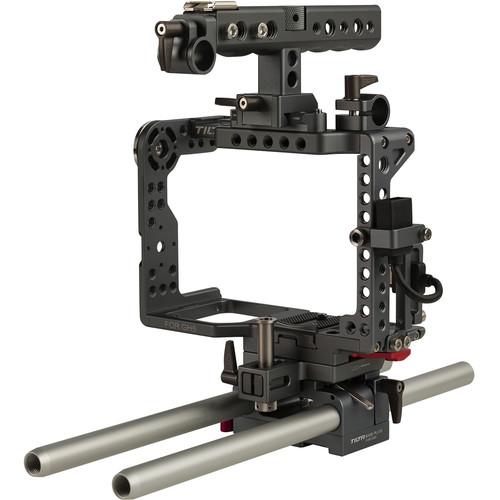

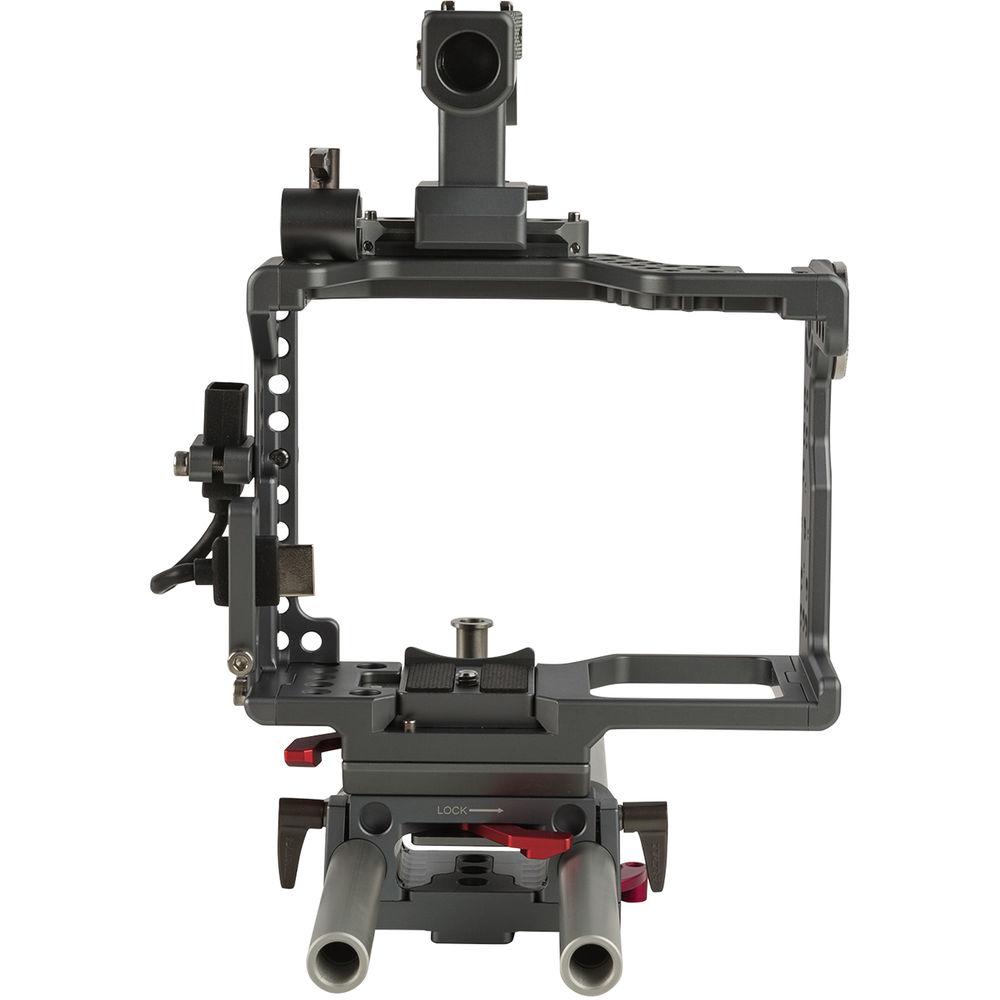

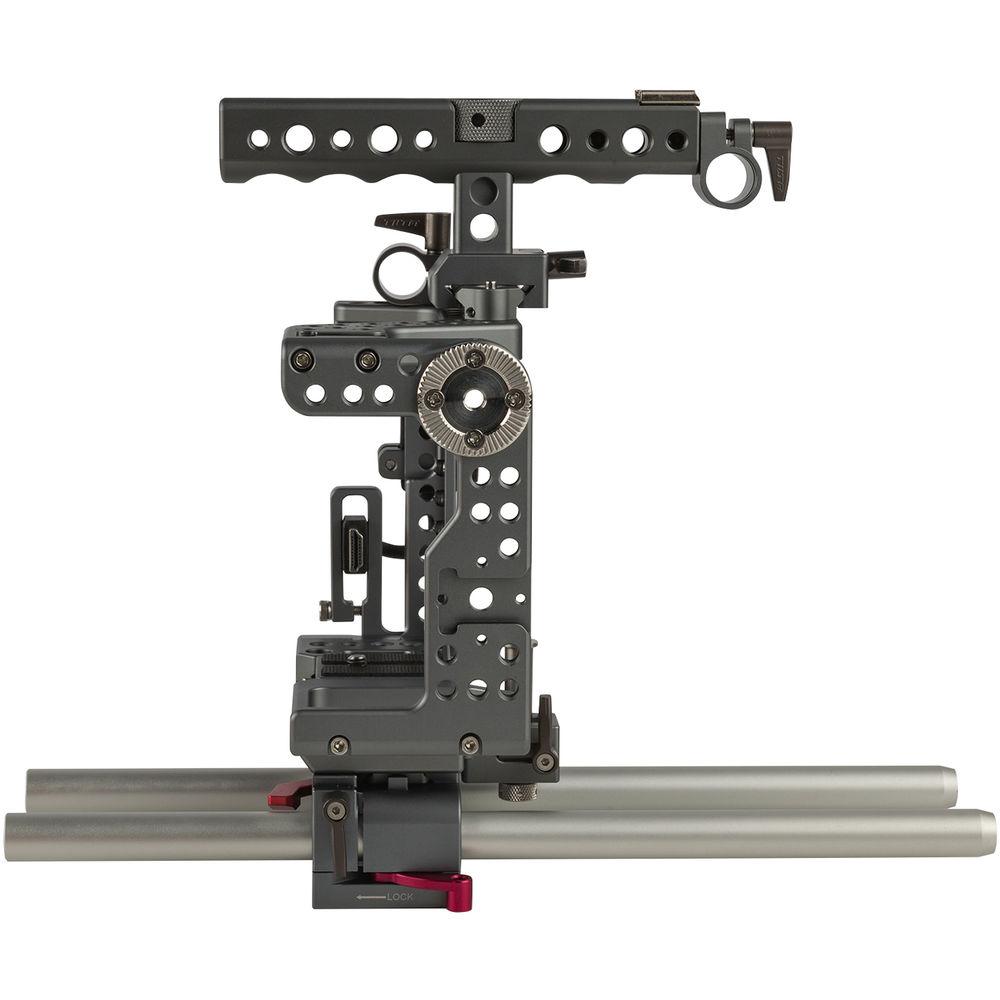

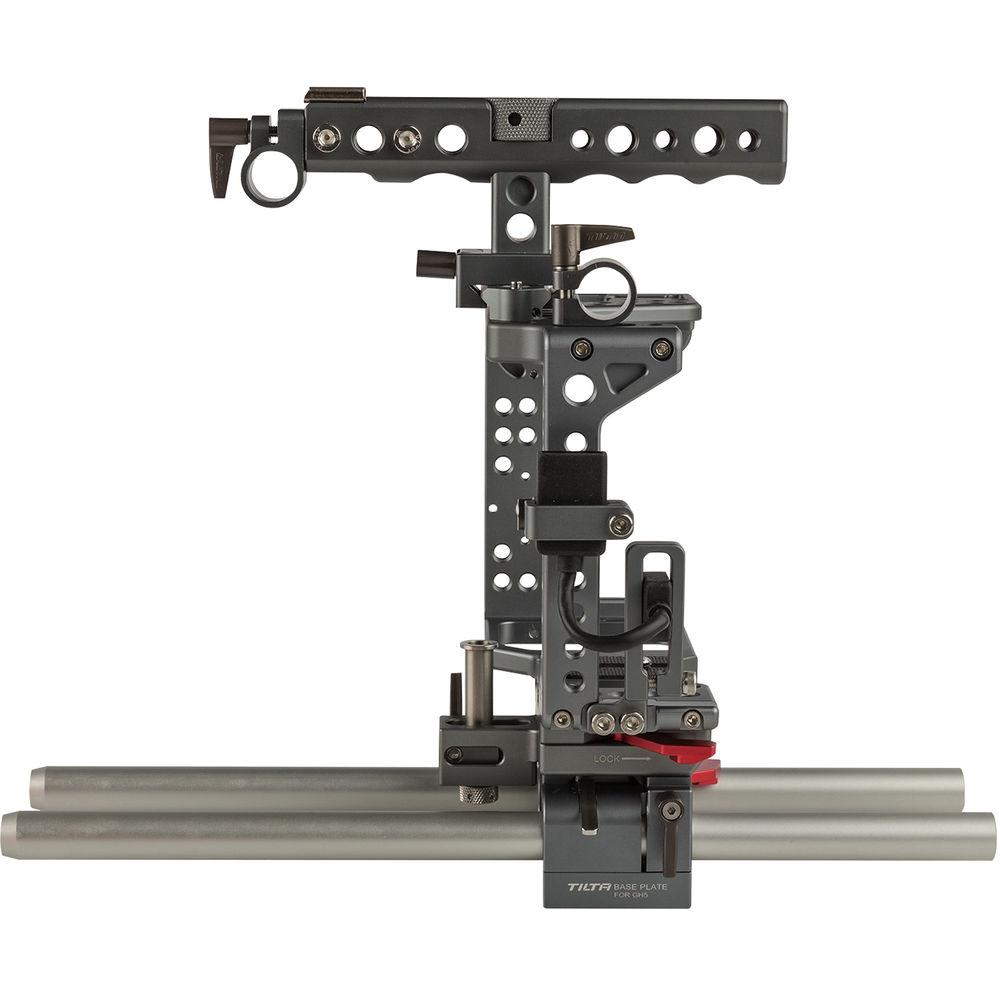

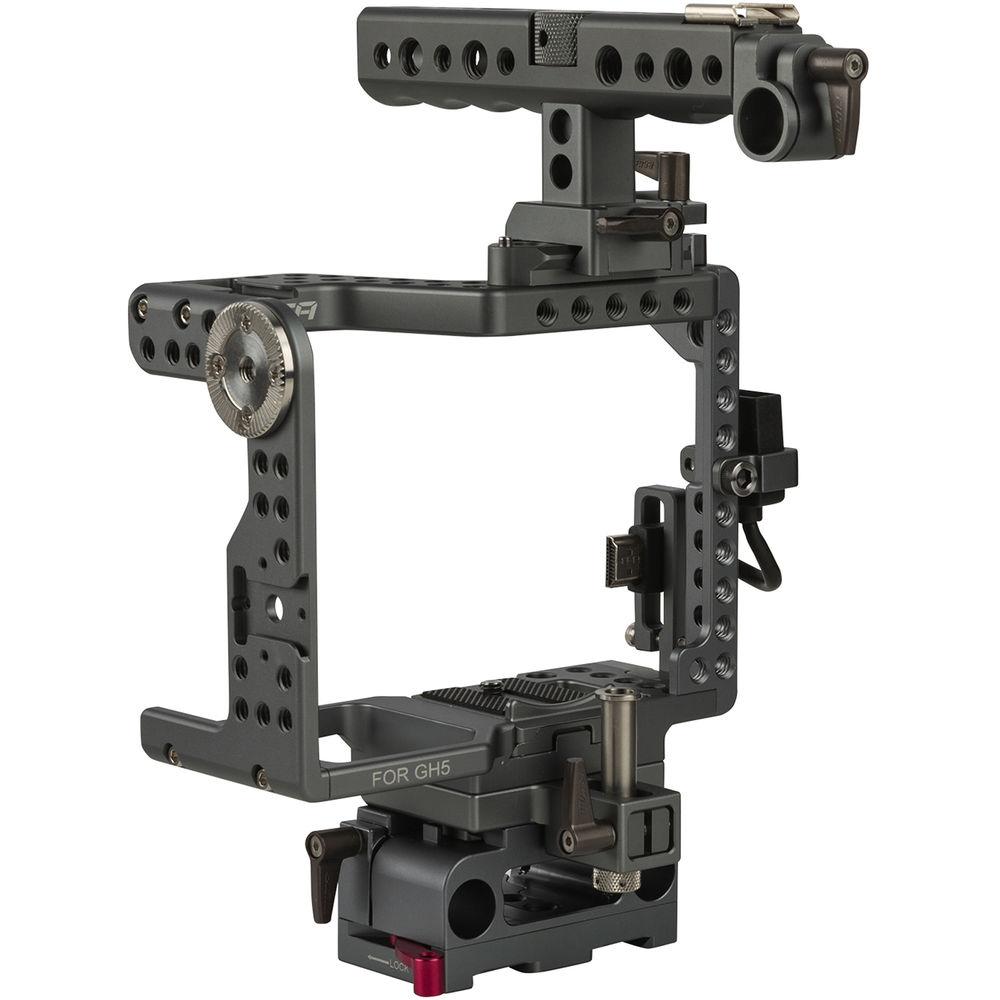

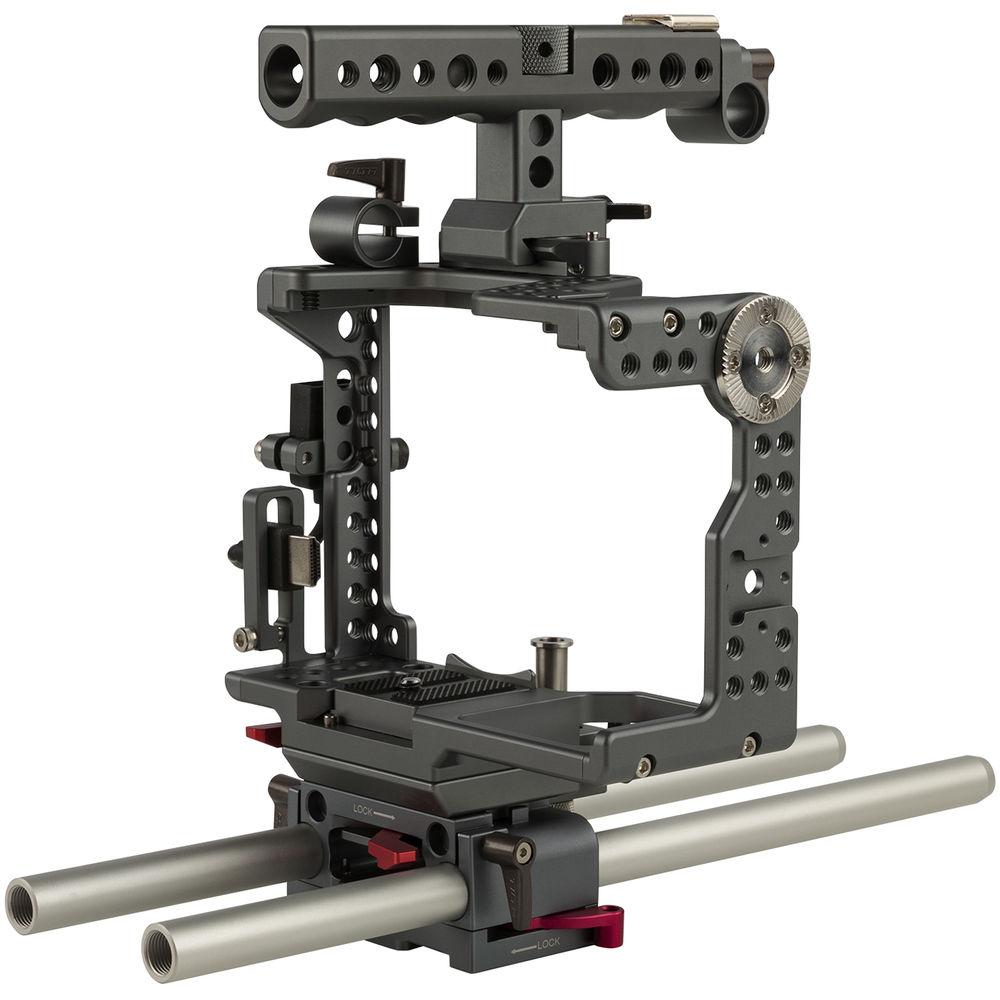

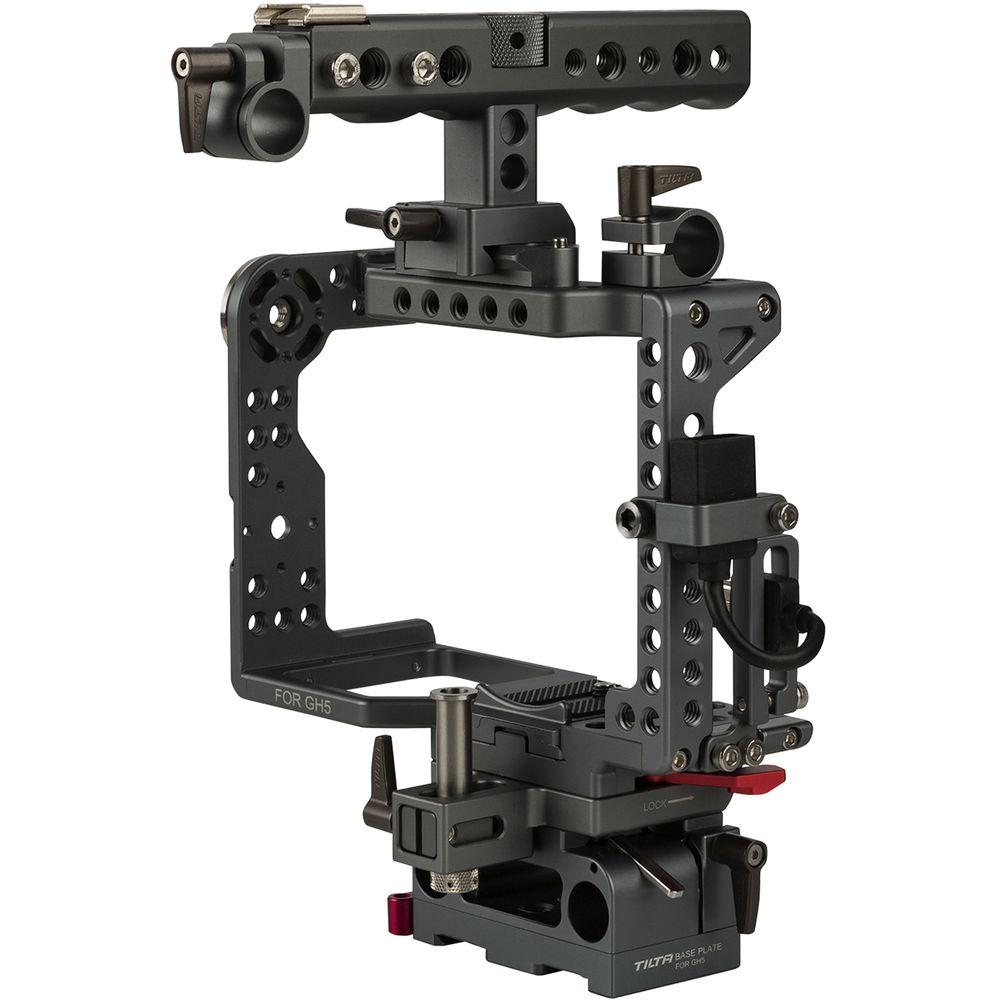

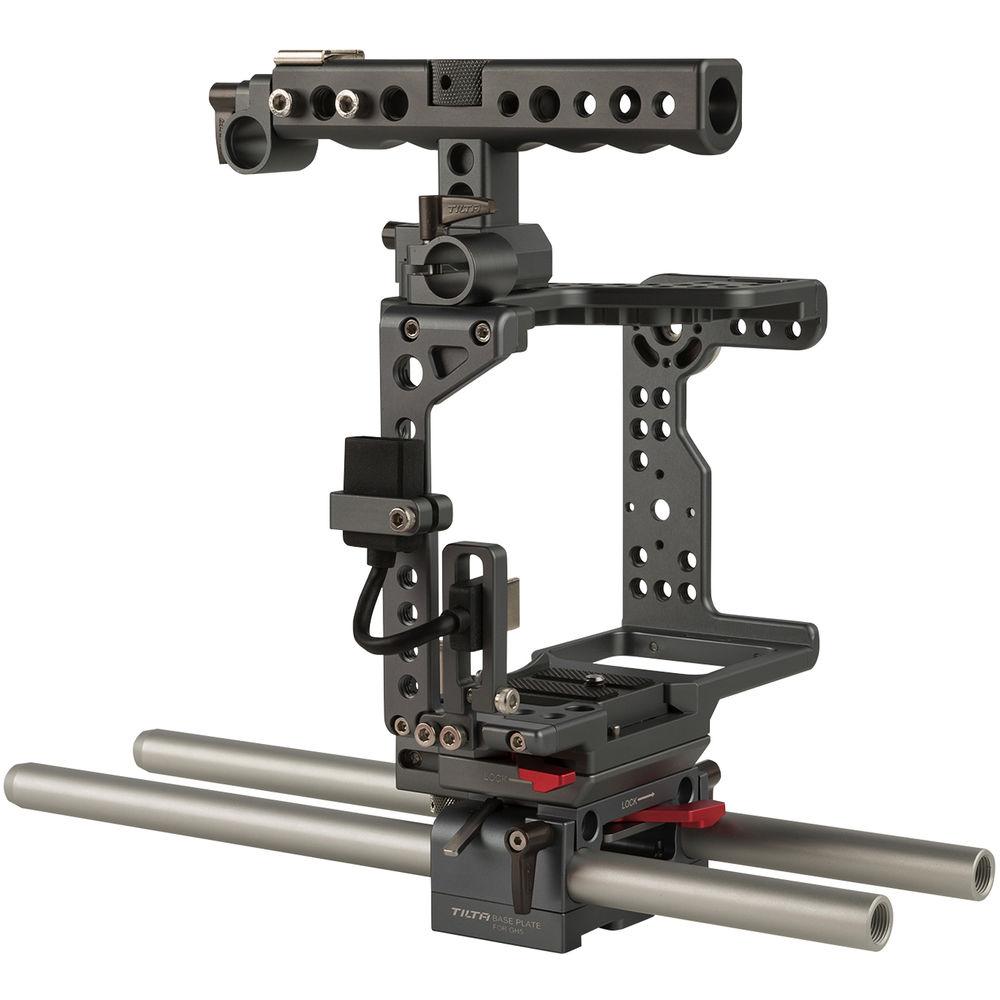

The Tilta ES-T37 GH5 Handheld Camera Cage Rig is a full armored cage with integrated 15mm LWS rods designed to work with the Panasonic camera. The cage itself is capable of protecting other cameras as well, including the GH4. CNC-machined from aluminum, the cage and top handle together feature over 80 threaded accessory mounting holes, which allow you to mount accessories without stressing your camera's body. In addition, the cage and top handle feature three cold shoe mounts, further expanding the accessories you can mount.
The design of the cage has two small, raised areas that hold the camera in place and prevent it from twisting in the cage. Access to all camera functions and battery and media doors is maintained, and the cage includes its own short HDMI cable and cable lock. The top handle attaches to the cage via a NATO rail, and the cage itself slides onto the rod clamp assembly via a NATO rail as well. Spring-loaded locking levers permit you to fully tighten or loosen the lever, even when there isn't enough room to turn the lever a full 360°. - Form-fitting cage incorporates a front plate that prevents the camera from twisting in the cage.
- The reversible top handle mounts using cap-head screws, and it can be mounted either with the handle extending back, away from the lens, or forward, over the lens. Mounting the handle over the lens allows you to mount the optional Panasonic XLR microphone adapter.
- Eighty 1/4"-20 and eleven 3/8"-16 threaded accessory mounting holes enable mounting accessories to your camera without stressing your camera's body.
- The cage uses a rail system to attach to the tripod adapter with built-in rod clamps.
- Spring-loaded locking levers enable you to lock or loosen the cage's functions, even when there isn't enough room to fully rotate the lever.
- The tripod adapter with built-in rod clamps allows you to mount 15mm support rods (not included), which enables using industry-standard, rod-mounted accessories.
UPC: 847983022090 In the Box Tilta ES-T37 GH5 Handheld Camera Cage Rig Cage Base Cage Body Cage-Top Rod Mount Lens Adapter Screw Sleeve EF Lens Adapter Screw PL Lens Adapter Screw GH4/GH5 Quick Release Plate HDMI Protection Bracket (Cage Side) HDMI Protection Bracket (Camera Side) HDMI Type-A (Male) to HDMI Type-A (Female) Jumper Cable Top Handle Top Handle Rod Mount 2 x 15mm Aluminum Rods (12") Cage Screw Set Allen Wrench Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ES-T37 GH5 Handheld Camera Cage Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ES-T37 Specs | Material of Construction | CNC-Machined Aluminum | | Mounting | Cage
1/4"-20: 68
3/8"-16: 2
Top Handle
1/4"-20: 12
3/8"-16: 9
Rod Adapter
1/4"-20: 3 (for mounting to camera plate or tripod)
Cold Shoes
3 | | Weight | Cage Body: 1.64 lb / 0.74 kg (with all attachments)
Cage Base: 0.84 lb / 0.38 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 14.2 x 8.65 x 5.95" |
