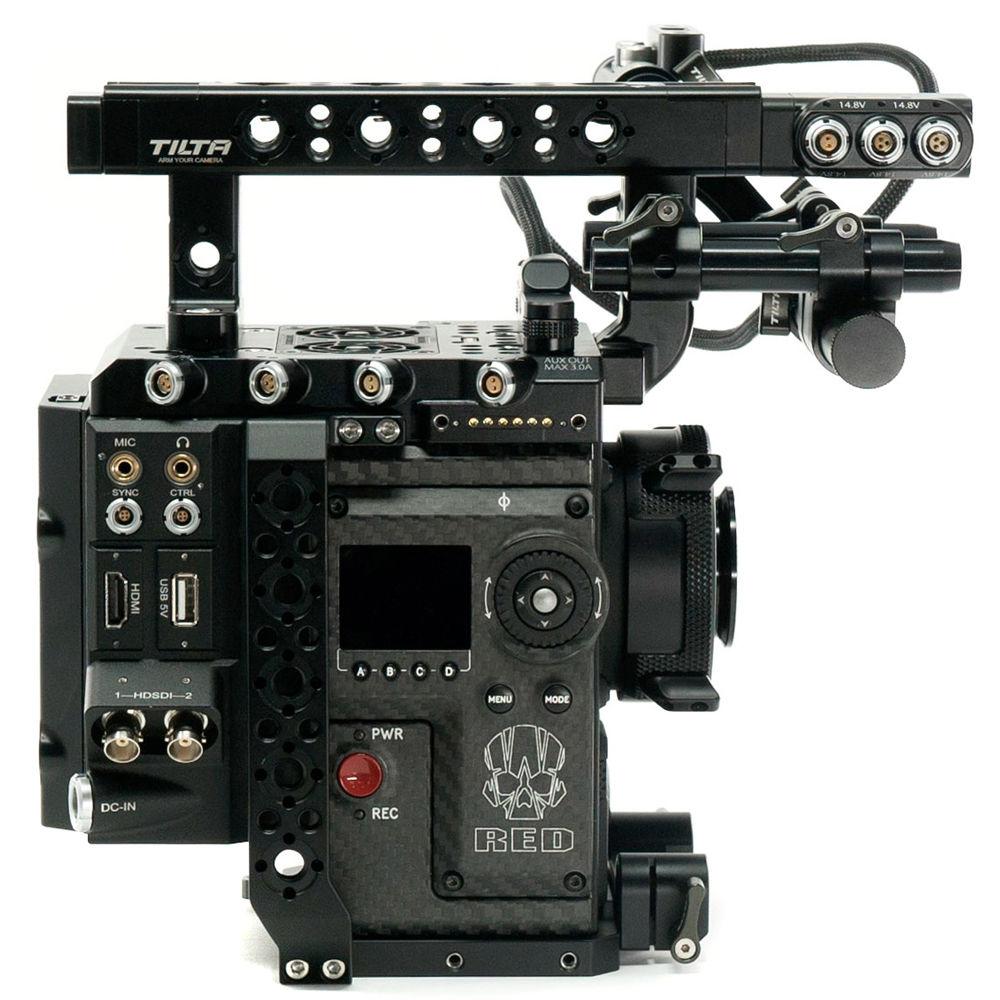

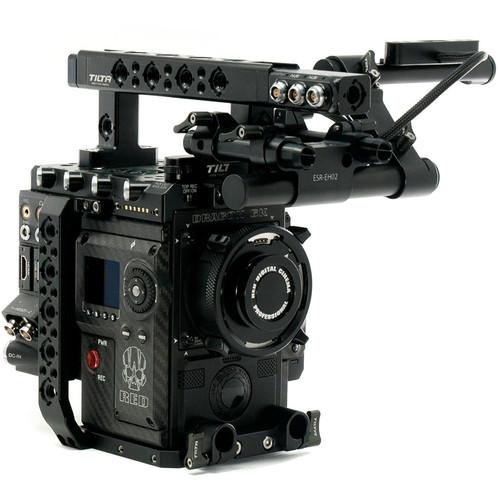

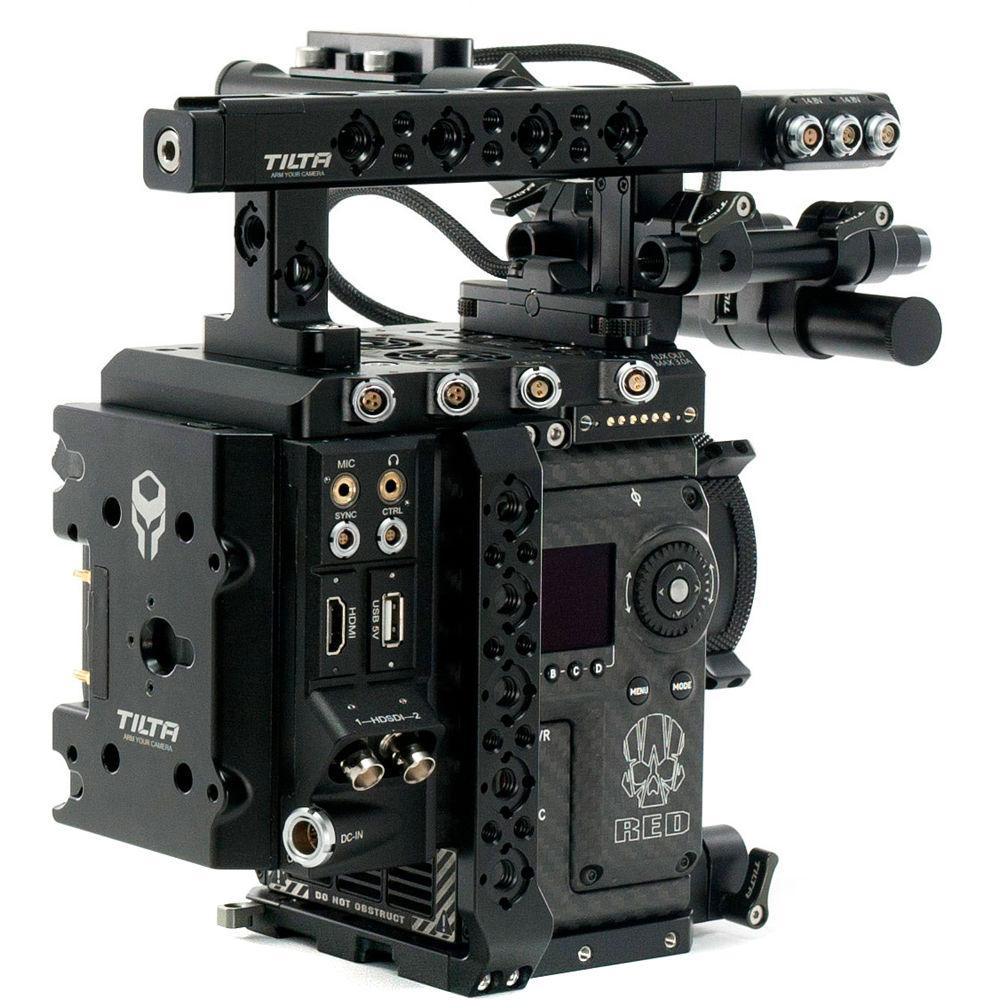

Product description The ESR-T01 from Tilta is a custom-fit cage for the RED DSMC2 Cameras (Weapon, Raven, Scarlet-W, and Epic-W). It is made of 7075 aluminum and includes a top handle with a REC button, a Pogo extension cable, and a 15mm LSW baseplate for mounting the camera.The included Basic Tilta I/O module features two HD-SDI and one HDMI outputs for video signals, a stereo headphone input and output, USB power output, CTRL port, and SNYC ports. The module also features a V-mount battery plate.Each power output gives a maximum of 3A of power, while the included top handle power module can output 6A between the three outputs. - For RED DSMC2 cameras (Weapon, Raven, Scarlet-W, and Epic-W)
- Power distributed from camera and battery through Cage Top Handle, Top Plate, and Basic I/O Module
- Top Handle has REC button and distributes 6A of power
- Constructed from lightweight and durable 7075 aluminum alloy with titanium screws

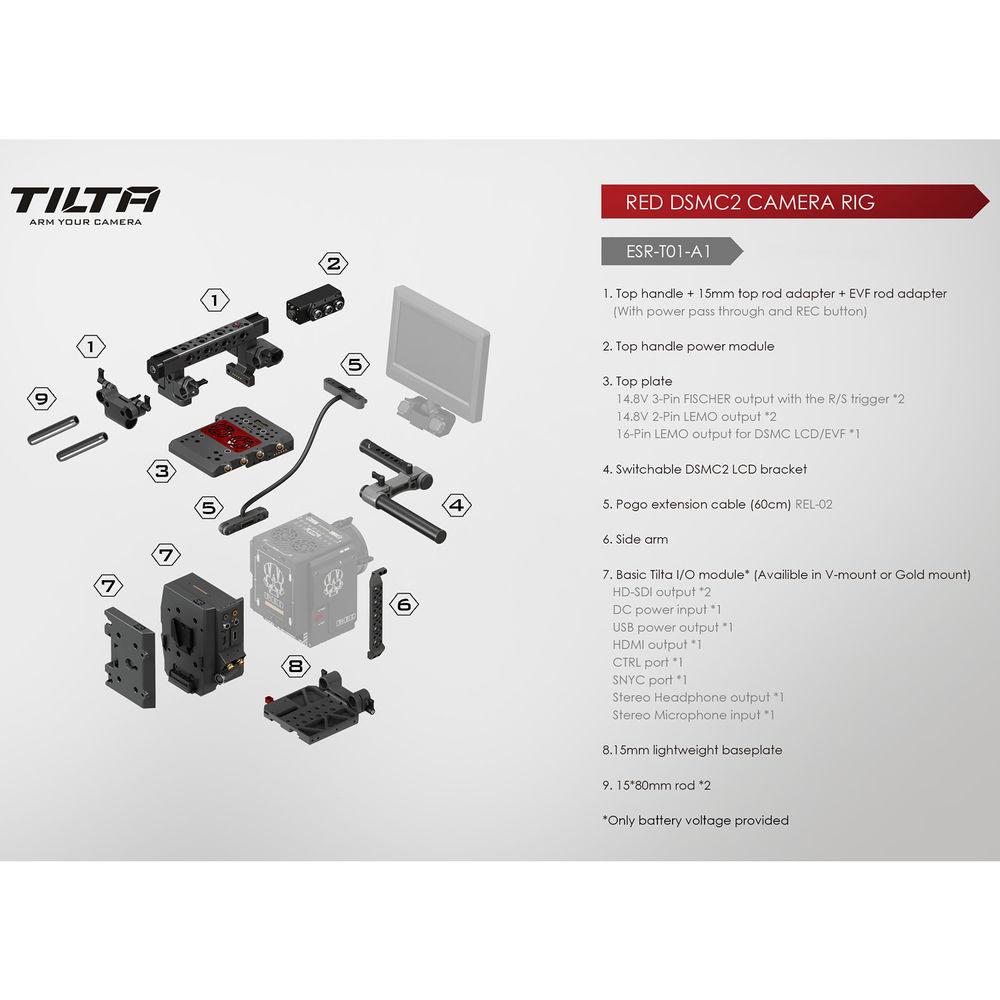

UPC: 847983023080 In the Box Tilta ESR-T01 Rig with Basic Tilta I/O Module for RED DSMC2 Cameras (V-Mount) RED DSMC2 15mm EVF Rod Adapter RED DSMC2 Cage A1 Top Plate V-Mount Battery Plate 15mm Lightweight Tilta Studio Baseplate 2 x 15mm Aluminum Rods (3.1") 2 x RED DSMC2 15mm Top Rod Adapters Handle Power Connection Module RED DSMC2 Cage A1 Top Handle RED DSMC2 Cage Side Arm (R-ARM-01) RED DSMC2 Pogo to Pogo Cable (REL-02) Switchable DSMC2 LCD Bracket Tilta RED BASIC I/O Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta ESR-T01 Rig with Basic Tilta I O Module for RED DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-T01-A1 Specs | Handle | Top Handle:
Cage power pass-through
Integrated 15 mm rod mounts
EVF rod adapter
REC Button | | Power Module | Top Handle:
14.8 V, combined 6 A output
1 x 2-Pin output
2 x 3-Pin output | | Top Plate | 2 x 14.8 V / 3-Pin Fischer outputs with R/S Trigger
1 x 14.8 V / 2-Pin LEMO-Style outputs
1 x Genlock BNC port
1 x Timecode BNC port
1 x Trigger BNC port | | Extension Cord | 23.6" (60 cm) | | Arm | Side Arm: Multiple mounting points | | Module | Basic Tilta I/O module (V-mount)
2 x HD-SDI output
1 x HDMI output
1 x DC power input
1 x USB power output
1 x CTRL port
1 x SNYC port
1 x Stereo headphone input
1 x Stereo headphone output
| | Included Rods | 2 x 15 mm
Length: 3.14" | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 16.0 x 13.7 x 5.6" |
