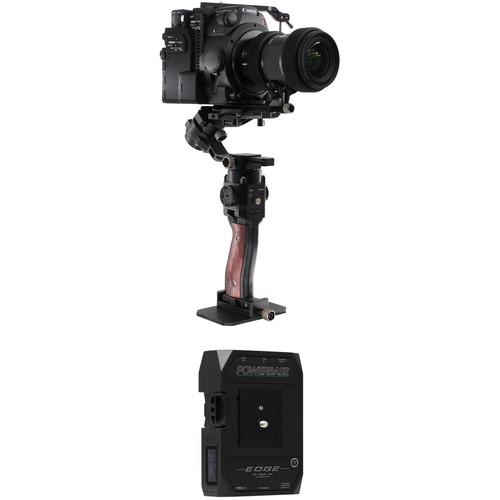

Product description This B&H Kit combines the Tilta Gravity G2X Handheld Gimbal with a hard-shell case and a Core SWX Powerbase EDGE V-mount battery, enabling you to extend your gimbal's runtime with a base-type battery that fits to the bottom of your camera. This battery's one-pound weight is easily accommodated within the Gravity G2X's payload capacity of eight pounds.The Gravity G2X gimbal features 360° of both pan and tilt rotation, a 45° angled roll motor that clears your camera's rear-mounted LCD, an auto-calibration function, iOS control, and a dedicated cold shoe support for your DSLR or mirrorless camera. - Core SWX Powerbase EDGE V-Mount Battery The Core SWX Powerbase EDGE in a V-mount is a 14.8V, 49Wh, lithium-ion battery featuring an 8A continuous draw. This follow-up to the popular Powerbase 70 battery offers multiple modes of use. In addition to the V-mount, which allows it to be used with all cameras supporting a V-mount battery, the Powerbase EDGE has an 8.4V regulated DC output, a D-Tap output, a SmartTap output, and two USB ports.
Using the appropriate Powerbase EDGE power cable (sold separately), you can connect the battery to most mirrorless and DSLR cameras via the 8.4 VDC output. The SmartTap output, which is a Core SWX innovation, is a standard D-Tap connection with additional contacts inside that communicate SMBUS/smart battery data to compatible cameras. Other than this, it works just like a regular D-Tap port and supports standard D-Tap cables. Accordingly, you can use either the SmartTap or D-Tap port to power a camera using an optional D-Tap cable. The remaining one can be used to power an accessory, and likewise the USB ports can be used simultaneously with any of the other power options to power 5V accessories or charge mobile devices. The D-Tap port also functions as a charging port and supports D-Tap chargers such as the Core SWX PB70C15.
The Powerbase EDGE has an LCD on the side that provides runtime in minutes. Located on the side, it's easy to check on and read during production. Moreover, a button-activated backlight allows you to see it clearly in dark environments.
Like the Powerbase 70, the Powerbase EDGE comes with a small quick release adapter that provides a convenient way of attaching the battery to cheese plates and other camera supports. It secures onto the middle of the battery and provides a 1/4"-20 mounting screw. If, for example, you're looking to power your camera using the battery's D-Tap port, the quick release adapter provides a convenient way of attaching the battery to your rig in order to do that. - Key Features
-
- 14.8V, 49Wh, lithium-ion V-mount battery
- 8A continuous draw
- 8.4V regulated DC output
- D-Tap output and charging port
- SmartTap output - carries SMBUS/smart battery data
- 2 x USB ports
- Runtime LCD with button-activated backlight
- Quick release adapter with 1/4"-20 screw
UPC: 184323004249 In the Box - Core SWX - Powerbase EDGE V-Mount Battery evuteqqdwacwbcyzswdwrtczf
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Gravity G2X Gimbal, Case & Core SWX Powerbase EDGE Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Core SWX Powerbase EDGE V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 49 Wh | | Amp-Hours | 3.3 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 8 A | | Accessory Port | 2 x D-Tap
2 x USB Type-A | | Accessory Mounting Thread | 1 x 1/4"-20 Female | | Dimensions (W x H x D) | 5.1 x 3.6 x 1.6" / 13.0 x 9.1 x 4.1 cm | | Weight | 1.3 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 8.0 x 6.9 x 2.9" |
