User Manual for Tilta Nucleus II MDR Unit Click to enlarge the picture
Contents of the user manual for the Tilta Nucleus II MDR Unit
- Product category: Wireless Lens Control Accessories Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Wireless Lens Control Accessories
|
User manual for the Tilta Nucleus II MDR Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

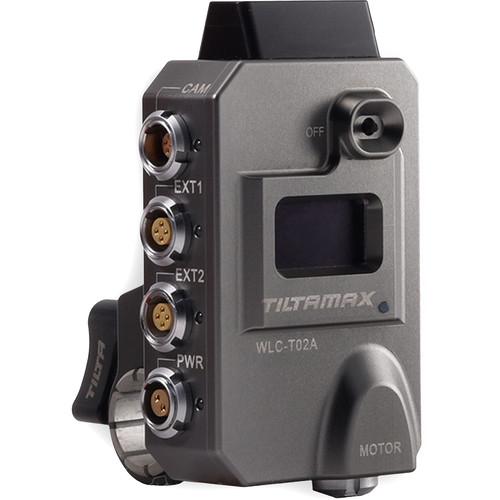

Product description Use the versatile, compact Nucleus II MDR Unit from Tilta to drive a Nucleus II, Preston, or Heden lens control motor. Internal and external antennas provide a maximum transmission range of up to 1500' with the separately available hand unit. The MDR Unit can be powered via a D-Tap cable and mounts to a 15mm rod, 19mm rod, or 1/4"-20 stud. The Nucleus II MDR Unit features an LCD display screen, navigation buttons, a status light, and a USB port for firmware upgrades. A run/stop function is available for select cameras when the MDR is used with a separately available cable as part of the Nucleus II system. - Features
-
- Single-channel lens motor driver
- Up to 1500' transmission range
- Compatible with Nucleus II, Preston, and Heden motors
- Internal and external antennas
- LCD display window
- Slim, compact design
In the Box Tilta Nucleus II MDR Unit Limited 2-Year Mechanical Warranty Limited 1-Year Electrical Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Nucleus II MDR Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta WLC-T01-MDR Specs | Interface - Connectors | Antenna Port: x 1
Camera Control: x 1
External Communication: 2 x 4-pin LEMO type
Power/Run-Stop: 1 x 3-pin LEMO type
Motor: 1 x 7-pin LEMO type
Firmware Upgrade: 1 x USB | | Operating Frequency Range | 2.4 to 2.4835 GHz | | Maximum Transmission Distance | 1500' / 457 m | | Transmission Channels | 10 | | Transmitted Power | 30 to 100 mW | | Current | 14.8 V:
Quiescent: 0.1 A
Conventional: 2.5 A
Ultra-High Speed: 5 A
Locked Rotor: 5.5 A | | Operation Voltage | 12-18 V | | Rod Compatibility | 15, 19 mm | | Mounting Thread | 1/4"-20 | | Operating Temperature Range | -4 to 122°F / -20 to 50°C | | Dimensions | 4.1 x 2 x 1.3" / 104.5 x 49.6 x 32.2 mm | | Weight | 6 oz / 170 g |
