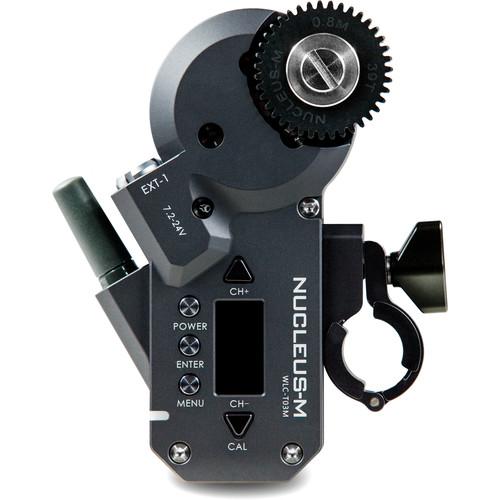

Product description The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.
The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings. - Features
-
- Brushless motor with an integrated motor drive
- Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
- Motor clamps onto 19mm or 15mm rods (with included bushing)
- Power via separately available D-Tap cable or daisy-chain to additional motors
- Automatic and manual calibration
- For focus, iris, or zoom control
- High, medium, and low torque settings
- Status display window
In the Box Tilta Nucleus-M FIZ Lens Control Motor 19mm Rod Adapter 19mm to 15mm Bushing Limited 2-Year Mechanical Warranty Limited 1-Year Electrical Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Nucleus-M FIZ Lens Control Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta WLC-T03-M Specs | Gear Mod | 0.8 | | Gear Pitch | 32 | | Number of Gear Teeth | 35 | | Face Width | 0.4" / 10 mm | | Operating Frequency | 2.4 GHz | | Maximum Range | 1640' / 500 m (unobstructed) | | Emission Power | 30-100 MW | | Current | Quiescent: 0.10 A, 14.8 V
Conventional: 0.5 A, 14.8 V | | Voltage | 7.2-24 V | | Rod Compatibility | 19, 15 mm | | Noise | 15 dB | | Operating Temperature Range | -4 to 122°F / -20 to 50°C | | Material of Construction | Aluminum alloy, stainless steel, ABS plastic | | Dimensions | 4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm | | Weight | 6.7 oz / 190 g (motor only)
7.9 oz / 225 g (with 15mm rod adapter)
7.8 oz / 221 g (with 19mm rod adapter) | | | | Package Weight | 0.495 lb | | Box Dimensions (LxWxH) | 6.45 x 4.65 x 1.4" |
