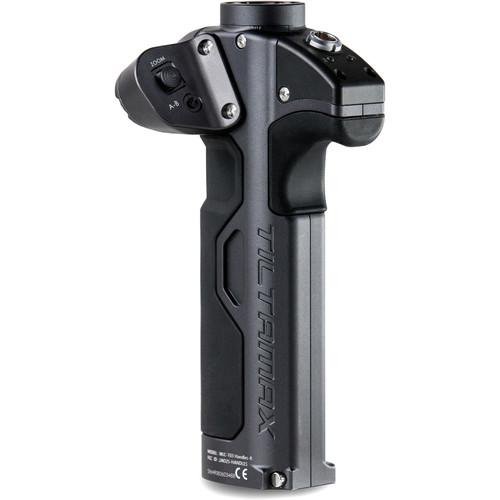

User Manual for Tilta Nucleus-M Handgrip Click to enlarge the picture
Contents of the user manual for the Tilta Nucleus-M Handgrip
- Product category: Wireless Lens Control Accessories Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Wireless Lens Control Accessories
|
User manual for the Tilta Nucleus-M Handgrip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description The Tilta right-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer. With a wireless control range of up to 1000', the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available left-side grip for full focus, iris, and zoom control of cine-style lenses. Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. Powered by two 18650 lithium-ion batteries (not included), the handgrips can maintain a single charge for up to two days. As part of the Nucleus-M system, the Wireless Handgrip provides a run/stop function for select cameras. - Features
-
- Customizable focus, iris, and zoom control
- Run/stop control for select cameras
- ARRI-style rosette mounting and optional gimbal adapter mounts
- 1000' wireless control range
- 85, 180, and 310° knob rotation settings
- LCD display and LED indicators
In the Box Tilta Nucleus-M Handgrip (Right) Limited 2-Year Mechanical Warranty Limited 1-Year Electrical Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Nucleus-M Handgrip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta WLC-T03-HR Specs | Current | 0.1 A | | Voltage | Battery: 7.2 V
External: 7.2-14.8 V | | Port | Power/Communication: 4-pin | | Rotation | 85, 180, 310° | | Battery Type | 18650 | | Operating Frequency | 2.4 GHz | | Emission Power | 10-100 MW | | Maximum Transmission Distance | 33-328' / 10-100 m | | Operating Temperature Range | -4 to 122°F / -20 to 50°C | | Material of Construction | Aluminum alloy, stainless steel
ABS plastic, rubber | | Dimensions | With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm
Without Thumb Unit: 6.9 x 3.3 x 1.2" / 17.6 x 8.5 x 3.1 cm | | Weight | With Thumb Unit: 12.5 oz / 355 g
Without Thumb Unit: 12 oz / 340 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.5 x 4.15 x 2.7" |
