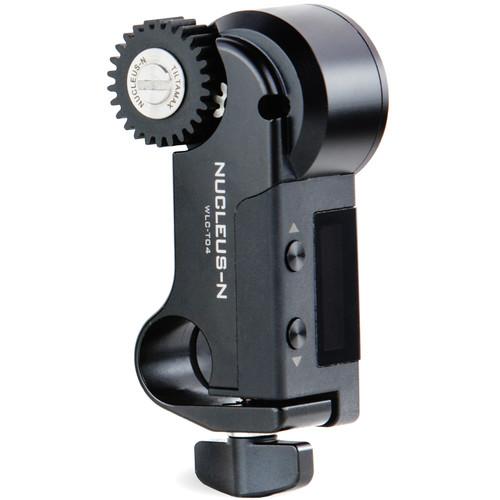

User Manual for Tilta Nucleus-Nano Wireless Lens Control Motor Click to enlarge the picture
Contents of the user manual for the Tilta Nucleus-Nano Wireless Lens Control Motor
- Product category: Stabilizers & Gimbals Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Stabilizers & Gimbals
|
User manual for the Tilta Nucleus-Nano Wireless Lens Control Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description Pair this Nucleus-Nano Lens Control Motor from Tilta with the separately available Nucleus-Nano Focus Hand Wheel or Nucleus-M FIZ unit to wirelessly control the focus of most DSLR, mirrorless, or cine-style lenses.
The motor comes with a standard 0.8 MOD cine lens gear, operates at up to 1Nm of torque, and can connect wirelessly to the Nucleus-Nano Focus Hand Wheel from up to 300' away. The motor calibrates to your lens automatically, but you can choose to calibrate manually. You can also perform run/stop functions and set hard A and B limits with the buttons on the Hand Wheel for more control over your camera and lens. The motor is also compatible with the Nucleus-M FIZ hand unit and handgrips.
The motor draws power via a 5-18V micro-USB port from a gimbal or D-Tap battery with a separately available cable. The motor is constructed with aluminum, plastic, and stainless steel for durability. It can mount on a stand, rig, or gimbal with its built-in 15mm rod clamp. Note: Use only run/stop cables specifically designed for the Nucleus-Nano; Tilta wooden handle run/stop cables are not compatible or safe to use with this unit. All cables are available separately. - Wireless focus motor for DSLR, mirrorless, or cine-style lenses
- The low-noise 5-18V motor operates with 0.65 to 1 Nm of torque
- Includes a 0.8 MOD, 32 pitch, 26-tooth cine standard gear
- 300' wireless range to connect to lens controllers
- Powers via micro-USB from D-Tap battery or gimbal with a separately available 5V cable
- Use start/stop function and set A/B limits with buttons on the Hand Wheel
- Connects to rigs, gimbals, and rods with a built-in 15mm rod clamp
- Compatible with Nucleus-Nano Focus Hand Wheel Controller, Nucleus-M FIZ hand unit, and Nucleus-M handgrips
UPC: 709016727139 In the Box Tilta Nucleus-Nano Wireless Lens Control Motor 0.8 MOD, 32 Pitch, 26-Tooth Gear 15mm Rod Clamp Limited 2-Year Warranty (Mechanical) Limited 1-Year Warranty (Electrical) Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Nucleus-Nano Wireless Lens Control Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta WLC-T04-M Specs | Material of Construction | Aluminum, plastic, stainless steel | | Power Input | Micro-USB | | Voltage | 5 to 18 V | | Torque | 0.65 Nm at 5 V
1 Nm at 14.8 V | | Gear | 0.8 MOD, 32 pitch, 26 teeth | | Rod Compatibility | 15 mm | | Operating Distance | 300' / 91 m | | Wireless Protocols | Not supplied by manufacturer | | Dimensions | 3.1 x 0.9 x 1" / 8 x 2.3 x 2.4 cm | | Weight | 2.7 oz / 76 g | | | | Package Weight | 0.18 lb | | Box Dimensions (LxWxH) | 4.1 x 2.0 x 1.2" |
