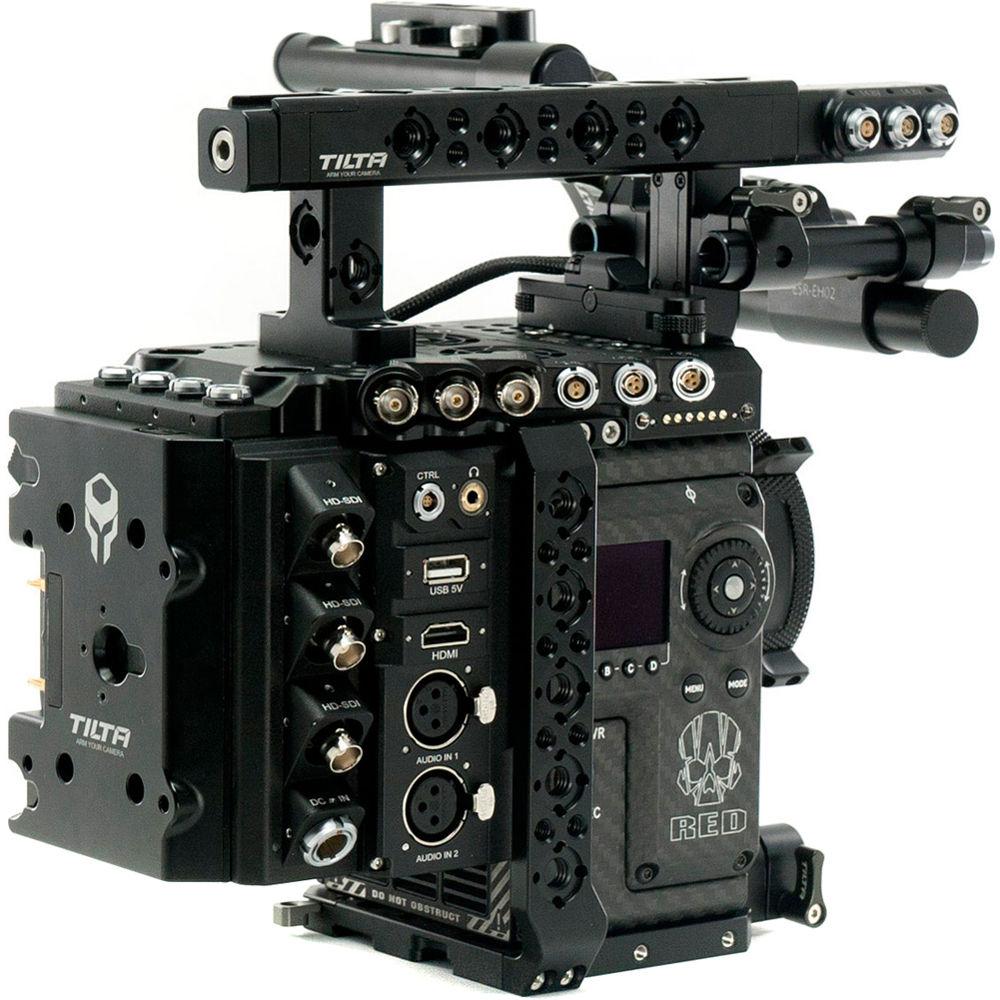

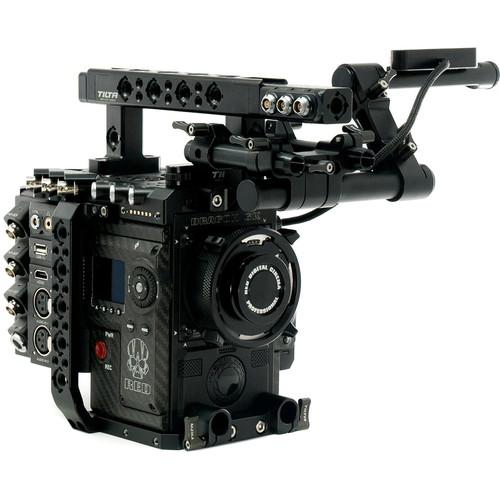

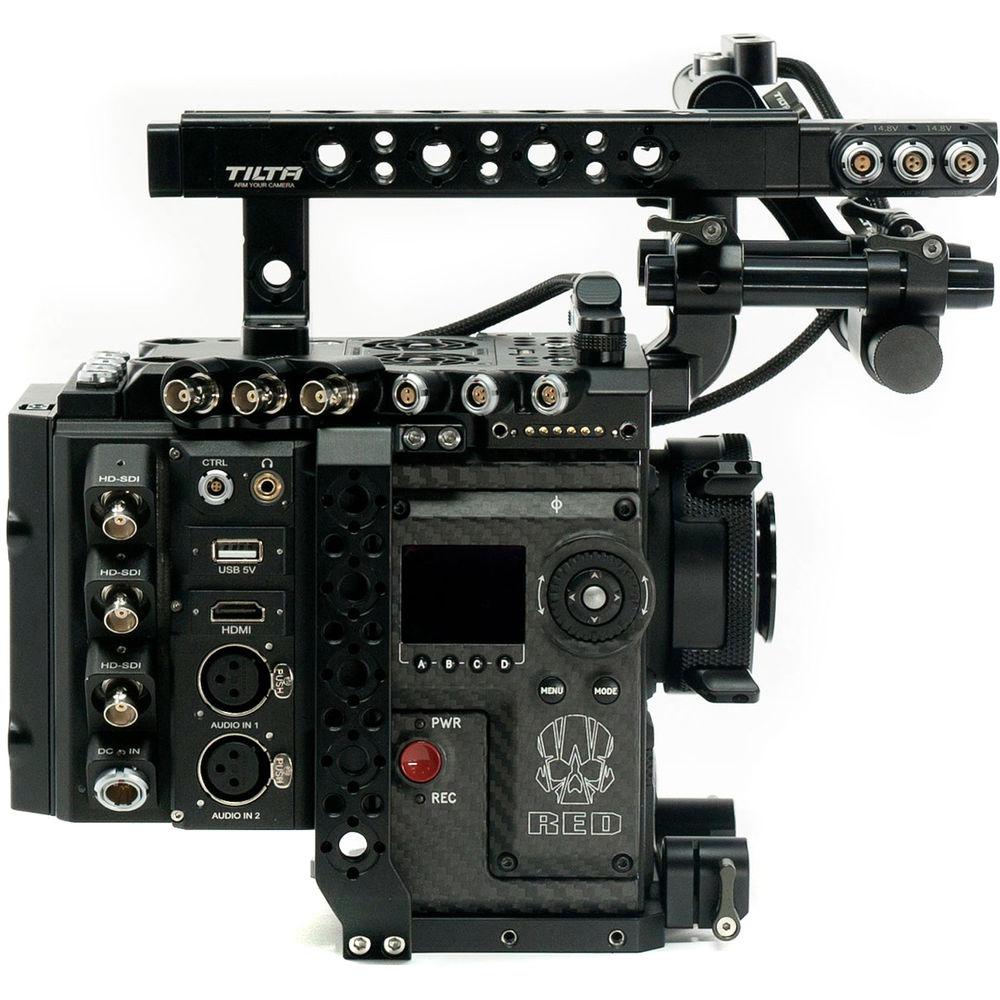

Product description The RED DSMC2 Rig with Advanced Tilta I/O Module from Tilta is a custom-fit cage designed to address the power and signal needs of your RED DSMC2 camera (Weapon, Raven, Scarlet-W, or Epic-W) and its accessories. The cage is made of 7075 aluminum and includes a top handle with a REC button, a Pogo extension cable, and a 15mm LWS baseplate for mounting the camera. Also included is a V-mount battery plate.
The included Advanced Tilta I/O Module features one HDMI and three HD-SDI outputs for video signals, a stereo headphone output, two XLR inputs with powered/unpowered switches, a USB power output, a CTRL port, and a SNYC port. Each power output gives a maximum of 3A of power, while the included top handle power module can deliver up to 6A between its three output ports. - For RED DSMC2 cameras (Weapon, Raven, Scarlet-W, and Epic-W)
- Power distributed from camera and battery through top handle, top plate, and I/O module
- ESP-02 top handle power module included
- Advanced Tilta I/O Module with three HD-SDI outputs, one HDMI output, and two 3-pin XLR inputs for sound and video
- Multiple 3-pin Fischer and 2-pin LEMO-style power outputs
- Pogo extension cable, EVF mount, and LCD bracket included
- Constructed from lightweight and durable 7075 aluminum alloy with titanium screws

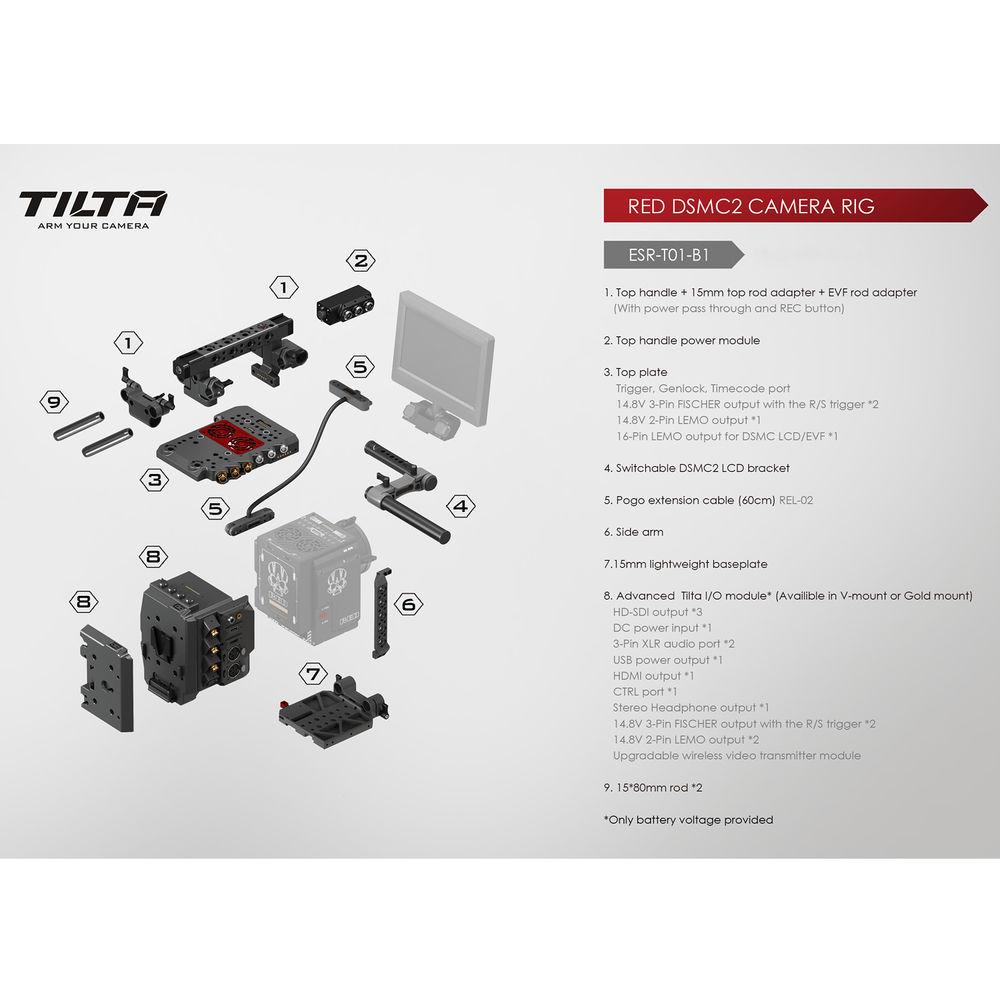

In the Box Tilta RED DSMC2 Rig with Advanced Tilta I/O Module (V-Mount) RED DSMC2 15mm EVF Rod Adapter Pogo Connection Converter Plate 15mm Lightweight Tilta Studio Baseplate 2 x 15mm Aluminum Rods (3.1") 2 x RED DSMC2 15mm Top Rod Adapters Handle Power Connection Module for ARRI ALEXA Mini Rig ucuzszawfccutdbzuqwx RED DSMC2 B1 Top Handle RED DSMC2 B1 Top Plate Side Arm for RED DSMC2 A1/B1/C1 Camera Cages ucuzszawfccutdbzuqwx Pogo-to-Pogo Extension Cable for RED DSMC2 Camera (17") Switchable DSMC2 LCD Bracket Tilta RED Advanced I/O Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta RED DSMC2 Rig with Advanced Tilta I O Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-T01-B1 Specs | Handle | Top Handle:
Cage power pass-through
Integrated 15 mm rod mounts
EVF rod adapter
REC button | | Power Module | 14.8 V, combined 6 A output
1 x 2-pin output (3 A)
2 x 14.8 V 3-pin Fischer outputs (3 A) | | Top Plate | 2 x 14.8 V 3-pin Fischer outputs with R/S trigger (3 A)
1 x 14.8 V 2-pin LEMO-style outputs (3 A)
1 x Genlock BNC port
1 x Timecode BNC port
1 x Trigger BNC port | | Extension Cord | 23.6" / 60 cm | | Plate | Converter Plate: Converts Pogo connector to 16-pin LEMO-style (female) | | Arm | Side Arm: Multiple mounting points | | Module | Advanced Tilta I/O module (V-mount):
3 x HD-SDI outputs
1 x HDMI output
1 x DC power input
1 x USB power output
1 x CTRL port
2 x XLR inputs with powered/unpowered switch
1 x Stereo headphone output
2 x 14.8 V 3-pin Fischer outputs (3 A)
2 x 14.8 V 2-pin LEMO-style outputs (3 A) | | Included Rods | 2 x 15 mm
Length: 3.14" / 80 mm | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 16.1 x 13.6 x 6.0" |
