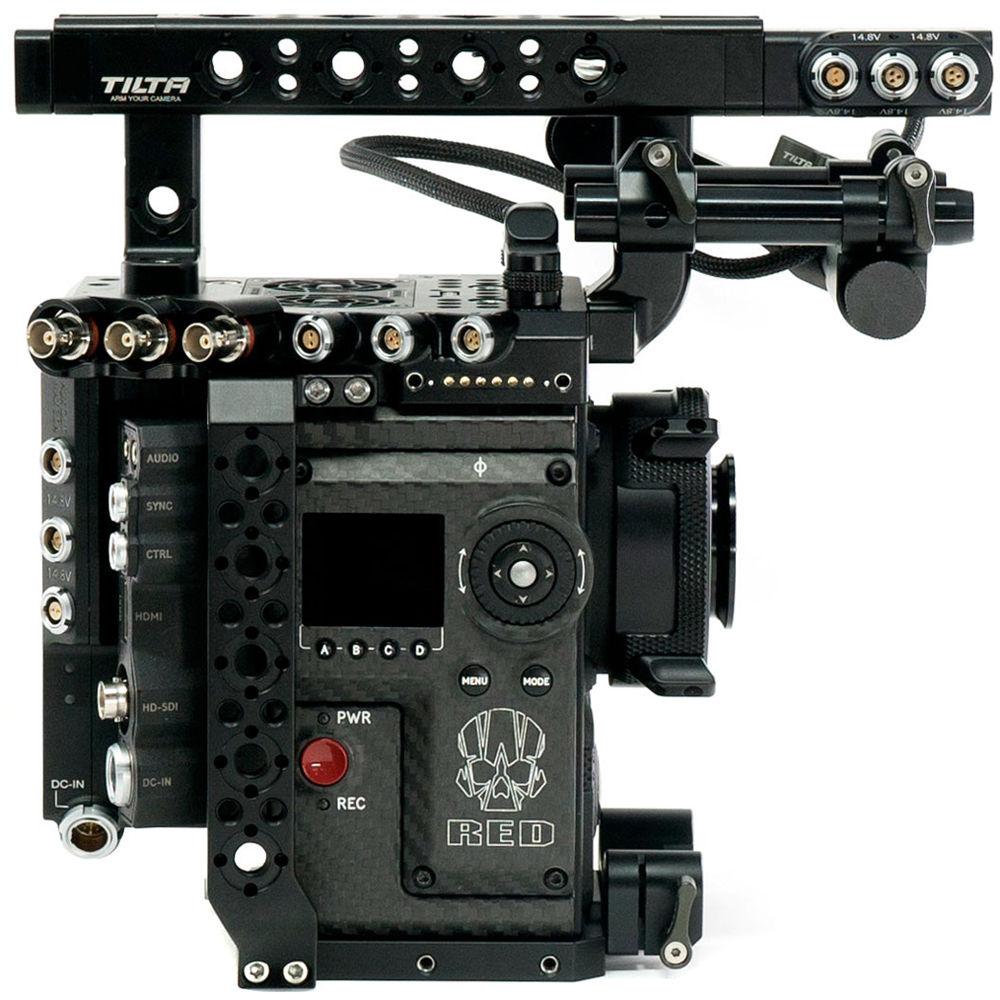

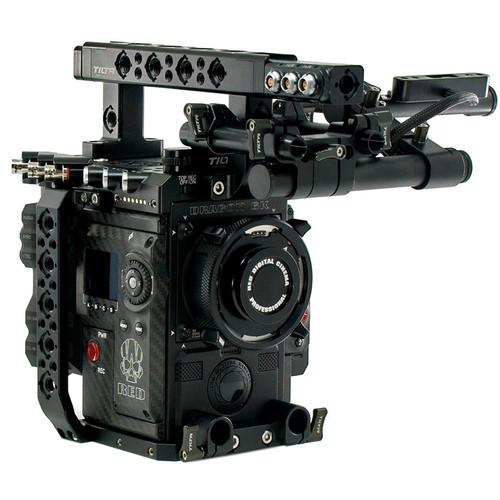

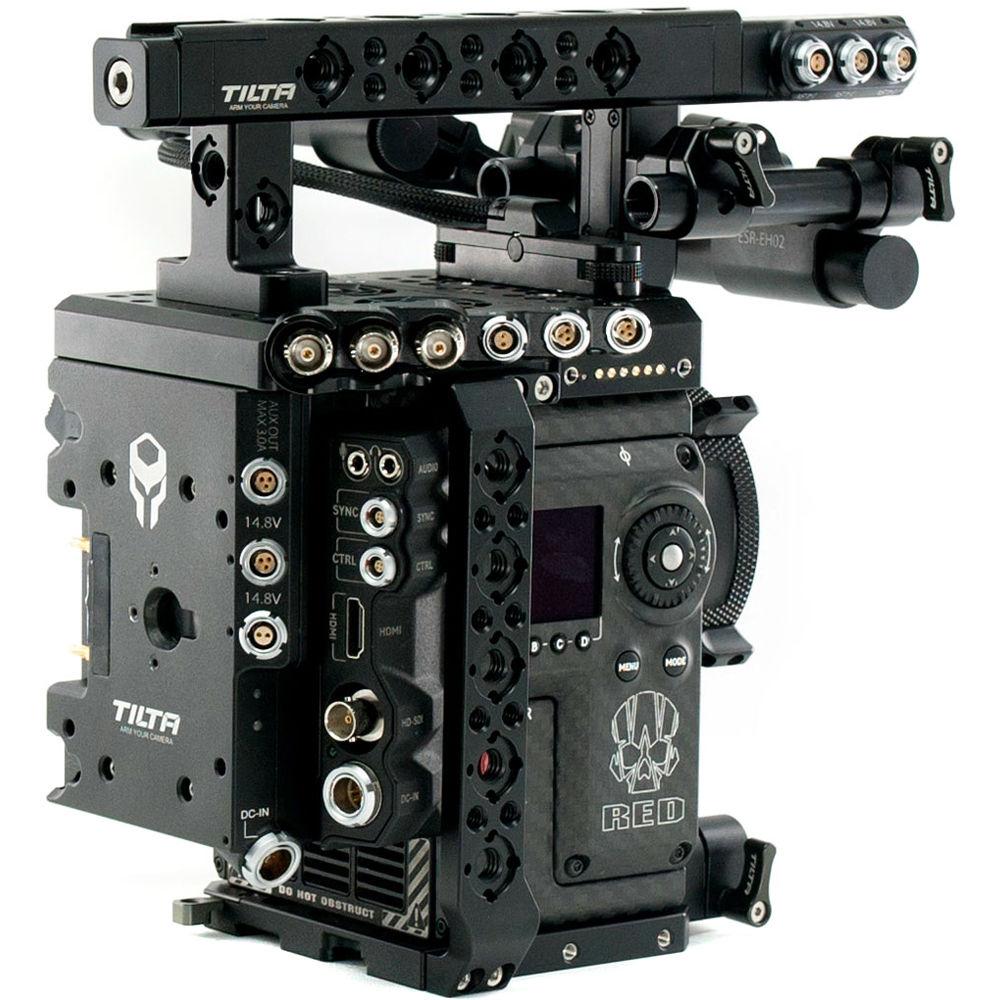

Product description The RED DSMC2 Rig from Tilta is a custom-fit cage designed to address the power and signal needs of your RED DSMC2 camera with installed RED I/O Expander. The cage is made of 7075 aluminum and includes a top handle with a REC button, a Pogo extension cable, and a 15mm LWS baseplate for mounting the camera. The rig also comes with a V-mount battery plate.
The included SDI top plate offers one SDI input and two SDI outputs for feeding signal to multiple monitors, transmitters, or recorders. Each power output gives a maximum of 3A of power, while the included top handle power module can deliver up to 6A between its three output ports. - For RED DSMC2 cameras (Weapon, Raven, Scarlet-W, and Epic-W) with the RED I/O Expander installed
- Power distributed from camera and battery through cage top handle, top plate, and advanced battery plate
- ESP-02 top handle power module included
- One SDI input and two SDI outputs plus power ports on top plate
- Multiple 3-pin Fischer and 2-pin LEMO-style power outputs
- Pogo extension cable, EVF mount, and LCD bracket included
- Constructed from lightweight and durable 7075 aluminum alloy with titanium screws

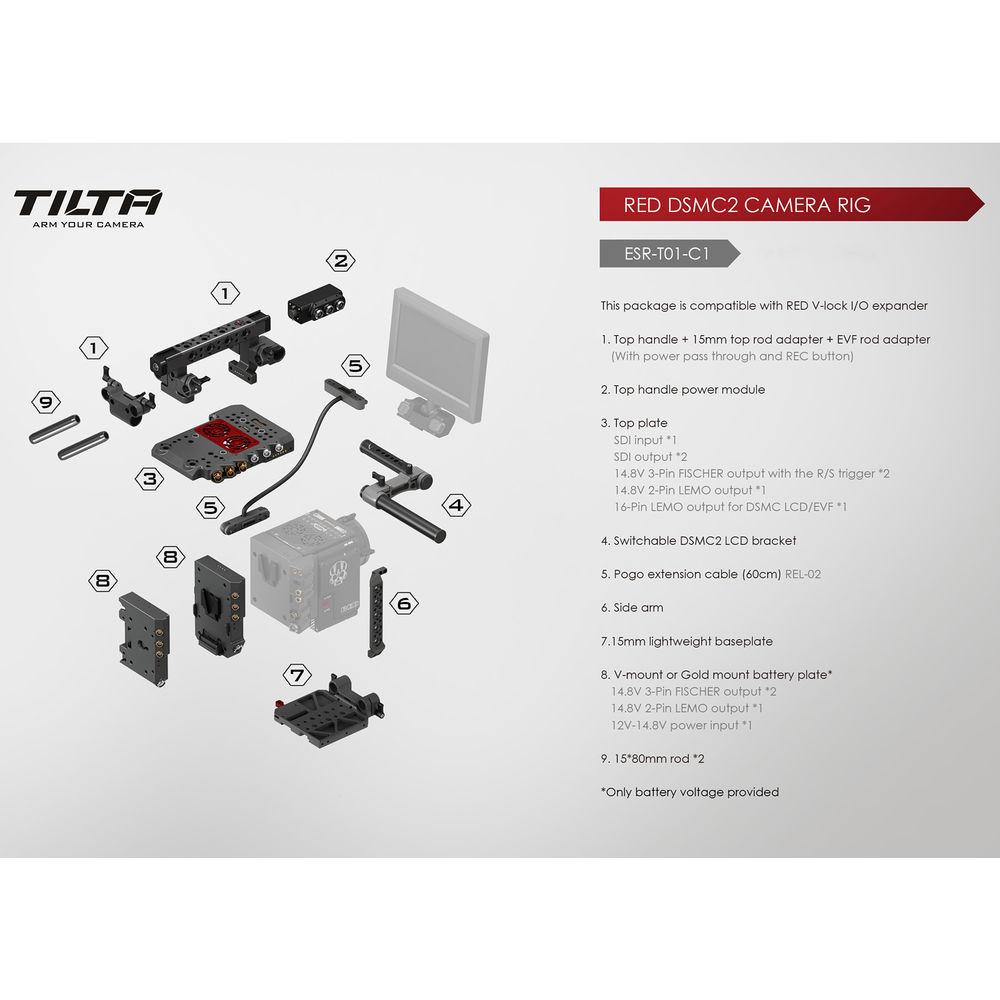

In the Box Tilta RED DSMC2 Rig with SDI Top Plate (V-Mount) 15mm Lightweight Baseplate Advanced Battery Plate (V-Mount) Aluminum Cage Side Arm Pogo Extension Cable (23.6") Pogo to LEMO Adapter for RED DSMC2 awcyqyycttdfaftvdfbqxf Reversible DSMC2 LCD/EVF Mounting Bracket SDI Top Plate Top Handle Handle Power Connection Module for ARRI ALEXA Mini Rig 2 x 15mm Rods (3.14") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta RED DSMC2 Rig with SDI Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-T01-C1 Specs | Handle | Top Handle:
Cage power pass-through
Integrated 15 mm rod mounts
EVF rod adapter
REC button | | Power Module | 14.8 V, combined 6 A output
1 x 2-pin output (3 A)
2 x 14.8 V 3-pin Fischer outputs (3 A) | | Top Plate | 2 x 14.8 V 3-pin Fischer outputs with R/S trigger (3 A)
1 x 14.8 V 2-pin LEMO-style outputs (3 A)
1 x SDI input
2 x SDI outputs | | Extension Cord | 23.6" / 60 cm | | Plate | Converter Plate: Converts Pogo connector to 16-pin LEMO-style (female) | | Arm | Side Arm: Multiple mounting points | | Battery Plate | 2 x 14.8 V 3-pin Fischer outputs (3 A)
1 x 14.8 V 2-pin LEMO-style output (3 A)
1 x 12 to 14.8 V 6-pin power input | | Included Rods | 2 x 15 mm
Length: 3.14" / 80 mm | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 13.8 x 12.9 x 5.7" |
