User Manual for Tilta Standard Battery Plate for ARRI ALEXA Mini Click to enlarge the picture
Contents of the user manual for the Tilta Standard Battery Plate for ARRI
- Product category: Battery Mounting Plates Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Battery Mounting Plates
|
User manual for the Tilta Standard Battery Plate for ARRI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

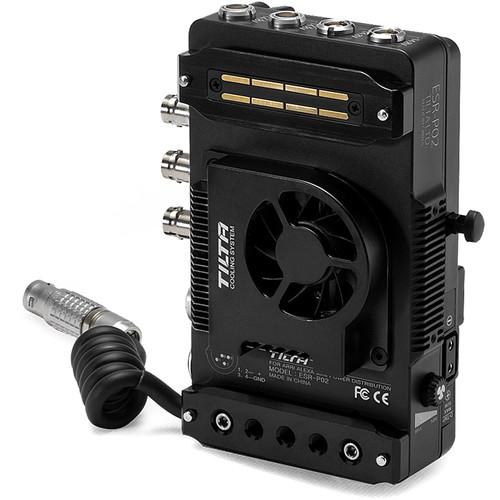

Product description The Tilta Standard Battery Plate for ARRI ALEXA Mini features an integrated Gold mount battery plate with multiple power connectors. It is designed to be used in conjunction with the Tilta Camera Cage for the ARRI ALEXA Mini (not included). The contact pins on the top NATO rail of the plate connect to the rest of the camera rig to provide power to the other output ports on the top plate and top handle, allowing you to power your various camera accessories from virtually anywhere on the rig.
The Gold mount battery plate supports multiple power outputs including D-Tap, 2-pin LEMO, and 3-pin Fischer ports. It also supports EXT input and output connectors which enable remote start and stop on the ALEXA Mini. A single SDI input connector feeds two SDI output connectors, keeping your camera rig compact without the need for one more splitter. A built-in fan helps keep the electronics cool, and an integrated knob allows you to vary the fan speed as necessary. - Contact pins on the top NATO rail of the plate connect to the rest of the camera rig to provide power to the other output ports on the top plate and top handle
- Built-in fan with speed control knob
In the Box Tilta Standard Battery Plate for ARRI ALEXA Mini (Gold Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Standard Battery Plate for ARRI ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta ESR-P02-AB Specs | Material of Construction | Aluminum Alloy, Stainless Steel, Copper, ABS Plastic | | Finish | Black | | Connectors | Battery: Gold Mount
2 x 2-Pin LEMO (14.8 VDC)
2 x 3-Pin Fischer (14.8 VDC)
1 x D-Tap (14.8 VDC)
1 x BNC, SDI Input
2 x BNC, SDI Output
1 x 7-Pin LEMO, EXT Input
1 x 7-Pin LEMO, EXT Output
1 x 6-Pin LEMO, Power Input (12 to 14.8 VDC)
1 x 8-Pin LEMO, Camera Power Cable | | Weight | 1.44 lb / 0.65 kg | | | | Package Weight | 1.62 lb | | Box Dimensions (LxWxH) | 8.1 x 6.0 x 4.6" |
