User Manual for Tilta Top Handle Extension Click to enlarge the picture
Contents of the user manual for the Tilta Top Handle Extension
- Product category: Misc. Components Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Misc. Components
|
User manual for the Tilta Top Handle Extension contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

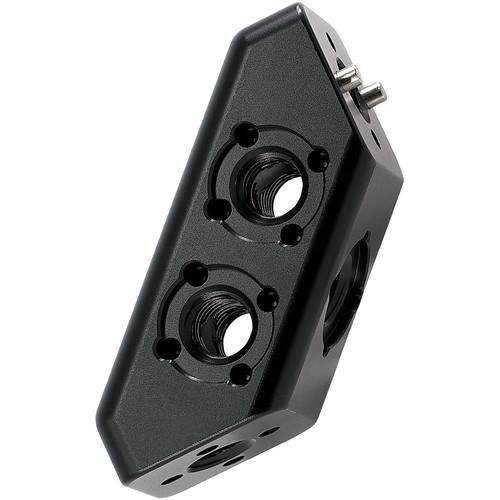

Product description This corner Tilta Top Handle Extension is 2.5" in length with angled mounting surfaces and is compatible with the ARRI anti-twist system. It features a 3/8"-16 threaded mounting screw with the two anti-twist pins on one angled surface, and a female threaded 3/8"-16 mounting hole with anti-twist divots on the opposite angled surface. Along two of the sides are two 3/8"-16 female threaded mounting holes with four anti-twist divots. The bottom of the unit features an additional 3/8"-16 compatible anti-twist fitting. An included 3/8"-16 captive hex screw enables mounting this to a device with a compatible anti-twist system such as the straight Tilta Top Handle Extension. This allows you to configure Top Handle Extensions in a variety of ways. A 3/16" hex key (not included) is required to tighten the handle extension to a device with a 3/8"-16 anti-twist mounting system. The key is usually included the Top Handle kit. UPC: 602016519349 In the Box Tilta Top Handle Extension (Corner) 3/8"-16 Captive Tie-Down Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta Top Handle Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta TH-HE-C Specs | Material of Construction | Aluminum Alloy | | Mounting | 7 x 3/8"-16 Threaded Mounting Holes with Anti-Twist | | Length | 2.5" / 6.35 cm | | Width | 1" / 2.54 cm | | Weight | 2.5 oz / 69.8 g | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 3.65 x 2.65 x 1.1" |
