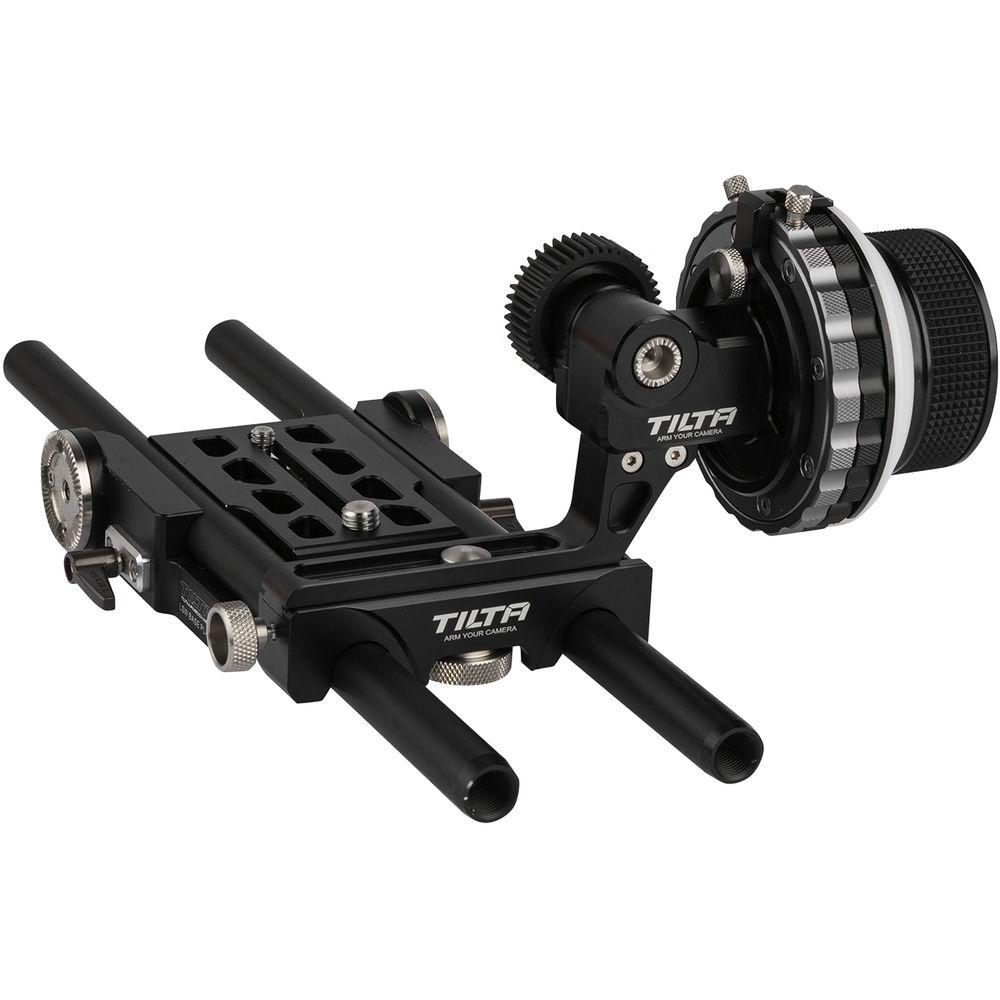

User Manual for Tilta TT-03-GJ2 Lightweight Follow Focus Kit Click to enlarge the picture
Contents of the user manual for the Tilta TT-03-GJ2 Lightweight Follow Focus Kit
- Product category: Camcorder Supports & Rigs Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Camcorder Supports & Rigs
 |
User manual for the Tilta TT-03-GJ2 Lightweight Follow Focus Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

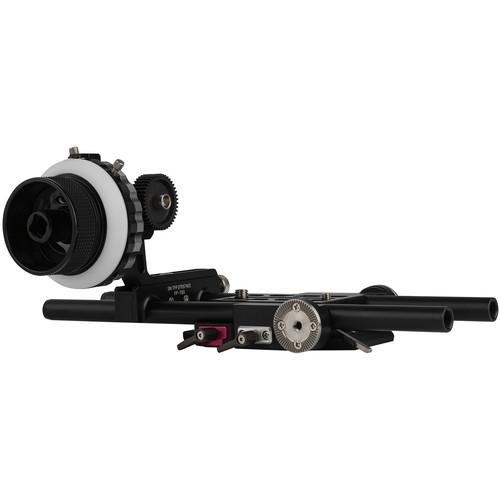

Product description This Tilta TT-03-GJ2 Lightweight Follow Focus Kit combines a lightweight baseplate system with a rod-mount follow focus to provide you with a compact solution for mid-size and full-size cameras. The kit includes a 5" dovetail plate, dual 11.8" 15mm rods, five gear rings, a whip, and a crank handle; and there are rosette adapters on the sides of the baseplate for attaching optional handgrips. - Lightweight Baseplate System with 5" Dovetail Plate & 15mm Rods The Lightweight Baseplate System from Tilta comprises of a 5" dovetail plate, a lightweight baseplate, and a pair of 12" 15mm rods. The dovetail plate has multiple 1/4"-20 and 3/8"-16 mounting points, while the baseplate has integrated ARRI-standard rosettes.
- FF-T03 15mm Follow Focus with Hard Stops The Tilta FF-T03 15mm Follow Focus can be mounted on any 15mm rod system and allows you to make smooth focus adjustments. Fluid movement ensures smooth control, and two hard stops ensure precision adjustment.
Included with the follow focus are five flexible gears for your lens and 0.5, 0.6, and 08 MOD drive gears. And if you like to operate your system from a distance, a crank handle and 12” whip are both included. - Can be mounted onto any 15mm rods
- Smooth fluid movements for easy focus adjustments
- Hard stops for precision focusing
- Rugged anodized aluminum alloy construction for durability

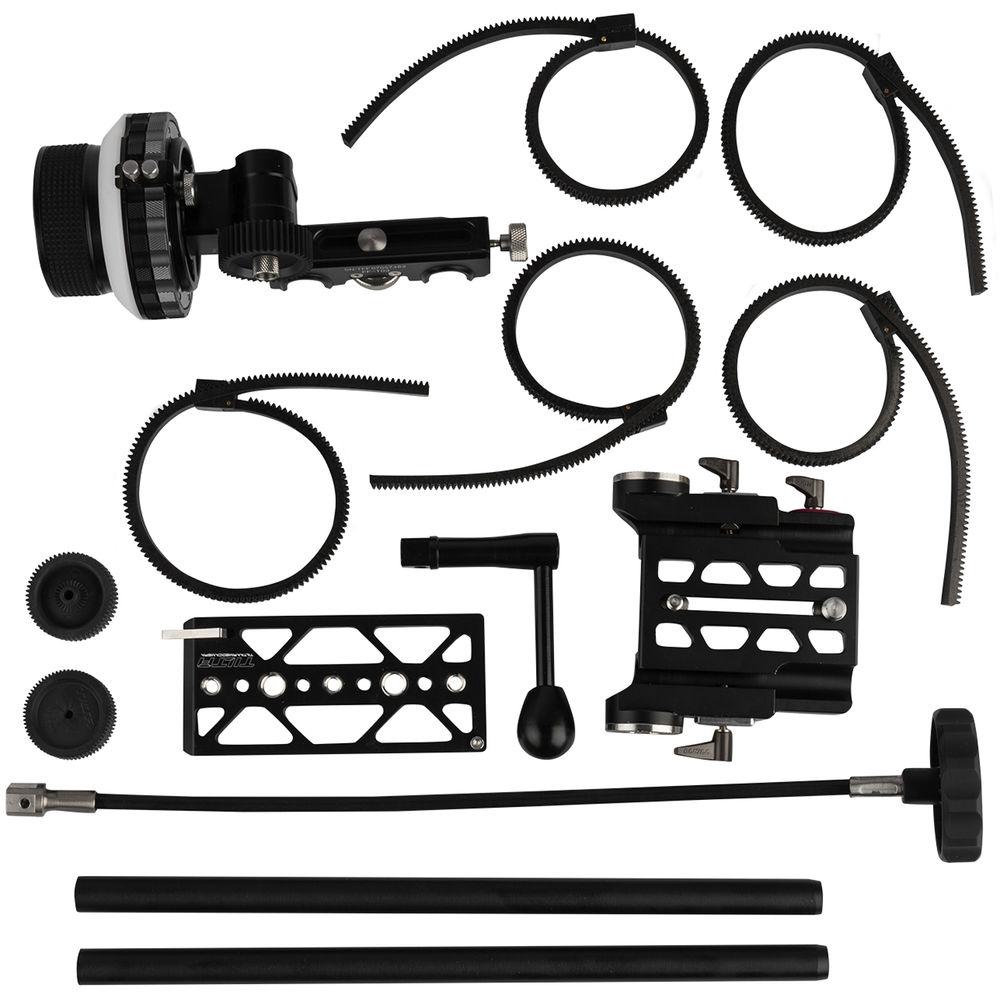

UPC: 847983007417 In the Box Bundle Items Lightweight Baseplate System with 5" Dovetail Plate & 15mm Rods eafvucrrbx - Lightweight Dovetail Plate (5")
- TT-C06-15 Lightweight Baseplate
- Threaded 15mm Rods (Black, 12", Pair)
FF-T03 15mm Follow Focus with Hard Stops Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta TT-03-GJ2 Lightweight Follow Focus Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lightweight Baseplate System with 5" Dovetail Plate & 15mm Rods
| Material | Dovetail Plate: Aluminum alloy and stainless steel
Rods: Anodized aluminum | | Mounting Holes | Multiple 1/4"-20 and 3/8"-16 mounting points | | Dimensions | Dovetail Plate: 5.0 x 2.25 x 0.38" (12.7 x 5.7 x 1.0 cm)
Baseplate: 4.0 x 4.0 x 1.25" (10.2 x 10.2 x 3.2 cm)
15mm Rods: 12" (30 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 14.6 x 4.5 x 2.4" | - FF-T03 15mm Follow Focus with Hard Stops
| Length | Whip: 12.0" / 30.5 cm | | Weight | 5.0 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 17.3 x 8.65 x 5.15" |
