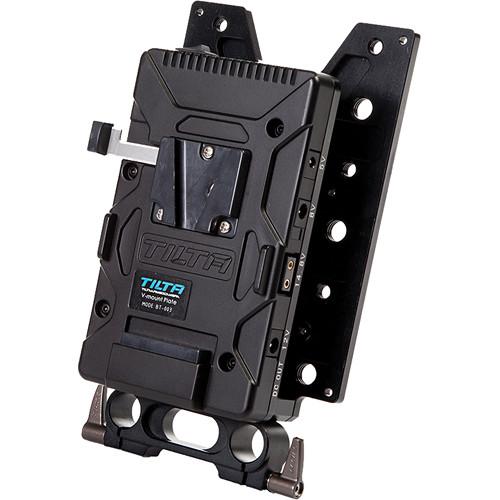

User Manual for Tilta TT-C12 HyperDeck Shuttle Holder with V-Mount Plate Click to enlarge the picture
Contents of the user manual for the Tilta TT-C12 HyperDeck Shuttle Holder with
- Product category: Solid State Recorder Accessories Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Solid State Recorder Accessories
 |
User manual for the Tilta TT-C12 HyperDeck Shuttle Holder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|

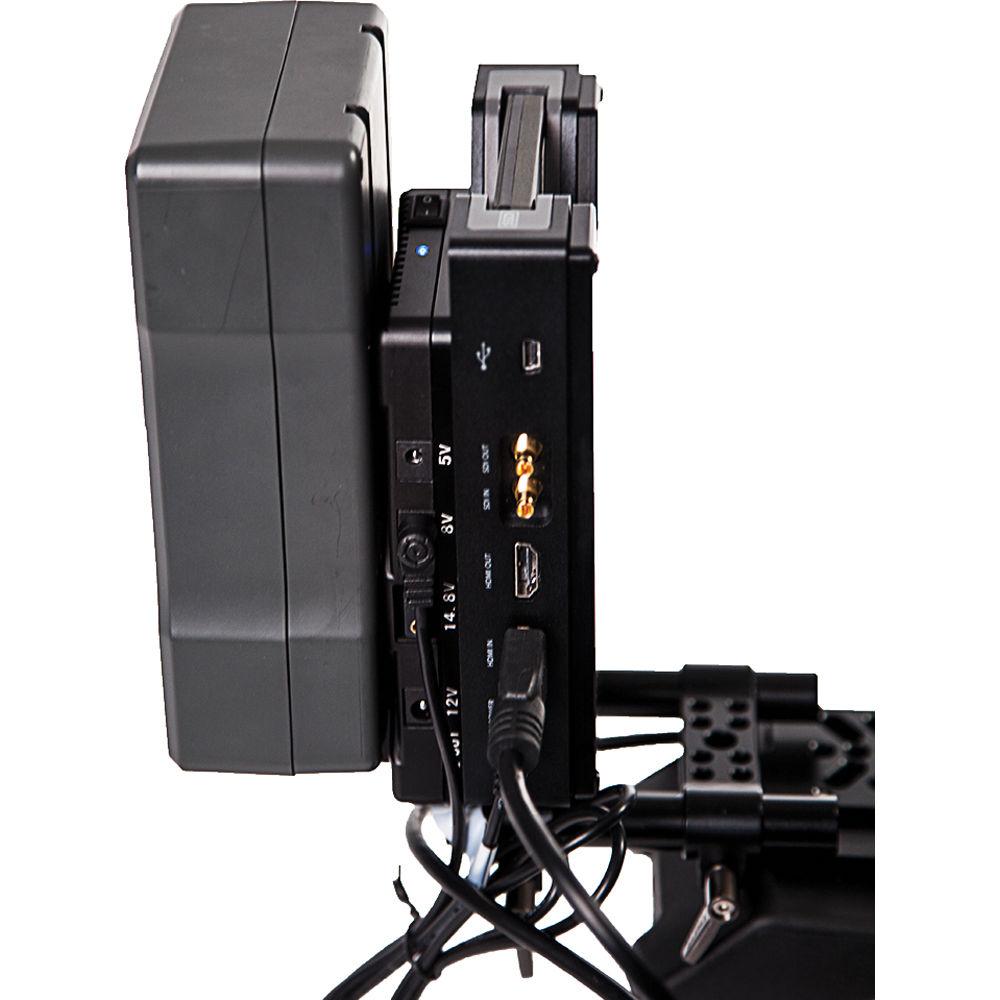

Product description Providing an elegant solution for mounting and powering your Hyperdeck shuttle, the Tilta Blackmagic Design HyperDeck Shuttle Holder secures your shuttle to a rig that includes a V-Mount battery plate and 15mm LWS rod clamps. The unit mounts to 15mm LWS support rods and features spring-loaded locking levers. Attached to the rod clamps are two plates that sandwich your Hyperdeck shuttle, providing protection while allowing access to the control buttons.

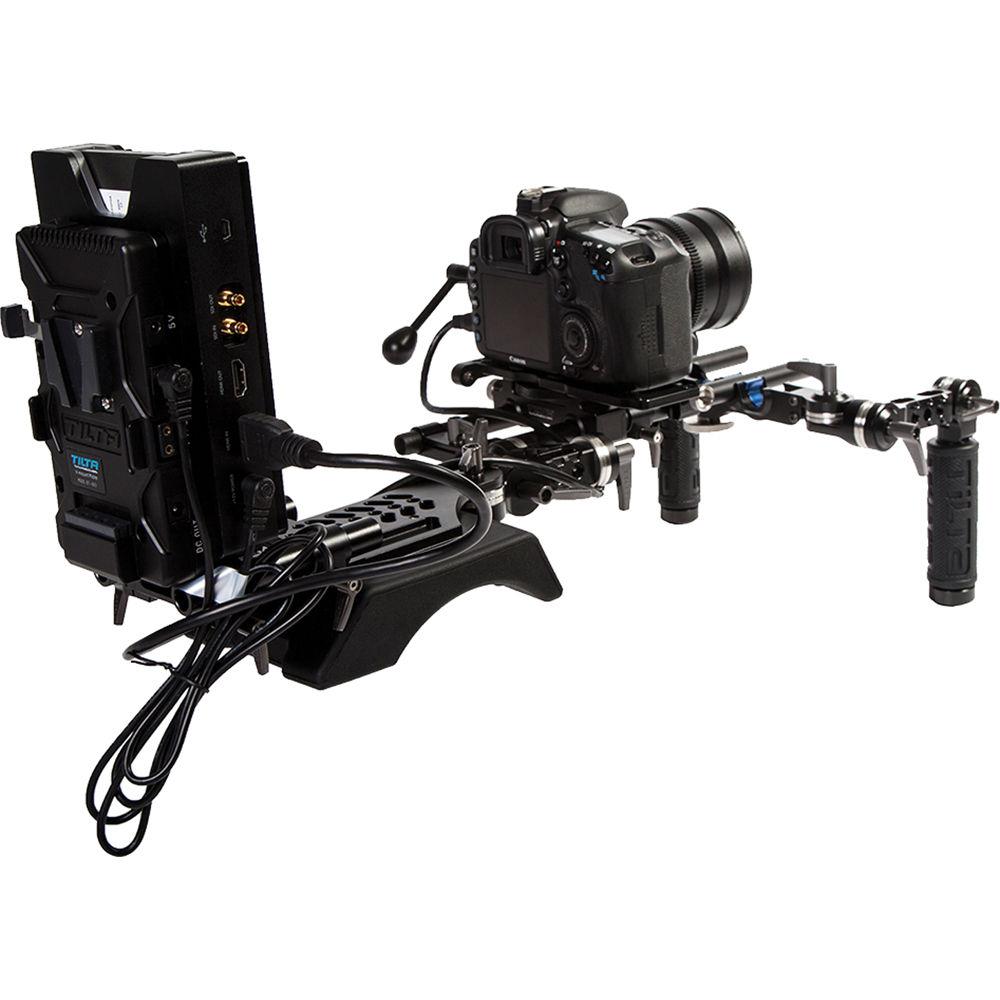

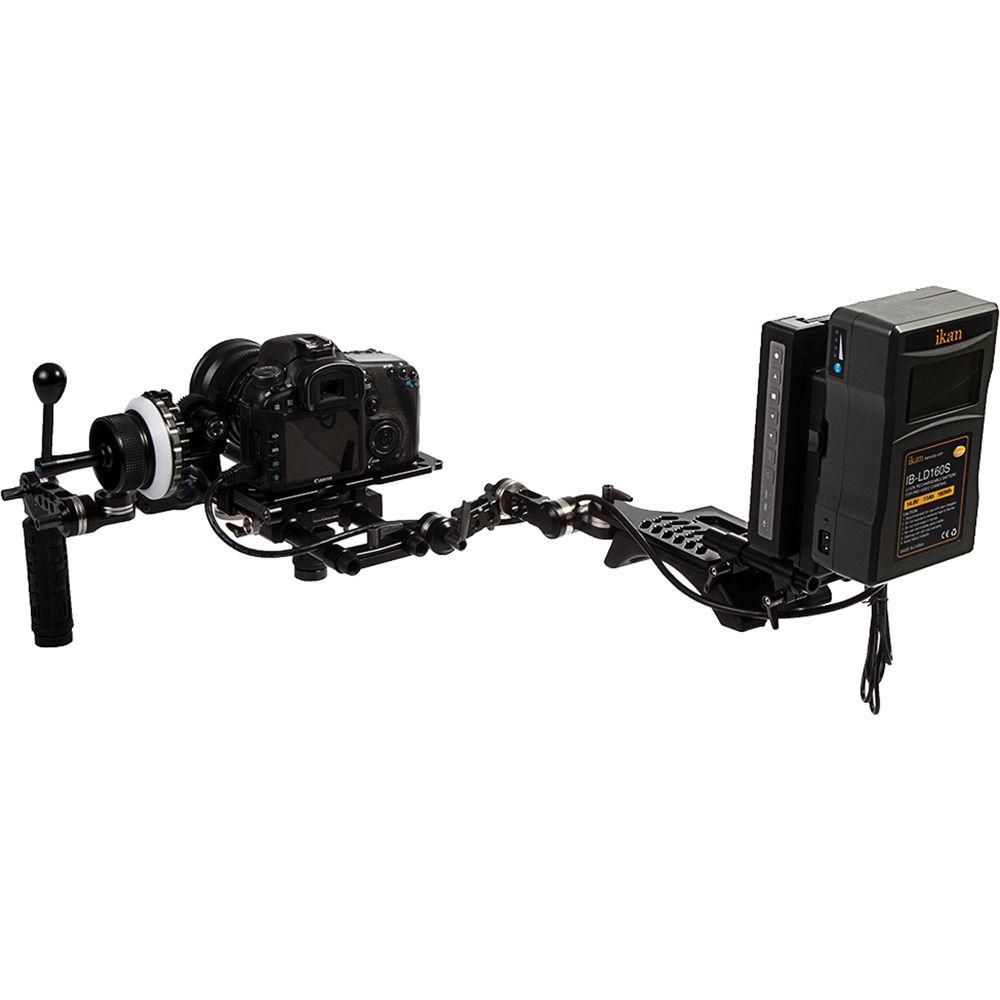

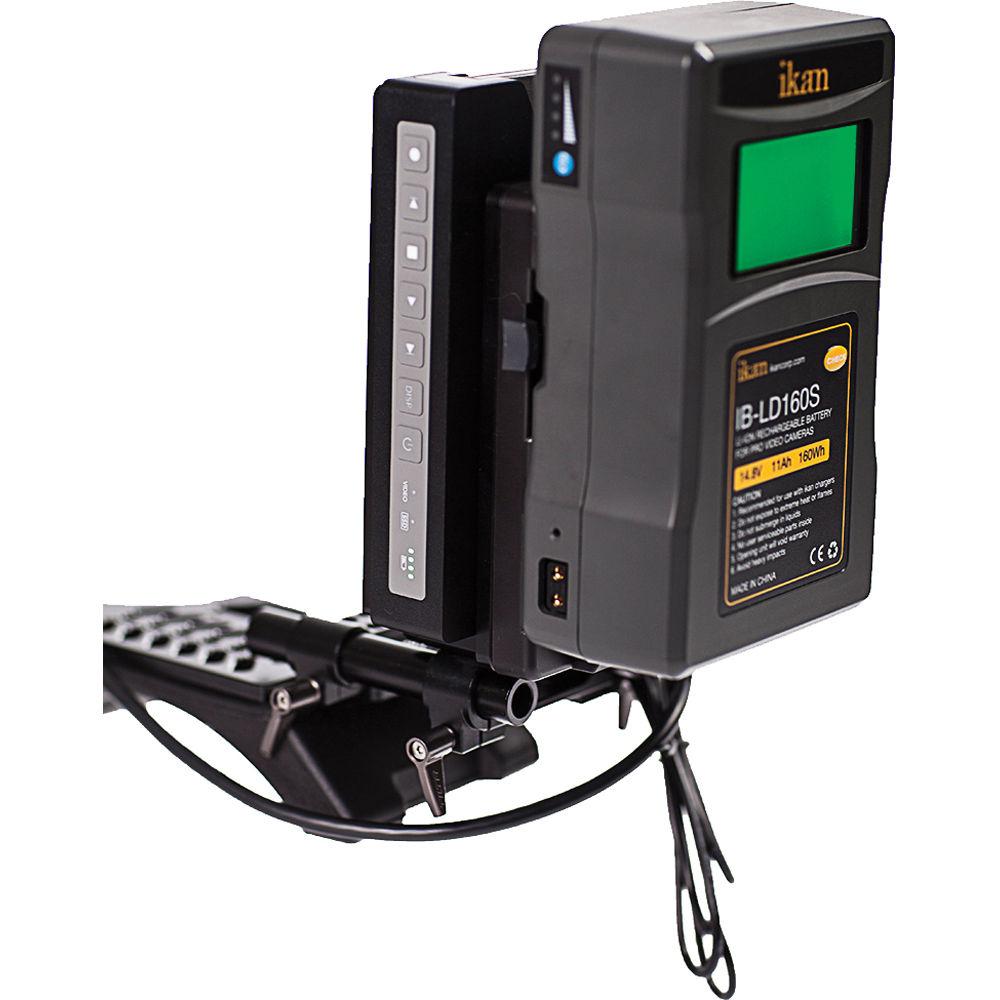

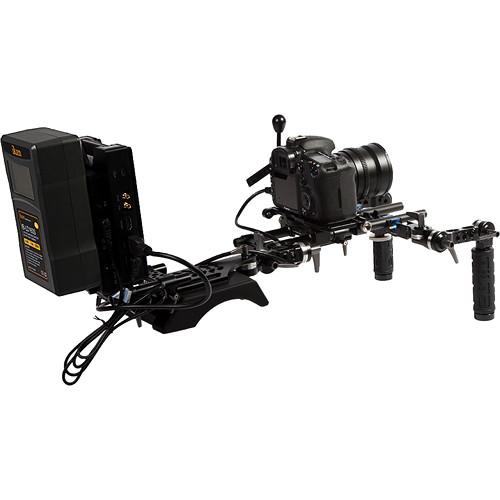

A V-Mount battery plate is attached to one of the plates, providing a variety of power output connectors. The other plate is machined to follow the form of the shuttle and incorporates matching mounting holes, making it simple to mount your shuttle to the plate. The battery plate's multiple power outputs allow you to simultaneously power your shuttle and a variey of compatible cameras from a single V-Mount battery. - The holder protects your shuttle from the rigors of daily production while allowing you to mount it and a battery onto a set of support rods. You can use this combination provide counterbalance to a shoulder rig while it is both powering your camera and recording its output.

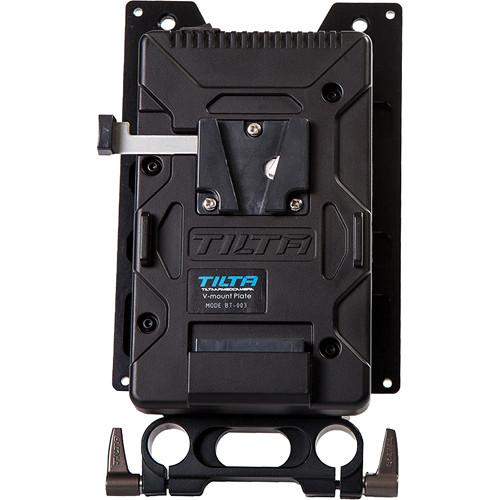

- The integrated 15mm rod clamps feature spring-loaded locking levers that securely attach the battery plate and shuttle holder to a set of LWS rods.

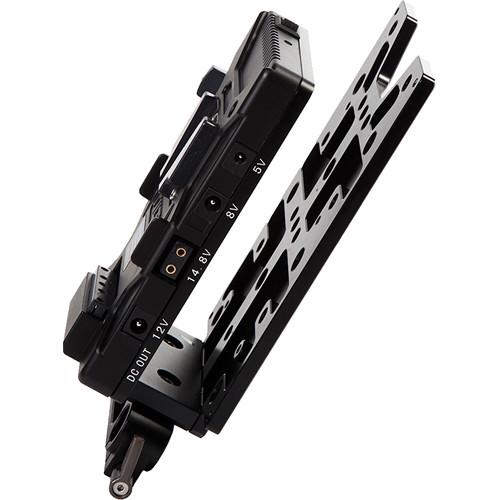

- The Multi-voltage V-Mount battery plate provides a D-Tap power outlet as well as regulated 5, 8, and 12 volt outputs.

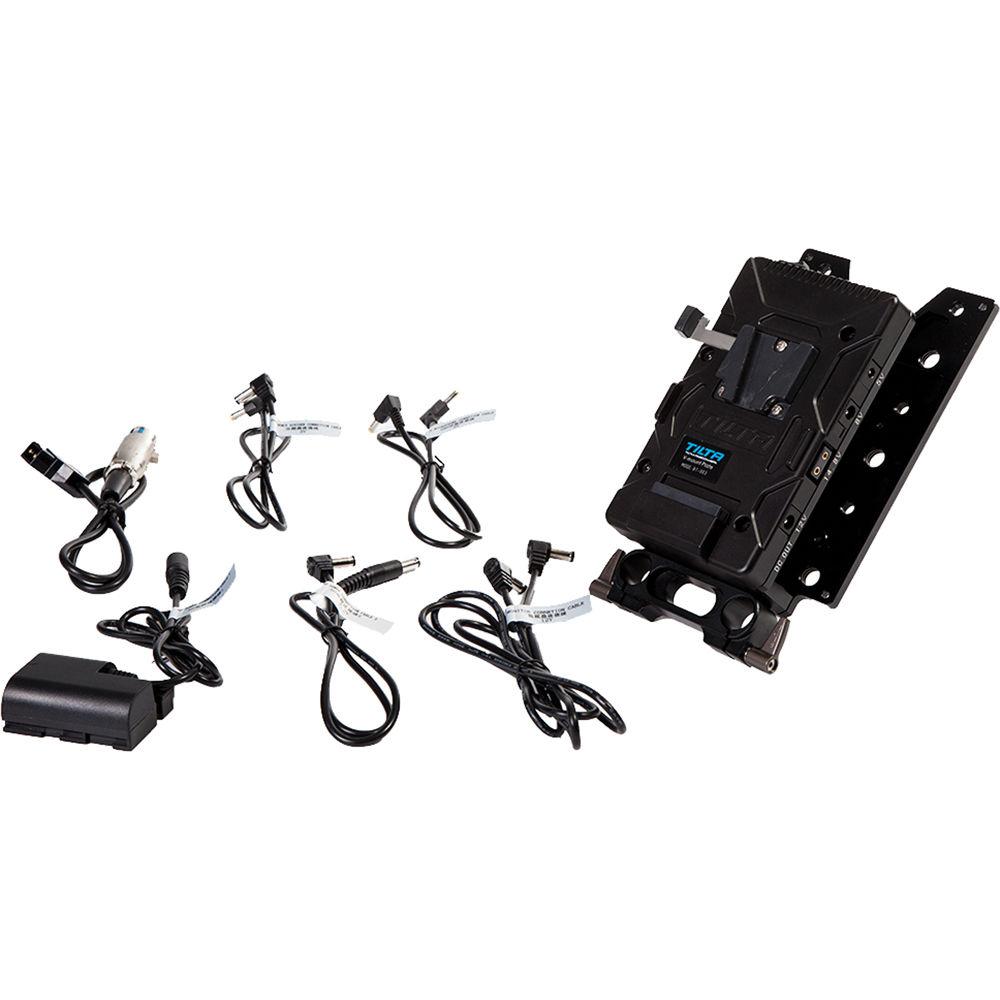

UPC: 847983009374 In the Box Tilta TT-C12 HyperDeck Shuttle Holder with V-Mount Plate 12V Monitor Connection Cable 7.2V Connection Cable 5V Connection Cable for H4N HyperDeck To Power Supply Connection Cable Power Connection Cable with Dummy E6 Battery 4-Pin XLR to D-Tap Cable 4 x 2.5 mm Socket Cap Head Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta TT-C12 HyperDeck Shuttle Holder with V-Mount Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta TT-C12 Specs | Connectors | 1 x 12 VDC output
1 x 14.8 VDC
1 x 8 VDC
1 x 5 VDC | | Dimensions | 4.5 x 7.5 x 3" / 11.4 x 19.05 x 7.6 cm | | Weight | 1.11 lb (0.5 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.236 x 8.898 x 4.016" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
