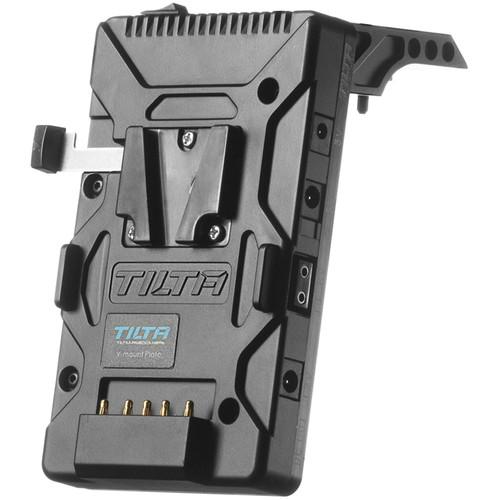

User Manual for Tilta V-Mount Battery Plate for Sony FS7 Click to enlarge the picture
Contents of the user manual for the Tilta V-Mount Battery Plate for Sony
- Product category: Battery Mounting Plates Tilta
- Brand: Tilta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tilta Battery Mounting Plates
|
User manual for the Tilta V-Mount Battery Plate for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tilta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tilta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tilta product will considerably shorten its lifespan!
|
Product description Designed specifically to integrate into your FS7 camera, the Tilta V-Mount Battery Plate for Sony FS7 provides you a way to power your camera and on-board accessories from a single V-mount battery. The battery plate solidly attaches to your FS7 allowing you to mount optional large capacity V-mount batteries on the back of the camera without significantly altering the balance. Built-in power ports support P-Tap as well as common DC voltage outputs.
Using this battery plate with optional V-mount batteries allows you to power on-board accessories using only one battery, instead of using many smaller DV style batteries to power the camera and additional accessories. This single battery powering solution preserves the handheld capabilities of your camera, as opposed to the effect of weight and balance shifts caused by multiple batteries when you operate your camera with accessories. The plate passes through your batteries power through the D-Tap, and provides separate regulated 8 VDC and two 12 VDC outputs. Four cables are included, so you can connect a device to each power output. - Provides secure battery attachment for optional V-mount batteries without significantly altering the camera's footprint.
- Integrated on / off switch allows you to power down to conserve battery without removing the battery.
- Battery plate provides pass through battery power to a D-Tap output, regulated 8 VDC, and two 12 VDC power outputs for powering an optional camera and accessories.
UPC: 847983013791 In the Box Tilta V-Mount Battery Plate for Sony FS7 2 x 12 VDC Cable 7.2 VDC Cable P-Tap to FS7 Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tilta V-Mount Battery Plate for Sony FS7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTilta FS-T01 Specs | Battery Plate Type | Integrated V-Mount plate | | Power Outputs | 1 x 5 VDC
1 x 8 VDC
1 x 12 VDC
1 x P-Tap | | Dimensions | 5.6 x 3.9 x 3.5" / 142.2 x 99 x 88.9 mm | | Weight | 11.7 oz / 332 g | | | | Package Weight | 1.445 lb | | Box Dimensions (LxWxH) | 10.25 x 6.65 x 5.25" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
