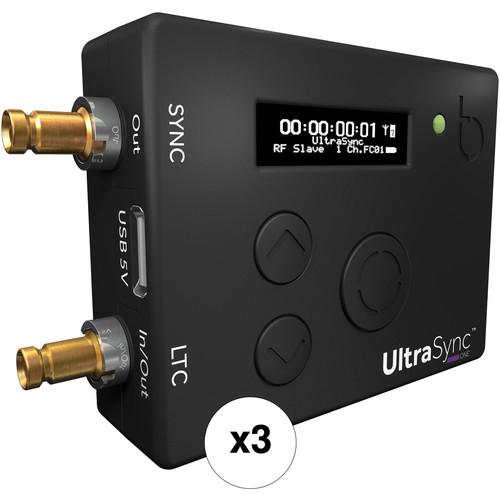

User Manual for Timecode Systems 3 x UltraSync ONE Timecode Sync Solution Click to enlarge the picture
Contents of the user manual for the Timecode Systems 3 x UltraSync ONE
- Product category: Time Code Generators & Readers Timecode Systems
- Brand: Timecode Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Timecode Systems Time Code Generators & Readers
|
User manual for the Timecode Systems 3 x UltraSync ONE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Timecode Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Timecode Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Timecode Systems product will considerably shorten its lifespan!
|
Product description This Kit packages three UltraSync ONE units from Timecode Systems as a genlock and timecode sync solution for three or more devices. It supports the gamut of cameras from select GoPros to high-end pro cameras, as well as audio devices. Each unit features an input/output connector and a second output connector that can be configured for a second LTC. Overall, you can connect up to two devices to each unit. The UltraSync ONE is a standalone product that can be configured as a master or slave. It can also be set up with other Timecode Systems devices, such as the :wave or :pulse on the Timecode Systems BLINK network. The status of each unit and other settings can be set up/monitored using the Timecode Systems app. - 3 x Timecode Systems UltraSync ONE If you're on a multi-camera shoot, capturing spherical video, or otherwise need to sync multiple cameras or devices with timecode, genlock, or word clock, the Timecode Systems UltraSync ONE is a portable and easy-to-use solution. With its built-in battery, the UltraSync ONE can generate and sync timecode and genlock wirelessly and last for up to 25 hours, long enough for nearly any shooting situation. The small form factor enables the UltraSync ONE to be equally at home on a professional ENG camcorder or DSLR. With the built-in wireless capabilities, the UltraSync ONE can be incorporated into your existing BLINK network with :pulse, :wave, and SyncBac PRO units. Syncing with these devices can be done up to 650' on sub GHz frequencies. Wired connections consist of Timecode in/out and Sync out over mini coaxial terminals (BNC adapters are included), and a USB Type-C connection for charging and firmware updates. The front panel features an OLED display for indicating timecode and other information as well as UI navigation buttons.
Quick Features - Timecode, genlock, & word clock
- Generator and transceiver: generate master timecode or configure as a slave
- Jam or slave to an external LTC source
- Sync over long range, bi-directional BLINK RF
- Connect to BLINK Hub via a separately available :pulse or :wave
- Great for multicamera sync, professional spherical video rigs, & DSLR shoots
UPC: 708744010025 In the Box - 3 x UltraSync ONE
- USB Type-C Cable
- 2 x Mini-Coaxial to BNC Adapter
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Timecode Systems 3 x UltraSync ONE Timecode Sync Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Timecode Systems UltraSync ONE
| I/O | 1 x Coax, LTC input/output
1 x Coax, Sync output
1 x USB Type-C, power/firmware | | Dimensions | 2.2 x 1.7 x 0.7" / 55 x 44 x 17 mm | | Weight | 1.4 oz / 39 g | | | | Box Dimensions (LxWxH) | 6.3 x 4.15 x 1.45" |
