Product description

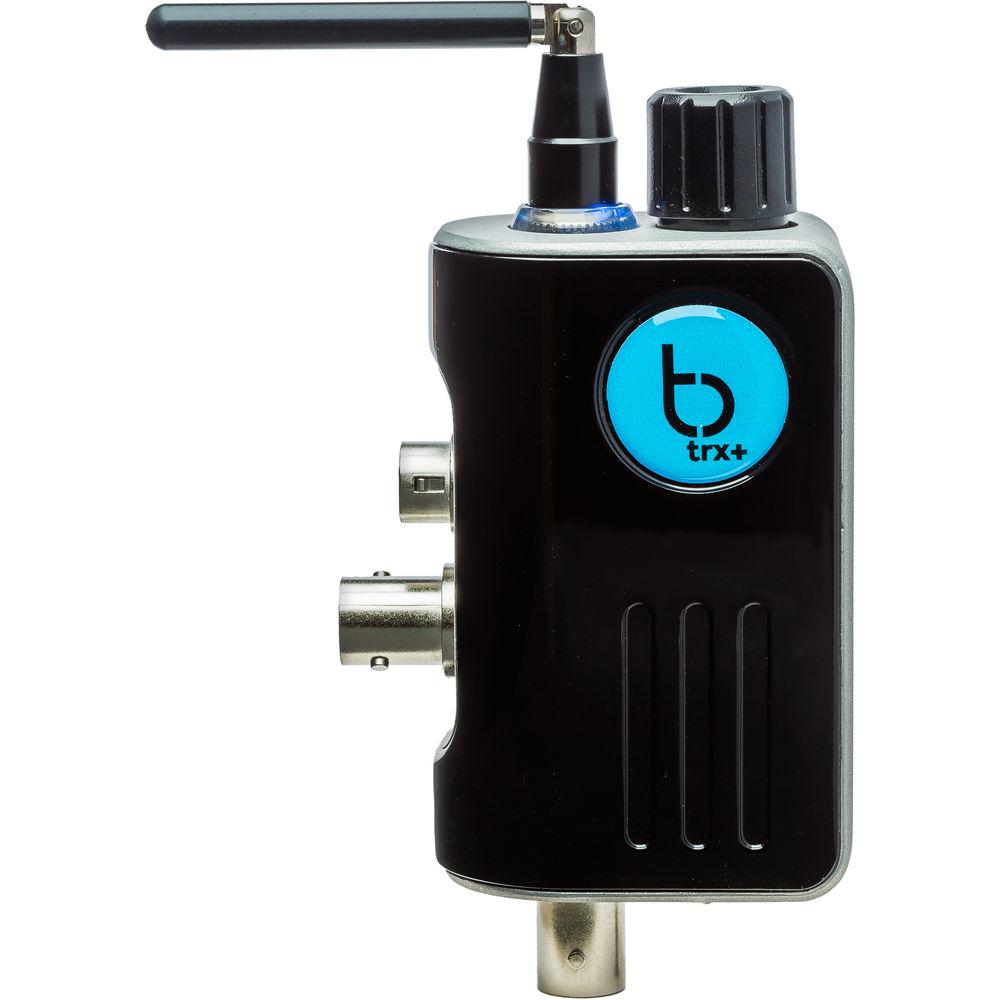

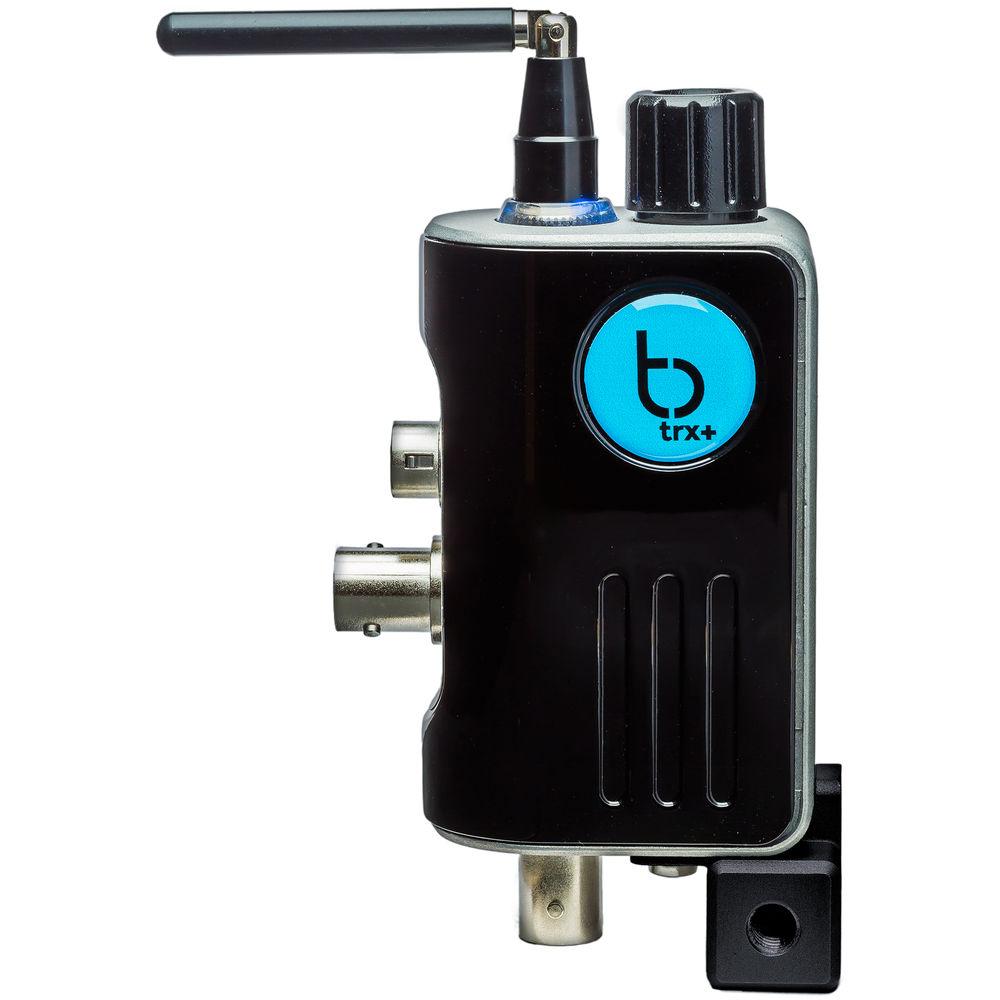

The Mini TRX+ from Timecode Systems is a compact timecode, genlock, and word clock generator with RF transceiver and B:LINK network slave functionality. It can be used with a master timecode device (sold separately) to provide wireless timecode and sync capabilities with a video camera over a Wi-Fi network, using third-party applications with an iPhone, a computer, or a tablet device.The Mini TRX+'s B:LINK RF network protocol keeps accurate wireless sync over the sub GHz ISM band and adds two-way multiplexed status/control from the TRX+ back to the master device. View the status and control settings of the TRX+ using a portable device running MovieSlate 8 or the Timecode Buddy App. Connect with any iPhone, computer, or tablet over the 2.4 GHz Wi-Fi network.In addition, the Mini TRX+ also features a higher capacity Li-polymer battery upgrade that will power the unit for up to 12 hours with RF and genlock turned on and up to 16 hours with RF turned on and genlock turned off. There is an option for a second LTC output or Word Clock output from the sync BNC connector.The Mini TRX+ includes an aluminum anodized bracket connector block with multiple 1/4" threaded mounting holes and a detachable hot-shoe mount. This allows for a solid and flexible mounting solution. In the Box Timecode Systems Mini TRX+Timecode, Genlock, and Word Clock Generator with RF Transceiver
  • TCB-33 Multiple 1/4" Thread Aluminum Mounting Block
  • TCB-34 Hot-Shoe Adapter
  • TCB-24 Original Lightweight Mounting Hot-Shoe Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Timecode Systems Mini TRX Timecode, Genlock, and Word Clock Generator with RF Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Timecode Systems TCB-05+ Specs

    LCD Display 2-line, 16-character, and blue variable-brightness backlit display
    Supported FPS Modes 23.98, 24, 25, 29.97, 30, 29.97DF, 30DF
    Antenna Halo Light Pipe: Bi-color LED (green/red)
    Time Code In BNC connector
    Frequency 865 MHz-923 MHz, Worldwide ISM bands
    Power Li-polymer rechargeable battery, 12-15 hours min. operation
    2-hour charge from the USB or Hirose power source
    Time Code Out BNC connectors (selectable standard or mic level)
    Output Sync Modes PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame, Word Clock 44.1, 48.2, 48, 96, 192 kHz
    Output Video Sync: 1 V pp / 75 ohms or 1 V pp /37.5 ohms for 'High Level Genlock' mode (3D camera rigs)
    Dimensions (H x W x L) 1.1 x 1.7 x 2.8" (29 x 44 x 70 mm)
    Weight 4.3 oz (122 g)
    Package Weight 1.085 lb
    Box Dimensions (LxWxH) 9.85 x 6.0 x 2.35"
