User Manual for Timecode Systems :pulse 2 SyncBac PROs Bundle for GoPro HERO6 Black Click to enlarge the picture
Contents of the user manual for the Timecode Systems :pulse 2 SyncBac PROs
- Product category: Time Code Generators & Readers Timecode Systems
- Brand: Timecode Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Timecode Systems Time Code Generators & Readers
 |
User manual for the Timecode Systems :pulse 2 SyncBac PROs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Timecode Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Timecode Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Timecode Systems product will considerably shorten its lifespan!
|
Product description Take the compact size and 4K image quality of the HERO6 to the next level. The SyncBac PRO for the HERO6 enables you to incorporate the camera into multicam setups with other GoPros (as well as other pro gear when you add other optional Timecode Systems products). The :pulse allows you to remotely control such setups as well as monitor battery status using an iOS/Android app. This :pulse + 2 SyncBac PROs Bundle from Timecode Systems gives you the starting point to timecode-sync, control, and monitor two HERO6 cameras. - :pulse Multifunctional Timecode & Metadata Hub & Device Control Center The :pulse from Timecode Systems is a multifunctional timecode and metadata hub and device control center designed for multicamera setups that allow you to view, monitor, and control any B:LINK-enabled device and compatible camera or audio device from a smartphone, tablet, or computer. It can be used to provide a zero-drift timecode and genlock sync for video and film applications.The large-capacity LiPo internal battery is constantly charged from any of the power inputs and will run the unit for a minimum of 3 to 4 hours with RF, Wi-Fi, and Ethernet switched on. It is suitable for camera battery swaps or location moves.Additionally, the :pulse has a solid aluminum casing and features a high-resolution blue OLED display. It offers flexible mounting methods and multiple powering options and can be configured as either an RF slave device or a master device.
- The Mini Base Station
- Add the mini base station to your multicamera setup and experience the full benefits of the B:LINK protocol. Monitor and control any B:LINK-enabled device or compatible camera and audio devices from your smartphone, tablet, or computer, all while providing accurate zero drift timecode and genlock for your production
- User-Friendly Features

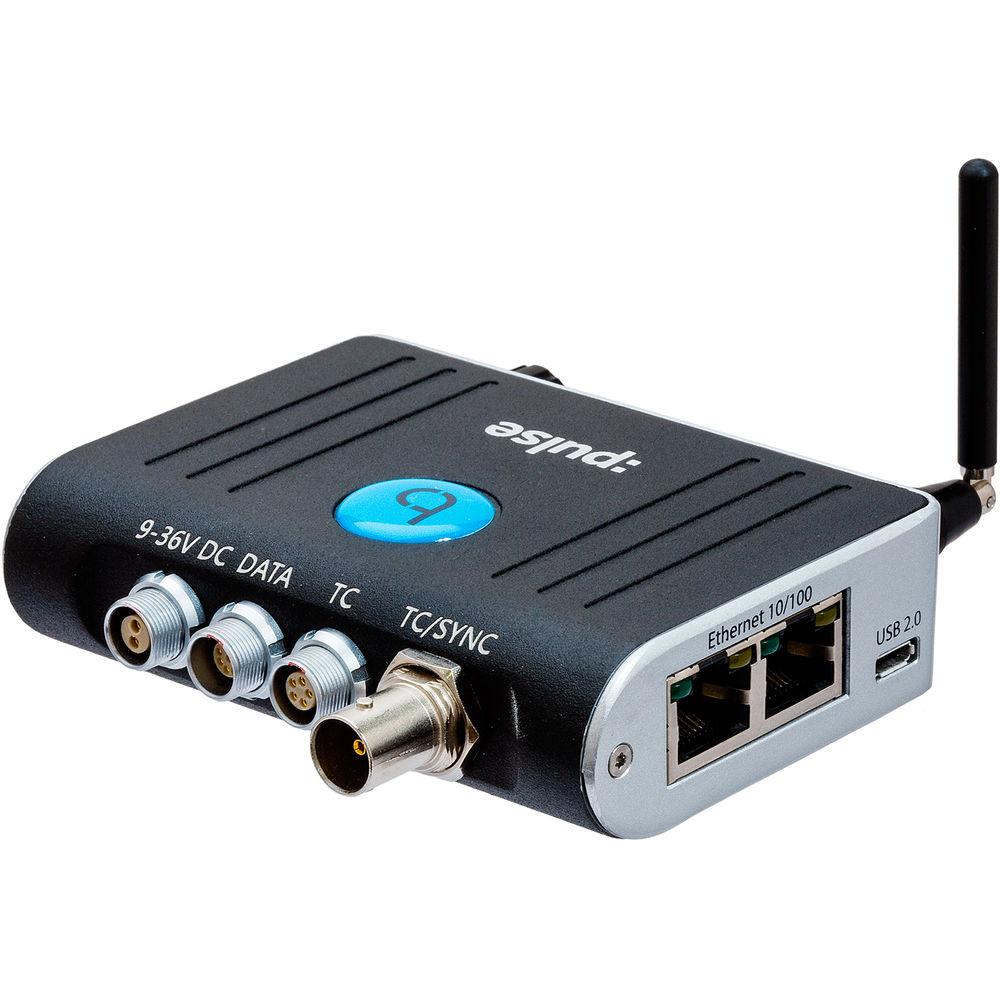

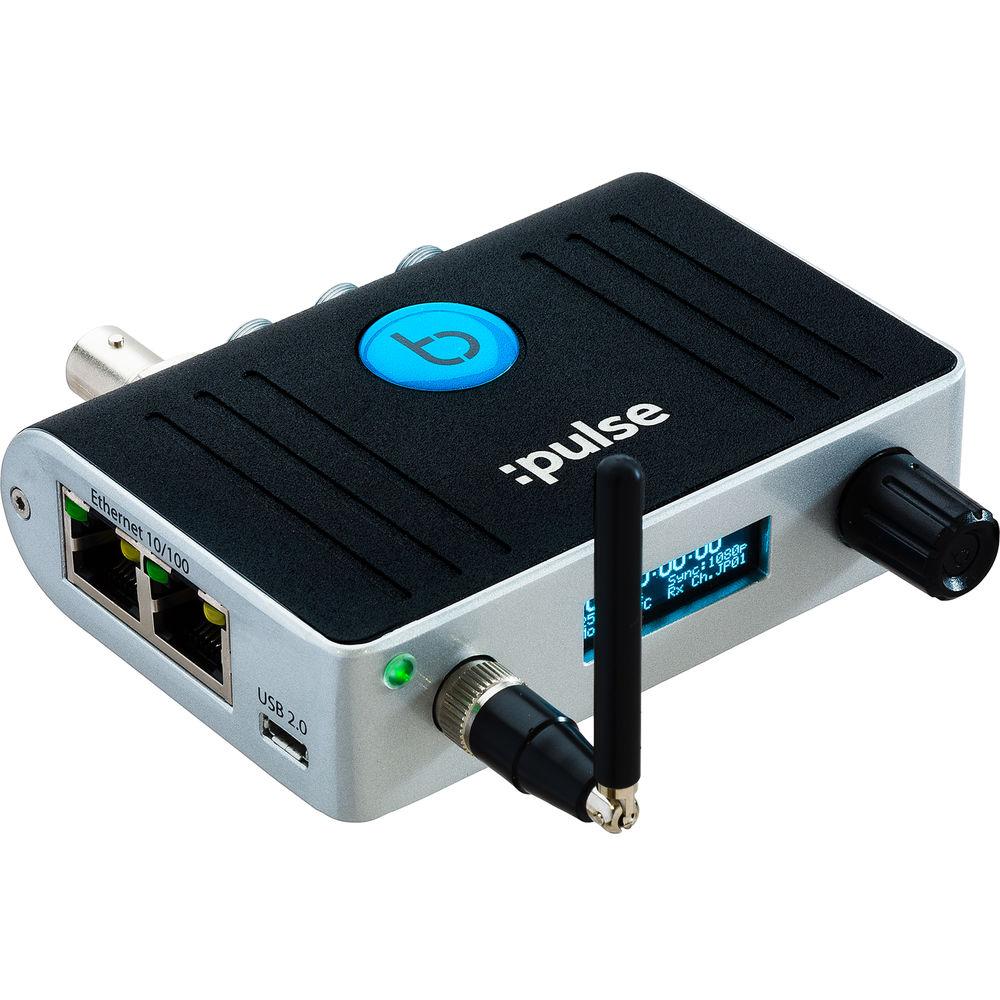

- The :pulse also has a solid aluminum casing and features a high-resolution blue OLED display, flexible mounting methods, and multiple powering options. It has UART, RS-232/RS-422 connectivity, Ethernet/Wi-Fi/USB connectivity, and simultaneous long-range RF sync and B:LINK networking features
- Zero Drift Between Units
- Configured as an RF slave device, the :pulse's timecode and sync generator is soft-jammed twice a second via the long-range robust ISM band RF, meaning zero drift between units. The B:LINK network allows the :pulse to either operate as a B:LINK master device or a B:LINK slave device

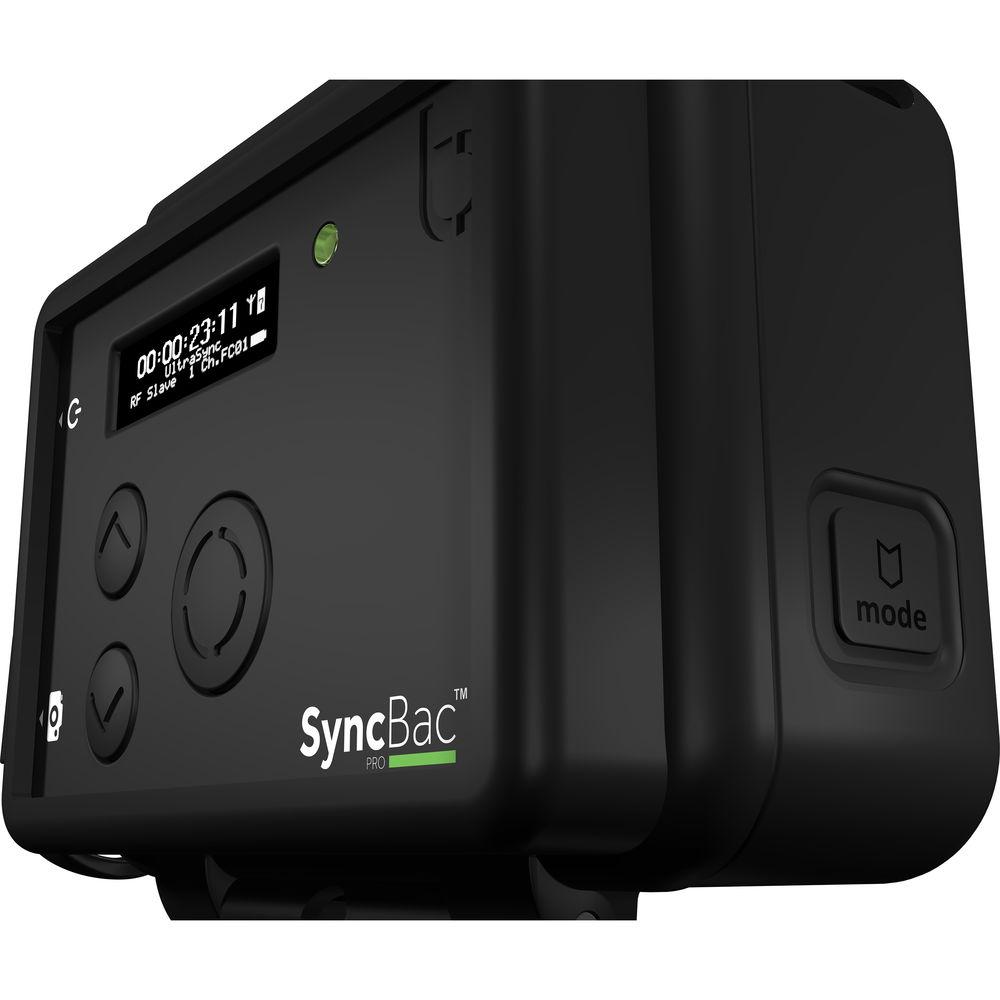

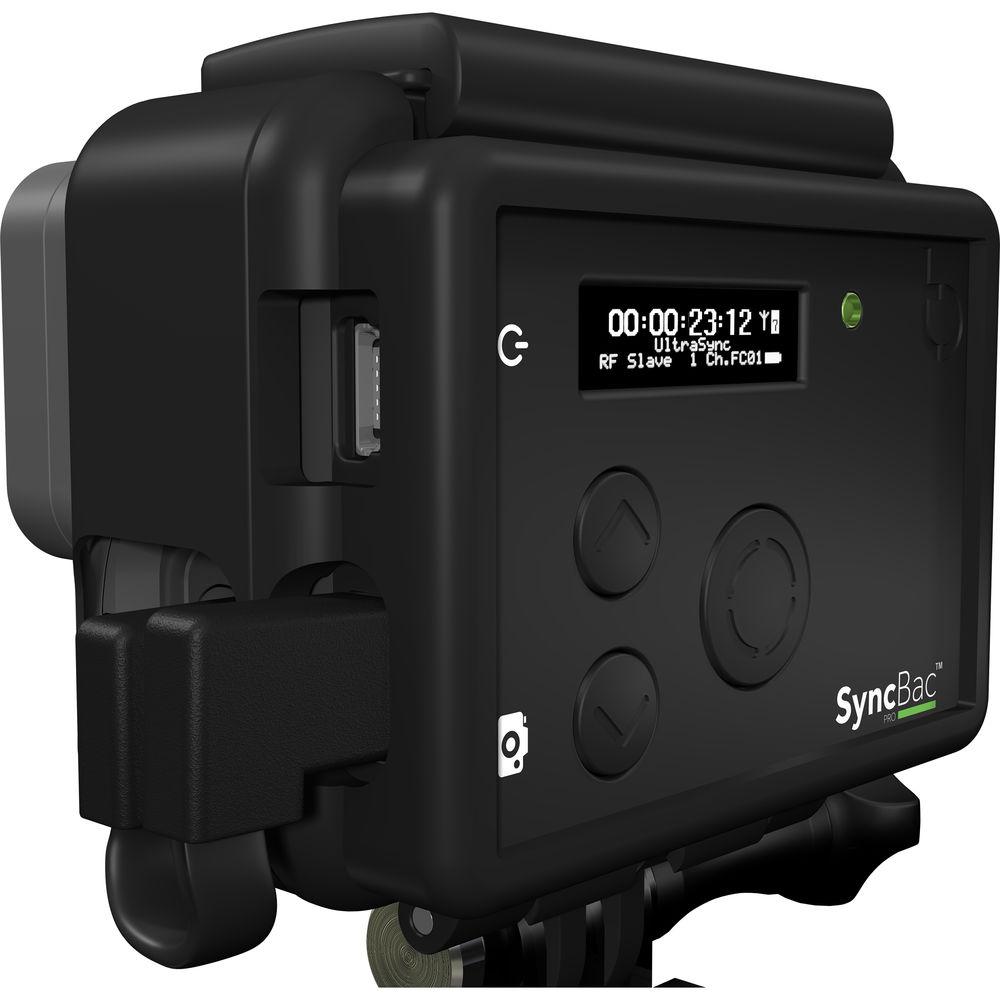

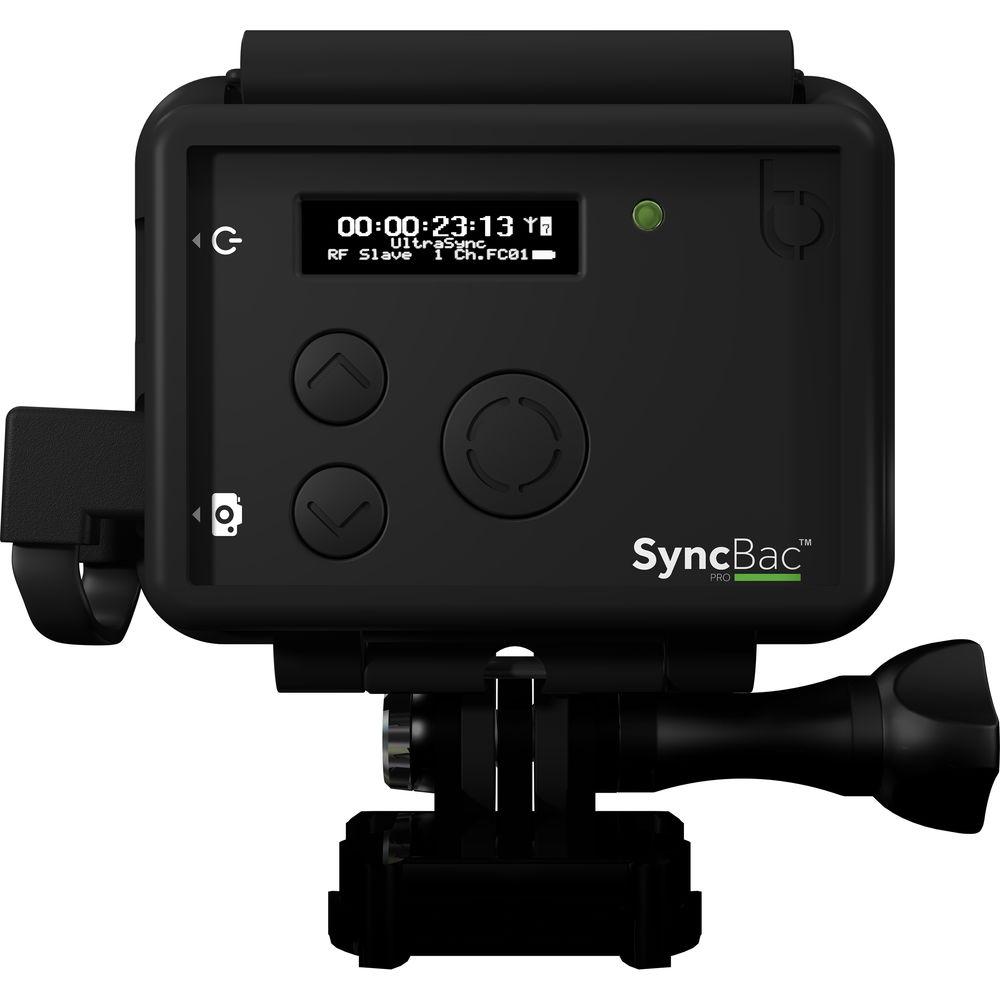

UPC: 708744010001 - SyncBac PRO for GoPro HERO7 Black & HERO6 Black As GoPro cameras continue to increasingly be used in all types of film and broadcast productions, Timecode Systems offers a solution that further enhances their compatibility with such projects. The SyncBac PRO for GoPro HERO7 Black & HERO6 Black allows the GoPro camera to generate frame-accurate timecode and thereby integrate into multicam workflows with other GoPros and professional cameras and audio gear.
Here's how it all works. If you want to timecode-sync two HERO7/HERO6 cameras, you just need a SyncBac PRO for each one, and the SyncBacs cause the cameras to record MP4 files with timecode embedded in the metadata. When recording is done, the files will be available on the cameras' SD cards. If you want to sync 10 GoPros, the process is the same. Altogether, up to 48 GoPros can be synced.
But if you also want to be able to control the cameras remotely, such as turn one on or off, you would need the optional Timecode Systems :pulse system, which allows for control as well as checking battery status (of the camera and SyncBac) using an accompanying iOS/Android BLINK Hub app over Wi-Fi. This additional system is useful for when you have your GoPros in a 360 rig. (SyncBac PRO for HERO7/HERO6 is compatible with 360RIZE 360 rigs. It doesn't add much size to the camera and fits perfectly into the 360RIZE rigs).
If you want to sync two or more HERO7/HERO6 cameras plus a pro camera and/or a pro audio product, you will need to incorporate the optional Timecode Systems UltraSync ONE. While the SyncBac PROs connect to the GoPros, the UltraSync ONE connects to your pro camera(s)/audio product(s). In this case, the UltraSync ONE will be the timecode master and will provide you with all your timecode. In this case too, if you want remote control, you will require the :pulse system. The UltraSync ONE comes with two cables, but there is a variety of other cables that are available for compatibility with most cameras (please see Accessories tab). For incorporating audio products only, you can use the optional Timecode Systems :wave.

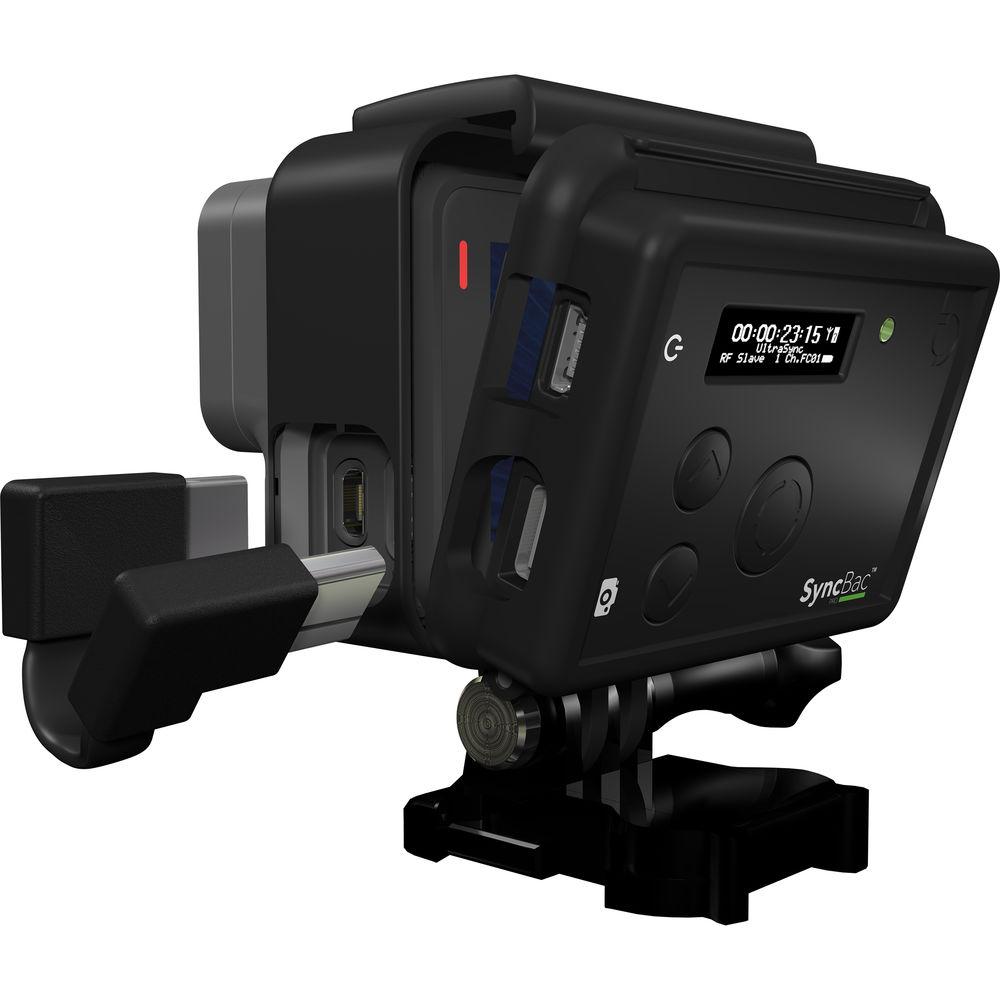

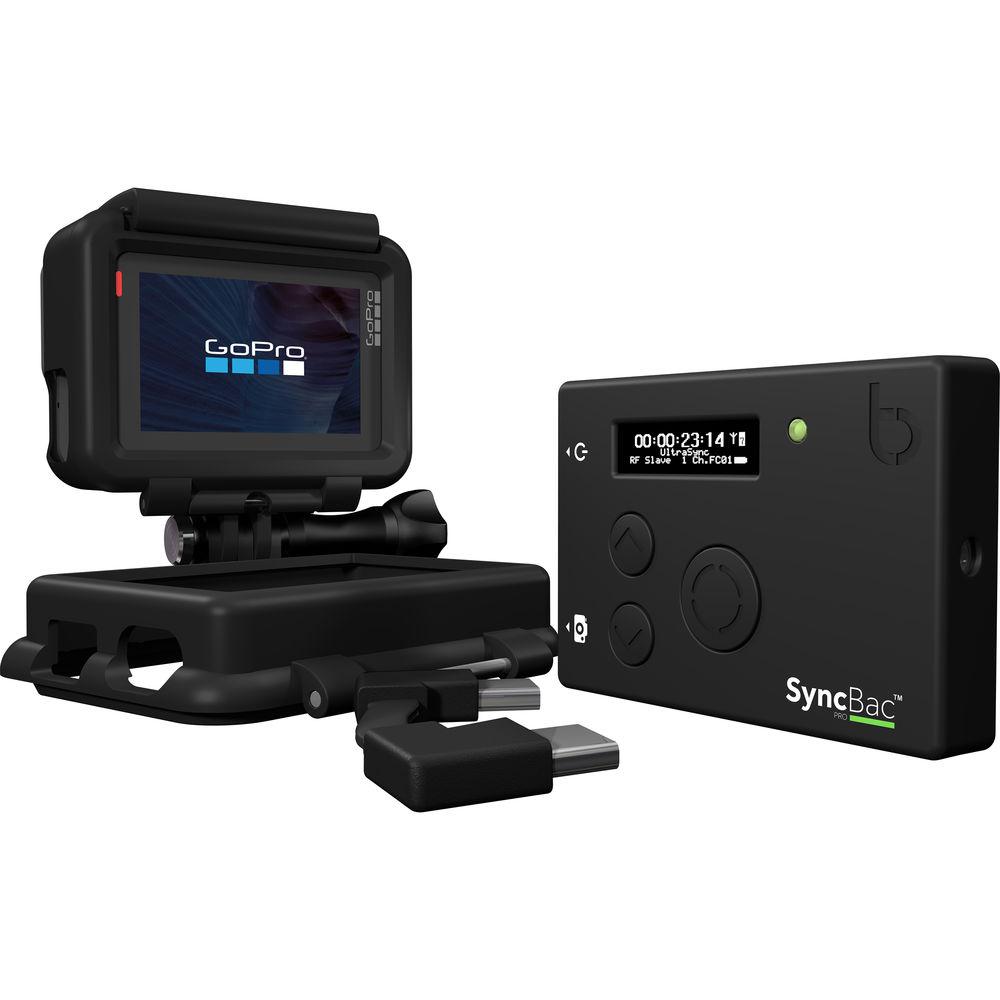

To set up your GoPro HERO7/HERO6 in the SyncBac PRO, insert the camera into the included SyncBac PRO Backdoor frame and connect the two using the supplied USB sync cable. - Key Features
-
- Sync two or more (up to 48) GoPro HERO7/HERO6 Black cameras
- Sync two or more HERO7/HERO6 cameras plus pro cameras and pro audio products (optional accessories required for the latter scenarios)
- Produces MP4 files with timecode embedded in the metadata (retrievable via the camera's SD card)
- Compatible with 360RIZE 360 rigs
- Optional Timecode Systems :pulse unit supported that allows for remote control of the camera and checking battery status over an iOS/Android app
- Approx. 650' range
- Supported frame rates: 23.976, 25, 29.97
UPC: 708744010063 In the Box Bundle Items :pulse Multifunctional Timecode & Metadata Hub & Device Control Center vxycvwveyxbwwdyfdctf 2 x SyncBac PRO for GoPro HERO7 Black & HERO6 Black Table of Contents
|
Upload User Manual
Have you got an user manual for the Timecode Systems :pulse 2 SyncBac PROs Bundle for GoPro HERO6 Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - :pulse Multifunctional Timecode & Metadata Hub & Device Control Center
| Display | Blue OLED: 128 x 32 pixel resolution | | Supported FPS Modes | 23.976, 24, 25, 29.97, 30, 29.97DF, 30DF | | Timecode Input | LEMO 5-pin connector | | Connectivity | Wired: Ethernet, USB, UART, RS-232, RS-422, LANC | | Frequency | 865 to 923 MHz, Worldwide ISM bands, 2.4 GHz 802.11g Wi-Fi | | Power | Backup LiPo rechargeable battery with 3 to 4 hours of operation
5 V micro-USB connector
LEMO2 9 to 36 VDC | | Timecode Output | 3 x Buffered outputs on BNC, LEMO 5-pin, and separate LEMO 9-pin connectors
Selectable Mic or Line output level on LEMO 5-pin | | Output Sync Modes | PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame, Word Clock 44.1, 48.2, 48, 96, 192 kHz | | Output Video Sync | 1 Vpp, 75 Ohms or 1 Vpp, 37.5 Ohms for High-Level Genlock mode (3D camera rigs) | | Dimensions (L x W x H) | 3.7 x 2.6 x 0.91" / 94 x 67 x 23 mm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 9.8 x 6.0 x 2.5" | - SyncBac PRO for GoPro HERO7 Black & HERO6 Black
| Interface | USB-C sync port (GoPro HERO7 Black and HERO6 Black compatible) | | File Type | MP4 | | Frequency | 865.050 - 923.200 MHz | | Range | Approx. 650' (200 m) | | Supported FPS Modes | 23.976, 25, 29.97 | | Display | 128 x 32 pixels OLED display | | Power | Mini USB (5 VDC) or built-in LiPo 3.7 V battery | | Dimensions | 1.6 x 2.4 x 0.4" (4 x 6 x 1 cm) | | Weight | 4 oz (113 g) | | | | Box Dimensions (LxWxH) | 7.1 x 4.2 x 1.4" |
