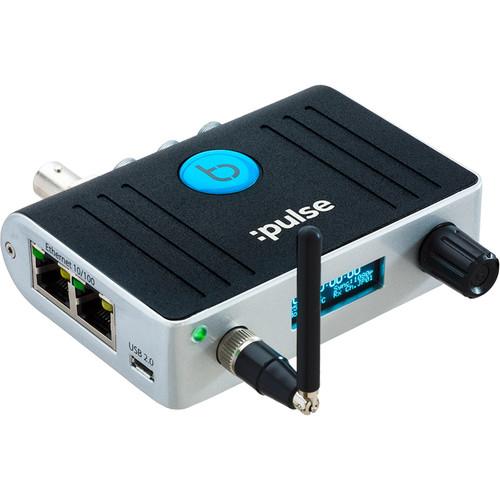

User Manual for Timecode Systems :pulse Multifunctional Timecode & Metadata Hub & Device Control Center Click to enlarge the picture
Contents of the user manual for the Timecode Systems :pulse Multifunctional Timecode &
- Product category: Time Code Generators & Readers Timecode Systems
- Brand: Timecode Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Timecode Systems Time Code Generators & Readers
 |
User manual for the Timecode Systems :pulse Multifunctional Timecode & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Timecode Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Timecode Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Timecode Systems product will considerably shorten its lifespan!
|

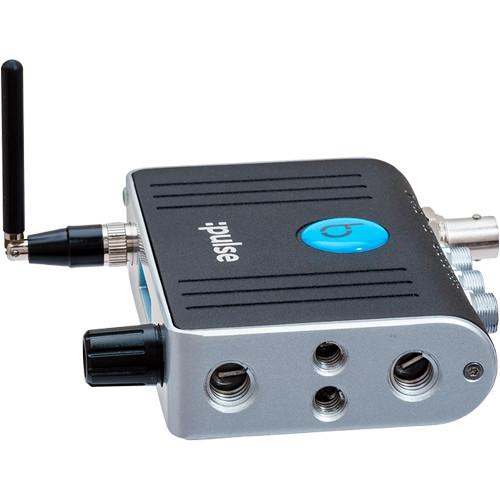

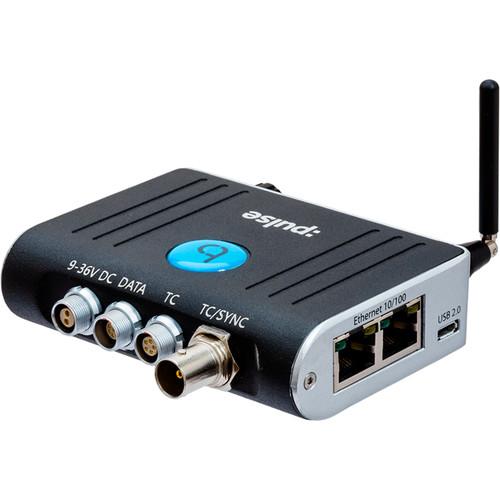

Product description The :pulse from Timecode Systems is a multifunctional timecode and metadata hub and device control center designed for multicamera setups that allow you to view, monitor, and control any B:LINK-enabled device and compatible camera or audio device from a smartphone, tablet, or computer. It can be used to provide a zero-drift timecode and genlock sync for video and film applications.The large-capacity LiPo internal battery is constantly charged from any of the power inputs and will run the unit for a minimum of 3 to 4 hours with RF, Wi-Fi, and Ethernet switched on. It is suitable for camera battery swaps or location moves.Additionally, the :pulse has a solid aluminum casing and features a high-resolution blue OLED display. It offers flexible mounting methods and multiple powering options and can be configured as either an RF slave device or a master device. - The Mini Base Station
- Add the mini base station to your multicamera setup and experience the full benefits of the B:LINK protocol. Monitor and control any B:LINK-enabled device or compatible camera and audio devices from your smartphone, tablet, or computer, all while providing accurate zero drift timecode and genlock for your production
- User-Friendly Features
- The :pulse also has a solid aluminum casing and features a high-resolution blue OLED display, flexible mounting methods, and multiple powering options. It has UART, RS-232/RS-422 connectivity, Ethernet/Wi-Fi/USB connectivity, and simultaneous long-range RF sync and B:LINK networking features
- Zero Drift Between Units
- Configured as an RF slave device, the :pulse's timecode and sync generator is soft-jammed twice a second via the long-range robust ISM band RF, meaning zero drift between units. The B:LINK network allows the :pulse to either operate as a B:LINK master device or a B:LINK slave device
UPC: 708744010001 In the Box Timecode Systems :pulse Multifunctional Timecode & Metadata Hub & Device Control Center USB Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Timecode Systems :pulse Multifunctional Timecode & Metadata Hub & Device Control Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTimecode Systems :pulse Specs | Display | Blue OLED: 128 x 32 pixel resolution | | Supported FPS Modes | 23.976, 24, 25, 29.97, 30, 29.97DF, 30DF | | Timecode Input | LEMO 5-pin connector | | Connectivity | Wired: Ethernet, USB, UART, RS-232, RS-422, LANC | | Frequency | 865 to 923 MHz, Worldwide ISM bands, 2.4 GHz 802.11g Wi-Fi | | Power | Backup LiPo rechargeable battery with 3 to 4 hours of operation
5 V micro-USB connector
LEMO2 9 to 36 VDC | | Timecode Output | 3 x Buffered outputs on BNC, LEMO 5-pin, and separate LEMO 9-pin connectors
Selectable Mic or Line output level on LEMO 5-pin | | Output Sync Modes | PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame, Word Clock 44.1, 48.2, 48, 96, 192 kHz | | Output Video Sync | 1 Vpp, 75 Ohms or 1 Vpp, 37.5 Ohms for High-Level Genlock mode (3D camera rigs) | | Dimensions (L x W x H) | 3.7 x 2.6 x 0.91" / 94 x 67 x 23 mm | | Weight | 8.1 oz / 230 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.8 x 6.0 x 2.5" |
