User Manual for Timecode Systems UltraSync BLUE Bluetooth Timecode Sync Solution Click to enlarge the picture
Contents of the user manual for the Timecode Systems UltraSync BLUE Bluetooth Timecode
- Product category: Time Code Generators & Readers Timecode Systems
- Brand: Timecode Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Timecode Systems Time Code Generators & Readers
 |
User manual for the Timecode Systems UltraSync BLUE Bluetooth Timecode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Timecode Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Timecode Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Timecode Systems product will considerably shorten its lifespan!
|

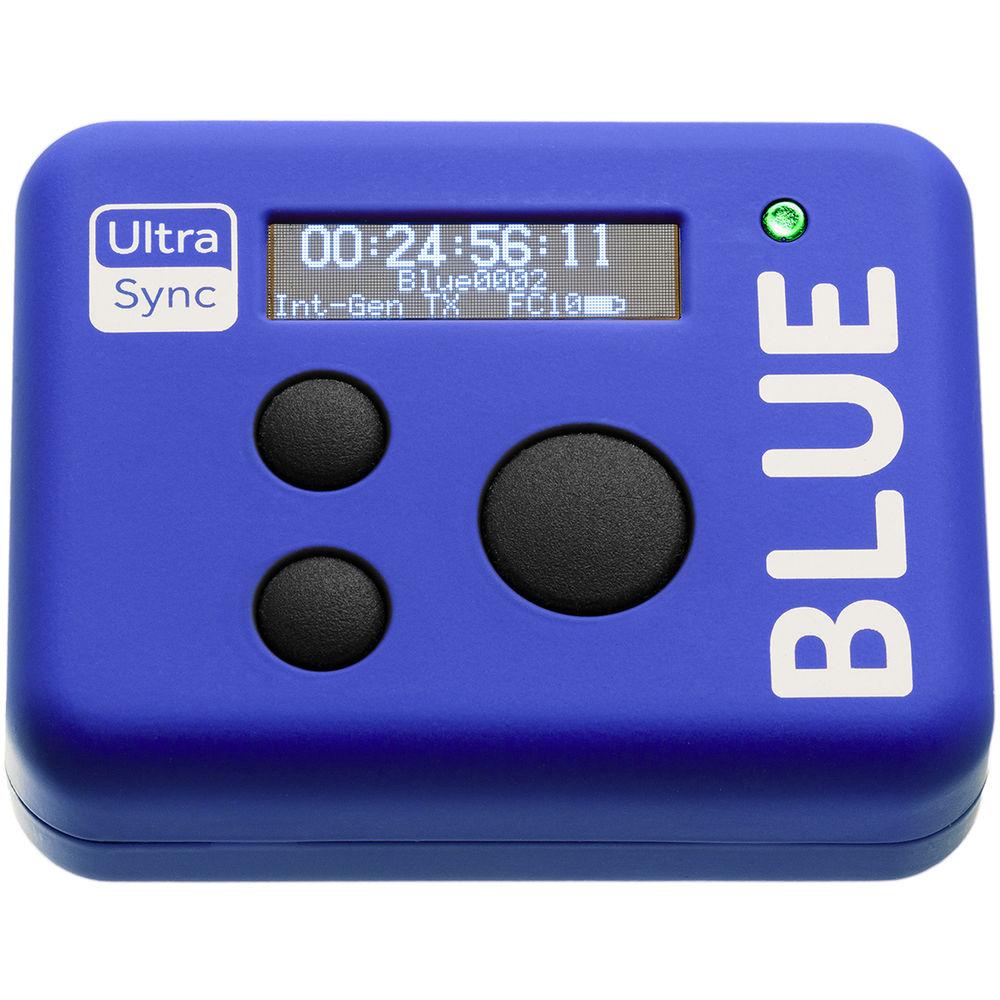

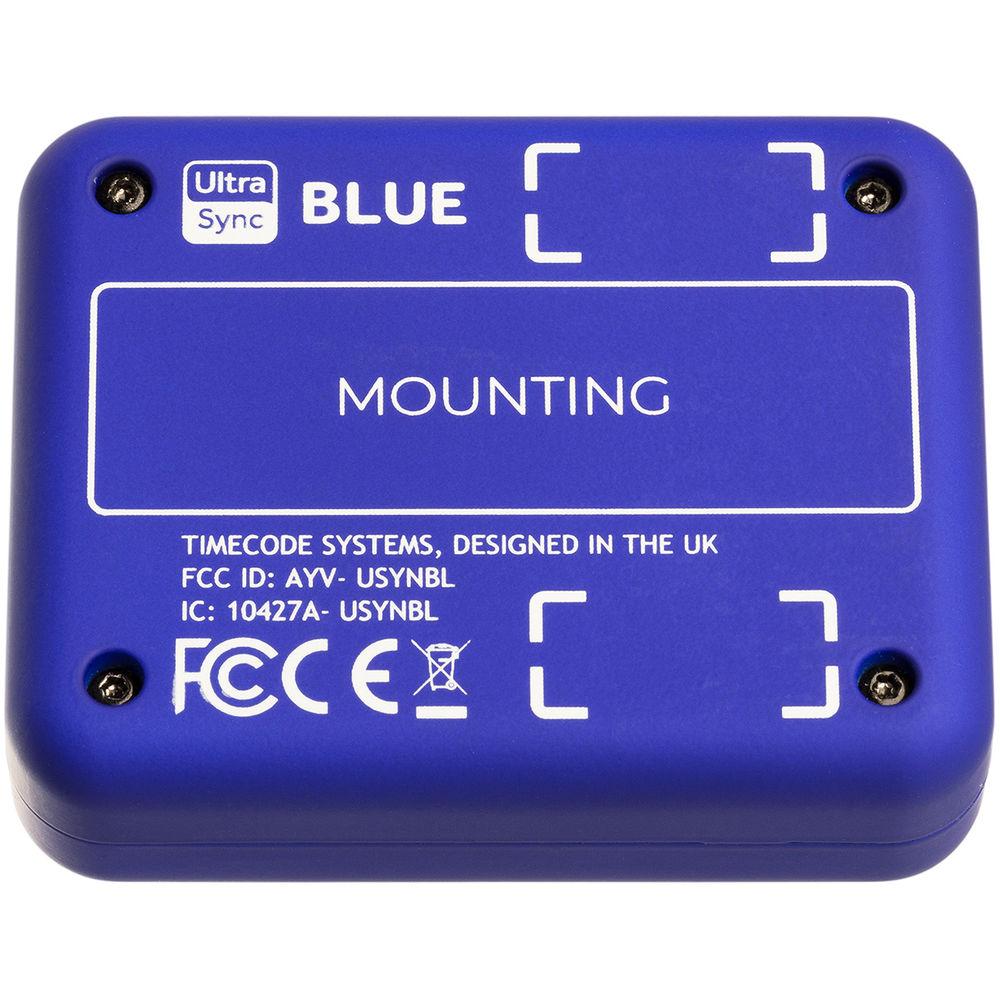

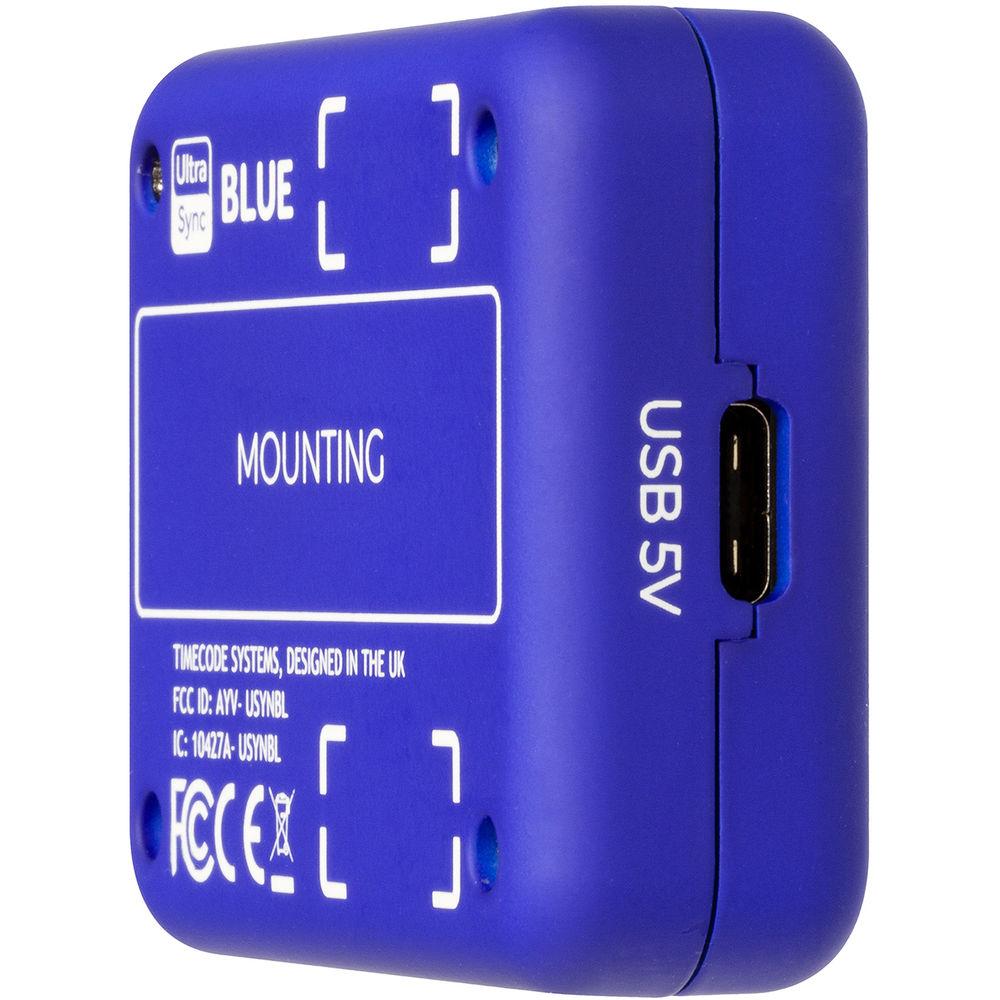

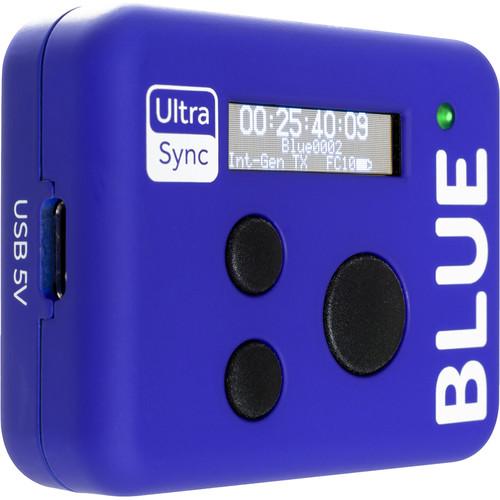

Product description Sync timecode between your iPhones, audio recorders, and professional, DSLR, VR, or GoPro cameras over Bluetooth with the UltraSync BLUE Bluetooth Timecode Sync Solution from Timecode Systems. Sync up to four devices with a single BLUE over Bluetooth within a range of 33', or connect multiple BLUEs over BLINK RF up to 656' (line-of-sight) from each other to sync timecode on even more cameras and audio gear.
The UltraSync BLUE automatically senses your Bluetooth device on startup and will sync to RF devices on the same channel within the 865.050 to 923.200 MHz range. The built-in battery provides approximately 20 hours of runtime and is charged with the included USB-C cable. The BLUE's small form factor allows you to mount it anywhere—it even fits in your pocket—and the bright LED screen displays timecode and status. Blink Hub software can be run on any Mac, smartphone, or tablet to monitor and sync the units connected on your RF or Bluetooth networks. - Cable-free timecode sync between iPhones, audio recorders, and professional, DSLR, VR, or GoPro cameras over Bluetooth or BLINK RF
- Sync up to four devices via Bluetooth within 33' of the unit, or sync multiple BLUE units over BLINK RF up to 656' line-of-sight from each other to add even more timecode devices
- Connect to the BLINK Hub app with a BLINK-capable master to status monitor, control, and customize the settings of UltraSync BLUE units on your network remotely from any smartphone, tablet, or Mac
- The BLUE unit automatically senses Bluetooth timecode devices on startup
- Built-in battery lasts approximately 20 hours on a single charge
- A USB-C cable is included to charge the UltraSync BLUE and for firmware upgrades
UPC: 708744010070 In the Box Timecode Systems UltraSync BLUE Bluetooth Timecode Sync Solution USB-C Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Timecode Systems UltraSync BLUE Bluetooth Timecode Sync Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTimecode Systems ULTRASYNC BLUE Specs | External Power | USB-C, 5 VDC | | Battery | Built-In: 800 mAh LiPo, 3.7 V, 2.96 Wh
Charge Time: 3.5 hours, approximately
Runtime: 20 hours, approximately | | Display | OLED, 128 x 32 pixels | | Supported Frame Rates | 30, 29.97, 25, 24, 23.98
Drop Frame: 30, 29.97 | | Bluetooth Range | 33' / 10 m, BLE low-energy range | | Frequencies Supported | 865.050 to 923.200 MHz | | RF Range | 656' / 200 m, line of sight | | Dimensions | 2.2 x 1.7 x 0.7" / 5.5
Rating50% users recommend this product to others. And what about you?
